High performance chimney lining maker Foamed Borosilicate Cellular Glass Block
Product Description
Brief Introduction of Borosilicate Cellular Glass Block
HUAYUE® CL200 Foamed Borosilicate Glass Block is a closed-cell borosilicate glass block. It is offered in 6- and 9-inch (150 and 225 mm) modules, with standard thicknesses of 1.5 or 2 inches (38 or 51 mm).
Features
• Protects from acid condensate corrosion;
• Excellent insulation even in saturated flue gas;
• Suitable for scrubbed, reheat and bypass gas conditions;
• Apply to steel, concrete, gunite, ceramic brick, fiber and glass reinforced plastic (FRP/GRP), and rubber membranes;
• Low thermal expansion;
• Low thermal conductivity;
• Virtually impermeable;
• The system is capable of bridging cracks in concrete and ceramic brick substrates;
• Suitable for vertical and overhead application;
• Lightweight, easy to cut;
• HUAYUE Block Lining System is Factory Mutual Approved as a chimney and flue liner.
• Protects from acid condensate corrosion;
• Excellent insulation even in saturated flue gas;
• Suitable for scrubbed, reheat and bypass gas conditions;
• Apply to steel, concrete, gunite, ceramic brick, fiber and glass reinforced plastic (FRP/GRP), and rubber membranes;
• Low thermal expansion;
• Low thermal conductivity;
• Virtually impermeable;
• The system is capable of bridging cracks in concrete and ceramic brick substrates;
• Suitable for vertical and overhead application;
• Lightweight, easy to cut;
• HUAYUE Block Lining System is Factory Mutual Approved as a chimney and flue liner.
Typical Physical Properties of Borosilicate Cellular Glass Block
Items | Specification | Test Method |
Density (Kg/m3) | 200 ± 10% | |
Compressive strength (N/mm2) | ≥ 1.1 | ASTM C 165 |
Bending strength (N/mm2) | ≥ 0.8 | ASTM C 203 |
Water Vapor Permeability | None | |
Coefficient of Linear Thermal Expansion (10-6/℃) | ≤ 5.5 | ASTM E 228 |
Thermal conductivity (W/m·K), @ 100℉ | ≤ 0.087 | ASTM C 518 |
Maximum Service temperature (℃) | 250 ~ 350 |
Specifications of Borosilicate Cellular Glass Block
Main composition | Borosilicate glass |
Color | Black |
Trade Mark | CL200 Block |
Package | 60 blocks/carton, 1.5″(38mm) 44 blocks/carton, 2″(51mm) |
Size | 6″(152mm)×9″(229mm)×1.5″(38mm) 6″(152mm)×9″(229mm)× 2″(51mm) |
Application of Borosilicate Cellular Glass Block
Uses
• Centerpiece component of the HUAYUE Block Lining System. Normally used with a substrate primer and Adhesive/Membrane.
• Offers a unique approach to protect flue gas handling equipment such as ductwork, chimneys and scrubber inlets and outlets found in coal fired power plants and other industrial facilities.
• Used in hot process vessel applications. Low thermal conductivity reduces heat transfer to the underlying substrate. A 1-inch (25 mm) thickness may replace up to 10 inches (250 mm) of dense acid brick components in reducing the heat transfer to the substrate.
• Centerpiece component of the HUAYUE Block Lining System. Normally used with a substrate primer and Adhesive/Membrane.
• Offers a unique approach to protect flue gas handling equipment such as ductwork, chimneys and scrubber inlets and outlets found in coal fired power plants and other industrial facilities.
• Used in hot process vessel applications. Low thermal conductivity reduces heat transfer to the underlying substrate. A 1-inch (25 mm) thickness may replace up to 10 inches (250 mm) of dense acid brick components in reducing the heat transfer to the substrate.
Company Profile
Why Choose Us
1. Full series thermal heat insulation products, including cellular glass insulation, rubber foam insulation, glass wool insulation, rock wool insulation, XPS, etc.;
2. Stock sale, place the order and delivery immediately for the regular specification;
3. Top quality in the China thermal heat insulation supplier and manufacturer;
4. Reasonable and competitive price, fast lead time;
5. Deliver customized whole solution package to our customer. Welcome to contact us and visit our company and factories at any time!
Certifications
HUAYUE® Foam Cellular Glass insulation materials has obtained FM and ASTM certification of the US, BS476 part 6 & part 7, CE and ISO14001, ISO9001, OHSAS18001 certificate etc.
Quality Control
Quality Assurance
HUAYUE maintains a stringent system of QC, in all its operation by its professional QC staff. We have 6 quality control engineers and test chemists.
We have our own test laboratory. HUAYUE cellular glass heat insulation has been inspected by HUAYUE's Professional Quality Inspectors.
From each batch of raw materials, mid-products to end insulation materials, whole process would be validated by Huayue's Quality Assurance system. This will assure our customers that all materials have been tested and meet our high standards of quality assurance.

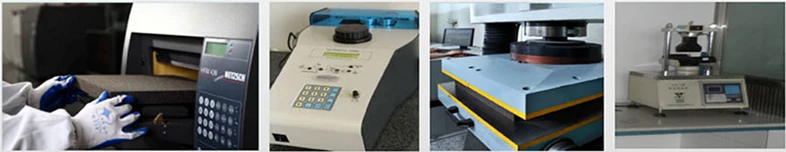

Testing equipment and instruments can conduct a comprehensive chemical analysis of inorganic non-metallic raw materials, and can detect the physical properties of the finished product to ensure product quality.

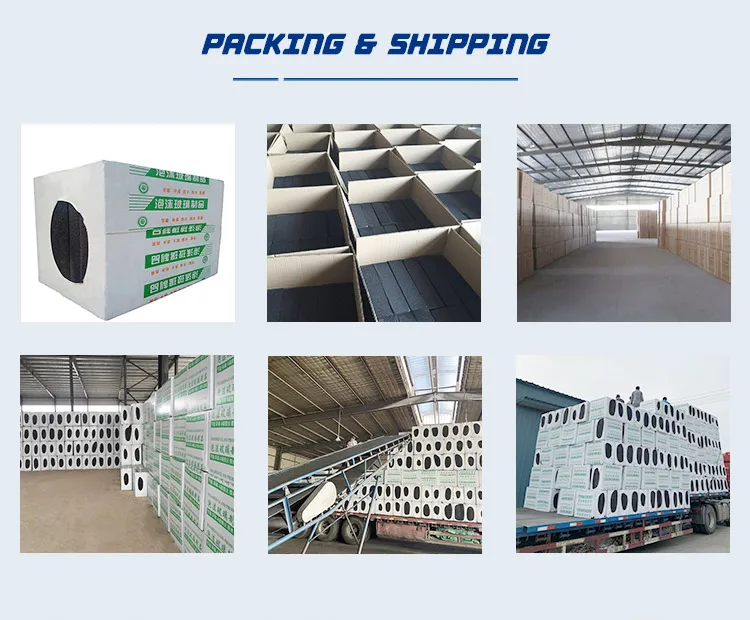

Packaging and Shipping
All products will have been strictly quality checked in house before packing. All products will be well packed before shipping. We accept OEM and ODM.
Exhibition
FAQ
Q: Are you manufacturer or trade company?
A: We are professional manufacturer of thermal insulation material, more than 22 Years.
A: We are professional manufacturer of thermal insulation material, more than 22 Years.
Q: Do you accept sample order?
A: Sample order is acceptable. We can offer free sample, sample can be sent within 1~3 days after freight payment confirmed.
A: Sample order is acceptable. We can offer free sample, sample can be sent within 1~3 days after freight payment confirmed.
A: We are in compliance with CE, BS476, FM, ISO9001, ISO14001, OHSAS18001 certificate etc. Our products have excellent chemical, physical features and stability.
Q: What services can Huayue provide？
A: * Any inquires will be replied within 0-1 hours.
* We are professional manufacturer. Welcome to visit our company and factories at any time!
* Any your idea on the packing we can help you to design and put into production. Customized product is available.
* High quality, reasonable and competitive price, fast lead time.
* All products will have been strictly quality checked in house before packing.
* All products will be well packed before shipping. Sample order prepared, just 3-10 days for arriving at your address.
* Any your idea on the packing we can help you to design and put into production. Customized product is available.
* High quality, reasonable and competitive price, fast lead time.
* All products will have been strictly quality checked in house before packing.
* All products will be well packed before shipping. Sample order prepared, just 3-10 days for arriving at your address.
Q: What is Huayue's inspection process for cellular glass ?
A: Raw Material Inspection - Production Process Inspection - Factory Inspection - Parallel Sample Tracking System.
Q: What’s the delivery time of 1x40HQ container loading order?
A: Within 3-20 days after receipt of prepayment.
We'll give you prompt reply within 0-1 hours！
