Product Description
Construction Machinery Small Dry Electric Shotcrete Spray Refractory Gunning Gunite Machine
Introduction of Construction Small Dry Electric Shotcrete Spray Refractory Gunning Gunite Machine

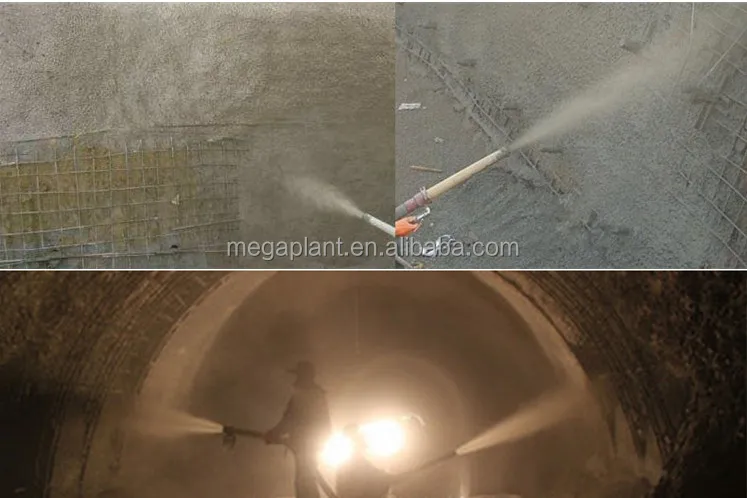

Our Shotcrete machine has a large output with 5m3/h, which is specifically designed for refractory dry mix shotcrete applications.Which are mainly used for railway and highway, subterranean basement walls, Seismic reinforcing/ retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete, mining, tunnel, culvert, subway, hydropower engineering(such as tunnels,dams and pools) and underground excavation engineering etc.There is wet and dry type,the driven engine can be electric motor,diesel engine or air motor.Except for 5m3/h,there is also 2~3 m3/h and 7-8m3/h.And there is also explosion-proof type which normally used under shaft.
Specifications of Small Dry Electric Shotcrete Spray Refractory Gunning Gunite Machine
Model | MG-DS3 | MG-DS5 | MG-DS9 |
Output | 2~3 m3/h | 4.5~5.5 m3/h | 7.5~8.5 m3/h |
Max.conveying dist. | 200 m | 200 m | 100 m |
cement ratio | < 0.4 | < 0.4 | < 0.35 |
Max.aggregate size | 15 mm | 20 mm | 20 mm |
Hose inner diameter | φ42/51 mm | φ51 mm | Φ57 mm |
Operating air pressure | 0.2-0.6 Mpa | 0.2-0.6 Mpa | 0.2-0.6 Mpa |
Air consumption | 5-6 m3/min | 7-8 m3/min | 9-10 m3/min |
Motor power | 3 KW | 5.5 KW | 7.5 KW |
Dimensions | 1400×780×1020mm | 1520×820×1280mm | 1520×820×1350mm |
Weight | 350kg | 600kg | 850kg |

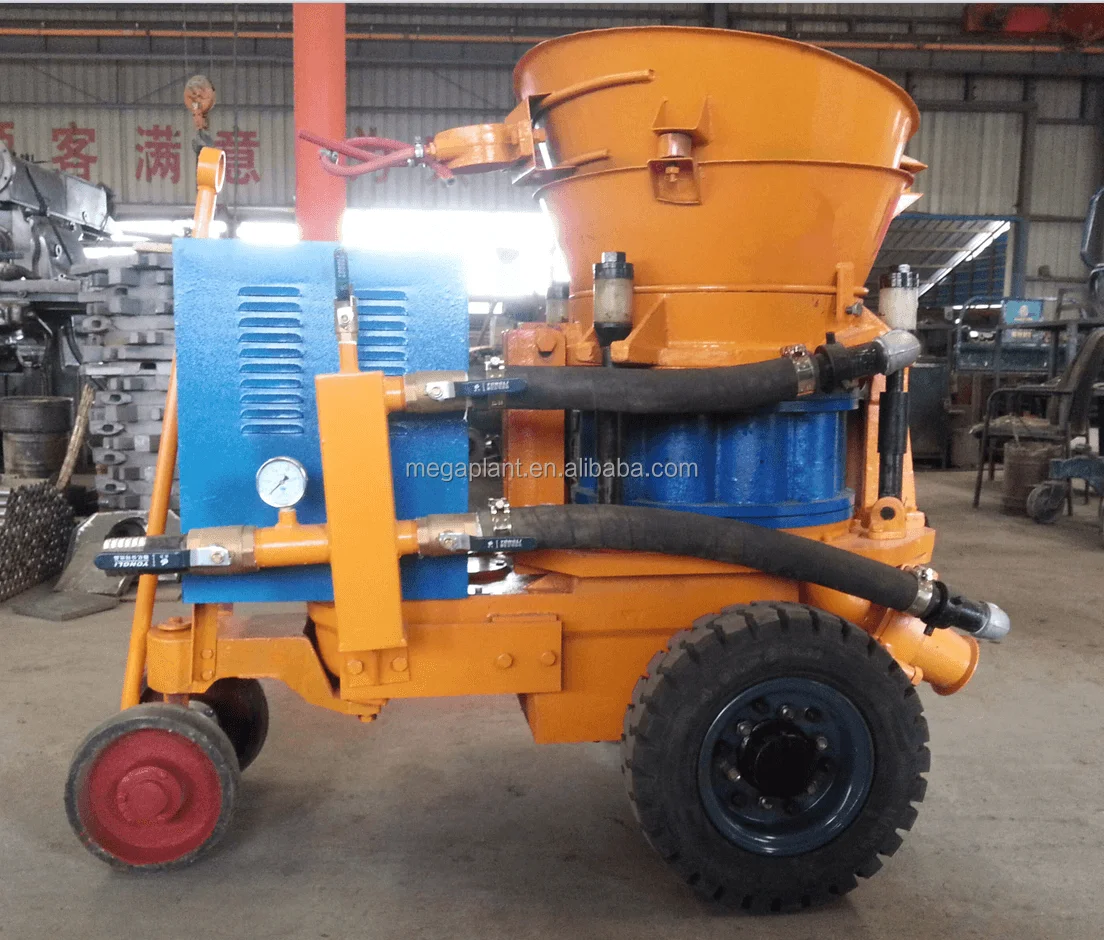

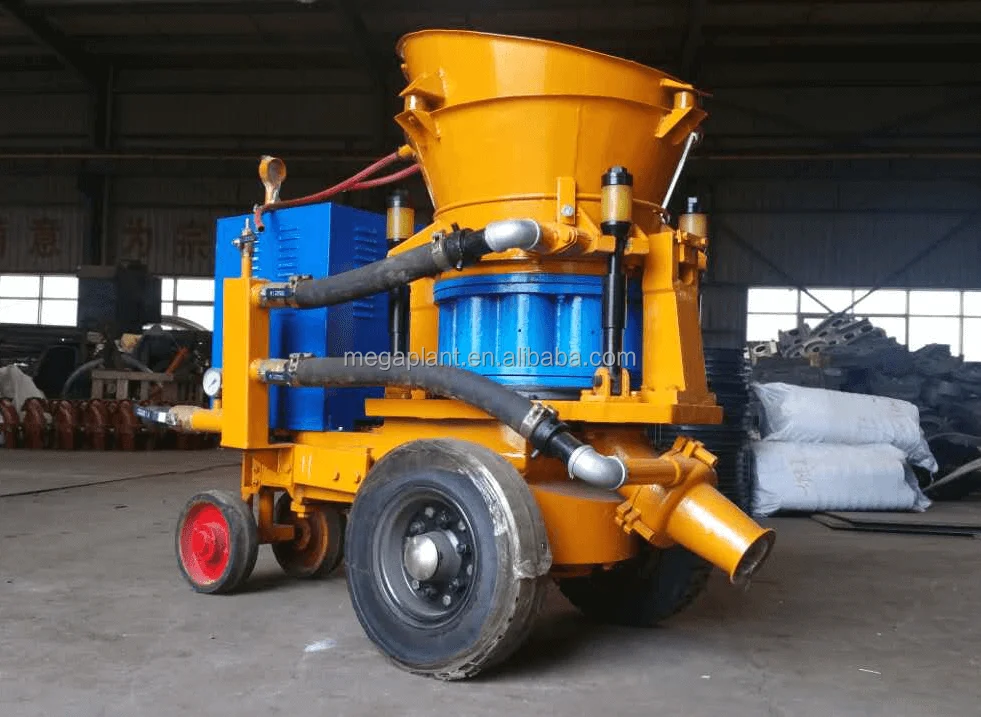

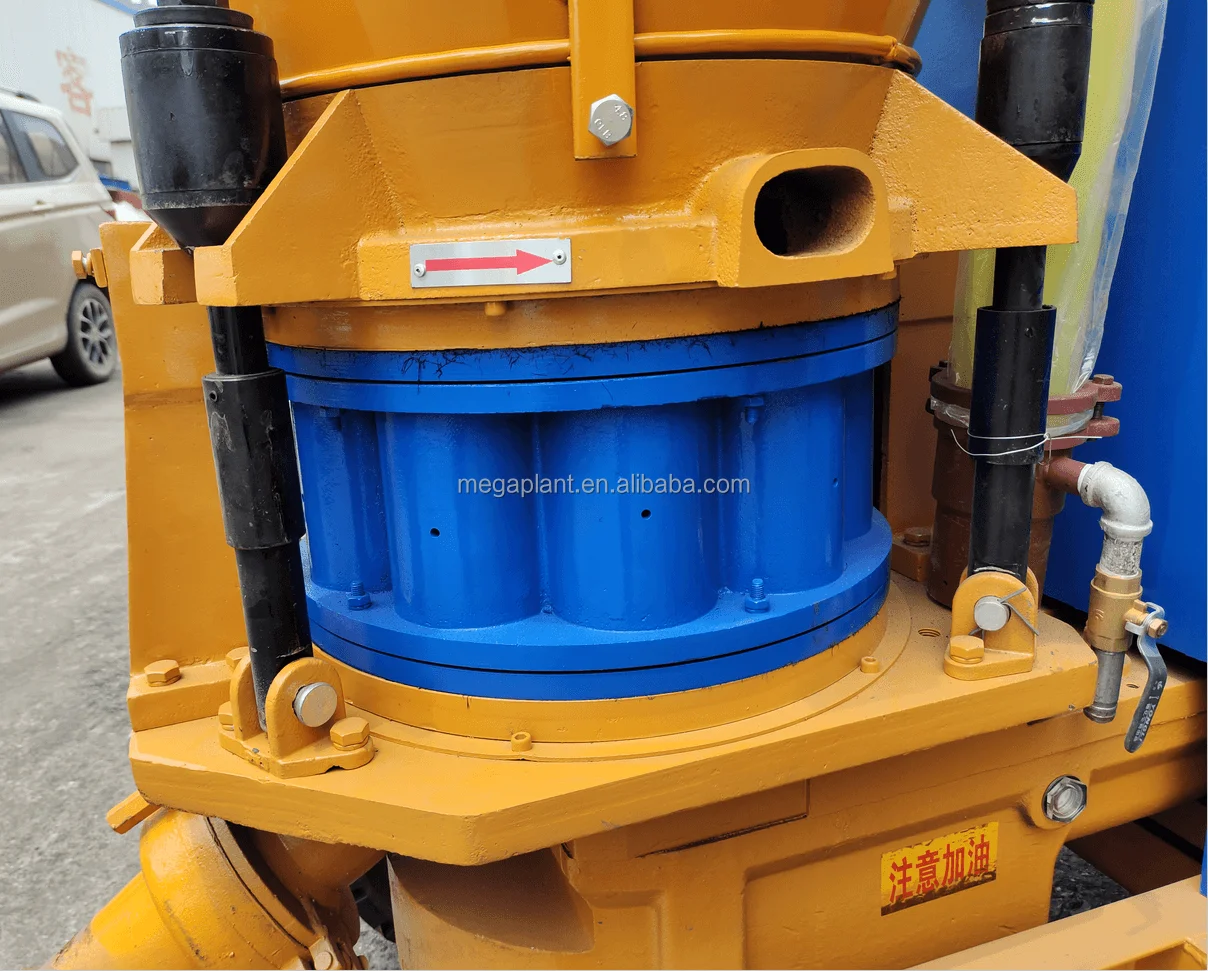

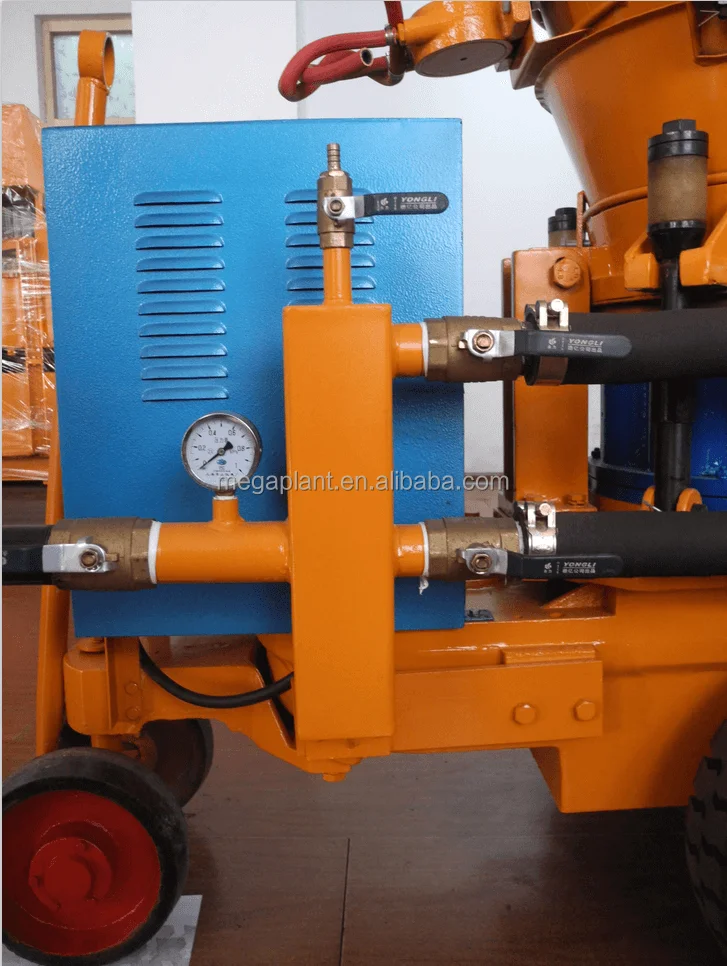

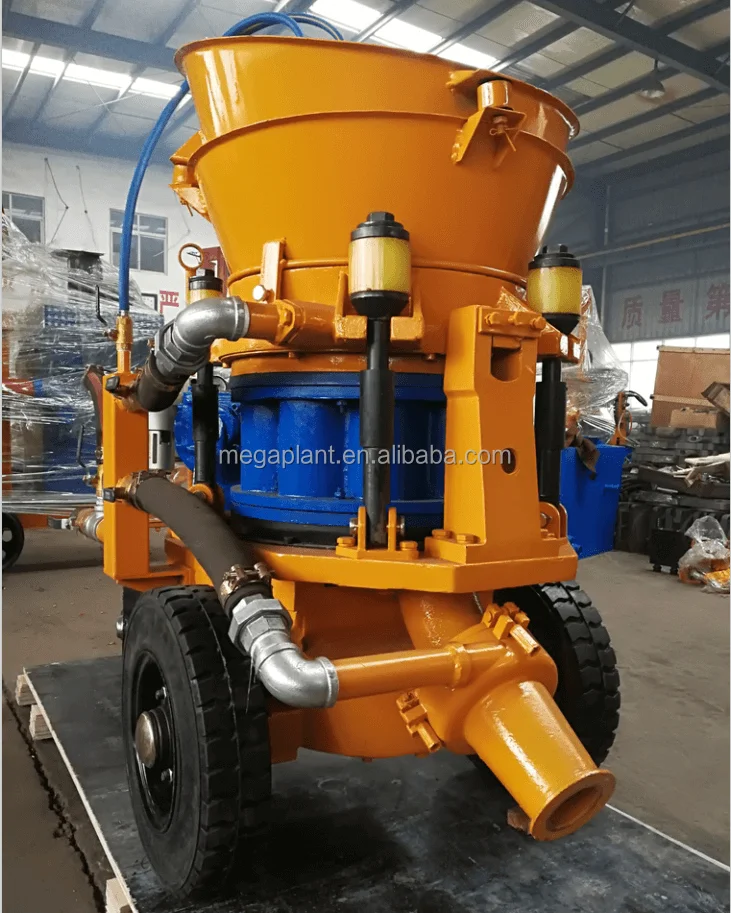

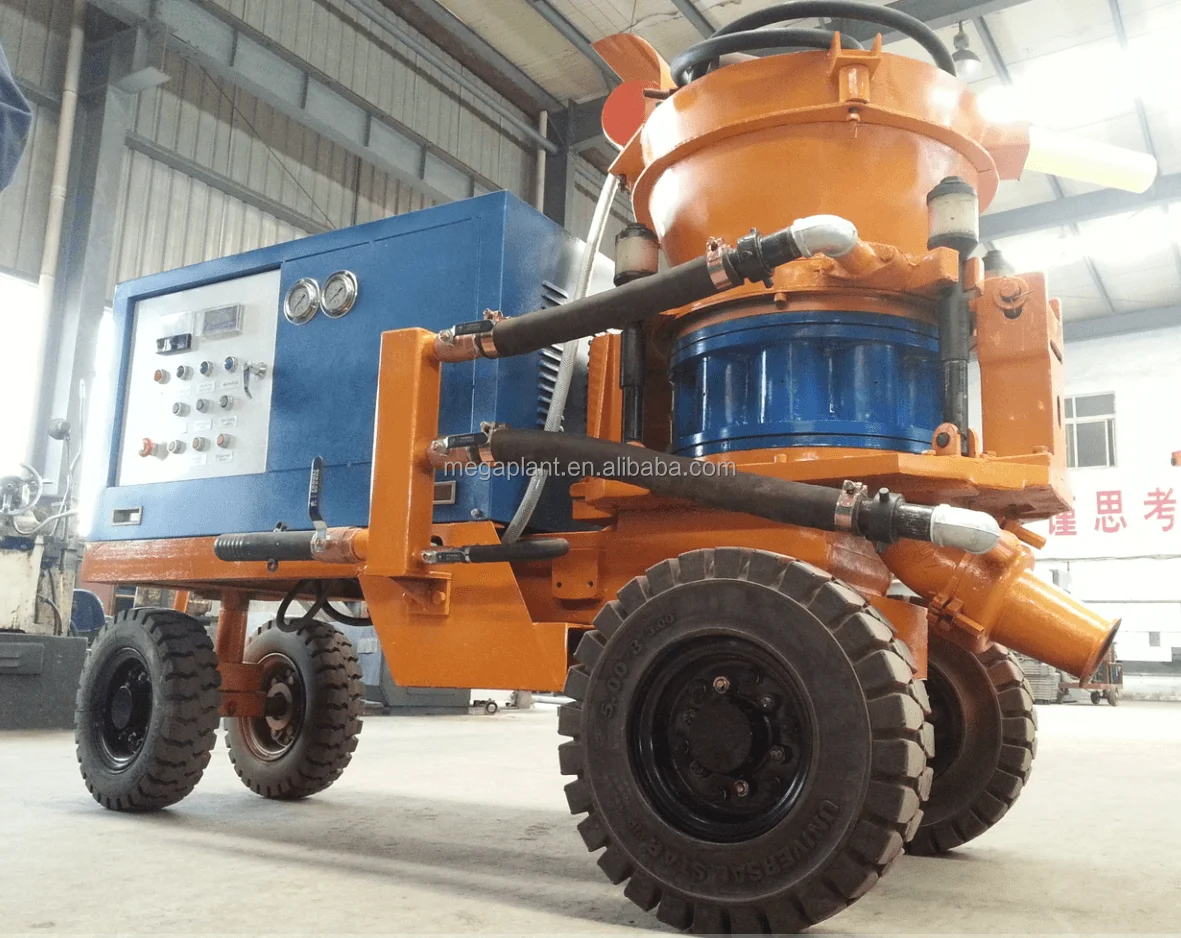

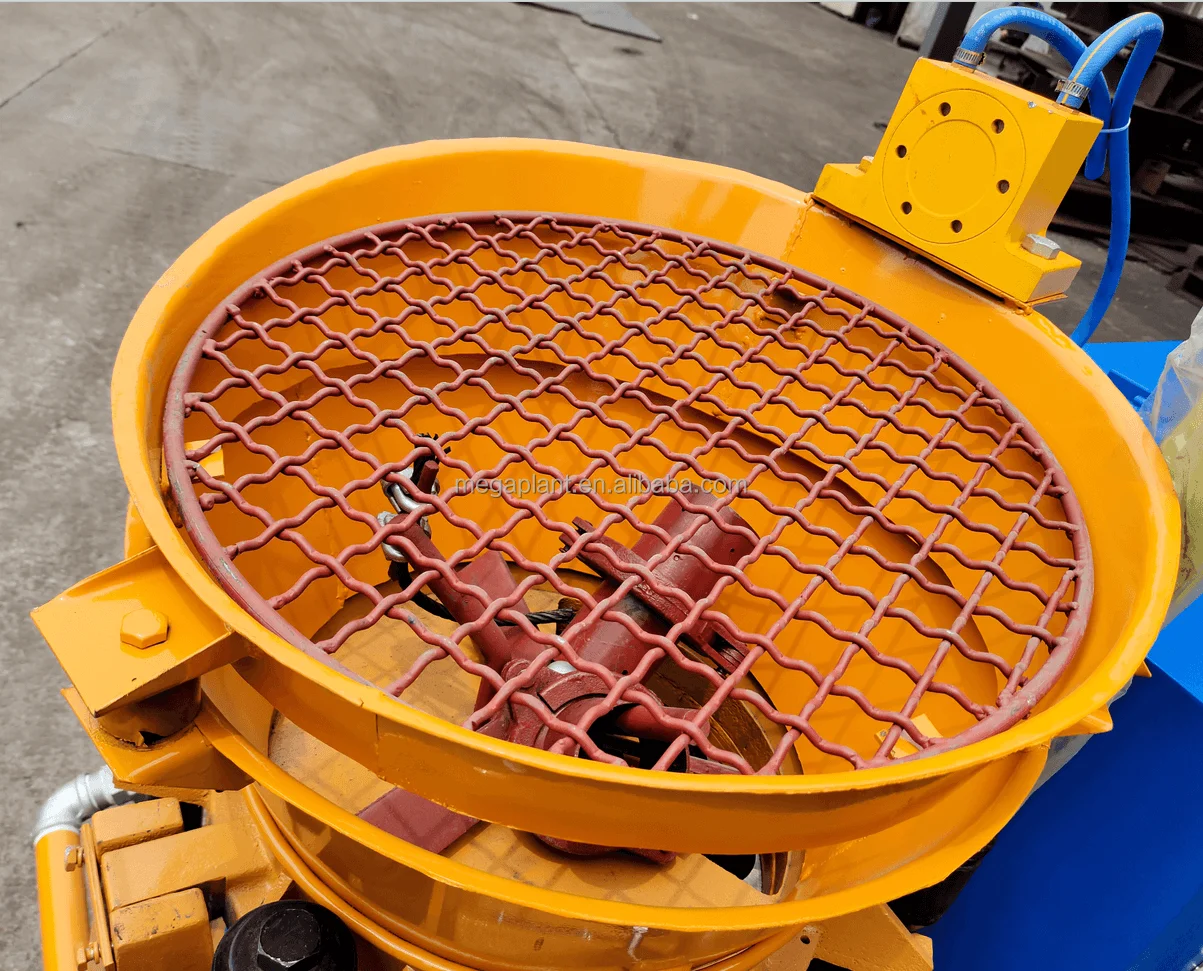

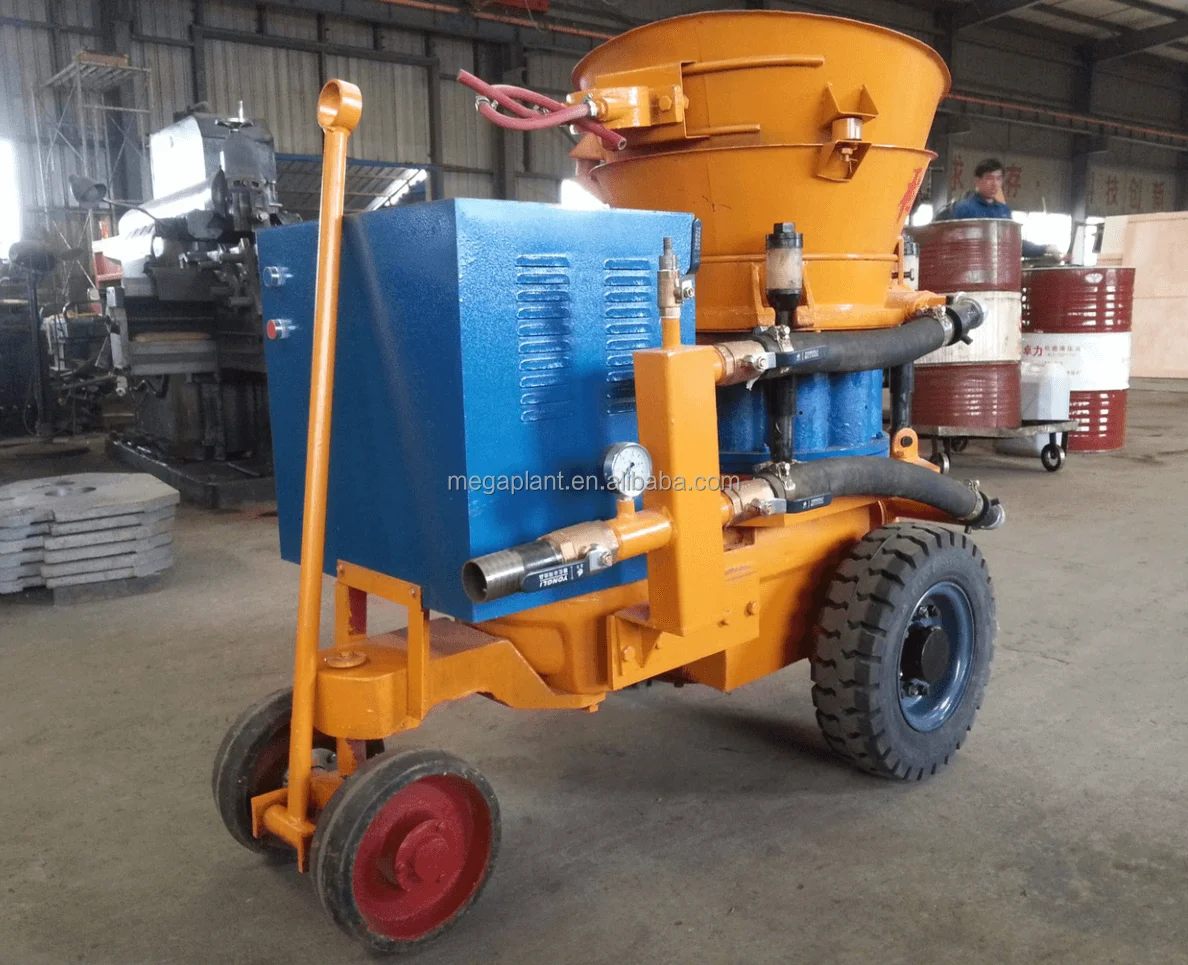

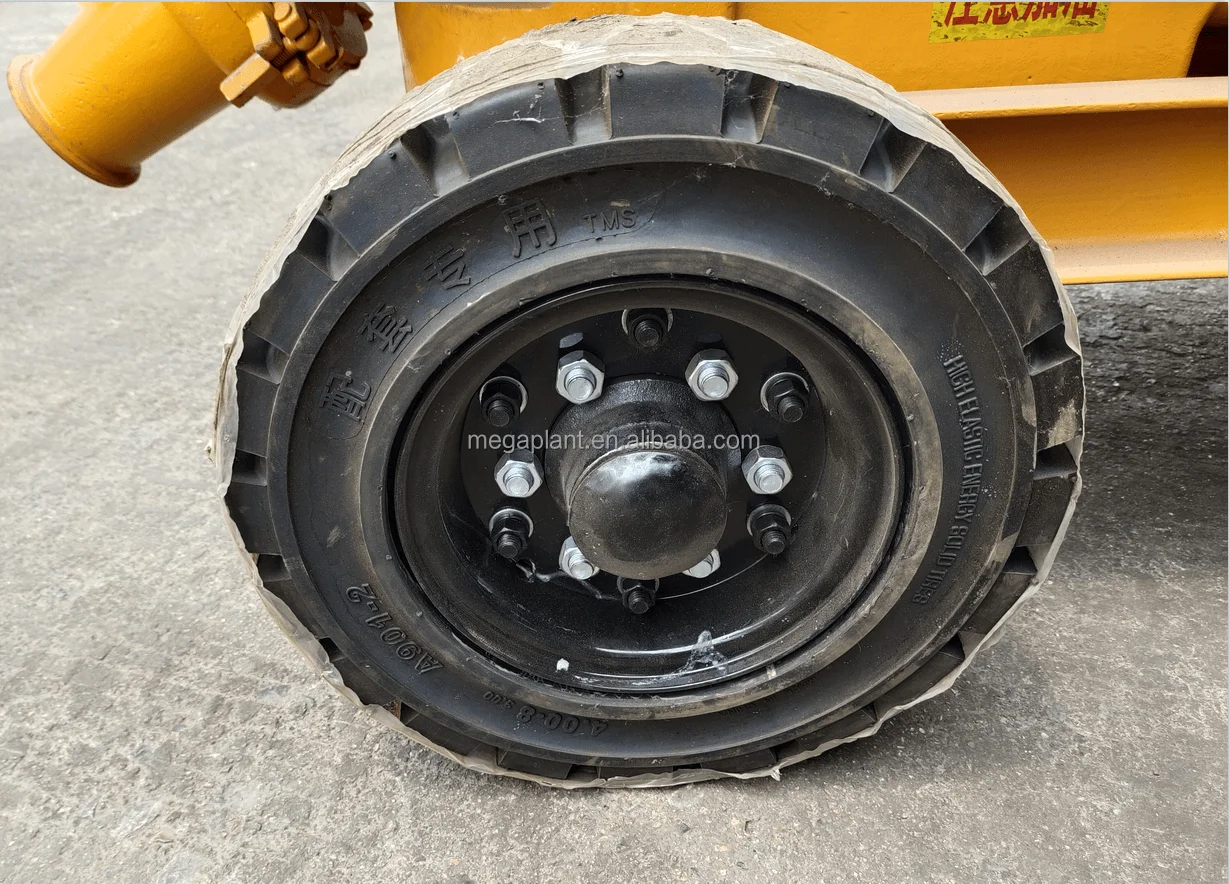

Detailed Photos of Small Dry Electric Shotcrete Spray Refractory Gunning Gunite Machine
Related Products:

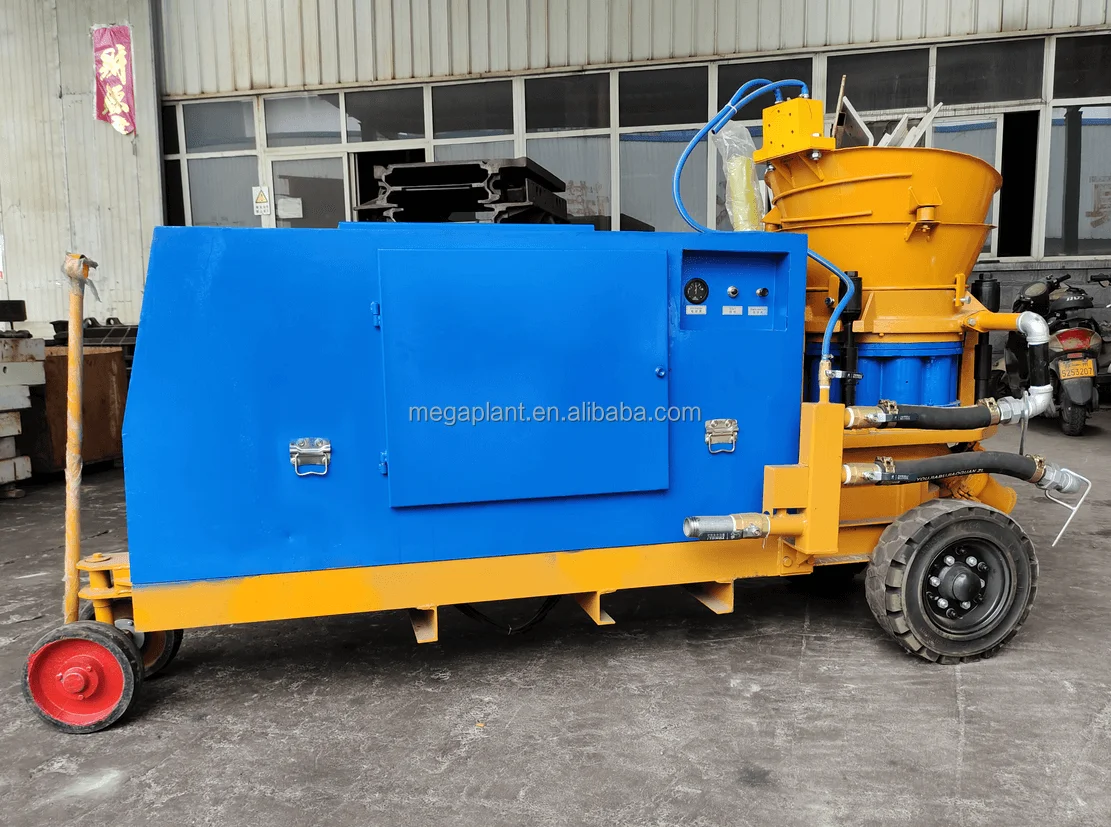

Electric Wet Shotcrete Machine/Gunite machine
Diesel Driven Type Shotcrete Machine/Gunite machine
Air Driven Type Shotcrete Machine/Gunite machine
Packing & Delivery
Package:
Wooden Crate or Pallet or bare package in standard containers for export;
Shipment:
All machines will be sent by sea, if you need other kind of transportation, please inform us in advance.
And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
