Фрезерный станок хобби с ЧПУ XH7125, фрезерный станок с ЧПУ
US $14900-$15300

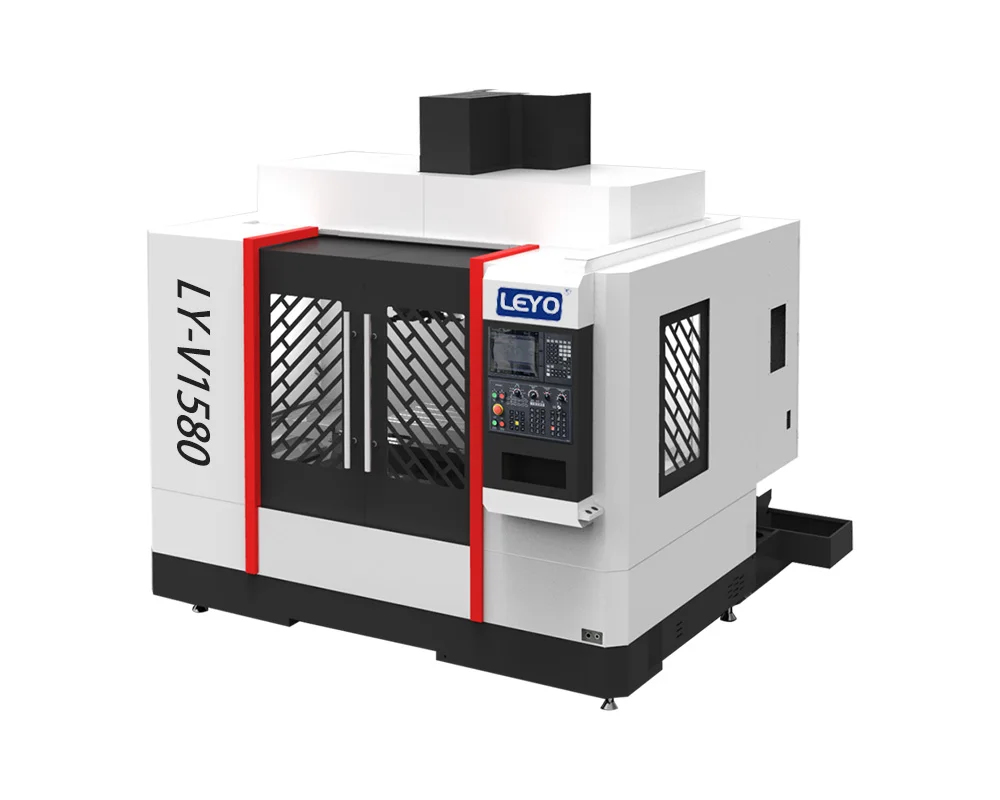

VMC1580 vmc 1580 высокое prceision цены по прейскуранту завода-изготовителя 3 оси 4 cnc фрезерный станок с ЧПУ вертикальный обрабатывающий
- Категории: >>>
- Поставщик: Dongguan,Liyang,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
LEYO VMC1580 series | ||||||
Model | Unit | VMC1580 | VMC1580Z | |||
X/Y/Z axis travel | mm | 1500*800*700 | ||||
X/Y/Z maximum moving speed | m/min | 24/24/20 | 24/24/16 | |||
X/Y/Z maximum cutting feed rate | m/min | 12 | ||||
Spindle speed | rpm | 6000/8000 | ||||
X/Y/Z axis motor | kw | 3/3/3kw with brake | ||||
Spindle motor power | kw | 11/15 | ||||
Spindle taper hole | BT40 | |||||
Positioning/Re-positioning accuracy | mm | ±0.008mm | ||||
Table size (L x W) | mm | 1700*800 | ||||
Maximum payload | kg | 1200 | ||||
Machine size (L*w*h) | mm | 3500*2480*2480mm | ||||
Machine weight | kg | 12000 kg | ||||
CNC Controller | LNC/SYNTEC/Mitsubishi/Fanuc/Siemens | |||||
Tool Magazine | 24T | |||||
T-slot size | mm | 18T*5*140 | ||||
Distance between spindle nose and worktable | mm | 150-850 | ||||
Distance from spindle center to column track surface | mm | 900 | 870 | |||
Linear Guide(Rail width / slider number) | mm | X:45mm*3 Y :45mm*2(4 tracks) | ||||
Z:55mm*3 | Z hard rail | |||||
Ball screw | mm | 50*10 double nut | ||||
Nitrogen counterweight | standard | |||||
Optional | Controller /Spindle/Nitrogen counterweight/Tool setting instrument/4th 5th rotary table/Chip conveyor | |||||
1. Your product look similar, but the price is different. What's the difference?
-The appearance are similar, but the models, parameters and configurations are different, so the prices are different. The higher the configuration, the higher the price. If you want to get an accurate quotation, please contact customer service.
2. Can your offer customized service?
-Yes, we can. Please provide the specification for the machine you need, and tell us your requirements.
3.With so many machine tools, how to choose one that suits me?
-Please provide the requirements of the products you need to process: drawings, dimensions, size of workpeices etc. we will recommend the model suitable for you according to the products you need to process.
4. Is your machine tool 3-axis, 4-axis or 5-axis?
-We have 3-5 axis machine tools, we need know the size you need for 4th 5th rotary table,NC controller ,motor brand and models,so that can offer a accurate quotation to you.
5.Can you offer me a quotation with shipping fees ?
-Usually, we offer FOB price. Because the shipping fees is different in different countries at different times. We usually provide you with an FOB quotation first. If the price you are satisfied, we will find the forwarder to provide you with a freight quotation.
-The appearance are similar, but the models, parameters and configurations are different, so the prices are different. The higher the configuration, the higher the price. If you want to get an accurate quotation, please contact customer service.
2. Can your offer customized service?
-Yes, we can. Please provide the specification for the machine you need, and tell us your requirements.
3.With so many machine tools, how to choose one that suits me?
-Please provide the requirements of the products you need to process: drawings, dimensions, size of workpeices etc. we will recommend the model suitable for you according to the products you need to process.
4. Is your machine tool 3-axis, 4-axis or 5-axis?
-We have 3-5 axis machine tools, we need know the size you need for 4th 5th rotary table,NC controller ,motor brand and models,so that can offer a accurate quotation to you.
5.Can you offer me a quotation with shipping fees ?
-Usually, we offer FOB price. Because the shipping fees is different in different countries at different times. We usually provide you with an FOB quotation first. If the price you are satisfied, we will find the forwarder to provide you with a freight quotation.
