Прямая поставка с завода 40 отверстий инфракрасные автоматические стоп-движения для обнаружения сломанной пряжи датчики
- Категории: Textile Machine Parts >>>
- Поставщик: Jiangyin,Erba,Industries,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
ERBA working principle of infrared yarn broken automatic stop motion device is photoelectric conversion.

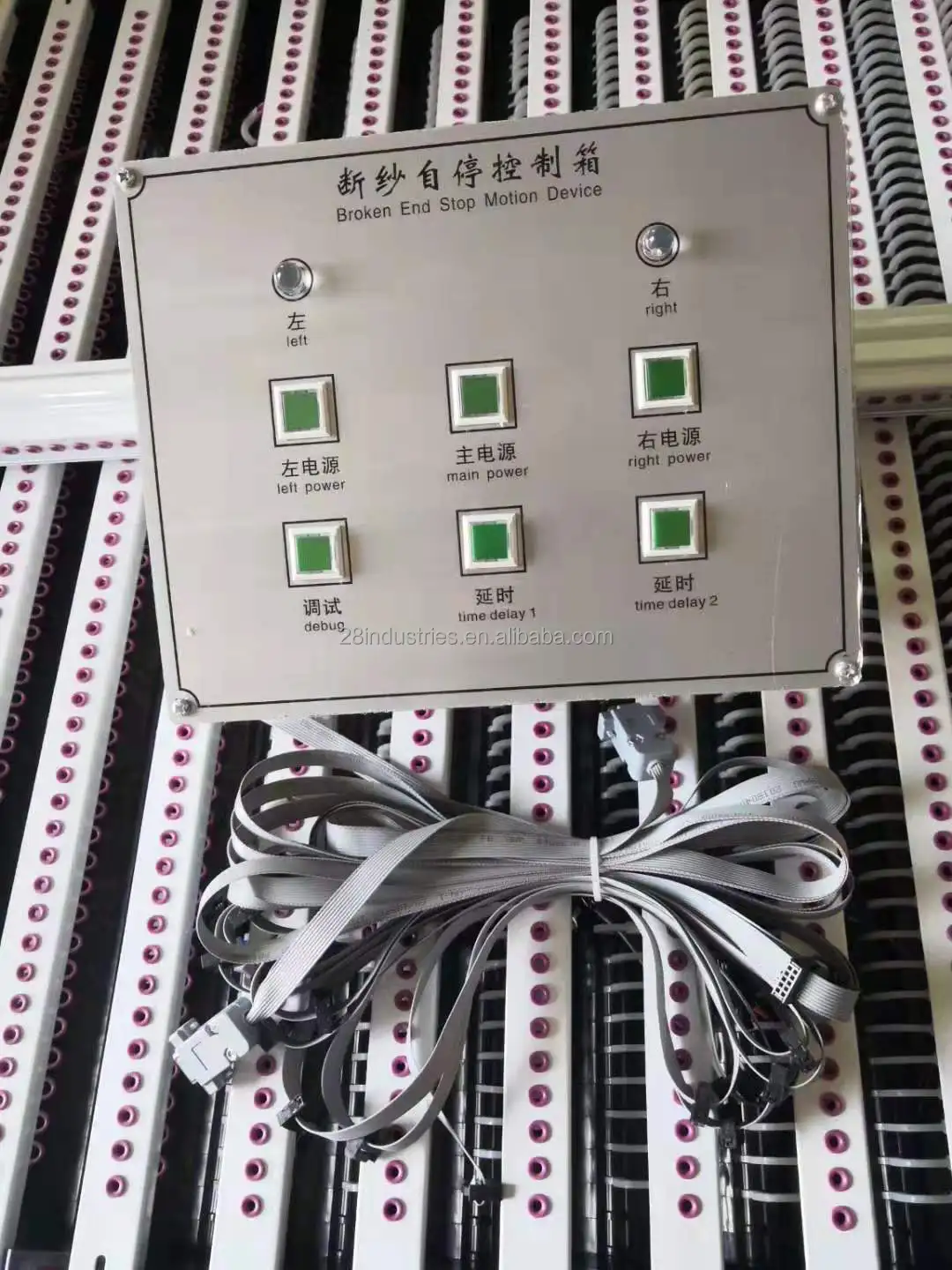

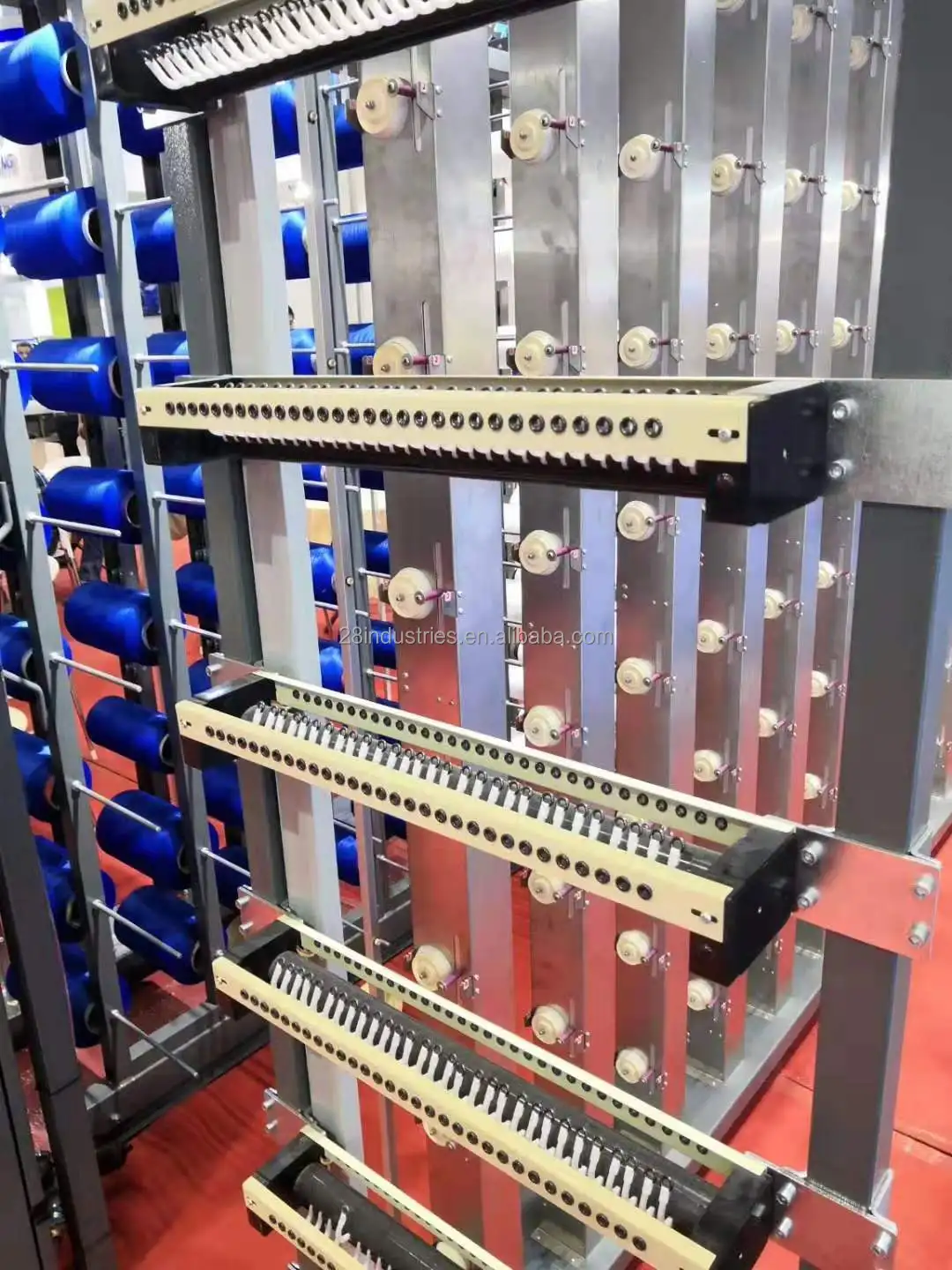

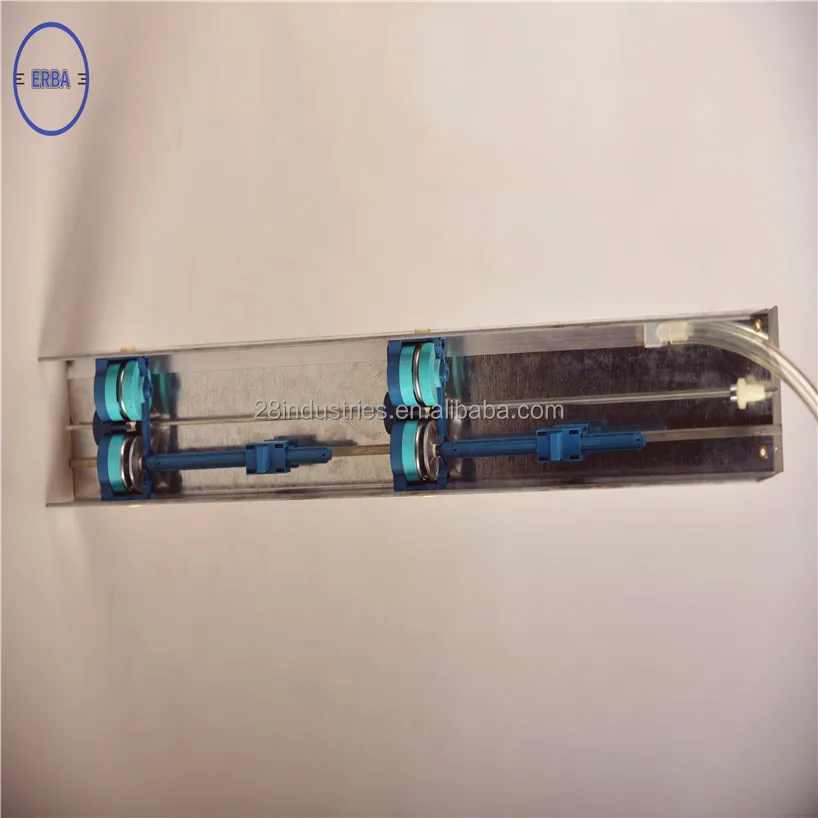

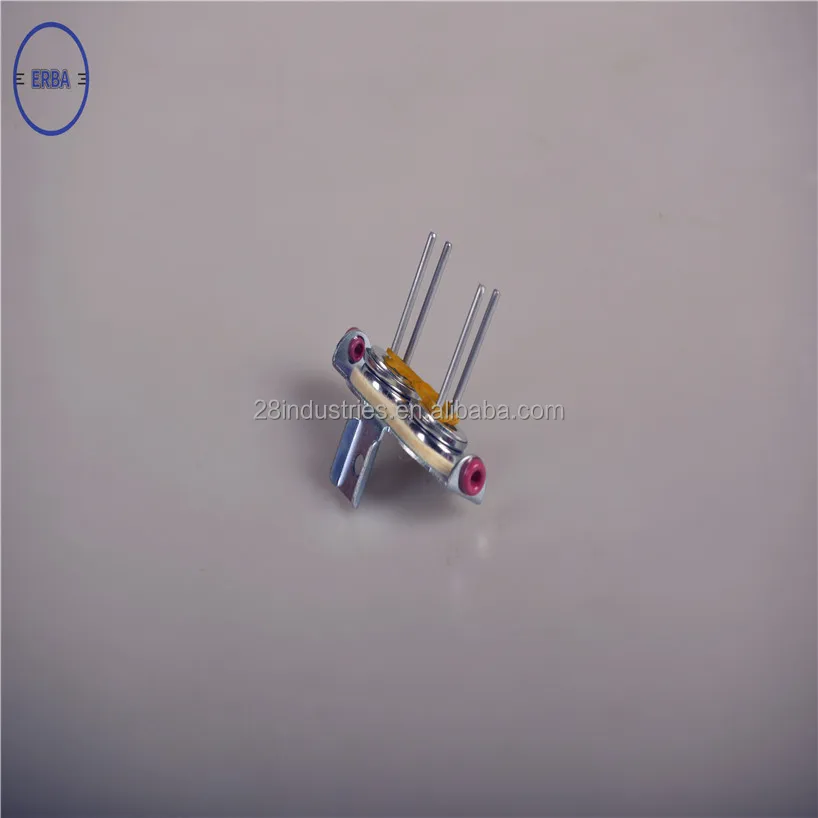

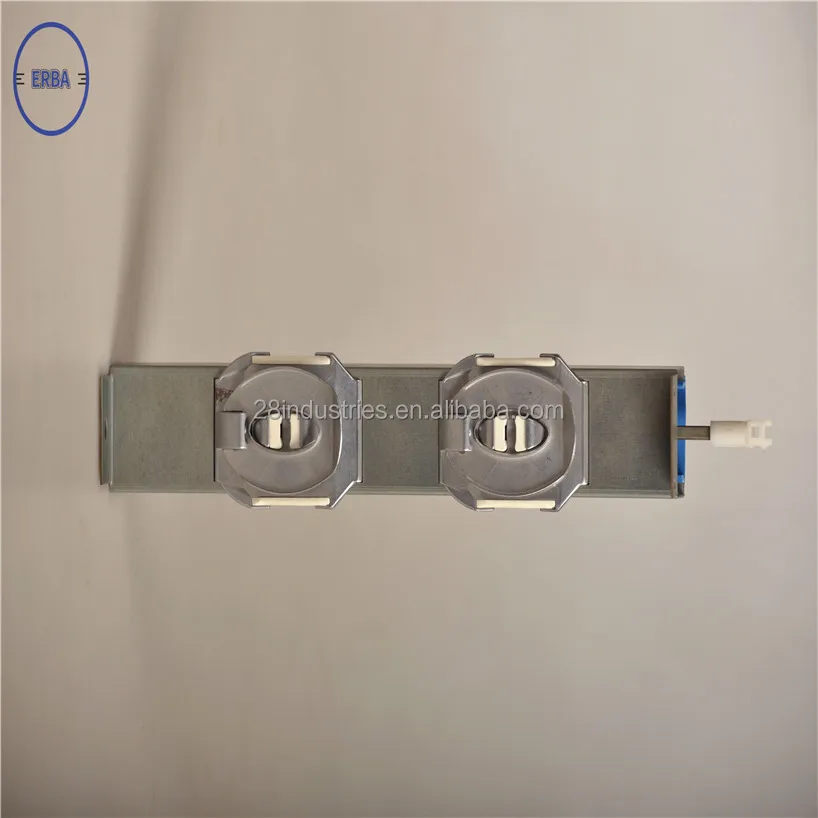

The motion is fixed on the creel, including three parts: Usually 1 pc of controller, several pcs of sensor bars, and 2 pcs of cables.Sensor bar is composed of infrared sensors and droppers. Infrared sensor includes an infrared emitter and an infrared receiver.

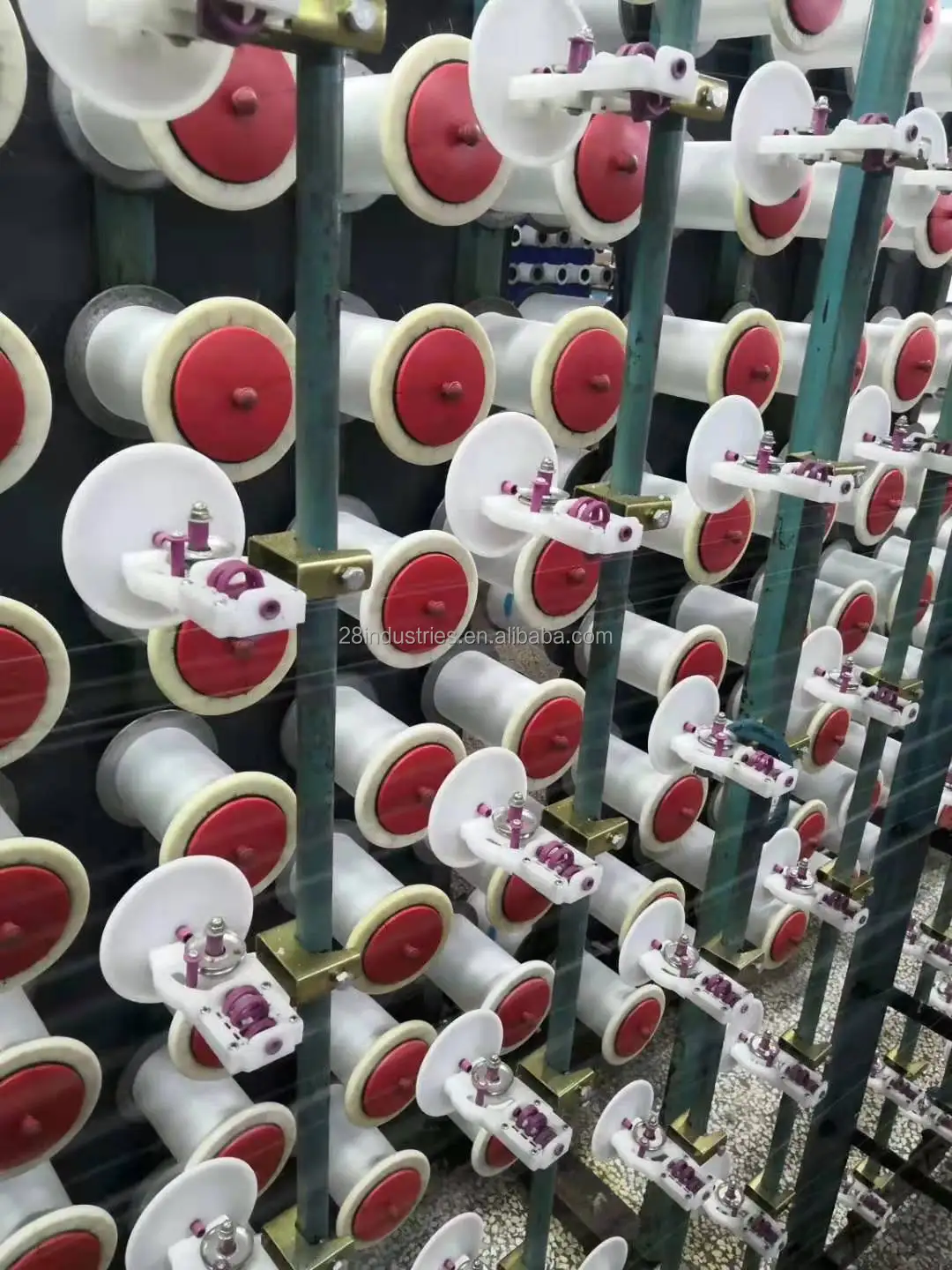

When creel works, yarns go through the round ceremic holes at the top of droppers. Droppers are keeped upon the optical path under the action of yarn tension. Infrared beam is launched from the infrared emitter to the infrared receiver. After the photosensitive tube inside the infrared receiver gets the infrared light, it converts light signals into high voltage signal.
When one of the yarns is broken, the corresponding dropper will fall down, thus blocking the infrared light. The photosensitive tube will output low potential signals, which will make the machine stop by the controller.
The motion is fixed on the creel, including three parts: Usually 1 pc of controller, several pcs of sensor bars, and 2 pcs of cables.Sensor bar is composed of infrared sensors and droppers. Infrared sensor includes an infrared emitter and an infrared receiver.
When creel works, yarns go through the round ceremic holes at the top of droppers. Droppers are keeped upon the optical path under the action of yarn tension. Infrared beam is launched from the infrared emitter to the infrared receiver. After the photosensitive tube inside the infrared receiver gets the infrared light, it converts light signals into high voltage signal.
When one of the yarns is broken, the corresponding dropper will fall down, thus blocking the infrared light. The photosensitive tube will output low potential signals, which will make the machine stop by the controller.

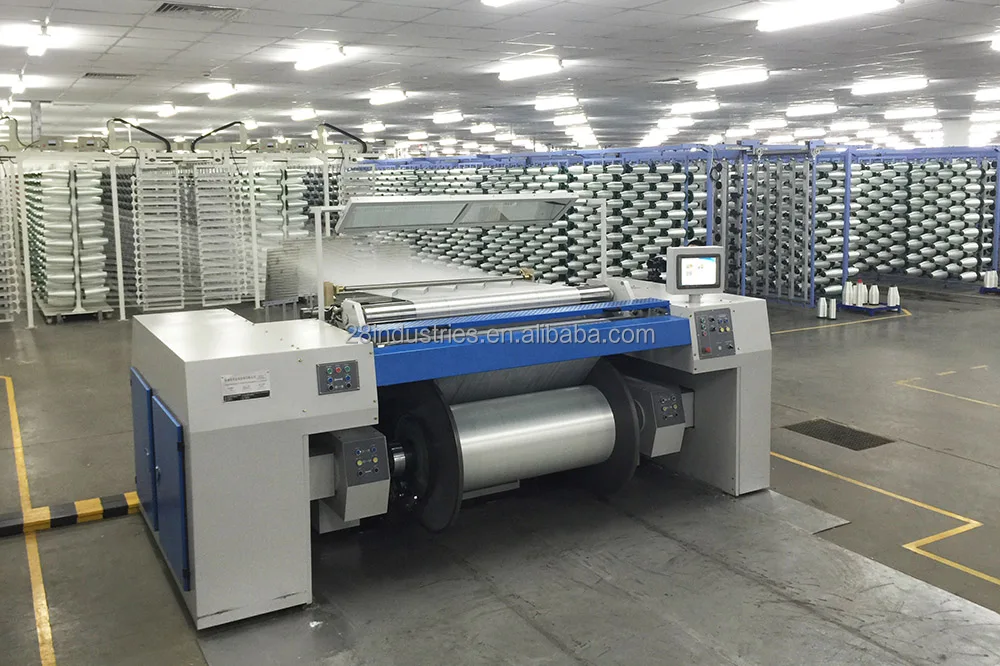

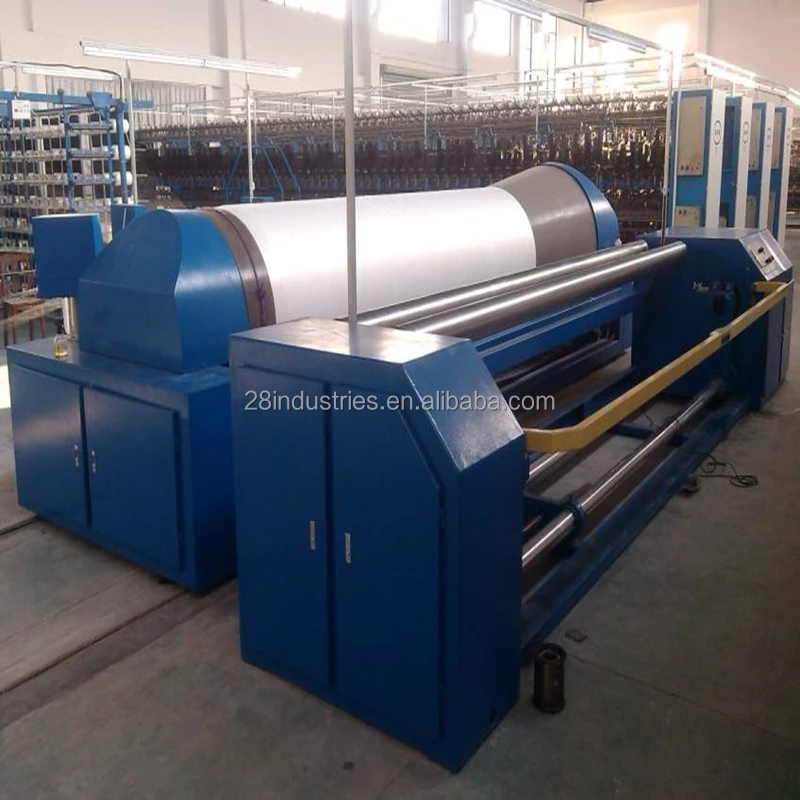

Recommend Products
Specification
Product name | yarn ends broken detection and automatic stop device |
Parts | left side + right side |
Detection | sensor |
Control | electric control |
MOQ | 1pc |

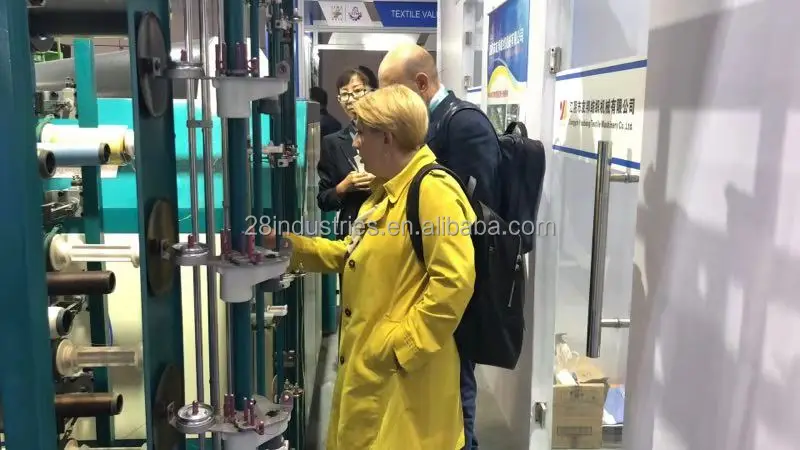

Exhibition
Packing & Delivery
FAQ
Q1: Are you a manufacturer or a trading company?
A1:We are a manufacturer，have our own factory,also can work as trading company if you need us seach for you.
Q2:Where are your products mainly exported?
Q3: What's the advantage of our company?
A3:We have our own R&D department in the company, we can design for the customers based on the exact requirement. And our technician will provide the best advice and choice for our clients.
A1:We are a manufacturer，have our own factory,also can work as trading company if you need us seach for you.
Q2:Where are your products mainly exported?
A2:We have exported our products to more than 60 countries in the world, eg. America, Canada,Spain, Italy,Poland,Mexico, South Korea, Turkey, Morocco, Pakistan,Vietnam,India and Brazil. And our products win the good reputation of our foreign clients.
Q3: What's the advantage of our company?
A3:We have our own R&D department in the company, we can design for the customers based on the exact requirement. And our technician will provide the best advice and choice for our clients.
