Линейный светильник с тройной защитой IP66 2 фута 4 5 футов 8 36 Вт 72 100
- Категории: LED Vapor-Tight Fixture >>>
- Поставщик: Shenzhen,Focus,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

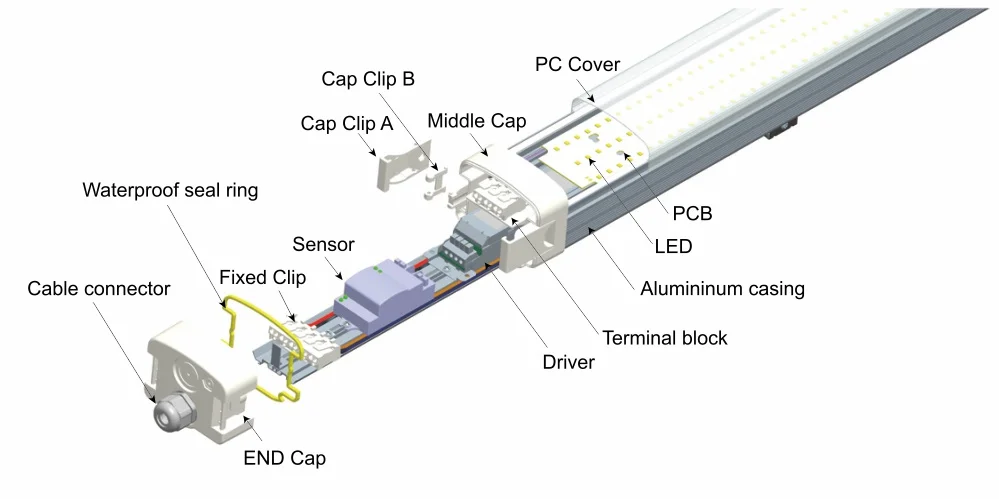

Drawing:

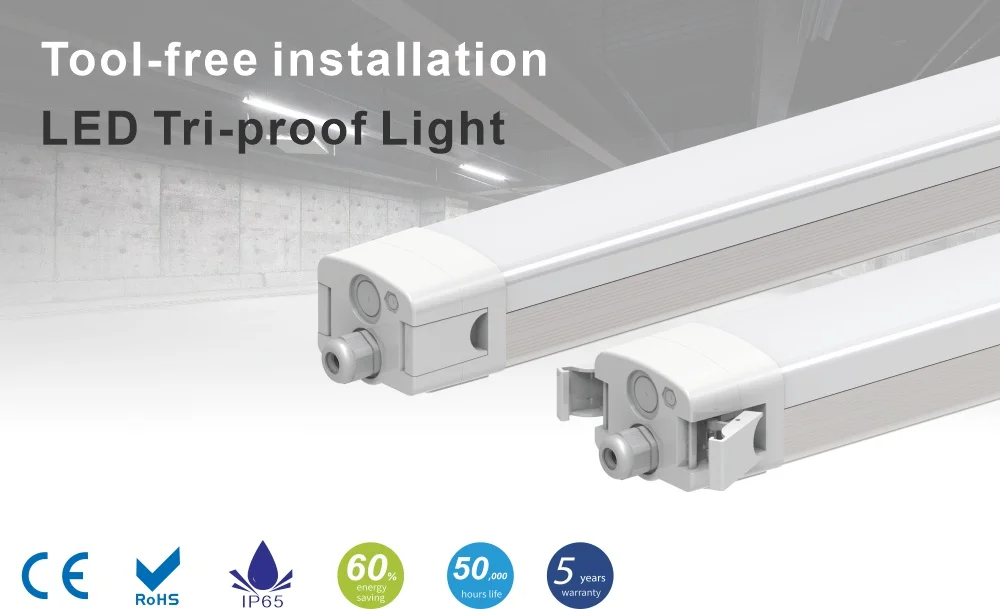

Product Description
> Special driver try for replacement.
> Singe or Double wiring.
> IP 65 /IK10 Approval.
> Multiple Link with double wiring.
> Patent aluminum case as heatsink.
> 5 years warranty.
Electrical:
> Power: 2ft=22W, 4ft=40W/60W, 5ft=40W/60W, 8ft=100W.
> Input voltage: AC100-130V, AC200-240V.
> Power Factor : >0.9, THD<15%.
> Power efficiency: >90%.
> Function : ON-OFF / 1-10V dimming / MS / DALI.
> Starting Time: <0.5S.
> Switching Cycle before Failure: >100,000 times.
> Microwave sensor option
Optical:
> High bright 2835 SMD LEDs, 100lm/W, 125lm/W, 140lm/W.
> CCT: WW:3000K NW:4000 PW:5000K CW:6000K, Tri-color:3000/5000K, Mixed:4000k.
> CRI: Ra80 or CRI90.
> Bean angle 120°.
> Cover: Clear or Milky PC
> Singe or Double wiring.
> IP 65 /IK10 Approval.
> Multiple Link with double wiring.
> Patent aluminum case as heatsink.
> 5 years warranty.
Electrical:
> Power: 2ft=22W, 4ft=40W/60W, 5ft=40W/60W, 8ft=100W.
> Input voltage: AC100-130V, AC200-240V.
> Power Factor : >0.9, THD<15%.
> Power efficiency: >90%.
> Function : ON-OFF / 1-10V dimming / MS / DALI.
> Starting Time: <0.5S.
> Switching Cycle before Failure: >100,000 times.
> Microwave sensor option
Optical:
> High bright 2835 SMD LEDs, 100lm/W, 125lm/W, 140lm/W.
> CCT: WW:3000K NW:4000 PW:5000K CW:6000K, Tri-color:3000/5000K, Mixed:4000k.
> CRI: Ra80 or CRI90.
> Bean angle 120°.
> Cover: Clear or Milky PC
Datasheet:
item | L=0.6M/2ft | L=1.2M/4ft | L=1.2M/4ft | L=1.5M/5ft | L=2.4M/8ft | ||||
Rated powed | 22W | 40W | 60W | 60W | 100W | ||||
LED Tpye/Qty | 143 | 234 | 325 | 325 | 520 | ||||
Lumen Efficacy (Lm/w) | 100/125/140 | 100/125/140 | 100/125/140 | 100/125/140 | 100/125/140 | ||||
Luminous Flux | 2200~3050Lm | 4000~5600Lm | 6000~8400Lm | 6000~8400Lm | 10000~14000Lm | ||||
Color Index | Ra>80 OR Ra>90 | ||||||||
Color Temperature | Single color:WW:3000K NW:4000 PW:5000K CW:6000K Tri-color:3000/5000K, Mixed:4000k | ||||||||
Beam Angle | 120 Degree | ||||||||
Power Factor | PF>0.95 | ||||||||
Input Voltage | AC100~277V/50Hz | ||||||||
Working Voltage | Constant DC36~42V | ||||||||
Protection Class | IP65 | IK10 | ||||||||
Temperature | Operation:-15°C~+50°C Storage:-25°C~+55°C | ||||||||
Life Span | 50,000 hours | ||||||||
Warranty | 5 Years | ||||||||

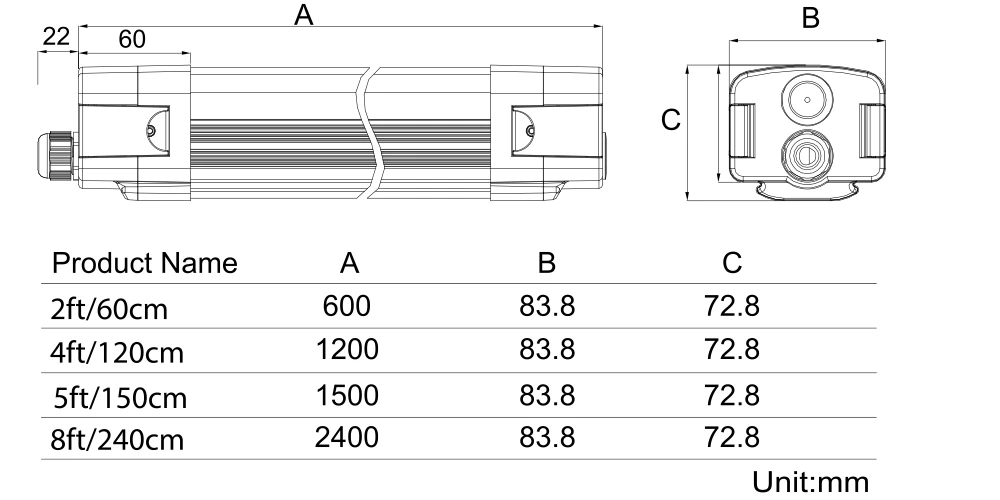

Dimension:

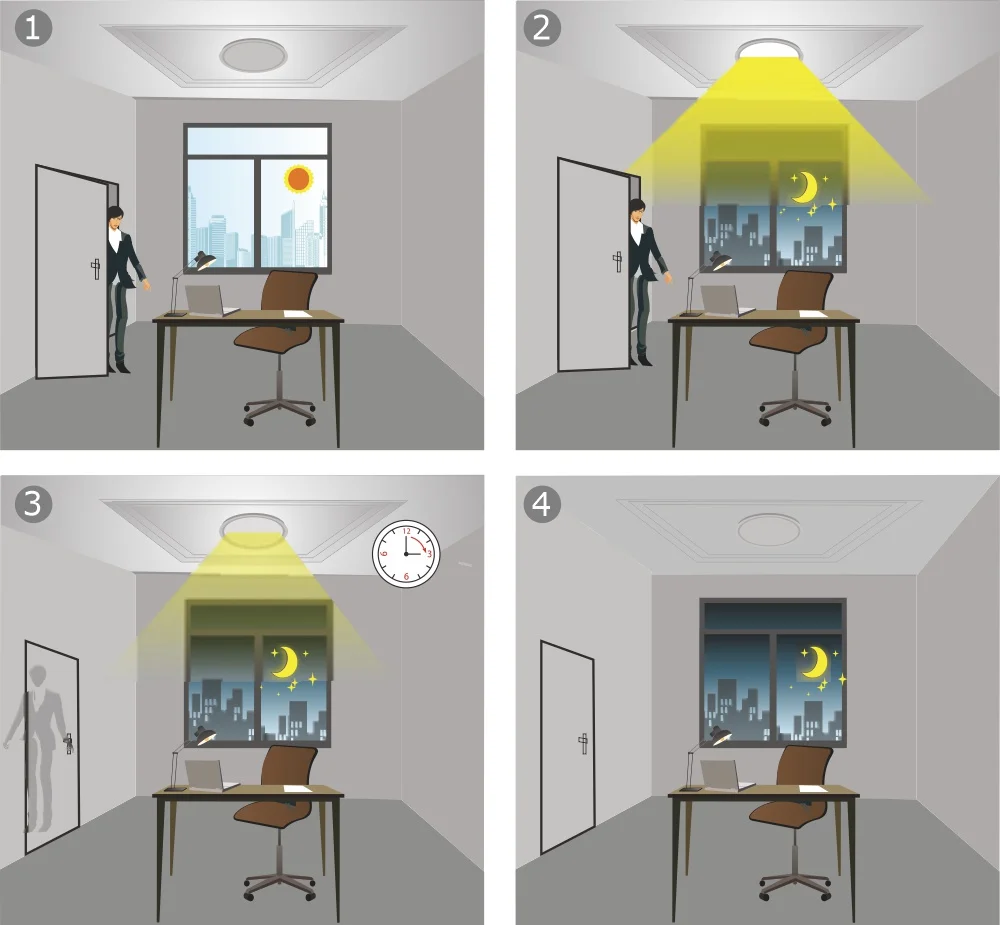

Microwave sensor:

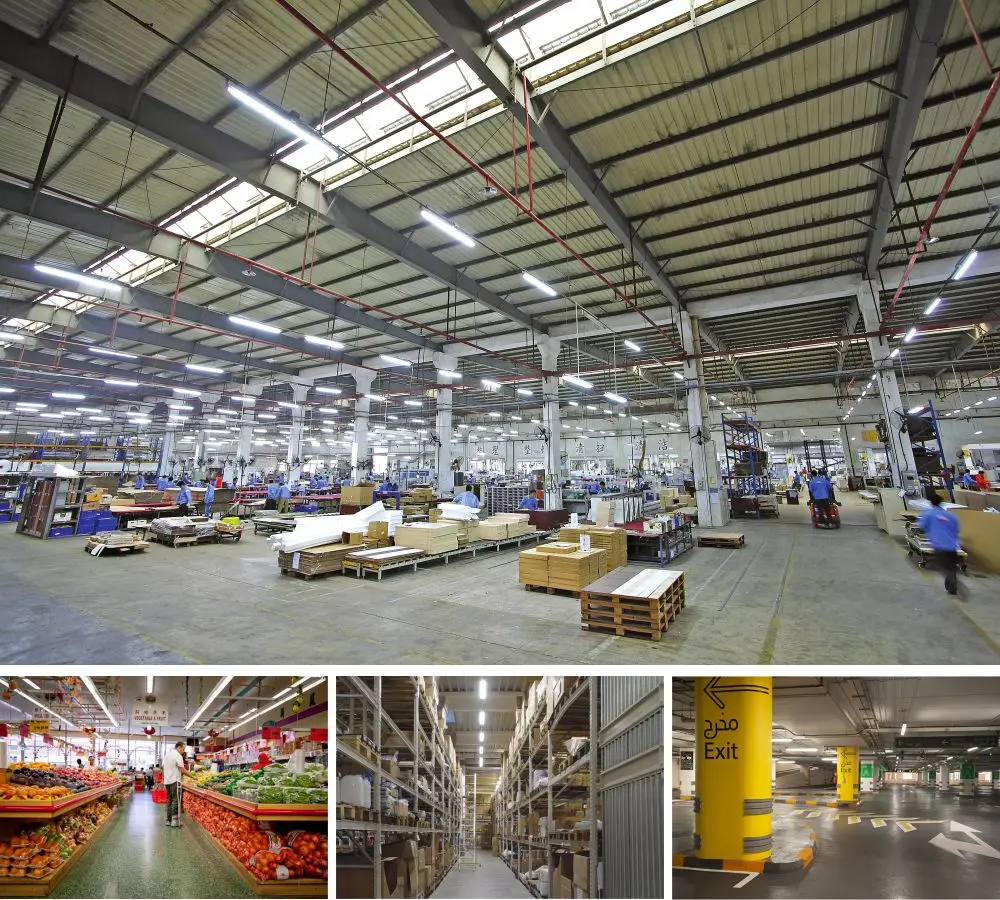

Application:
> Replacement for fluorescent NCF.
> Warehouses , Factories, Car parks, Parking Lot, Basement, Cellar, Garage.
>Sports facilities, Outdoor & Indoor Locations.
> Replacement for fluorescent NCF.
> Warehouses , Factories, Car parks, Parking Lot, Basement, Cellar, Garage.
>Sports facilities, Outdoor & Indoor Locations.
Installation Instructions

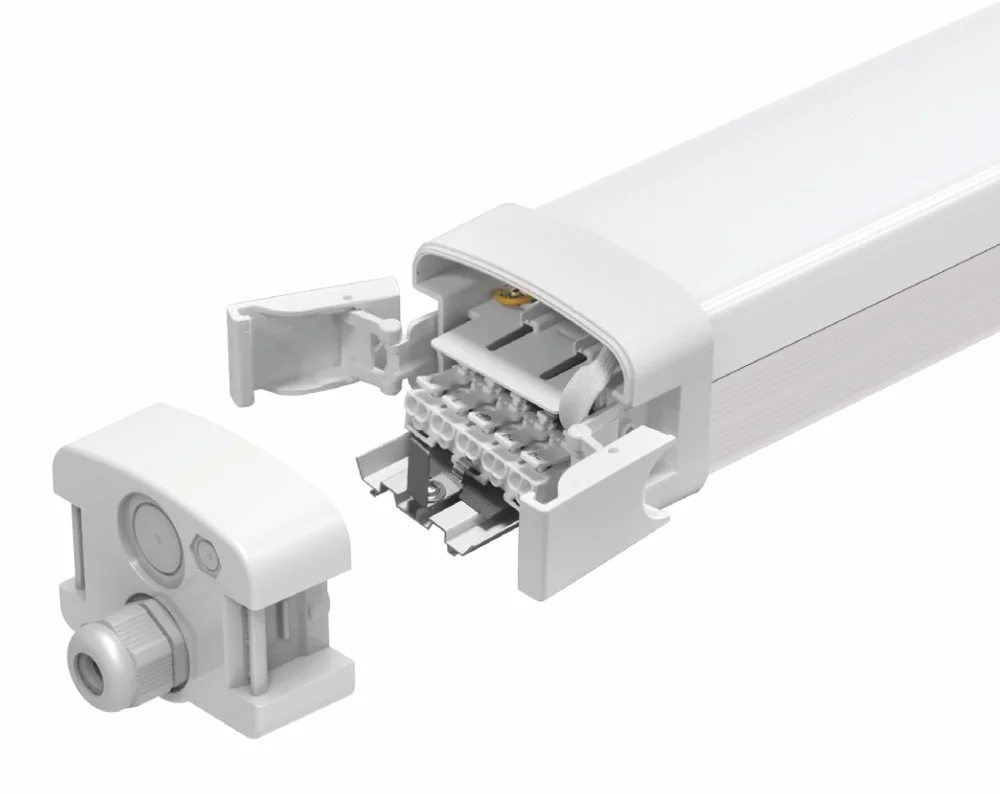

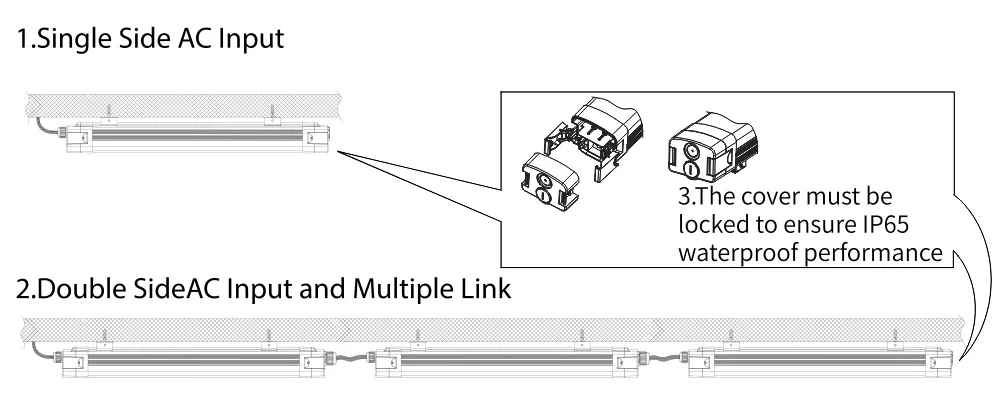

Wiring Method:

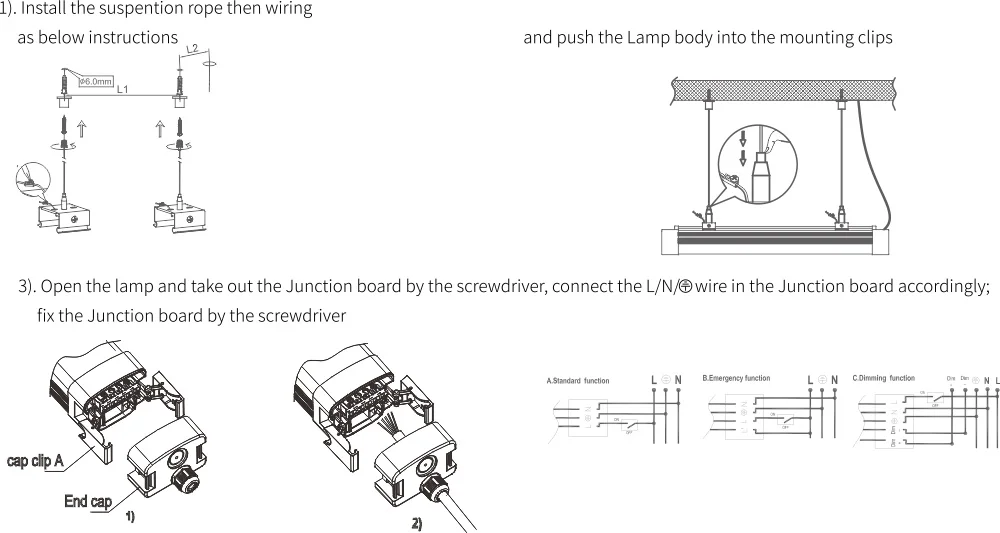

Installation:

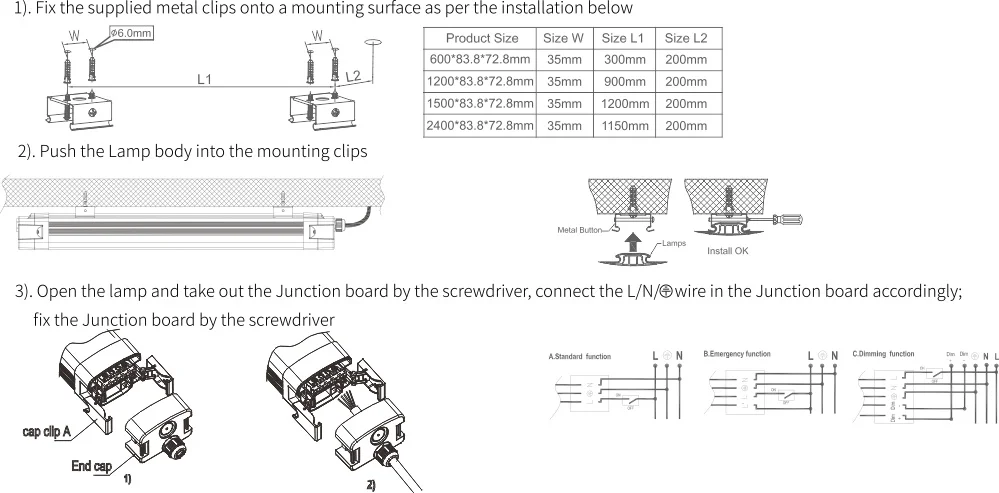

> Surface mounting procedure:
Package:
Product Type | Power | Carton Size | Qty./Carton | N.W./Unit | Gross Weight |
60cm/2ft | 22W | 72*19*21.5cm | 4pcs | 1.33Kgs | 8.0Kgs |
120cm/4ft | 40W / 60W | 132*19*21.5cm | 4pcs | 2.35Kgs | 12.5Kgs |
150cm/6ft | 40W / 60W | 162*19*21.5cm | 4pcs | 3.10Kgs | 15.5Kgs |
240cm/8ft | 100W | 252*19*21.5cm | 4pcs | 4.60Kgs | 24.0Kgs |
Company Profile
Shenzhen Focus Lighting Co., Ltd. is specializing in LED lighting. We have a R&D team with experienced and professional, and perfect testing instruments and equipment to make products form R&D, production, testing, to the final delivery, formed a complete set of produce quality control system.
We mainly produce LED track light,LED downlight,LED PAR light commercial and industrial lighting Since 2010, we have rich experience in LED Lighting OEM, Especially to design LED driver satisfy special functions required by customers.Our products have been exported to Europe, America, Britain, Canada, Australia, Singapore and other countries, and our products have been recognized by the market.
Shenzhen Focus Lighting persists the business concept of "customer utmost, quality first, human based and business trust". We wish to have a better future with our clients.
We mainly produce LED track light,LED downlight,LED PAR light commercial and industrial lighting Since 2010, we have rich experience in LED Lighting OEM, Especially to design LED driver satisfy special functions required by customers.Our products have been exported to Europe, America, Britain, Canada, Australia, Singapore and other countries, and our products have been recognized by the market.
Shenzhen Focus Lighting persists the business concept of "customer utmost, quality first, human based and business trust". We wish to have a better future with our clients.
FAQ
Q1: Can I order one piece to test? | ||||||||
A1: Yes, sample test available. | ||||||||
Q2: How long can I get them if ordered? | ||||||||
A2: <50pcs 10-12 working days arrived in your office by Express. 50-500pcs 12-15 working days arrived in your office by Express. | ||||||||
Q3: What happens if product failures? | ||||||||
A3: The product failure rate is around 0.3%. If the products are damaged during transportation or test broke, we will replace new lights to you within 3 days. | ||||||||
Q4: Are you manufacture or trader? | ||||||||
A4: Yes. 100% manufacture located in Shenzhen, welcome to visit us. | ||||||||
Q5: Can I get your price list of all products? | ||||||||
A5: Yes. We would like to share all the products price list. Please send an inquiry to us get them. | ||||||||
