Автозапчасти серии RSBW50 подшипник сцепления свободного хода заднего односторонний
- Категории: Other Bearings >>>
- Поставщик: Shandong,Simon,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Show

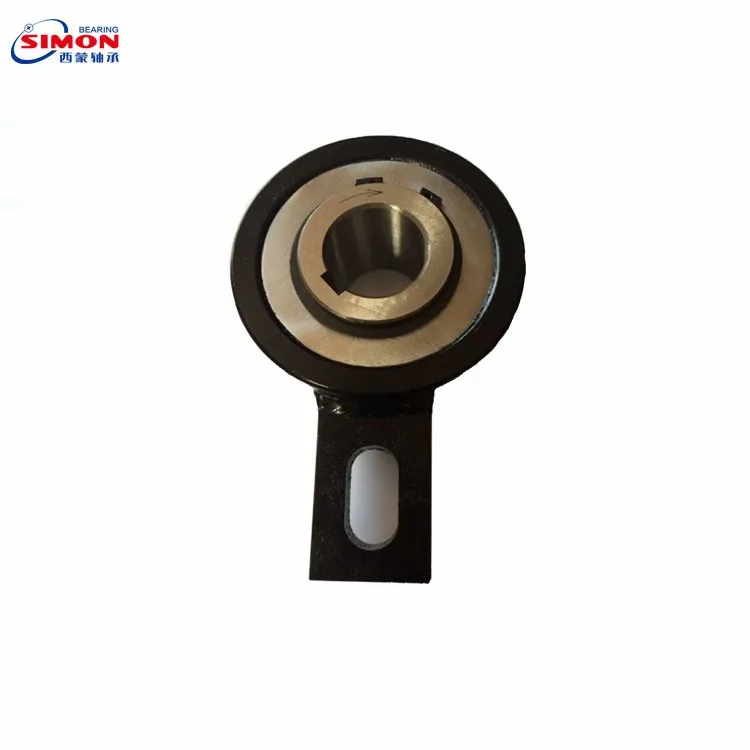

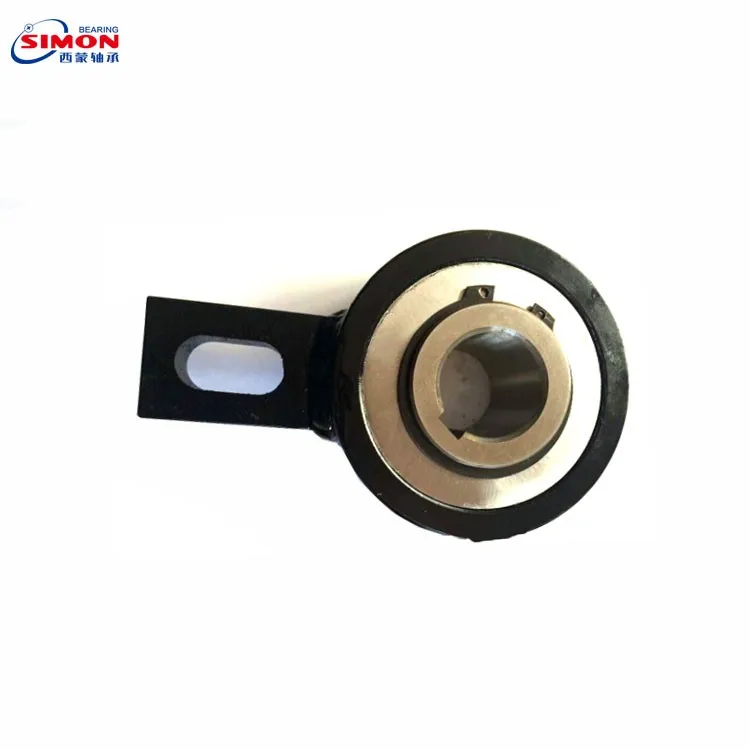

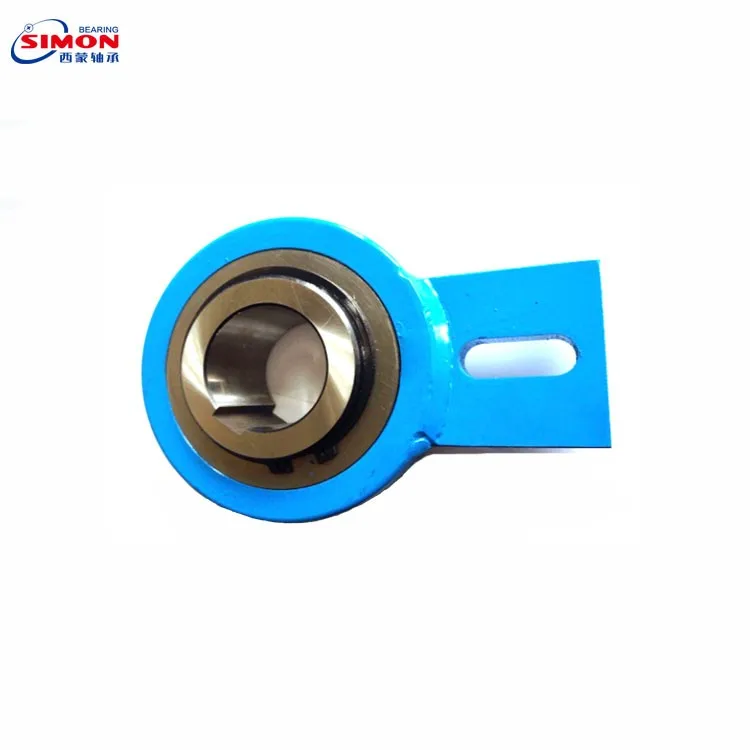

RSBW50 series auto parts freewheels clutch backstop one way clutch bearing RSBW20
RSBW Series | ||||||
RSBW20 | RSBW25 | RSBW30 | RSBW35 | |||
RSBW40 | RSBW45 | RSBW50 | RSBW55 | |||
RSBW60 | RSBW70 | RSBW80 | RSBW90 | |||
Description of Sprag Type Freewheel One Way Cam Clutch RSBW series Type RSBW is a DC sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds and sealed using shield protected Outer Rings. Unit is delivered grease lubricated ready for installation in either a horizontal or vertical position. Primarily used as a backstop, this type provides a high torque capacity with a minimum space requirement. The design allows installation in difficult environments such as high humidity or water splash areas. A bolt, secured to a fixed part of the machine and passing through the slot in the torque arm, provides the rotational stop. Radial clearance on this bolt should be equal to 1-3 % of the slot width. The torque arm and the bearings must not be prestressed. |

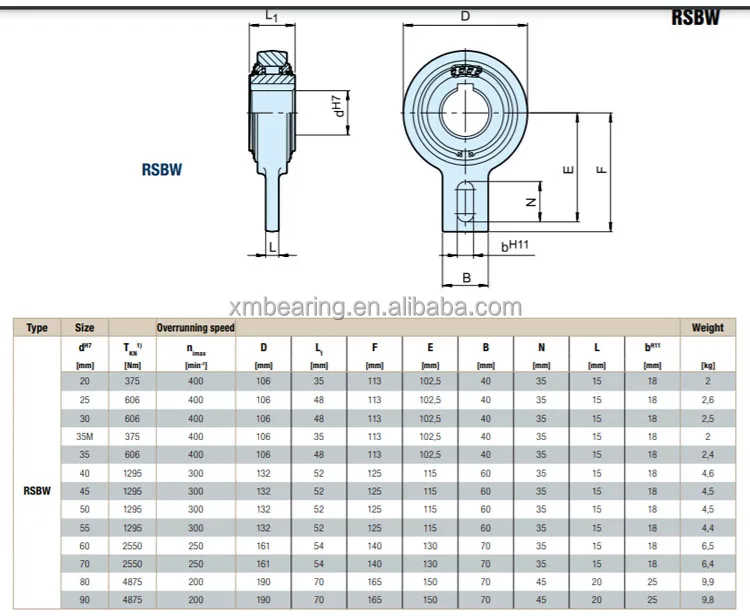

Parameter of Sprag Type Freewheel One Way Cam Clutch RSBW series |
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Machinery
Produce bearings
Related Products
Deep Groove Ball Bearing
Tapered roller bearing
Angular contact ball bearing
Cylindrical roller bearing
Pillow block bearing
Spherical roller bearing
Packing & Delivery
Packing Details : Single Packing,Individual Carton Box,Pallets or as you need
Delivery Details : 1-3 days after make the payment
FAQ&Contact
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 2 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
