Высокая яркость наружный DIP СВЕТОДИОДНЫЙ модуль RGB полноцветный светодиодный экран панель P10 P13 P16 P20
- Категории: >>>
- Поставщик: Shenzhen,Jinhe,Optoelectronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

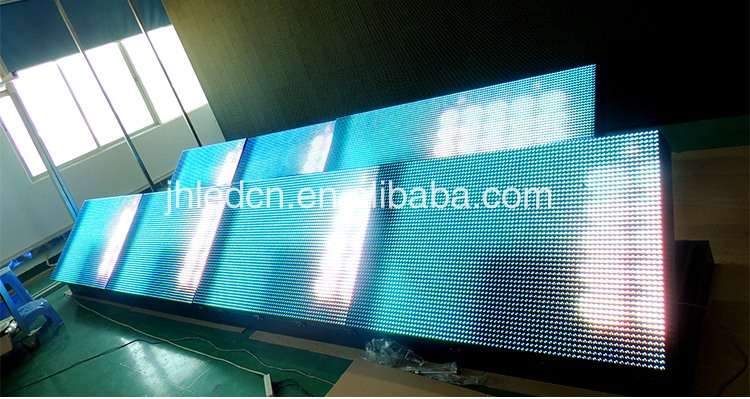

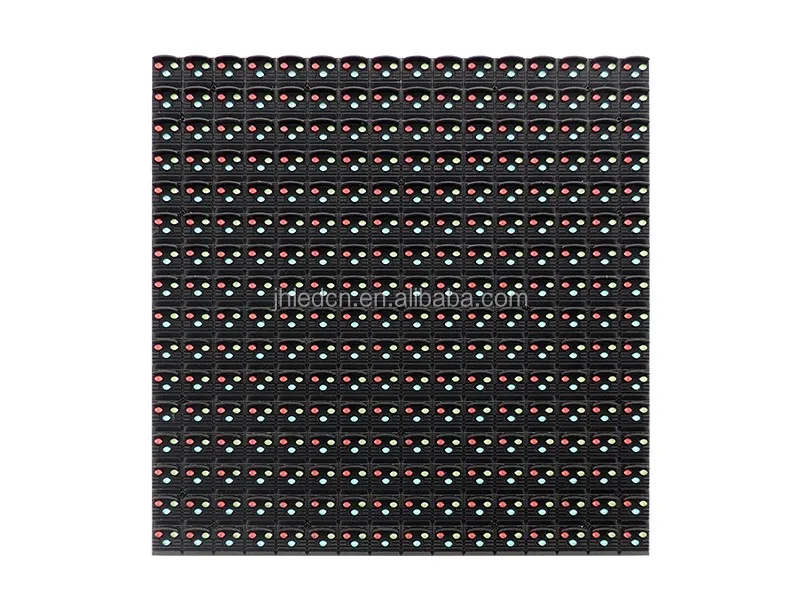

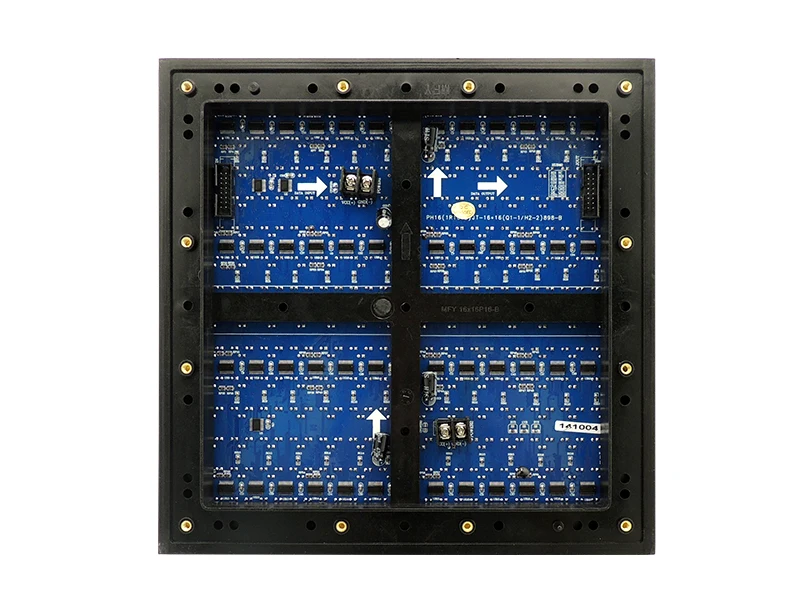

High Brightness Outdoor DIP LED Module RGB Full Color LED Screen Panel Board P10 P13 P16 P20 Advertising
1.Clear picture without flicker and distortion
2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive
3. Low consumption, stable performance, highly durable
4. High brightness & broad viewing angle, brightness can be adjusted automatically or manually
5. 2 years warranty, easy to install & maintenance
Product Description
| Pixel Pitch | 16 mm |
| Pixel Density | 3906 pixesl/m2 |
| Pixels Composition | DIP546 1R1G1B |
| Module Resolution(H× V) | 16 X 16 |
| Module Dimension(H× V) | 256X256 mm |
| Brightness | > 8000 cd/m2 |
| Optimal Viewing Distance | > 15m |
| Scan Mode | Static Constant Current |
| Avg. Power Consumption | 367 w/m2 |
| Max. Power Consumption | 900w/m2 |
| Max. Colors | 16 million |
| Inputting Voltage | 220V or 110V |
| Optimal Viewing Angle | H< 110° , V< 90° |
| LED Life Span | 50, 000 - 100, 000 hr |
| Operating Temperature | -20° C~+60° C |
| Ingression Proof Grade | IP65 |
| Drive IC | MBI5024 |
| LEDs | R/G/B: San' an or Epistar |
| Signal input format (with video processor) | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Operating system | Windows (2000/XP/Vista) |
| Control distance | CAT5 cable: < 100 m; Single |
Payment
Our Services
1.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.
2.Our products are exported to foreign countries and regions.
3.Our professional team will constantly communicate with you,to establish a good working relationship.We aontact you by e-mail and phone,always prepared to help you out.
FAQ
1.What is DIP?And what is SMD?
DIP means double in line package,we call led lamp.SMD means surface mounted device.
2.What is the delivery time of outdoor full color display?
Usually 20 days after we get the money.
3.Outdoor screen can't use surface mount LED?
We have outdoor SMD display now.We solve the problem of the brightness and water proof.We use SMD5050 led chip.Filling the glue on the surface,use IP65 cabinet.
Welcome to your inquiry! :-)
