Armoured Overall Screen 1.5mm2 Instrumentation Cable Suppliers South Africa
Product Description

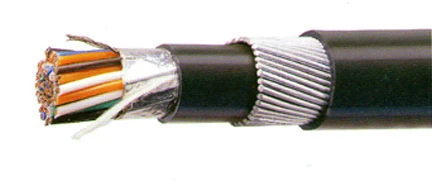

Item name: Armoured Overall Screen 1.5mm2 Instrumentation Cable Suppliers South Africa
1.Conductor : Annealed Standard Copper,class2.
2.Insulation : HEPR(Cross-linked Ethylene Propylene Rubber
3.Laying Up : Pair stranding(2 pair cable=quad stranding)
4.Armour : Separator tape,bare copper braid
5.Outer sheath : Cross-linked Polychloroprene Rubber
Electrical Characteristics
Rated Voltage Uo/U(Um)150/250V
Test Voltage1500V
Usage Characteristics
Max.Conductor temperature in service 85 °C
Short-circuit max.conductor temperature250 °C
Minimum installation temperature –10 °C
Minimum operating temperature –35 °C
Minimum internal bending radius 6*cable Diameter
| product No. | pair No. | cross section mm2 | outer diameter mm | weight kg/km |
| MMLE602-FMGCG01 | 1 | 0.75 | 10.5 | 110 |
| MMLE602-FMGCG02 | 10 | 0.75 | 23 | 570 |
| MMLE602-FMGCG03 | 14 | 0.75 | 29 | 740 |
| MMLE602-FMGCG04 | 19 | 0.75 | 30 | 930 |
| MMLE602-FMGCG05 | 2 | 0.75 | 11 | 150 |
| MMLE602-FMGCG06 | 24 | 0.75 | 33 | 1110 |
| MMLE602-FMGCG07 | 4 | 0.75 | 16 | 270 |
| MMLE602-FMGCG08 | 7 | 0.75 | 20.5 | 400 |
Company Information
Henan Huadong Cable Co., Ltd. is a joint stock enterprise integrated in cable production, and domestic & international trade, founded in 2005, located in Xiuwu Industrial Zone, Jiaozuo and occupied 66,000 square meters, with advanced 20 sets equipments and 25 sets testing machines, annual production capacity is over 15 million kilometers. Our collaborated cocompany is Henan Huadong Cable Co., Ltd. located in Zhengzhou city, which is well-known for convenient transportation.
We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced (ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-35kV power cables (including XLPE insulated cables, PVC insulated cables, SWA/STA a rmored cables), (XLPE/PVC insulated ABC cable), control cables, welding cables, rubber cables, mining cables and electrical wires (PVC sheathed flexible cable). These cables can be used for power transmission in air, underground and industry, such as power station, railway, agriculture, and estate. We strictly according to GB, IEC, BS, ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.
We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia, Oceania countries. We are adhering reliable quality and professional service to make our Huadong Cable be famous in domestic and oversea. Thanks for your supporting and trusting! Huadong Cables welcomes your inquiry and visiting, we are at your service !
Certifications
Packaging & Shipping
FAQ
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 – 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Please feel free to leave your requirement, We will reply you in 12 hours.
