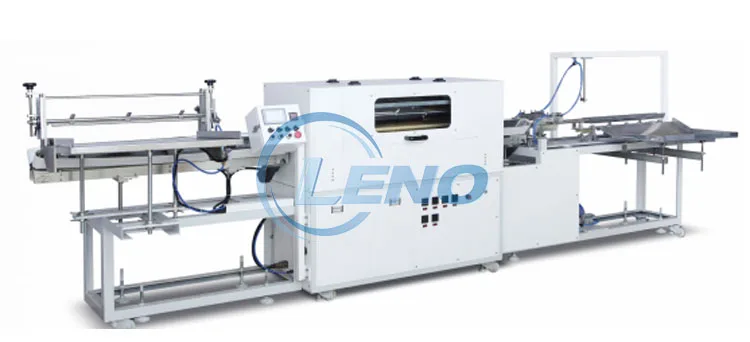

Automatic high speed plastic PET cup mouth beading cup edge curling machine Cup rim rolling machine

Main Technical Parameters
Model	DHJBJ-120-4
Max Speed of Curling	50-120mm
Suitable Dia Of Curling	400-800 /min
Main Motor	2.2KW
Feeding Motor	0.09KW
Heating Power	13KW
Power	380V 60Hz
Overall Size	5000*1100*1300mm
Weight	1T
Air Pressure	0.6MPA
We Can Customize The Equipment According To Your Requirements.



Full automatic plastic cup curling machine adopts the photo-electricity devices to control feeding and rewinding, which is easy operation, stable and high efficiency. This machine makes the plastic cups beautiful and safe, it improves the hardness of the edge of cups, and revises the edge burr of cup



Advantages:
1 totally automatic. It can feed continuously, curling and stacking, which saves a lot of manpower and material resources.
2 Safety. Not only in the working process, but it also behave in the completed cup. The curled cups will never hurt lips when children or the old drink through these cups.





Main Features:

1. All processing steps be done automatically , which saves labor and high efficiency .

2. This machine operation is convenient and stable performance .

3. One machine can curl different plastic cups.

4. Machine can be customized according to customer requirement .
