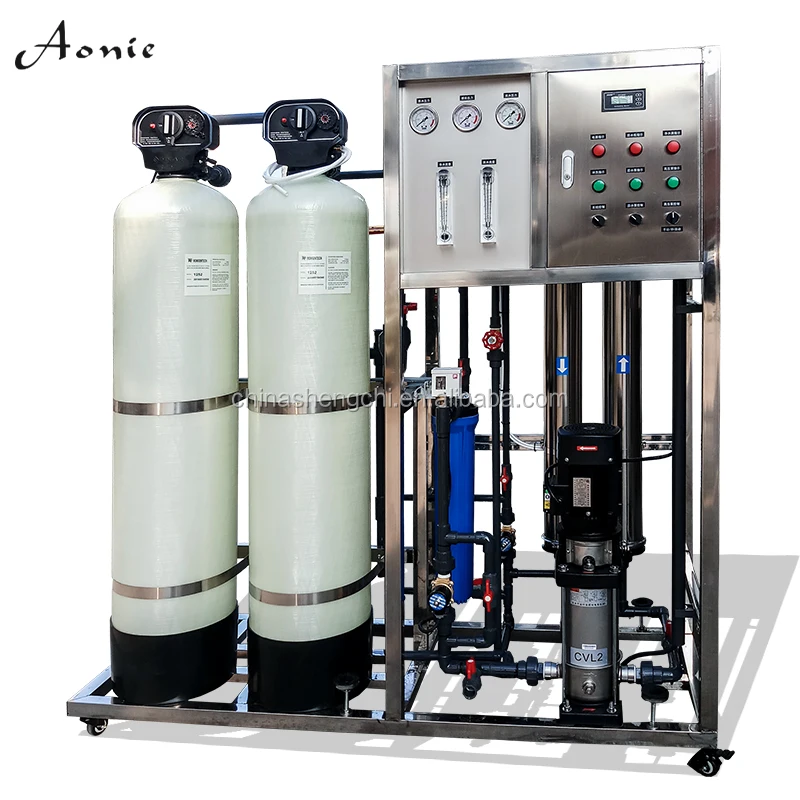

 China manufacture 1054 soften water treatment machine frp tank water filter

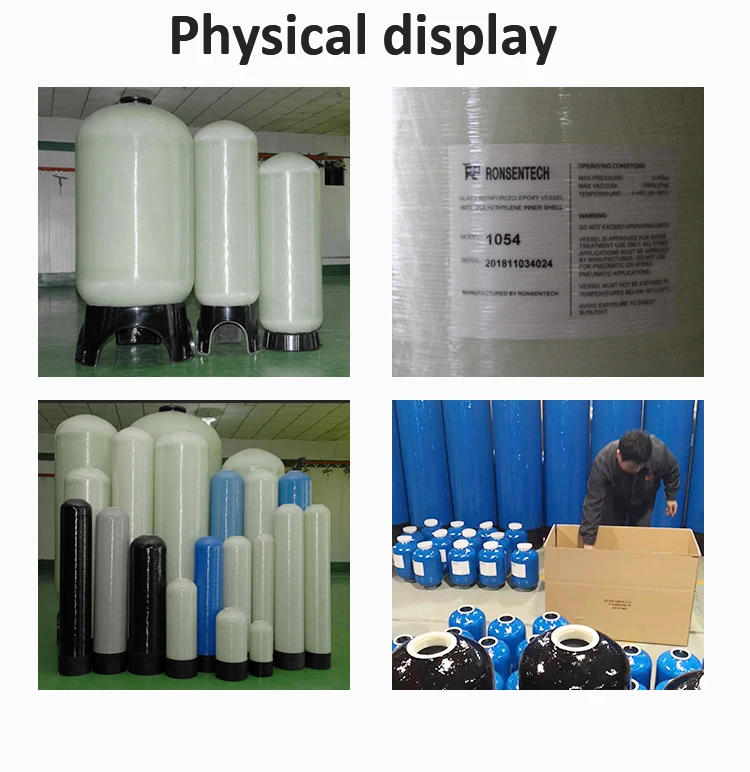

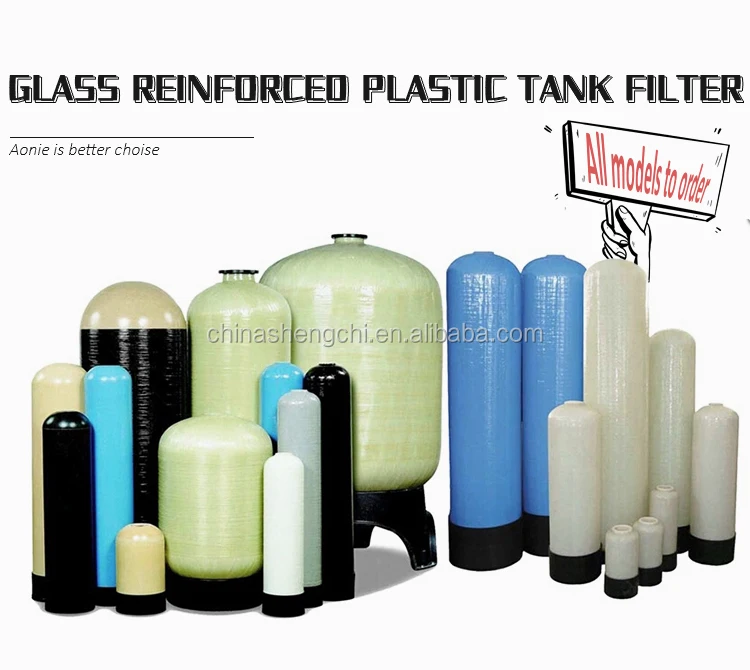

FRP TANK

8"- 63"dia. For multi-media filter and softerner

1).PE(Polyethylene)seamless one-piece tank liner:

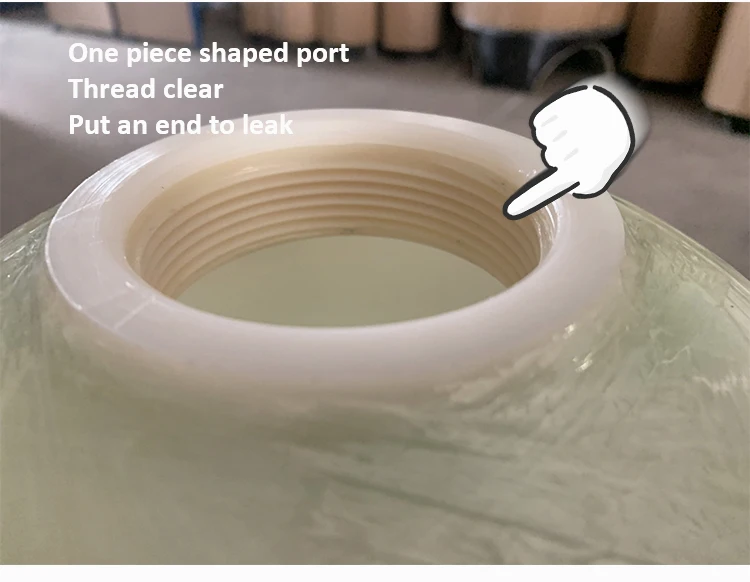

2).2.5" precision injected model with threaded opening for 8"-16" dia.Tanks ;

3).4"precision injected model with threaded opening for 16",18",24",30",36" dia.Tanks;

4).6"Aluminum alloy flange opening for 36",42",48",60",63"dia. tanks;

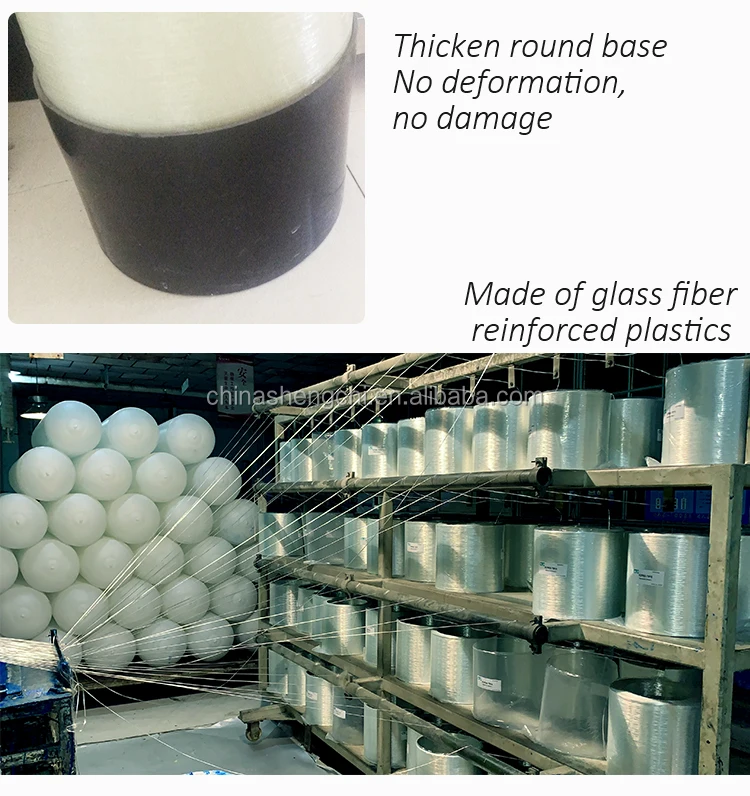

5).Continuous strands of fiber-glass with high strength Epoxy resin;
6).Completely rust and corrosion free;
7).FRP reinforced tripod base.



 China manufacture 1054 soften water treatment machine frp tank water filter

1. Structure and material

Lining material: ABS engineering plastics

wrapping material: high energy oxygen resin and glass fiber

base material: 7”---16“ modified plastics 18”---21“ Composite FRP

2. Characteristics

anti-corrosion; High strength Light weight;

Lined with blow molding seamless structure without leakage;

Convenient transportation easy installation.

3. Application condition

working pressure ≤ 0.7 Mpa (100psi specification) or ≤ 1.0 Mpa (150psi specification)

Working temperature ≤ 49 ℃

Maximum vacuum 127mmHG (5" Hg)

Storage transportation environment: >-27℃

4. Design Parameter

Safety factor: 4.1

The minimum burst pressure: 400psi (100psi specification) or 600psi (150psi specification)

Characters	Fully Rustproof and corrosion resistant
Characters	Fully Rustproof and corrosion resistant
	Hight strength Light weight
	Easy transport and installation
	Nice appearance



Structure & Materials	Liner material:Rotation molding or Blowing One-piece seamless PE inner liner
	Outer Winding:Hight Performance resin with Fiber glass three-dimensional winding
	Opening:2.5" and 4" reinforced plastic thread,6" alloy flange
	Bass Materials:FRP or reinforced PP



Application Conditions	Working Pressure:150psi(10.5bar)
	Working Temperature:1-4℃(34-121℉)
	Max.Vacuum:127mm Hg
	Lowest Environment Temperature:-27℃(-17℉)



Design Parameter	Burst Pressure:42bar(4 times)
	Fatigue Cycle:100,000
