Products Description
2000W Electric Scooter BLDC Controller Fardriver ND72240 |
The Controller package included parts as below,
1piece Controller ND72240
1piece Programmable Cable for PC or wireless module for Cell Phone

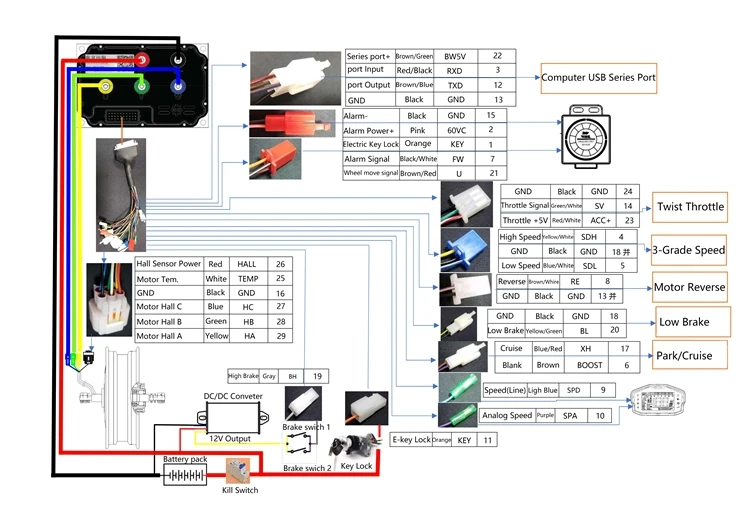

1piece Complete wiring
1piece Software(Will be sent by Email)
1piece Controller ND72240
1piece Programmable Cable for PC or wireless module for Cell Phone
1piece Complete wiring
1piece Software(Will be sent by Email)
Main Specification:
1. Controller Type: Sine Wave FOC Controller
2. Model Number: ND72240
3. Max. Bus Current: 70A
4. Max. Phase Current: 260A
5. Working Voltage:48V/60V/72V
6. Compatible Motor Power: 1500W-2000W
6. Size: 173.4mm*102.3mm*52mm
7. Weight: 1.1KGS
1. Controller Type: Sine Wave FOC Controller
2. Model Number: ND72240
3. Max. Bus Current: 70A
4. Max. Phase Current: 260A
5. Working Voltage:48V/60V/72V
6. Compatible Motor Power: 1500W-2000W
6. Size: 173.4mm*102.3mm*52mm
7. Weight: 1.1KGS
Features:
The ND series Hall one-line pass-through controller is a high-end high-power permanent magnet synchronous motor controller with the advantages of high quality, high efficiency, and intelligence. It is suitable for vehicle applications of various Hall motors.
It is suitable for middle and high speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles.
Using high-quality fully imported MOS core, full metal shielding and aluminum die heat dissipation structure, the hardware
architecture and software implementation are perfectly matched and refined.
Rich software parameter configuration：
* Monitor and configure the controller through the visual computer interface, and update and upgrade online.
* The current at different speeds can be adjusted online.
* The maximum speed of forward and backward, economic speed can be set.
* The overall bus current and phase current can be set.
* The accelerator pedal threshold can be set to adjust the response sensitivity of the pedal.
Perfect protection function：
Monitor working voltage, current, temperature, motor, gear, accelerator pedal, brake, etc. Ensure the safety of vehicle driving control
Items
The ND series Hall one-line pass-through controller is a high-end high-power permanent magnet synchronous motor controller with the advantages of high quality, high efficiency, and intelligence. It is suitable for vehicle applications of various Hall motors.
It is suitable for middle and high speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles.
Using high-quality fully imported MOS core, full metal shielding and aluminum die heat dissipation structure, the hardware
architecture and software implementation are perfectly matched and refined.
Rich software parameter configuration：
* Monitor and configure the controller through the visual computer interface, and update and upgrade online.
* The current at different speeds can be adjusted online.
* The maximum speed of forward and backward, economic speed can be set.
* The overall bus current and phase current can be set.
* The accelerator pedal threshold can be set to adjust the response sensitivity of the pedal.
Perfect protection function：
Monitor working voltage, current, temperature, motor, gear, accelerator pedal, brake, etc. Ensure the safety of vehicle driving control
Items

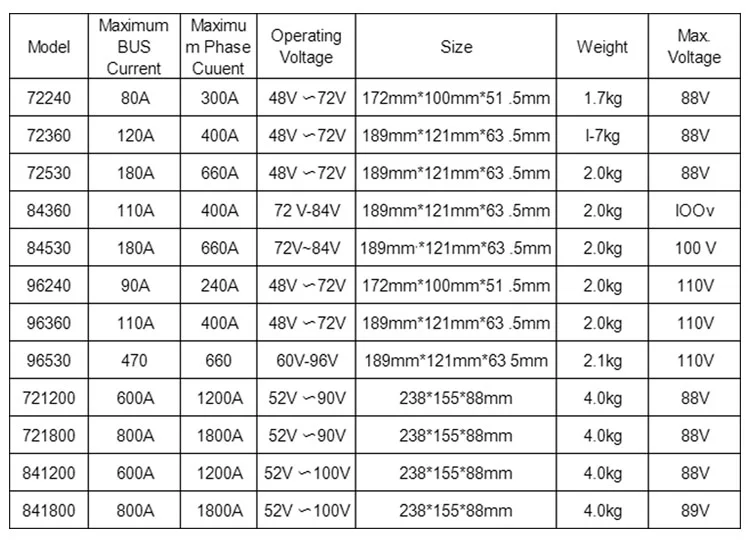

Different Model:
Company Information
FAQ
Q1. Are you trader or manufacture?
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
05. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
05. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
