  • OEM ODM NBR FKM FFKM силиконовый EPDM HNBR Нитрильный 1 5 8 2 3 4 мм толстый резиновый уплотнительный шнур водонепроницаемая резиновая кольцевая
OEM ODM NBR FKM FFKM силиконовый EPDM HNBR Нитрильный 1 5 8 2 3 4 мм толстый резиновый уплотнительный шнур водонепроницаемая резиновая кольцевая
OEM ODM NBR FKM FFKM силиконовый EPDM HNBR Нитрильный 1 5 8 2 3 4 мм толстый резиновый уплотнительный шнур водонепроницаемая резиновая кольцевая
OEM ODM NBR FKM FFKM силиконовый EPDM HNBR Нитрильный 1 5 8 2 3 4 мм толстый резиновый уплотнительный шнур водонепроницаемая резиновая кольцевая
OEM ODM NBR FKM FFKM силиконовый EPDM HNBR Нитрильный 1 5 8 2 3 4 мм толстый резиновый уплотнительный шнур водонепроницаемая резиновая кольцевая
OEM ODM NBR FKM FFKM силиконовый EPDM HNBR Нитрильный 1 5 8 2 3 4 мм толстый резиновый уплотнительный шнур водонепроницаемая резиновая кольцевая
OEM ODM NBR FKM FFKM силиконовый EPDM HNBR Нитрильный 1 5 8 2 3 4 мм толстый резиновый уплотнительный шнур водонепроницаемая резиновая кольцевая
OEM ODM NBR FKM FFKM силиконовый EPDM HNBR Нитрильный 1 5 8 2 3 4 мм толстый резиновый уплотнительный шнур водонепроницаемая резиновая кольцевая

OEM ODM NBR FKM FFKM силиконовый EPDM HNBR Нитрильный 1 5 8 2 3 4 мм толстый резиновый уплотнительный шнур водонепроницаемая резиновая кольцевая


Поделиться:

Цена:0,01 $ - 0,05 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики







Dongguan Tujing Rubber Plastic Co., Ltd.

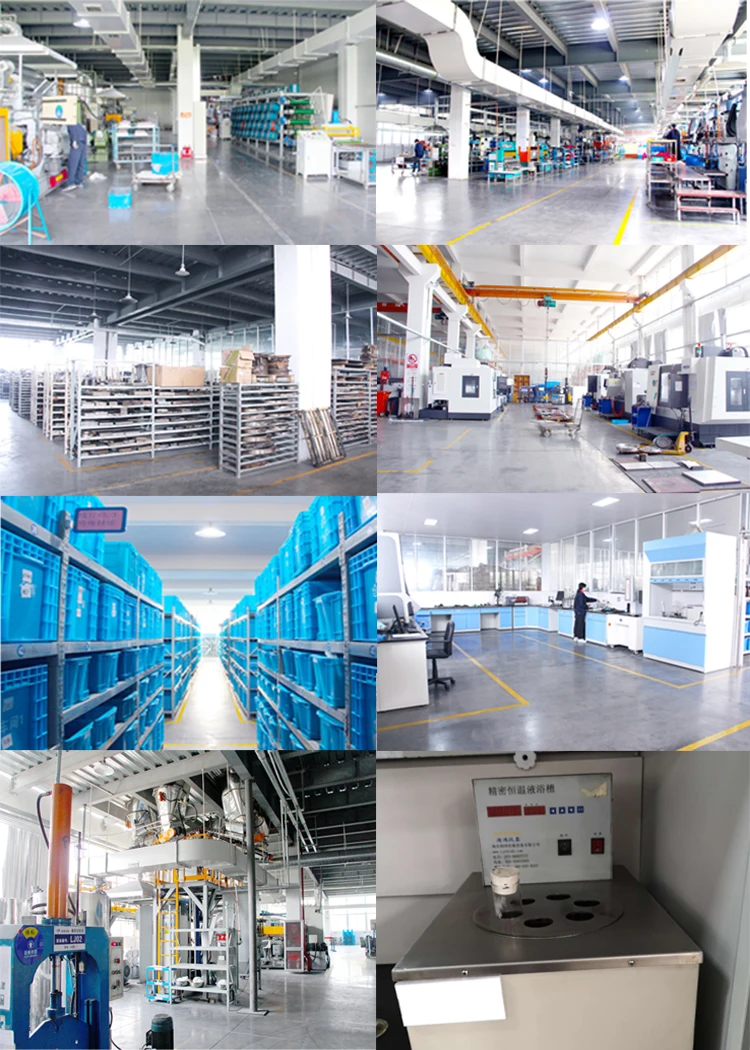

Dongguan Tujing Rubber & Plastic Co., Ltd. specializes in the production and sales of rubber sealing products. It has a professional technical team to provide customers with very comprehensive technical support for the structure and material use of rubber seals. We have a large inventory of O-rings made of silicone rubber, nitrile rubber, EPDM, FKM, etc. There are more than 5,000 sets of O-ring standard molds, and the specifications are very complete. Welcome to consult and purchase.


Introduction of commonly used materials of sealing ring:


Vitone（FKM） material introduction:
Color: The existing colors are green, brown and black can be customized
Features: corrosion resistance, acid and alkali resistance, high temperature resistance, oil resistance, pressure resistance, wear resistance, aging resistance, etc. It is a material with very comprehensive performance
Hardness: 70 Shore hardness(according to customer requirements)


VMQ（Silicone rubber） material introduction
Color: The existing colors are red and white, any color can be customized
Features: high temperature resistance, environmental protection, soft elastic material, good waterproof and sealing performance
Hardness: 30-90 degrees Shore


Nitrile rubber（NBR）
Color:Black
Features:Good air tightness, oil resistance and abrasion resistance. Cost-effective
Hardness: 50-90 degrees Shore






Introduction of commonly used rubber materials

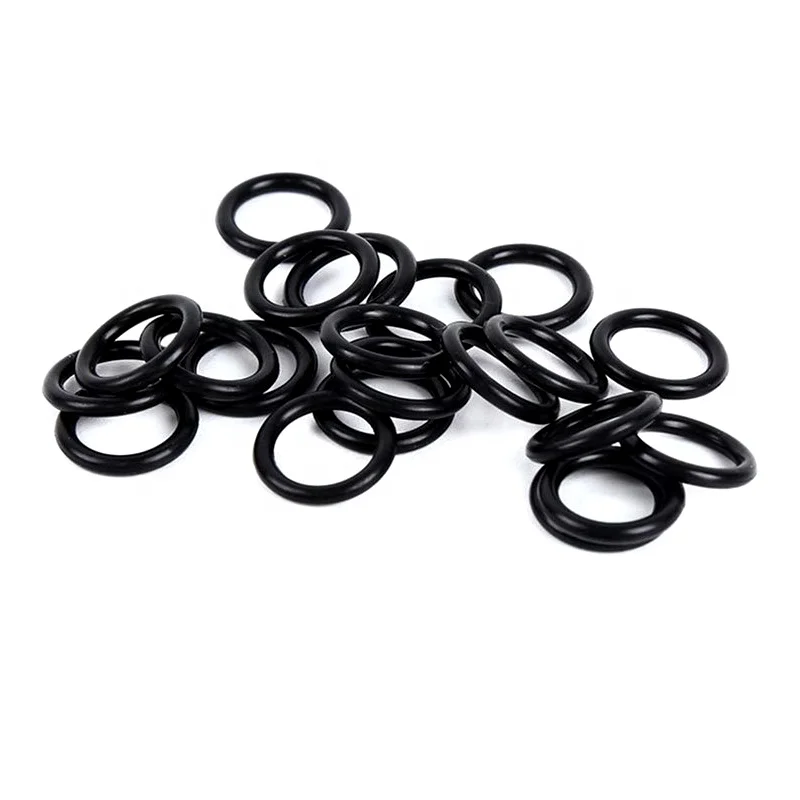

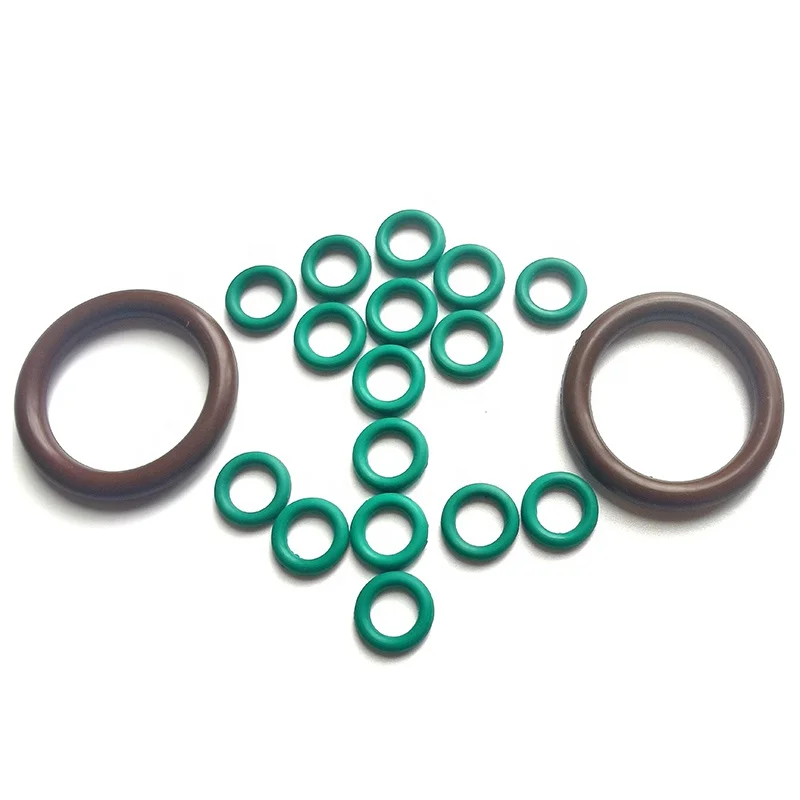

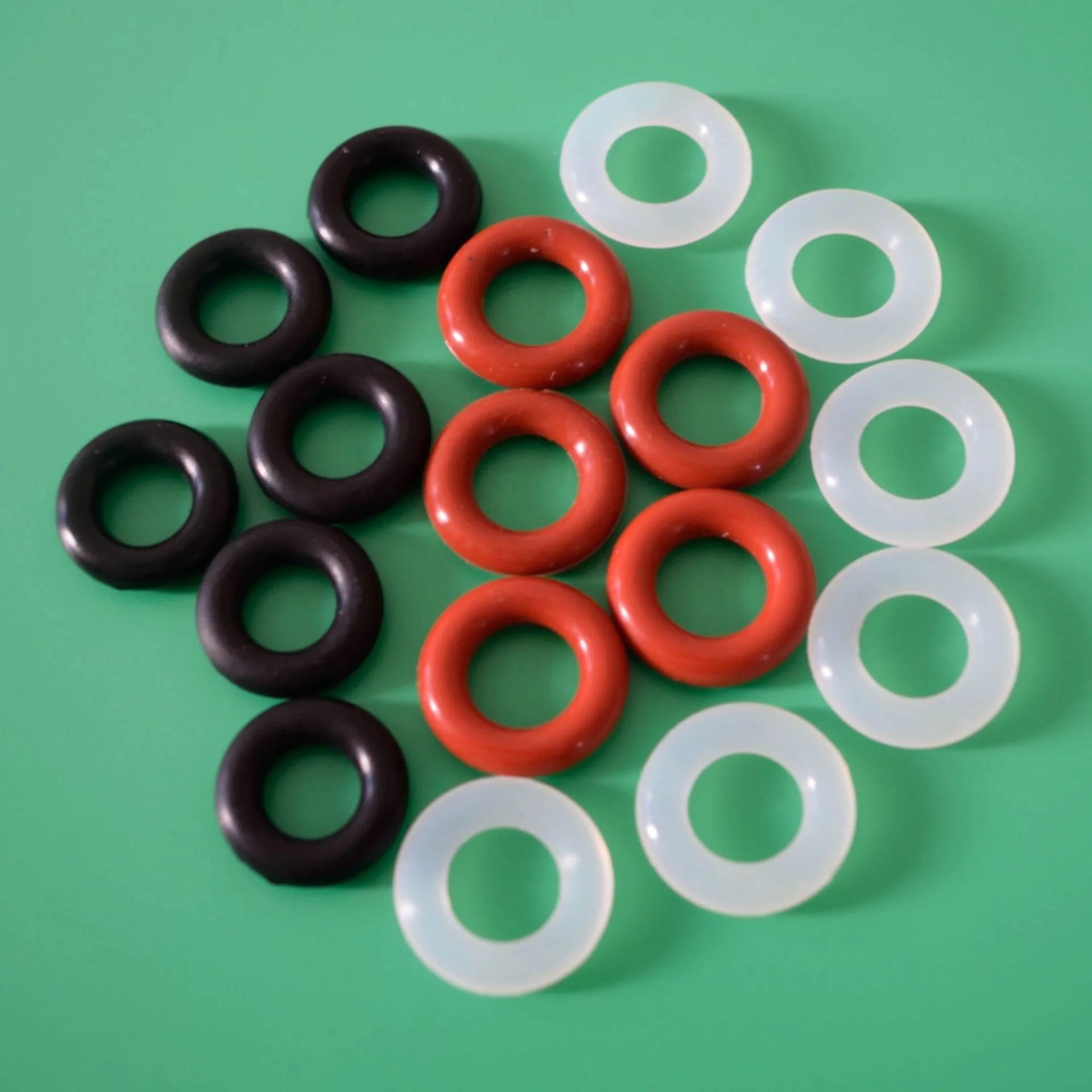

O-Ringsare available in the following elastomers:
* Nitrile Rubber (Buna-N/NBR) * Hydrogenated Nitrile (HNBR)
* Fluorocarbon (FKM/FPM)
* Aflas® or Kalrez®(FFKM)
* Ethylene-propylene (EPR, EPDM)
* Silicone Rubber（MVQ）
* Acrylate Rubber(ACM)
* Butyl Rubber(IIR)
* Ethylene Acrylate Rubber(AEM)
* Fluorosilicone(FVMQ)
* Neoprene Rubber(CR)
* Liquid Silicone Rubber(LSR)
* Natural Rubber(NR)
* Polyurethane(PU)
* Styrene-butadiene Rubber (SBR)

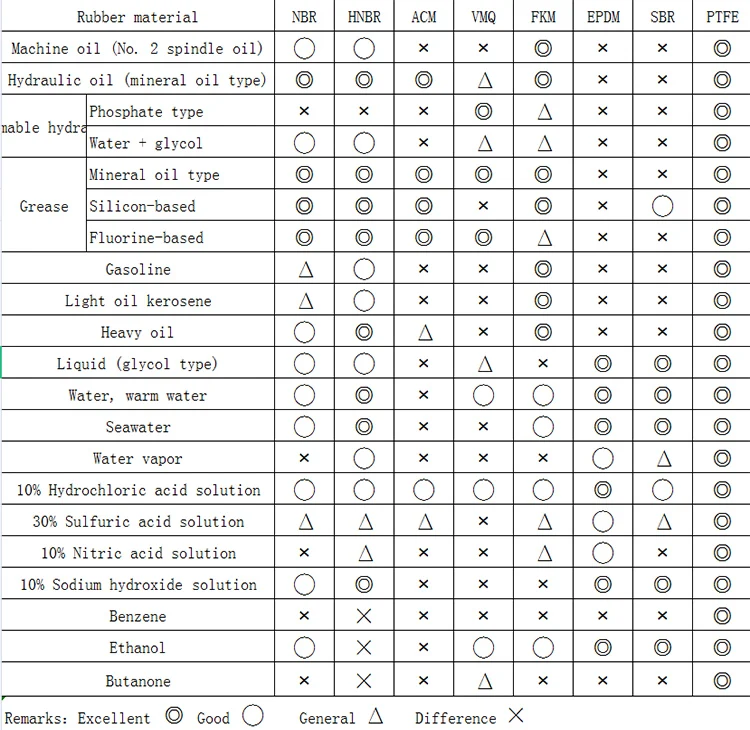

Synthetic rubber matrix
Shore hardness
Scope of application
NBR
50-85
Commonly used in hydraulic and pneumatic systems, suitable for hydraulic oil, water glycol (HFC) and oil-in-water emulsion (HFA)
as well as animal oil, vegetable oil and fuel oil. Resistant to methyl ethyl propane butane. The temperature of water is 80°C and
the temperature of air is 110°C.
NBR
80
90
HNBR
75
The performance is familiar with NBR. The temperature resistance in the air can reach 150℃. It has excellent mechanical properties
and can be used in mineral oil and ozone.
FPM
60-85
It is resistant to high temperature, hot oil, aromatic solvents, a variety of chemicals, and flame-resistant hydraulic oils
containing phosphate esters and chlorinated hydrocarbons.
FPM
90
FFKM
60-85
It has excellent chemical properties, a very wide temperature range (-50℃~320℃), and the instantaneous temperature resistance is
even higher.
EPDM
50-80
Resistance to steam (200°C), hot water, high temperature gas (150°C), weak acid, flame-resistant hydraulic oil containing
phosphate ester, and brake fluid without mineral oil. (Special attention is not applicable to mineral oil)
MVQ
40-85
High temperature resistance, environmental protection, soft elastic material, good waterproof and sealing performance
CR
65-80
Good anti-aging and salt water performance, often used in refrigeration industry
MFQ
70
Good resistance to high and low temperatures. Often used in environments that require oil and flame resistance






FAQ


Q: Can you provide OEM / ODM services?
A: Yes, we can produce products in customer drawings or samples, or you describe your product requires us to design products to produce all-round service.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.

Q: Do you have the products in stock?
A: Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order.

Q: Can I mix different power in one container?
A: Yes ,Different models can be mixed up in one container,even one order.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
