8 м3 12 М3 Dongfeng HOWO грузовик для уплотнения мусора с

Chassis brand

HOWO Brand,ZZ1167

Product

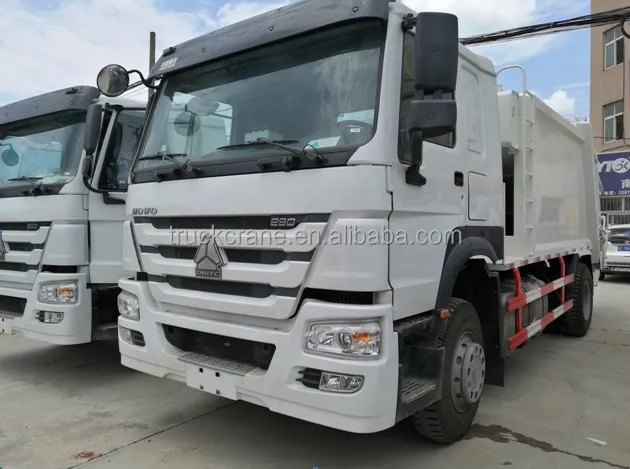

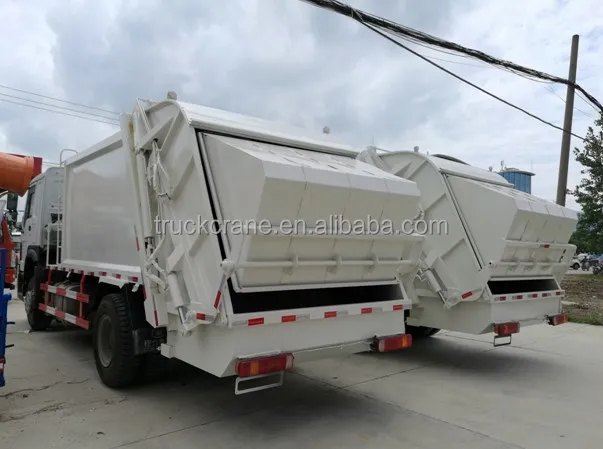

HOWO 4x2 12m3 garbage Compactor truck

Overall Dimension

Cab

Single Row with one sleeper

Driver position

Left hand drive

Drive Model

4X2

Overall Parameter: L×W×H

8800×2500×3450mm

Wheel Base

4600mm

Curb Weight

8800kg

Max Speed

90Km/h

Engine and Chassis

Engine manufacturer

China national heavy duty truck group

Engine type

WD615.62

Power

266HP

Displacement

9726ml

Emission Standard

Euro 2

Transmission

HW13710,10 speed Manual Transmission

Front axle

HF7,7Tons

Rear axle

ST16, 16Tons

Suspension System

Leaf spring,10/9+6

Tyre

295/80R22.5, 6+1

Usage Parameter

Container Volume

12m3

Sewage tanker

200L

Steel and thickness

5mm/Q345

Unloading Model

Push out

Feed in one cycle working time

≤10s

Feed out one cycle working time

≤35s

Hydraulic system pressure

16Mpa

Control method

Both manual and electric control

Color + customer logo

As requirement

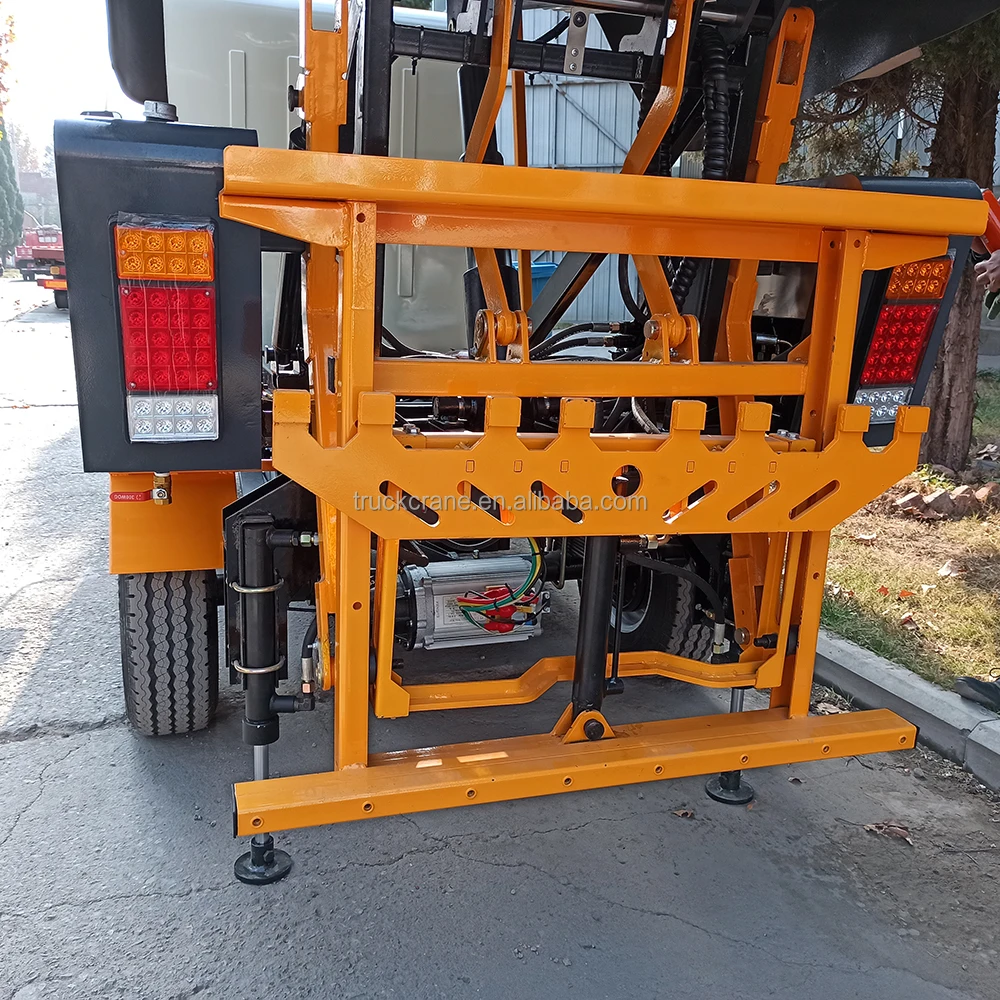

1: Can choose 240L ( single bin. double bins) or 360L. 660L.standard bin lifting and turnover mechanism, can also choose ground
hopper and other kinds of loading mechanism.
2: With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of
the truck , very convenient and efficient.
3: With working device of emergency braking stop button.
4: Garbage body use frame design, elegant, strong structure, large effective capacity.
5: Equipped with special collection box, sewage directly into the sewage tank inthe process of compression, that is effectively
prevent second pollution caused by sewage leaks.
6: Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the
compressibility,make the compression ratio up to 1:2.5,the garbage can reach more then 600~ 800kg/ m3 after compression.
