Китайский ИК-пульт дистанционного управления Mi инфракрасный бластер приемник кабель 3 5 разъем ИК расширитель
- Категории: Audio & Video Cables >>>
- Поставщик: Shenzhen,Lanfeng,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

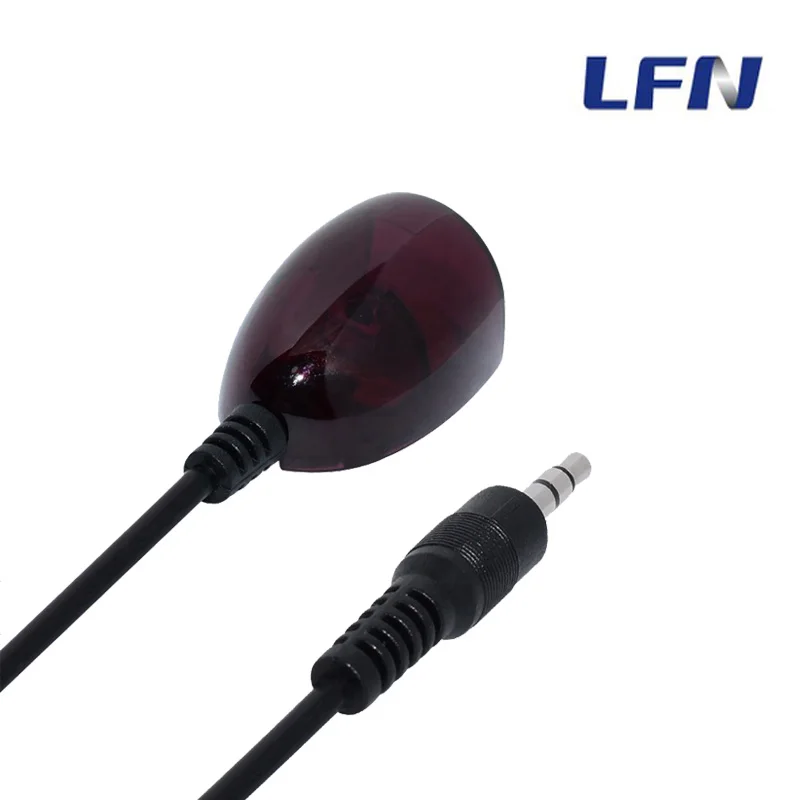

Customize Ir Remote Mi Infrared Blaster Receiver Cable 3.5 Jack Plug Ir Extender Infrared Ir Cable
Model No: LF002
SIZE: 33.0(L)X22.0 (W)X22.5(H)mmWORKING VOLTAGE: 2.7-5.5 V(DC)
RECEIVE DISTANCE: 15-18 Meter
WIRE LENGTH: 50-500 CM
PLUG: DC/USB/MINI USB
Products Features
1．Specification：* PE plastic cabinet strong protect;
* PVC long wire customize;
* Wide-angle and long distance reception;
* With strong anti-jamming capability;
* Anti-jamming from the light;
* Low voltage working;

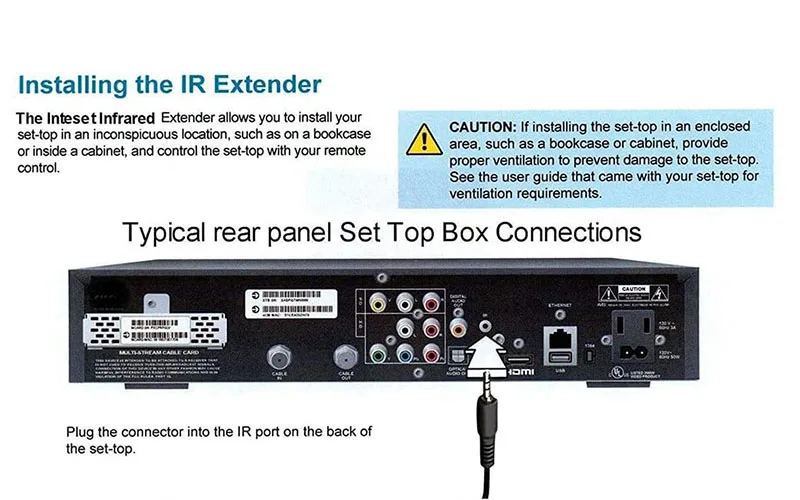

2．Application:
■Set-top box,IP TV
■ Satellite receiver
■Other audio system

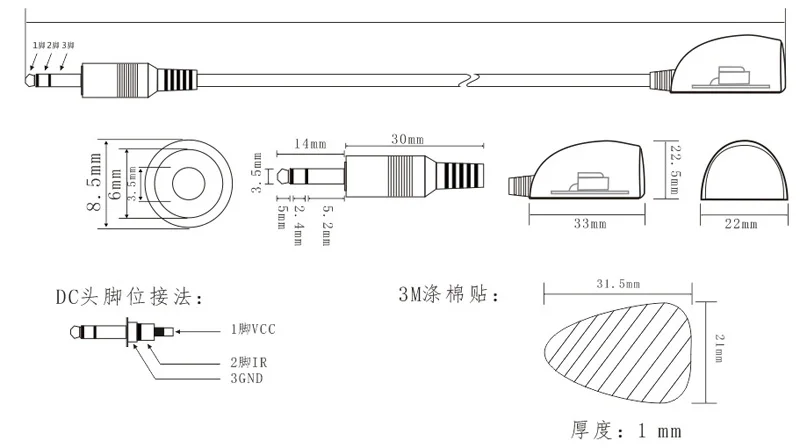

Products Dimensions.
Products Parameters
Parameters | Mark | Test condition | Min | Type | Max | Unit | ||||
Working votage | VCC | 2.7 | 5.5 | V | ||||||
Working Current | Icc | 0.6 | 0.8 | - | mA | |||||
Quiescent current | Ice | With out signal | 0.1 | 0.5 | mA | |||||
Receive distance | L | ※ | 20 | 23 | M | |||||
Receive angle | θ1/2 | +/-60 | Deg | |||||||
Carrier frequency | f0 | 38 | KHZ | |||||||
BMP width | fBW | -3Db Bandwidth | - | 8 | - | kHz | ||||
Low output | VOL | Vin=0V Vcc=5V | 0.4 | V | ||||||
High output | VOH | Vcc=5V | Vcc-0.3 | Vcc | V | |||||
Output pulse Width | TPWL | Vin=50mVp-p | 500 | 600 | 700 | μS | ||||
TPWH | Vin=50mVp-p | 540 | 640 | 740 | μS | |||||
