Моторизованный клапан COVNA цена чугун 110 В переменного тока DN100 Dn150 Электрический актуатор клапан-бабочка для
Моторизованный клапан COVNA цена чугун 110 В переменного тока DN100 Dn150 Электрический актуатор клапан-бабочка для
Моторизованный клапан COVNA цена чугун 110 В переменного тока DN100 Dn150 Электрический актуатор клапан-бабочка для
Моторизованный клапан COVNA цена чугун 110 В переменного тока DN100 Dn150 Электрический актуатор клапан-бабочка для
Моторизованный клапан COVNA цена чугун 110 В переменного тока DN100 Dn150 Электрический актуатор клапан-бабочка для

Моторизованный клапан COVNA цена чугун 110 В переменного тока DN100 Dn150 Электрический актуатор клапан-бабочка для


Поделиться:

Цена:119,99 $ - 132,99 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Recommend Products


COVNA Electric Actuator Valve Series
We offer all kinds of electric actuator valve for your project
To help your project runs well and help your business grows


Electric Ball Valve Series
Electric Butterfly Valve Series
Multi-Turn Electric Actuator Valve Series


We could offer the actuators only or valve only for you.
Consult us to get a free valve solution!


COVNA Electric Actuator
COVNA Wafer Butterfly Valve




Products Description




Technical Parameters of Electric Valve:


Item
Price Cast Iron 110vac DN100 Dn150 Electric Actuator Wafer Butterfly Valve For Water
Medium Temperature
EPDM: -10~120℃; PTFE: -10~180℃
Working Pressure
PN 10 / 16
Size Range
DN50 to 600
Body Material Options
Cast Iron or Stainless Steel 304/316/316L
Disc Material Options
Stainless Steel 304/316/316L
Sealing Material
NBR, EPDM, PTFE
End Connection
Wafer Connection
Structure
Midline Structure A Type
Applicable Medium
Water, Oil, Air, Gas, etc

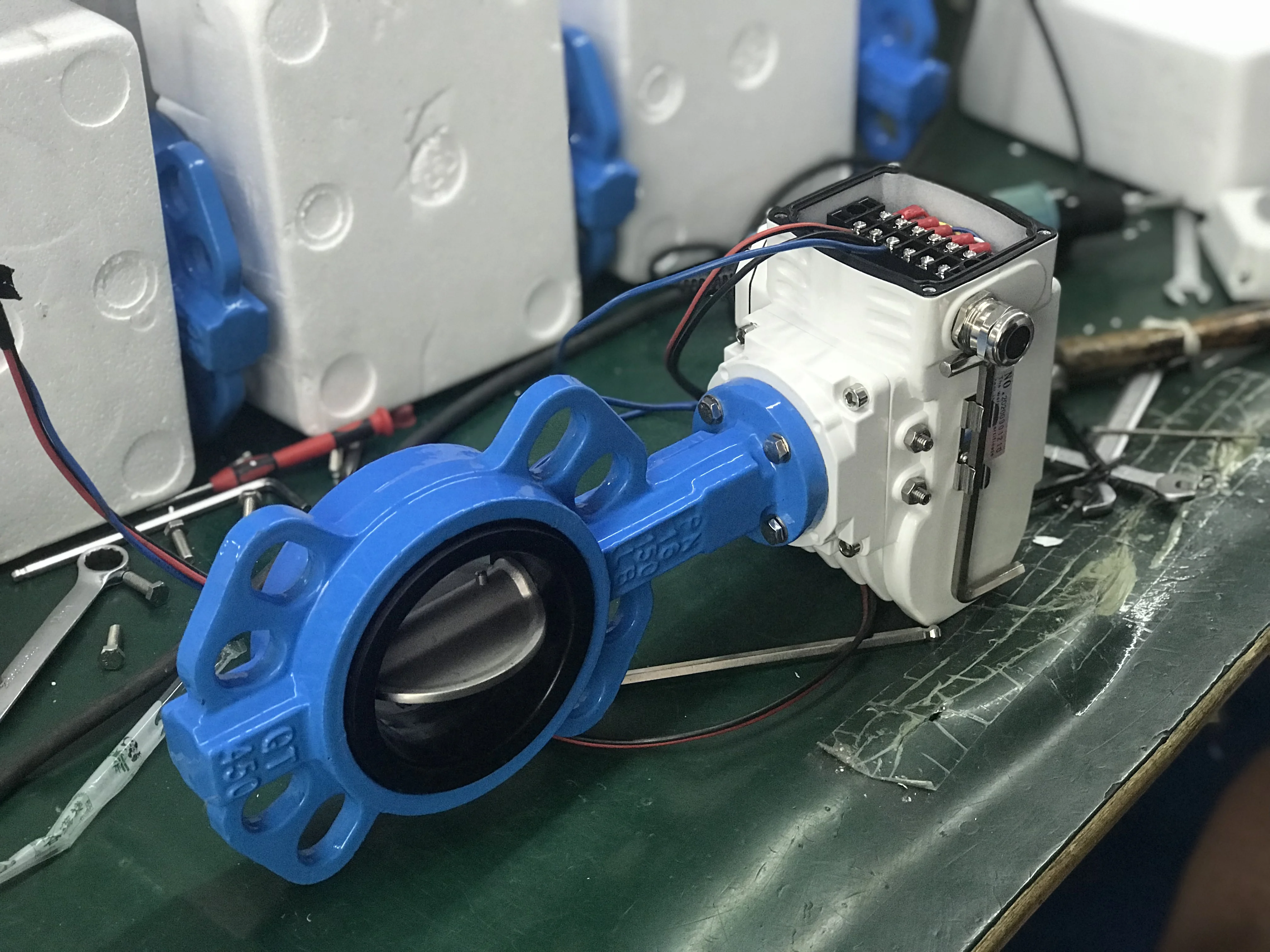

Stainless Steel Wafer Electric Butterfly Valve
Cast Iron Wafer Electric Butterfly Valve




Technical Parameters of Electric Actuator:




Features Of COVNA Quarter-Turn Electric Actuator:
● 90 degree rotation
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● AC/DC power supply, signal control and manual override
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty




Series
05
10
16
30
60
125
250
400
Torque Output
50Nm
100Nm
160Nm
300Nm
600Nm
1250Nm
2500Nm
4000Nm
90° Cycle Time
20S
15/30S
15/30S
15/30S
30S
100S
100S
100S
Angle Of Rotation
0-90°
0-90°
0-90°
0-90°
0-90°
0-90°
0-90°
0-90°
Working Current
0.23A
0.35A
0.4A
0.45A
0.6A
1.03A
1.85A
2.7A
Drive Motor
50W
75W
80W
100W
130W
210W
285W
360W
Voltage Options
DC12V, DC24V, AC24V, AC110V, AC220V, AC380V
Input Signal
4-20mA, 1-5VDC, 0-10VDC
Output Signal
4-20mA, 1-5VDC, 0-10VDC
Protection Class
IP65 protection class
Ambient Temp
-20 to +60°C
Wiring Diagram
A: ON/OFF type with light indicator signal feedback
B: ON/OFF type with passive contact signal feedback
C: ON/OFF type with resisance potentiometer signal feedback
D: ON/OFF type with resistance potentiometer and neutral posistion signal feedback
E: Regulation type with servo control module
F: DC24/DC12V direct ON/OFF type
G: AC380V 3-phase power supply with passive signal feedback
H: AC380V 3-phase power supply with resistance potentiometer and neutral posistion signal feedback


Company Profile




COVNA Group Co.,Ltd
COVNA, a manufacturer who specialized in valves with 20 years experience. COVNA provides performance, safety and long service life products which have to reliably handle the most aggressive of substances, our products stand the test of time in food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
COVNA give comprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.


Technology
Researched and produced by Germany Technology
Service
Intergrating R&D, design, sales and service
Quality
Inspect quality of each product before shipment




Certifications




Product packaging


Each valve will be packed in foam with carton, master carton or wood pallet to keep it safe during shipment.
Ship by air, by sea or by express is available.


FAQ


Q: Can I get a sample and how do I get it?
A: Yes, the sample is available and please tell us your requirements of the sample and we will quote it for you and help you to order it.

Q: What are your main products?
A: We are a valve and actuator manufacturer with 20 years experience and we could provide ball valve, butterfly valve, check valve, gate valve, globe valve, electric actuator and pneumatic actuator for you. We committed to being your No.1 one-stop valve solution provider.

Q: Do you have any certificates?
A: Yes, we have ISO9001:2015, CE, TUV, SGS and more than 30 patents. Quality is our goal and the certificate is good proof of our quality.

Q: Can I be your distributor?
A: Yes, you can be our distributor. Details please contact us.

Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
