1. The best elongation ratio of the headstock, to achieve the best processing rigidity.
2. Standard model bed with horizontal automatic spiral chip removal groove.
3. Split type automatic tool changing device, to avoid the tool storehouse operation on the accuracy of machine tools have adverse effects, two-way tool storehouse are adopted the shortest path.
Specification
Machine Type
Unit
MVL1370
Worktable
Worktable ( L * W )
mm
1500*700
Max. load on worktable
kg
1200
T-slot
mm
5-18*140
Travel
X/Y/Z axis travel
mm
1300*700*650
Distance from spindle nose to workbench
mm
100-750
Distance from spindle center to column guide
mm
800
Feed system
CNC system
FANUC-0i MF
Rapid shift of X/Y/Z axis
m/min
24/24/20
Cutting feed speed
m/min
8
Spindle
Spindle speed
r.p.m
6000
Spindle specifications
BT50/Φ190
Spindle drive manner
Belt
Spindle motor power
kw
15/18.5
Tool magazine
Standard tool quantity
T
Arm 24
Tool length and diameter
mm
Φ110/300
Max. tool weight
kg
15
Tool exchanging time
sec
3
Precision
Positioning accuracy
mm
0.012
Repeated accuracy
mm
0.008
Control system
Control system
FANUC-0i MF
Voltage
kva
35
Air pressure
Air demand
kg/cm²
6-8
Air pressure flux
L/min
280
Machine specifications
Weight
kg
9500
Overall dimension
mm
3900*3060*3080

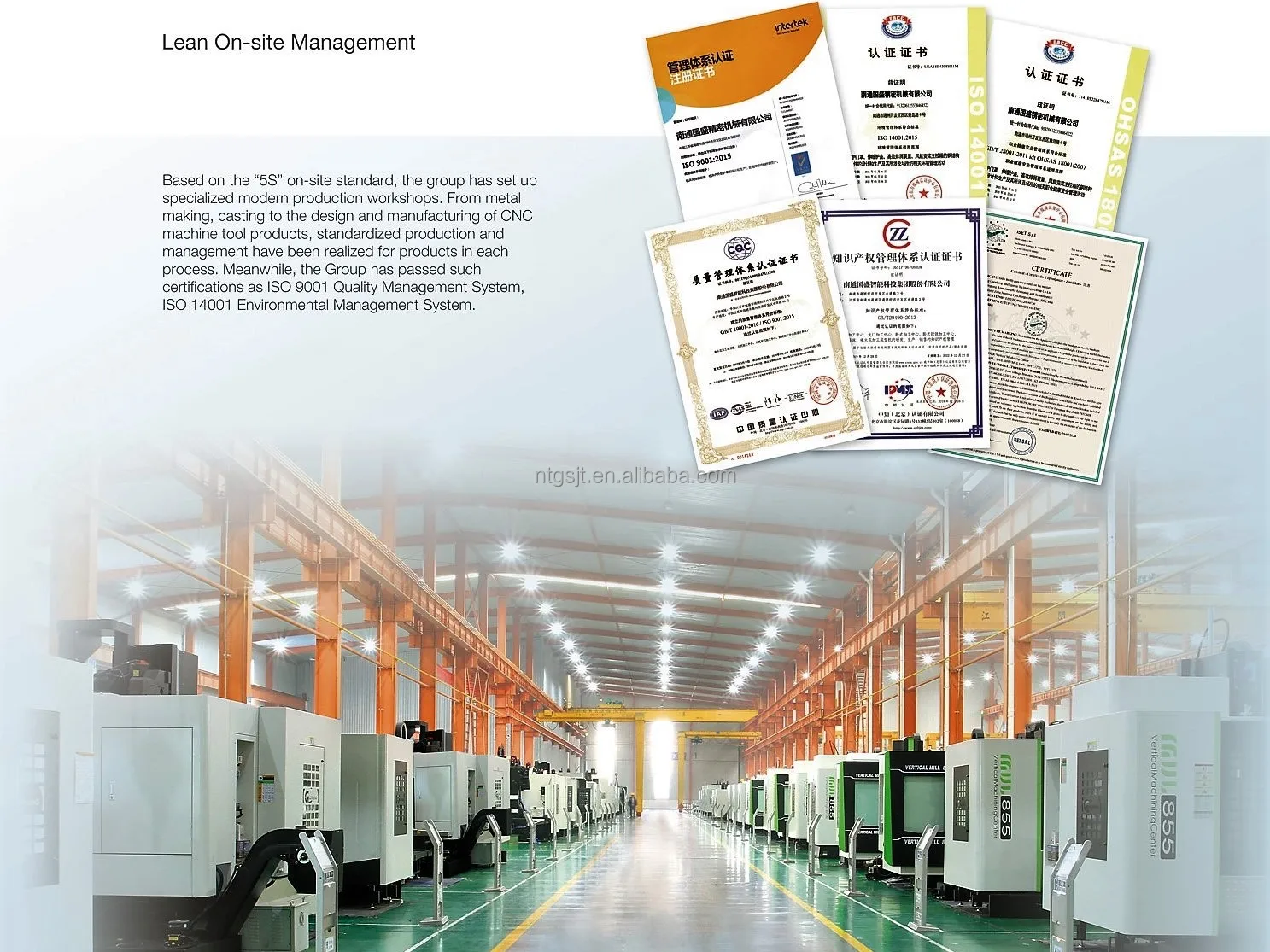

Worksite management
Service system
Company Profile
Nantong Guosheng Machinery & Power-Generating Group Co. Ltd. is specialized in producing the advanced CNC Horizontal
Machining Center, CNC Vertical Machining Center, Gantry Machining Center, Horizontal boring-milling machine and Precision sheet metal parts, professional welding
parts, high quality casting, CNC EDM Machine tool and so on.
Our products can meet the demand from mould industry, energy industry, shipbuilding industry, construction machinery industry, aerospace industry, military project and so on.
Guosheng Group is a high-tech enterprise with strong R&D team .We are among of the top 15 in Chinese CNC machine tool industry.And we own a lot of patents
and high-tech products.
With the strong technical support, precision machining, detection device, well-organized employee team and industry-leading service idea, now Guosheng group has
become the long-term partner of a lot of world famous enterprise like : DMG, BOMAG, SANDVIK, TOSHIBA MACHINE, HUSKY, FOXCONN and so on.
Guosheng group enterprise sprit is: "honest, quality, diligence, innovation." We will keep on provide the all-around solution and high quality products and fast-action to our international clients.
FAQ
1. who are we? We are based in Jiangsu, China, start from 1999,sell to . There are total about 301-500 people in our office.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us? Vertical Machine Center,Horizontal Machine Center,Horizontal Boring and Milling Machine Center,Gantry Machine Center,CNC Lathe
4. why should you buy from us not from other suppliers? We have nearly 16 years in producing CNC machine tools .We have been cooperated with a lof of famous enterprises like : TOSHIBA Machine, HUSKY, DMG, BOMAG, SANDVIK, DAVIS-Standard, FOXCONN, TRUMPF, Schaeffer Group and so on .
5. what services can we provide? Accepted Delivery Terms: FOB,CIF； Accepted Payment Currency:USD; Accepted Payment Type: T/T,L/C; Language Spoken:English
