Резервуар для циркуляции буровой грязи на
- Категории: Oilfield Mud Tank >>>
- Поставщик: Langfang,Jinlaiyuan,Environmental,Protection,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

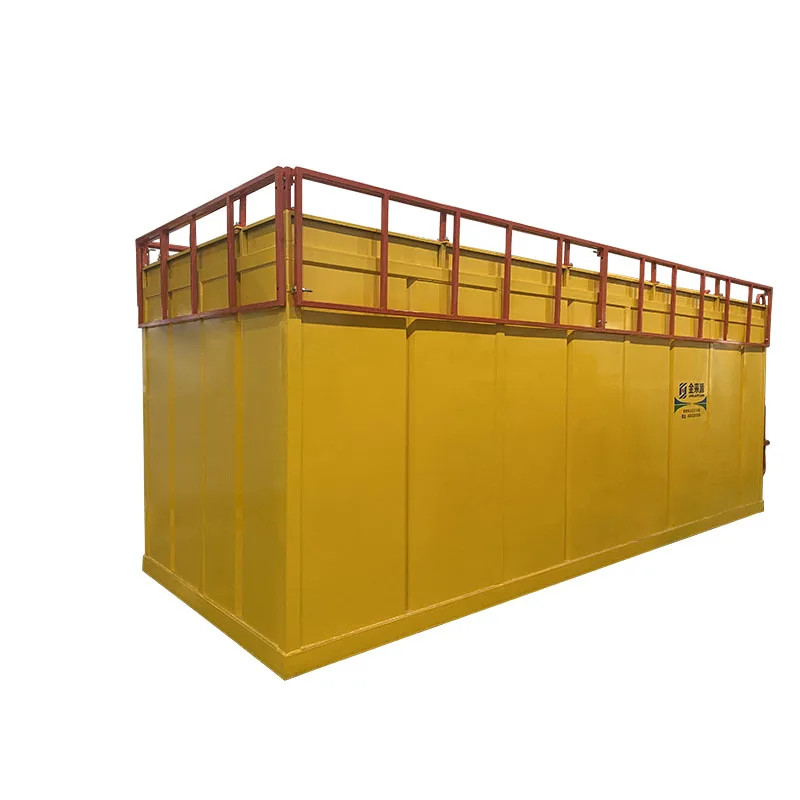

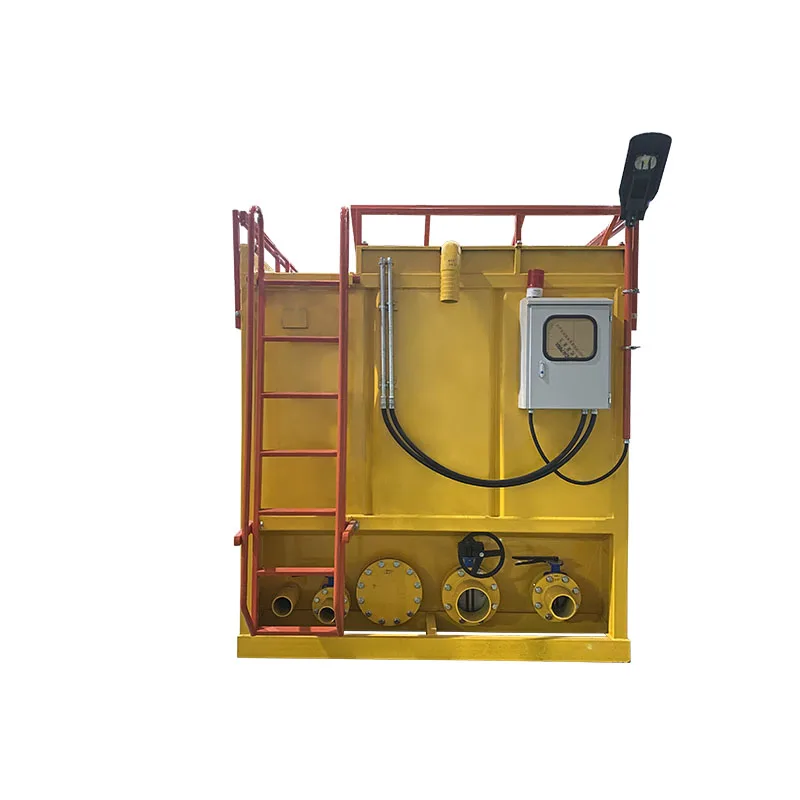

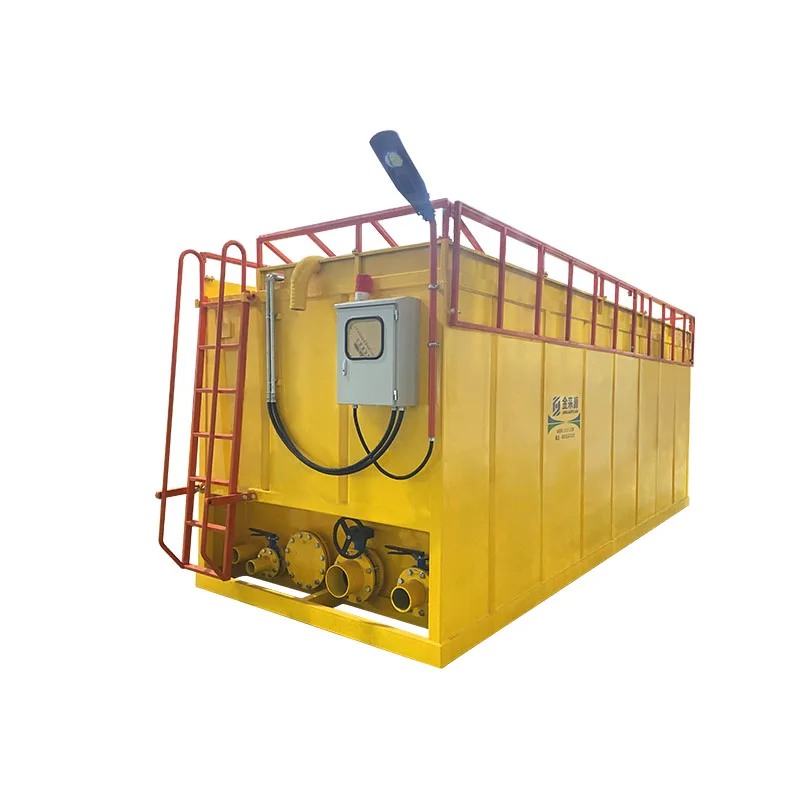

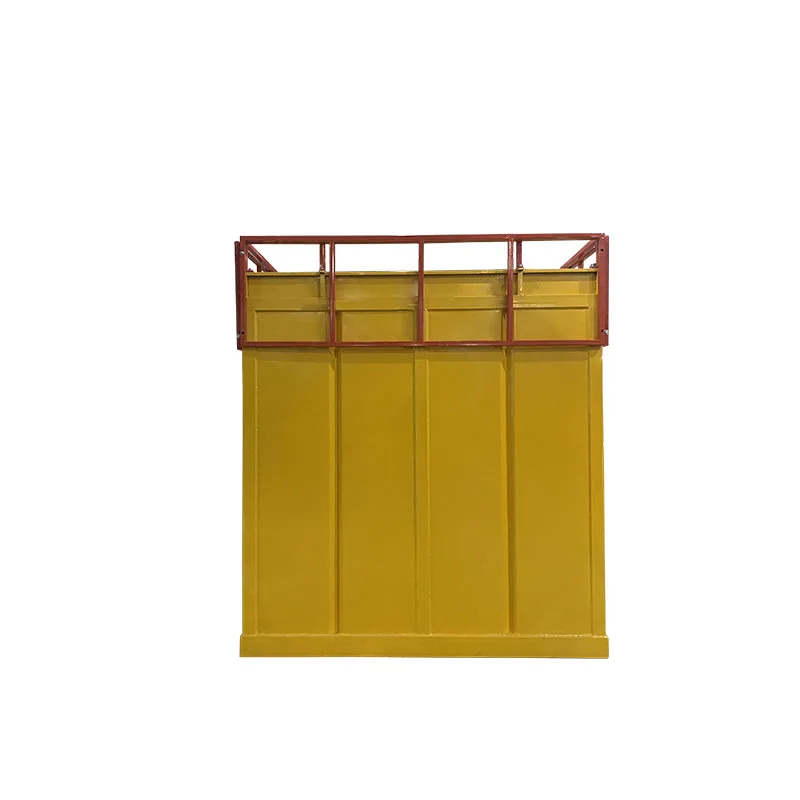

drilling mud circulation tank for sale
| Serial No. | Name | Parameter | Note |
| 1 | Gear Reducer | 7.5kw x 2 | Roation Rate 60r/Min.;Double Layer Blade;With Centralizer |
| 2 | Electrical Control | Customize | Protection when overloading, Votage high or Low, Less phase, Alarm when most high liquid level.Led Light |
| 3 | Top Board | Steel Grating | 5mm |
| 4 | Side Board | Corrugated Sheet | 6mm |
| 5 | Bottom | 120 Structional Section+6mm Bottom Sheet | / |
| 6 | Volume | 25m³ | / |
| 7 | Water Inlet | 4" | Inverted Teeth of Elbow |
| 8 | Jet Suction Inlet | 6" | Inverted Teeth of Butterfly Valve |
| 9 | Jet Return Outlet | 5" | Inverted Teeth |
| 10 | Mud Pump Interface | 8-6" | Inverted Teeth Butterfly Valve(Need confirm with customer) |
| 11 | Sand Cleaning Gate | 10" | Blind Plate |
| 12 | Sewage outlet | 4" | Inverted Teeth Butterfly Valve |
| 13 | Protective Fence | Foldable Design | Match |
| 14 | Ladder | Oblique Ladder (Selective) | / |
| 15 | Night Lighting System | LED | / |
| 16 | Net.Weight | 4000kg | / |
| 17 | Overall Size | 3250X2000X2150mm | / |
