200 мм светодиодный светофор пешеходный красный зеленый

Описание и отзывы

Характеристики

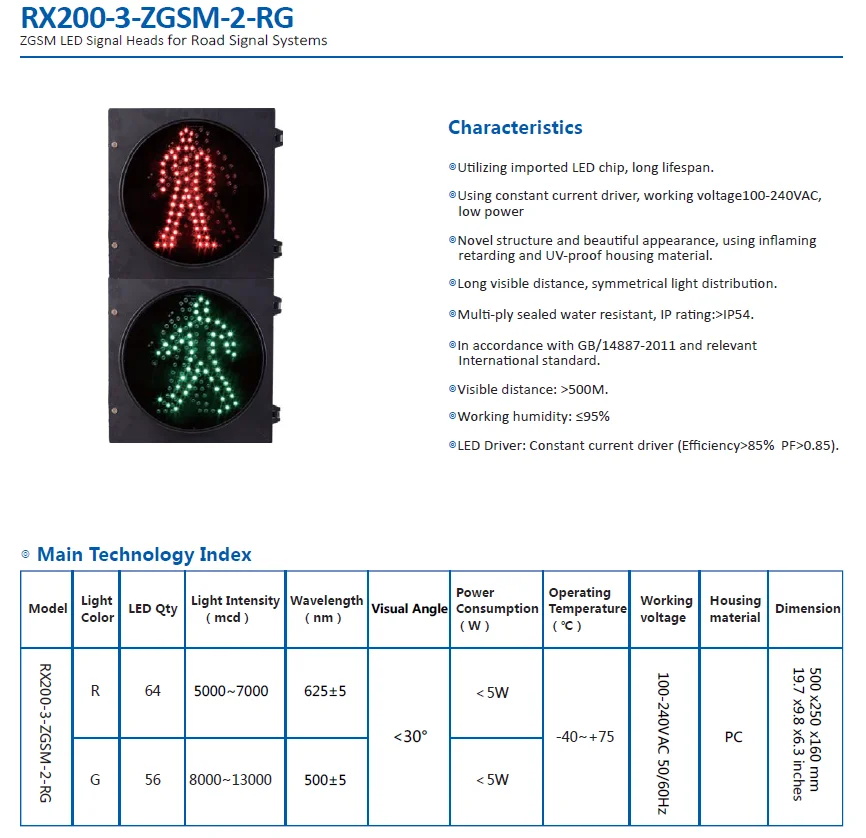

200mm LED traffic light PEDESTRIAN RED GREEN - static

Model No.		RX200-ZGSM-2-RG
Electrical Specifications
Power		Red: ≤ 5W | Green: ≤ 5W
LED Q'ty		Red: 64 pcs | Green: 56 pcs
Operating Voltage		100-240VAC ,50/60Hz
Operating Temp.		-40ºC ~ +75ºC
Operating Humidity		10% ~ 90%
Photometric Specifications
Apply Diameter		200 mm (8 inches)
Visible Range		200m (656ft)
Wavelength		Red:625±5nm | Green: 500±5nm
Intensity		Red: 5000-7000mcd | Green:8000-13000mcd
Visual Angle		<30º
Mechanical Specifications
IP Rating		IP54
Warranty		1 Year
Housing Material		PC or Aluminum
Lens Material		PC Housing: PC | Aluminum Housing: Glass
Fixture Dimension		PC: 500 x250 x160 mm
Fixture Weight		PC: 5.6 kg (12.30 lbs)
Standard(s)		GB14887-2011, EN50293:2000 & EN12368:2006
Certificate(s)		CE, RoHS
Packing Information
Packing Type		2unit /ctn.
Packing Dimension		530 x390 x290 mm (20.9 x15.4 x11.4 inches)
Gross Weight		PC: 12.7 kg (28.0 lbs)
Accessories		Visor, Bracket
