Product Description


Introduction
In the sand making process, the Bucket Wheel Sand Washer is used to clean the soil and dust in the sand, to achieve the purpose of cleaning the sand, and can also be used in the extraction of sand in ore dressing and other similar processes. This machine is suitable for highway, hydro-power, construction and other industries.




Working performance

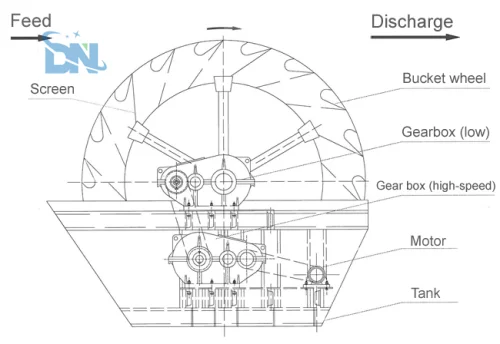

The electric motor runs slowly with the impeller after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impeller, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impeller to finish the washing task.


Introduction

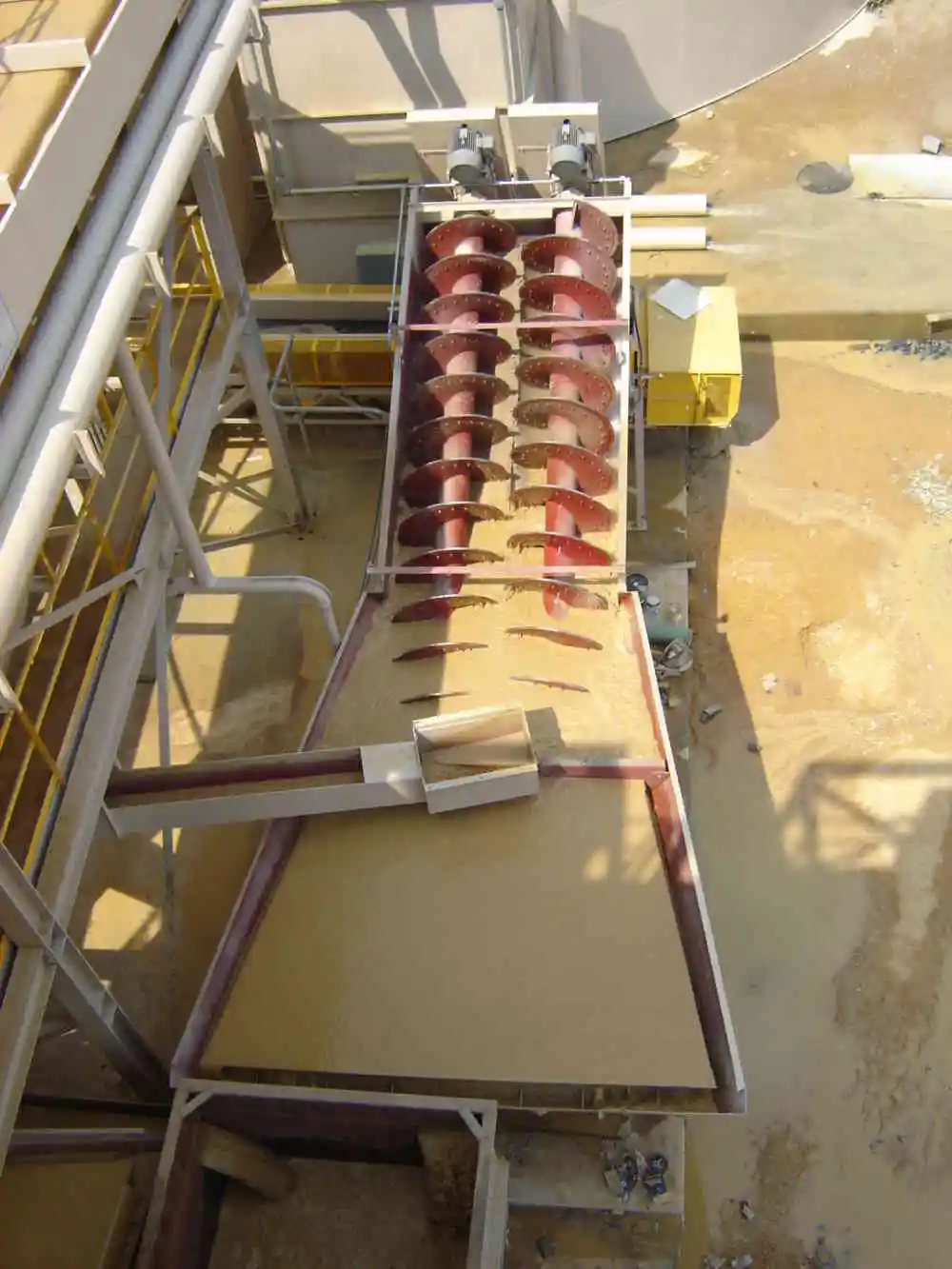

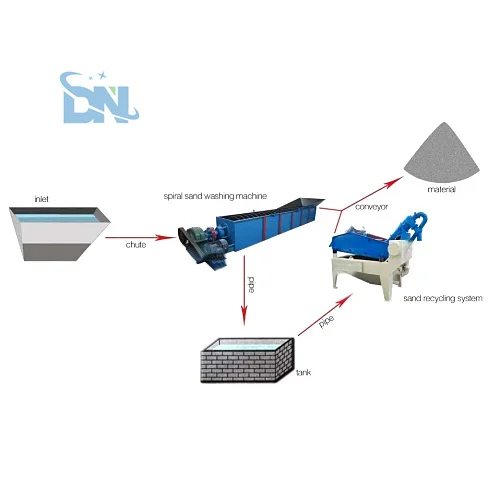

Spiral Washing Machine is a large equipment for black and non-ferrous metallurgy mines, iron and steel, metallurgy, chemical industry and building materials to wash ores and stones. The washing machine has great processing capacity, which is an ideal equipment to meet the requirements of large productivity for the cleanliness of ores and stones. Washing first can avoid the crusher and screen machine blocking , In the raw materials, such as soluble or harmful ingredients , should also be washed.




Working performance
Spiral sand washing machine can be divided into single spiral and double spiral washing machine, and with the features of power consumption, high cleanliness, good sealing structure, fully closed transmission device, adjustable weir plate ensure the durability of the product, good cleaning and dehydration effect, fine product stability and other characteristics.


Application
Suitable materials include Pebble,granite, basalt, iron ore, limestone, calcite, quartz and diabase.
Application field are : Quarry, sand,dry mortar, concrete mechanism sand, power plant desulfurization, quartz sand,etc.




Product Paramenters


Bucket Wheel Sand Washer


model
Screw diameter
Screw number
Feeding size
Capacity
Water consumption
Motor power
Outline size
(mm)
(mm)
(t/h)
(m³/h)
(kw)
(mm)
XL-762
762
1
<10
75
9-60
11
9070*2650*1530
2XL-762
762
2
<10
140
18-120
2*11
9070*3250*1530
XL-915
915
1
<10
100
10-70
15
9070*2650*1638
2XL-915
915
2
<10
200
20-140
2*15
9070*3510*1638
XL-1115
1115
1
<10
175
20-140
22
9070*2830*1900
2XL-1115
1115
2
<10
350
40-280
2*22
9070*3890*1900


Spiral Washing Machine


Model
Diameter of The Wheel Bucket (mm)
Speed Of Rotation (r/min)
Maximum Feeding Size(mm)
Processing Capacity (t/h)
Motor Power (kw)
Overall Dimensions (mm)
Weight (kg)
XS2210
2200
2.5
≦10
15~30
4
3180*1955* 2350
2260
XS2610
2600
2.5
≦10
20~50
5.5
3515*2070* 2672
2500
XS2810
2800
1.2
≦10
50~80
11
3964*3014* 2895
3200
XS2815
2800
1.17
≦10
60~100
11
3964*2137* 2895
3580
XS3016
3000
1.2
≦10
70~110
11
4169*3456* 3055
3850
XS3210
3200
1
≦10
80~120
15
4340*2760* 3349
3950
XS3215
3200
1.17
≦10
95~130
15
4346*2198* 3345
4185

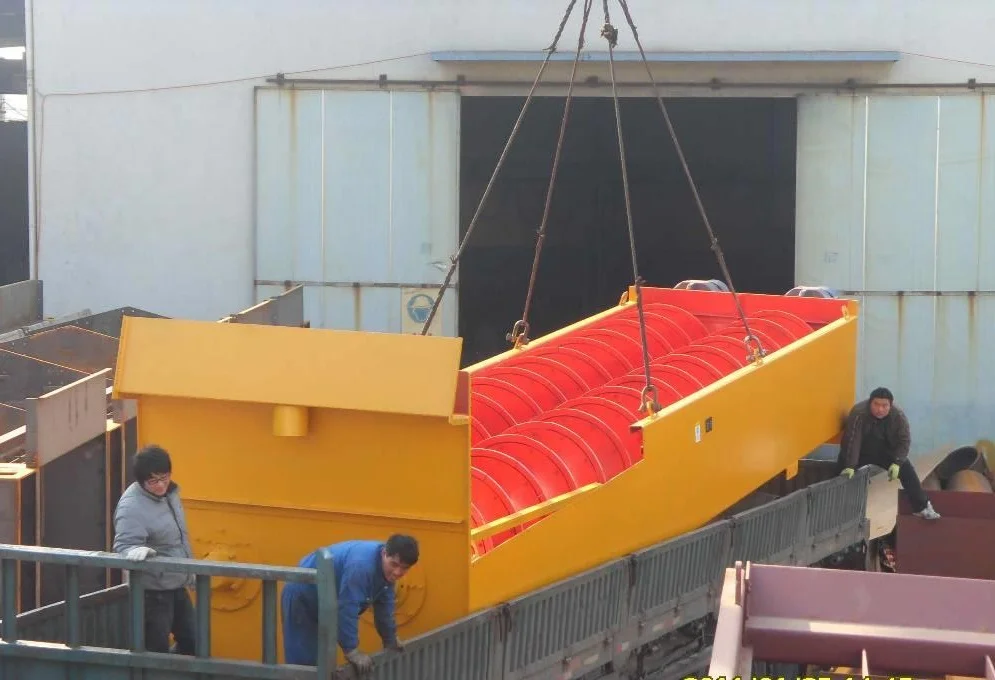

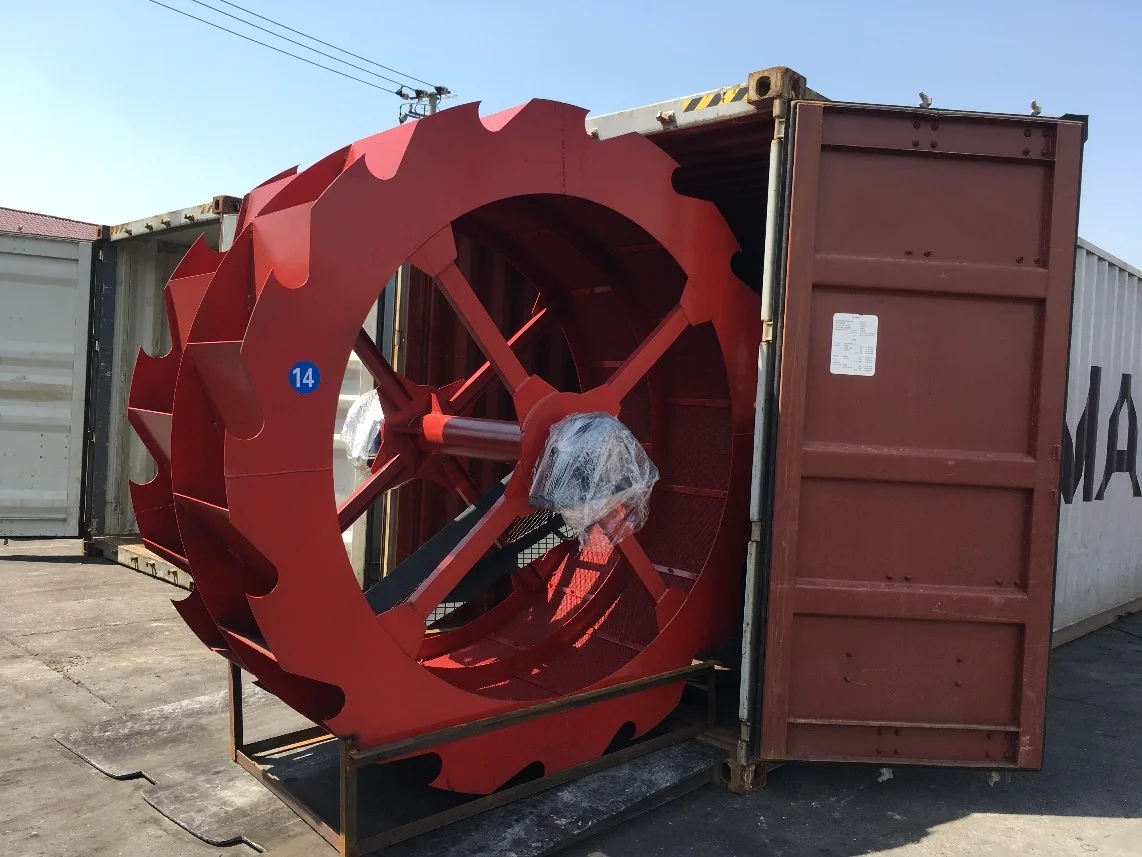

Packaging&Dilvery


Packing & Delivery is one of the most important process ,especially for products like crushing machines ,so we basically follow three rules ,each one of them are taken very carefully .
1.Standard Parts Packed in the Wooden Cases
2.Big Parts Packed by Plastic Membrane
3.The Whole Machine is Loaded in the Container
Also ,we listen carefully to each of our customers ,we never stop trying to satisfy our customer .

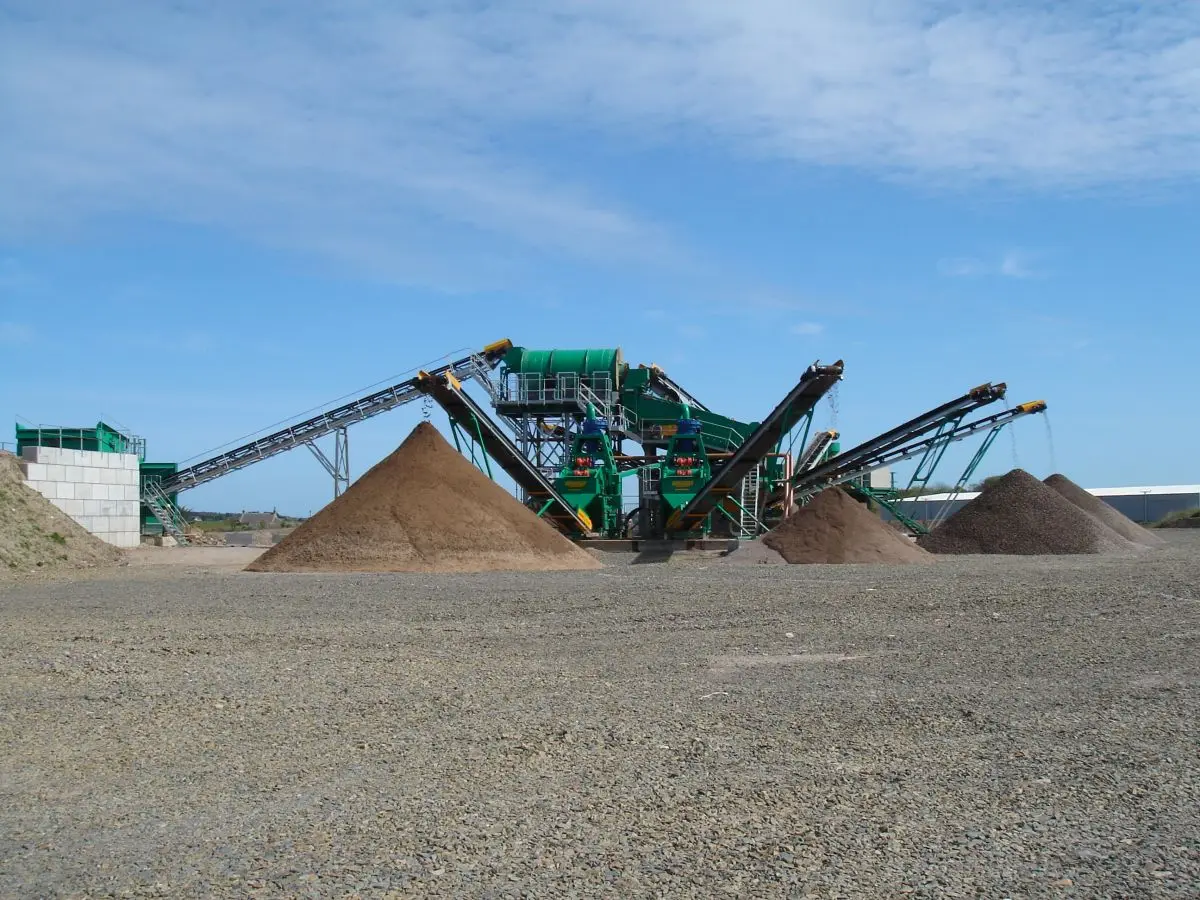

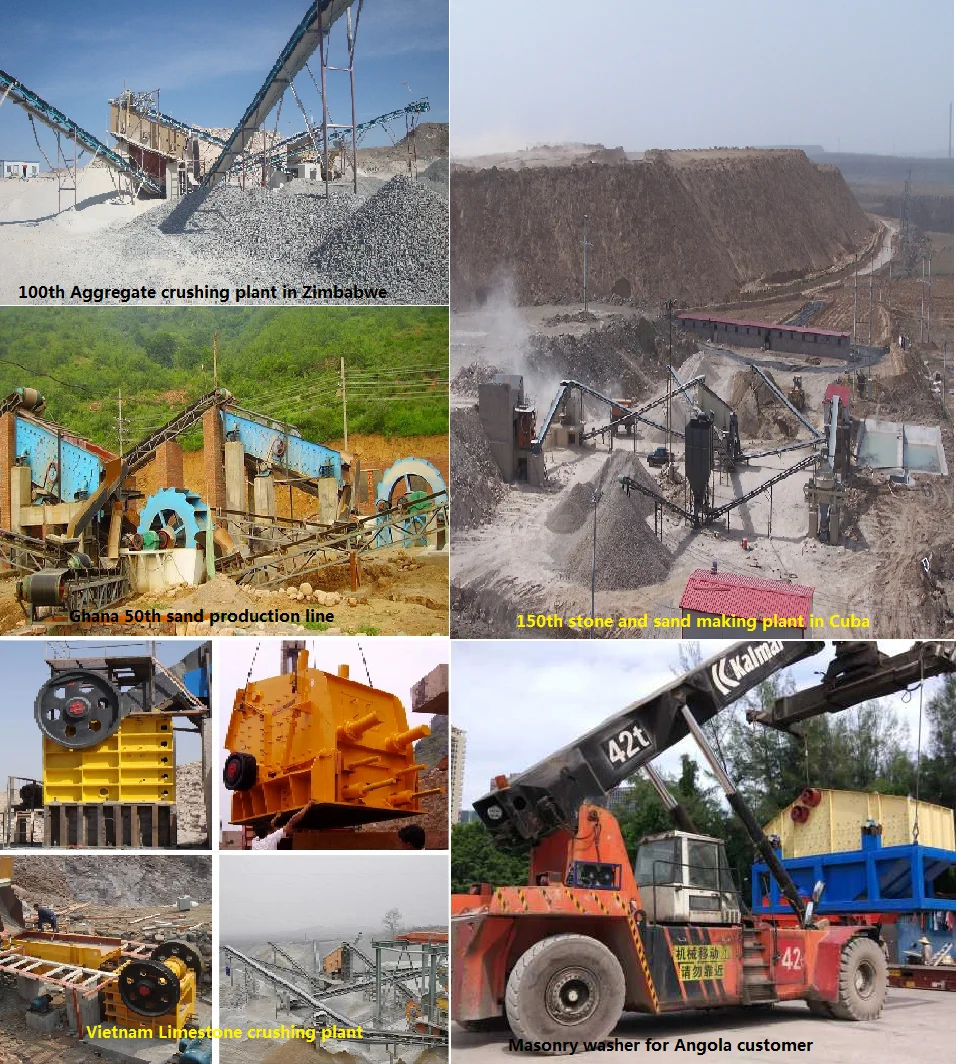

Successful Cases






Company Introduction


Ganzhou Dongneng Technology Co, Ltd. is a privatization enterprise, which focuses on mining equipment R&D,manufacturing and sales, the main products include sand and stone making equipment ,new type dry technology cement producing equipment,limestone producing equipment etc.

Besides, we also design and install sand project and some ecological improvement equipment, and self-operate and agent import and export business for all kinds of products.The stone and sand making production process, mineral separation system, grinding system and drying system which independently R&D by our company have been the world leading level.

Our products have been widely used in industries, such as mining, chemical industry, metallurgy, building material, coal, refractory material and so on. In technological innovation, the offline pulse bag filter, large synchronous segmentation injection bag filter technology, series efficient classifier and other technology of our company have met the domestic leading level. For development strategy, our company successively implemented three projects which are "High beginning location", "Two strategic shift", "Brand determines the future". entire policies and development ideas, and to build the enterprise's comprehensive core competitiveness.

On service quality, our company have accomplished many wonderful projects based on service strategy of "one center, one compromise, three brace, three first-rate, four control, five operation, six criterion", and a full course of follow-up service for users. international orientation and scale development create rich experience and general contracting ability in project implementation,so on.

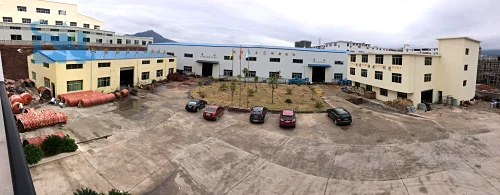

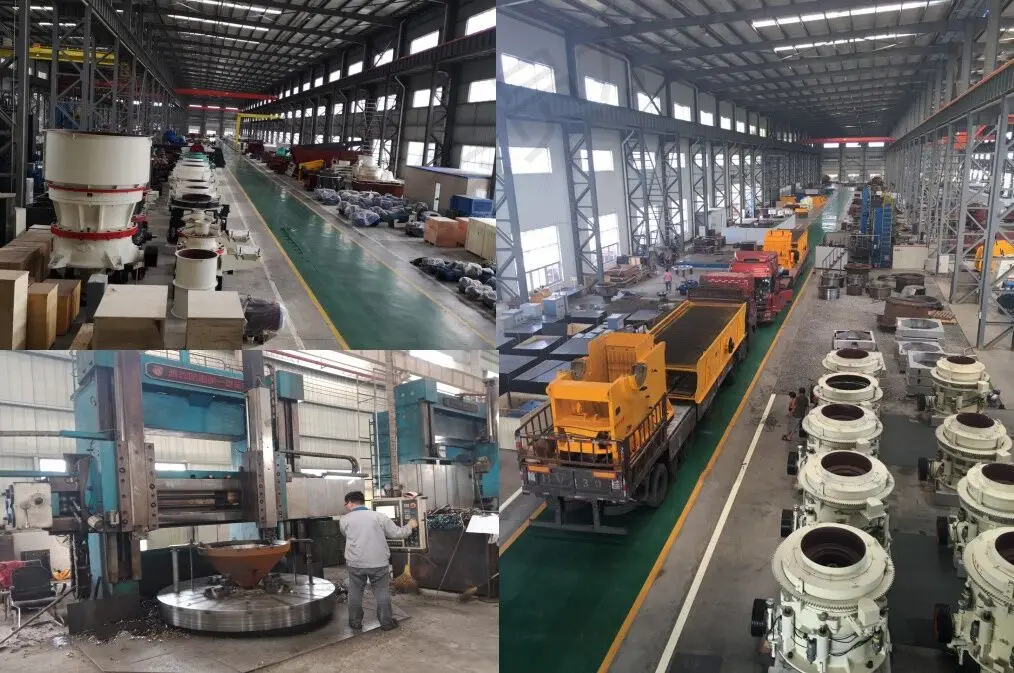

factory
Our factory has an area of 10000 square meters, USD 1000 million fixed assets.Our engineer and technical personnel covering 15% of the total staff.




Customers
At the same time, our products are also exported to more than 30 countries, such as to Uzbekistan, Denmark, Turkey, Vietnam,Nigeria etc.




For further information about us please find our website :www.jxscmine.com .


Certifications


We have passed CE Certification, National Level AAA Measurement System and ISO9001,ISO14001,OHSAS18001 Three Standard In One Certification.






Services


Pre-sales services
* Offer professional suggestions for equipment selection.

* The equipment can be modified the design according to customers
requirements besides standard model.

* Planning site and offer the suitable flow schemes.
In-sales services
* Follow up on the progress of the production and quality of the equipment.

* Ensure the delivery, offer relative drawings, and
record the trial run.

* To assistant customer checking and acceptance the equipment.
After-sales services
* Send professional technicians to assist in installation, commissioning and operation in production site.
* Training the operator and maintainer to ensure the normal operation of the equipment.
* For any troubles aroused under warranty, we will offer solutions within 48 hours and send technician to reach the site ASAP if needed.


FAQ


why do we choose you over others ?
1. experience : Founded in 1985, we have nearly 40 years of production experience. we have more experiences in this which would save your precious time and money .
2.With our profound accumulations in design ,manufacturing and marketing ,quality can be assured .
3.Strict self inspection ,you will always be happy working with us because we make less mistakes than others .


do you accept inspections ?
Yes ,you're always welcomed to come .Every year we have lots of customers coming to our workshop ,please do not hesitate to contact us for inspections .


how can I choose the correct Model ?
With following info we can tell everything: What is the targeted Raw material ?
Granite/gobble/basalt/limestone/quartzite/diabase/iron core/gold ore/copper ore ? maximal size of the raw material ?give us a range . what is the discharging size ? etc...
Please note this :the more specific information you provide ,more more we can do for you and the better price we can offer you .


How long is the gaurantee ?
All of our products are guaranteed for one year. If products quality is not consistent with the description as we described , we promise 100% refund.
