Product Description

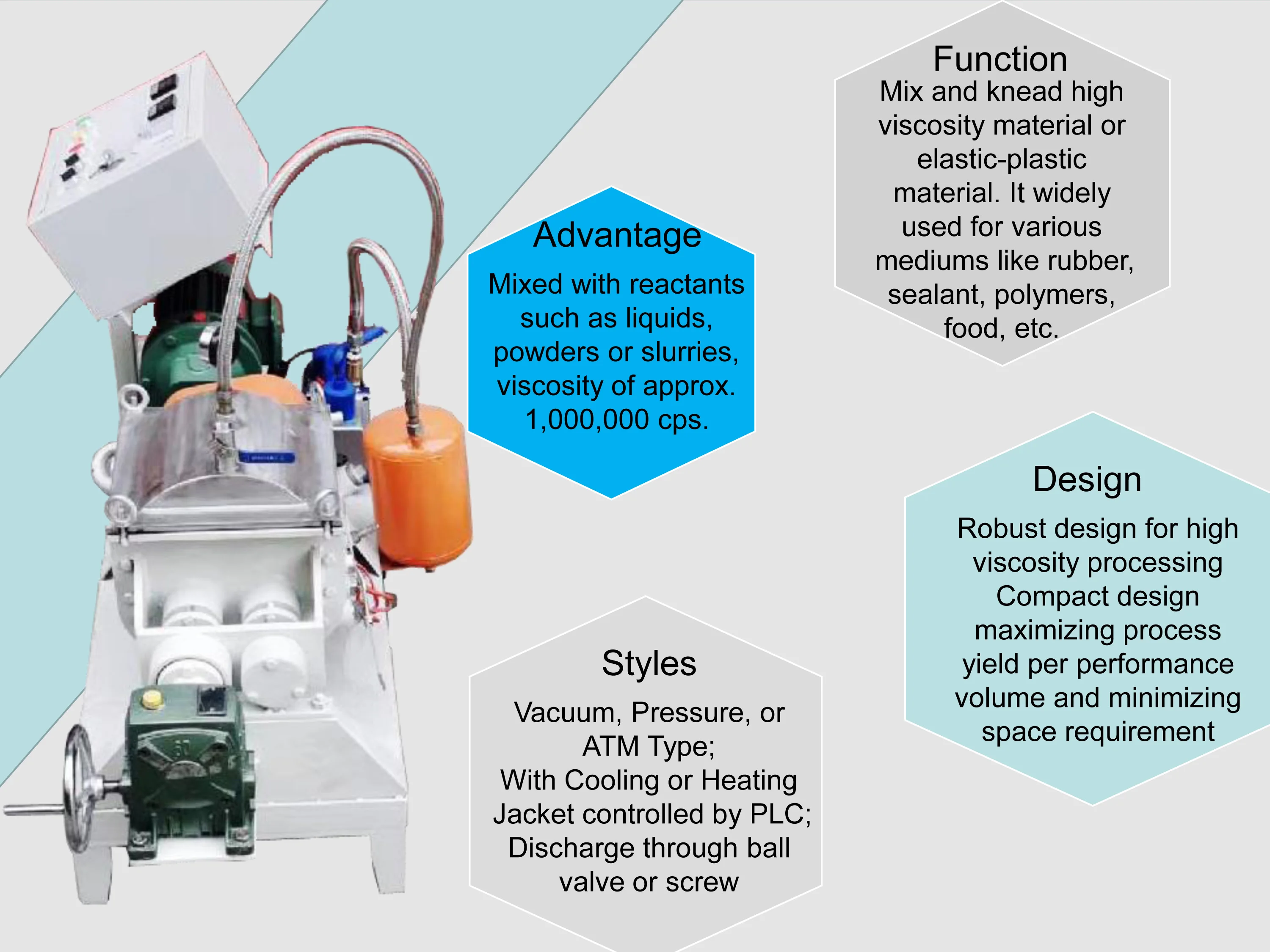

A Kneader reactor  (or kneading machine) is a device used for mixing and kneading high viscosity material or elastic-plastic material. It's widely used for various mediums like rubber, sealant, polymers, food, etc.
The kneader reactor is a horizontal mixing machine with two Sigma (or Z-type blades, or others). These blades are driven by separate gears at different speeds, one running 1.5 times faster than the other. It has powerful motor and speed reducer to drive the two blades. The kneader reactor usually has a W-type barrel with a hydraulic tilt that turns it, and a heating jacket outside.



Applications
Glue Industrial: Sealant, Hot Melt Adhesive, Neutral Glass Glue.
Food Industrial: Soft Candy, Gum, Chocolate,
Chemical Industrial: Tooth Paste, Soap, Cosmetic Dye
Organic Industrial: Butyl Rubber, Organic Silicon, Silicon Rubber, Carbon Fiber, Plastic, Cellulose, Resin
Energy Industrial: Battery Paste, Aluminium Paste
Others: Paper Pulp, Print Ink, Architectural Coating, Pigment, Pharmaceutical





Specification


Technical Parameters
Model No.
CLK2~100L
Working Volume
70% of total volume
Mixing Motor Power
1.1~5.5 KW
Discharge Method
Manual or Hydraulic Flip, Discharge from bottom by Valves or Screw.
Mixing Speed
40/21 RPM
Mixing Blade
Sigma Blade, Z Blade, Masticator Blade, Fishtail Blade
Heating Method
Electric Heating, Water/Thermal Oil/Steam Circulation
Inside Pressure Range
-0.094~0.3MPa
Electric Heating Power
1.8~4.2 KW





Advantages of a Kneader Machine

1. The materials have a high viscosity of approximately 1,000,000 cps. They are mixed with reactants such as liquids, powders or slurries.
2. Large working volume efficiently handling large product volumes.
Large heat-exchange surface areas yielding highest possible surface-to-volume ratio.
3. With Multi-functional property, Kneader reactors offer a number of technological advantages for dry processing.


* Excellent mixing and kneading performance during wet, pasty and viscous phases.
* Compact design maximizing process yield per performance volume and minimizing space requirement.

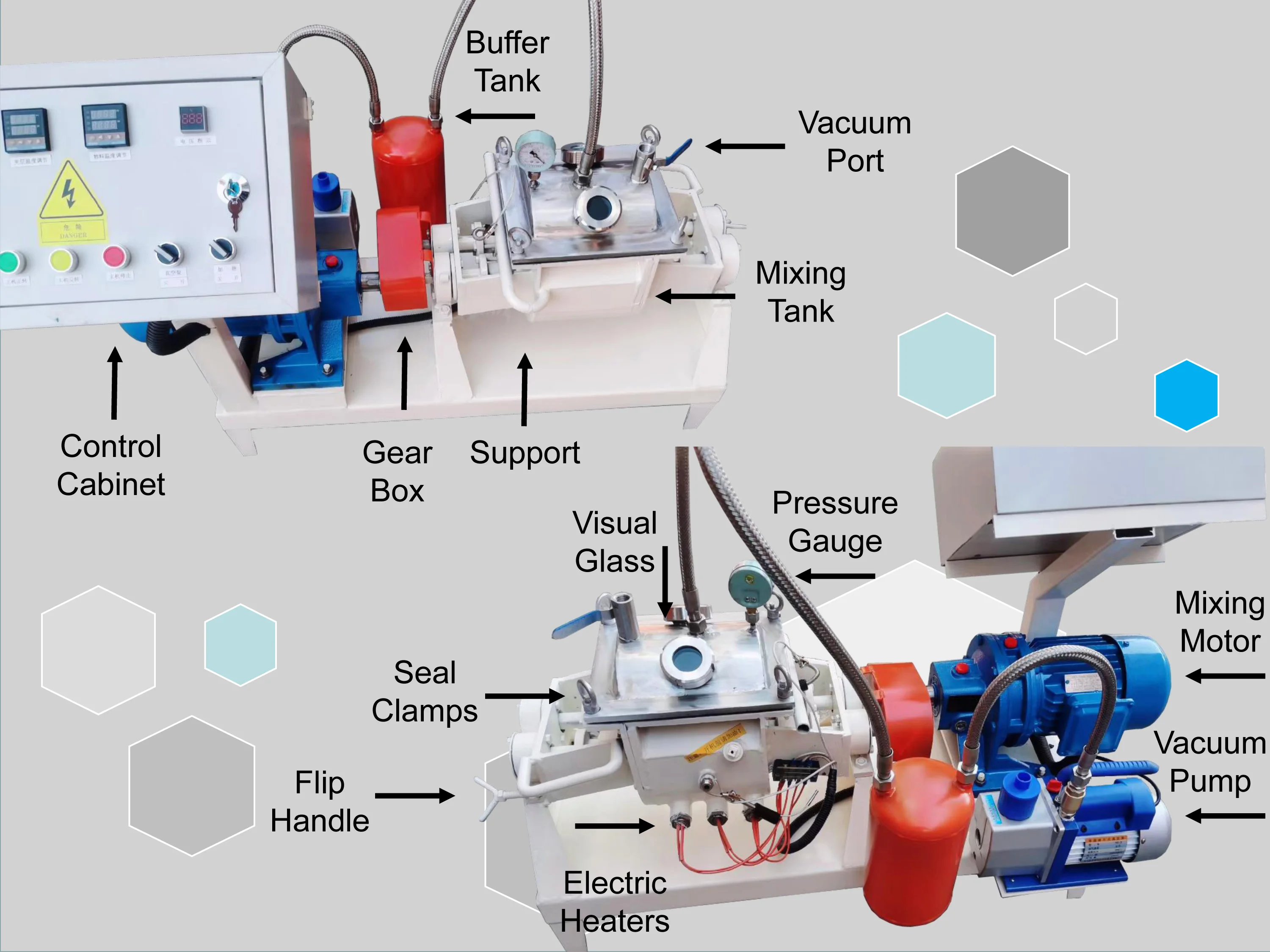

Related Instruments and Devices

For easy operation, each kneader equips with many instruments in below.

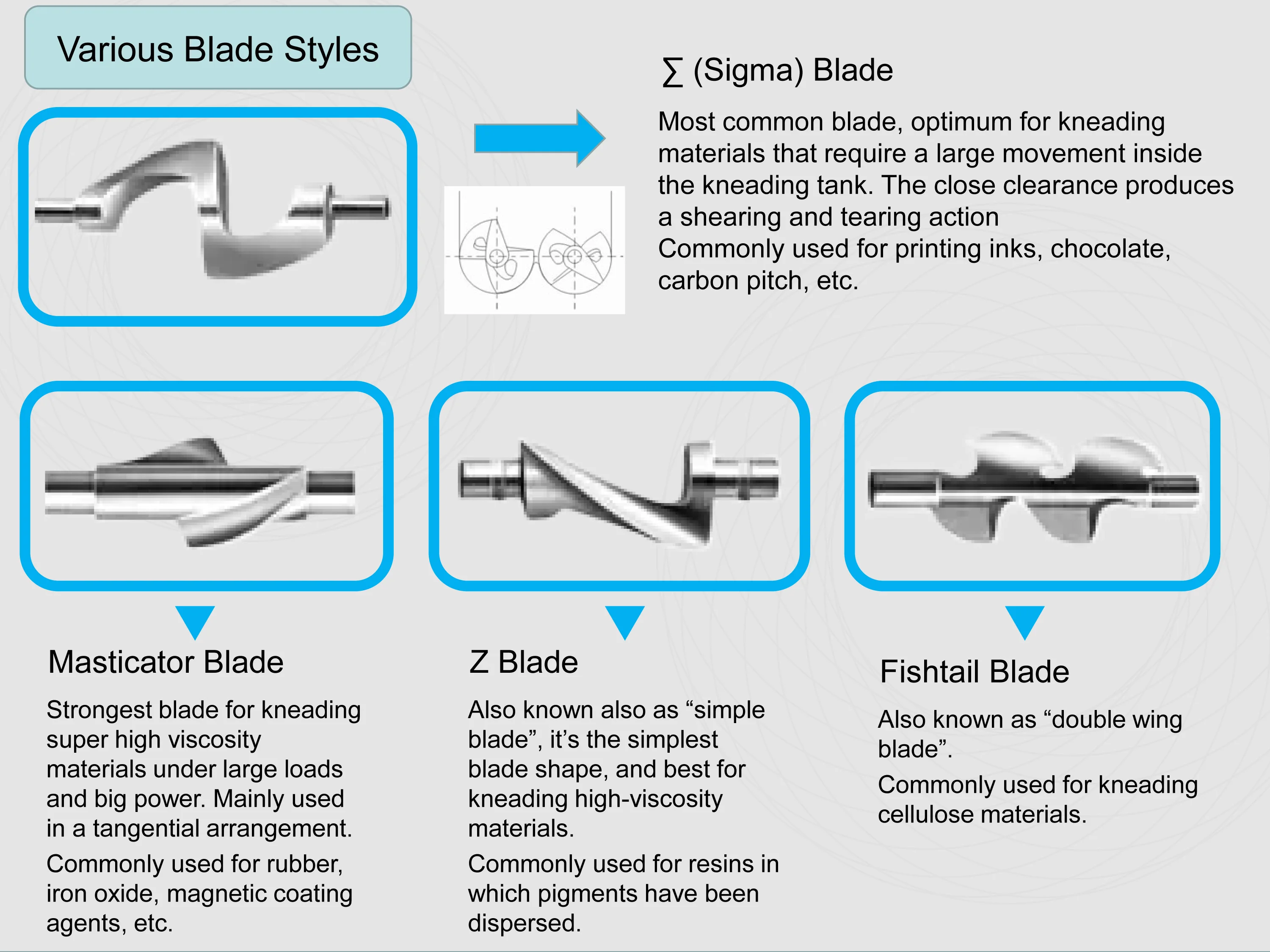

Kneader Blade Styles

The kneader machine has various blade according to different working medium. They are Sigma Blade, Z Blade, Masticator Blade, Fishtail Blade, the detail is shown in below:

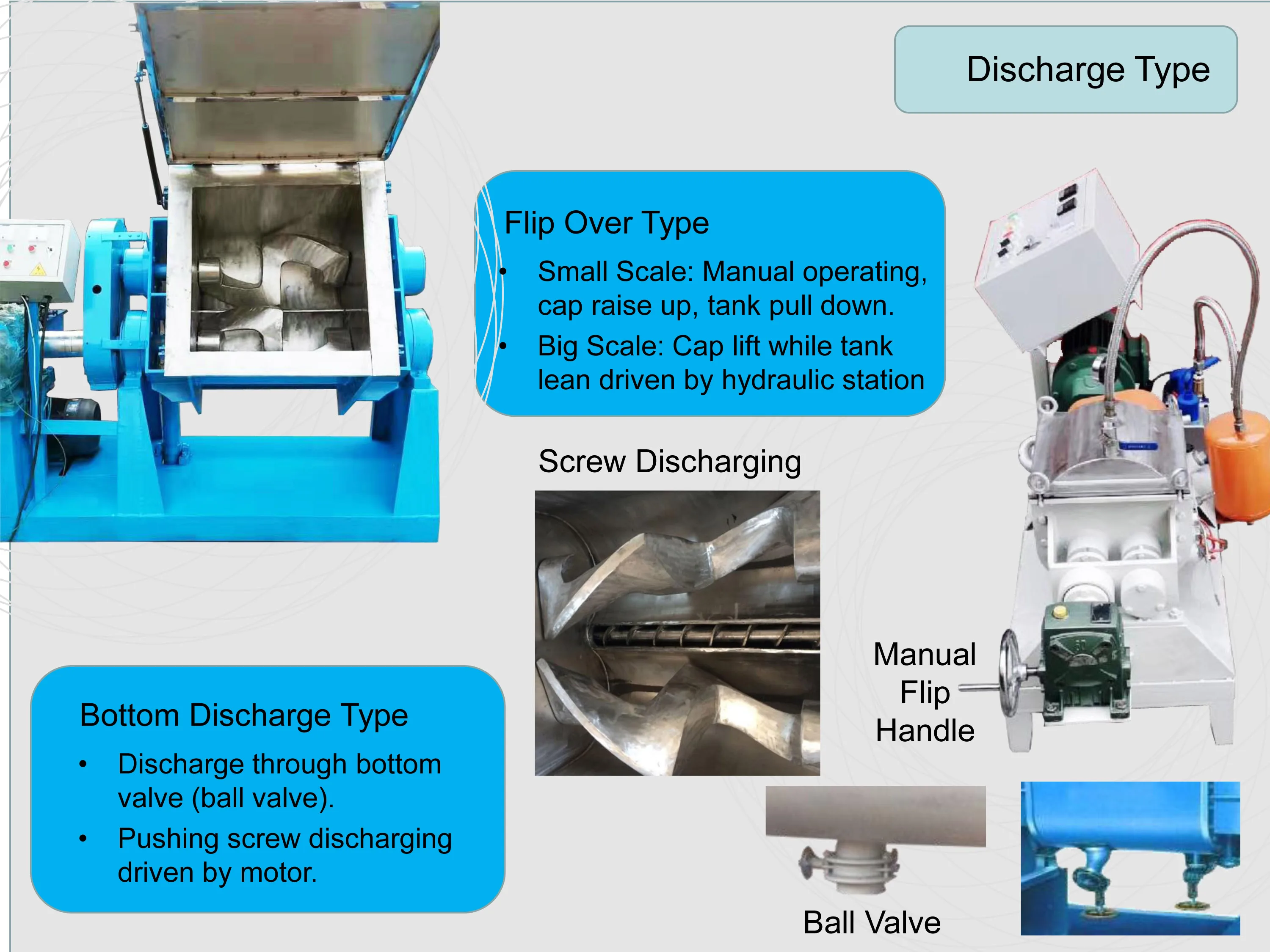

Discharge Type

Manual or Hydraulic Flip Discharging, Discharge from bottom by Valves or Screw pushing at bottom side.




Packing & Delivery

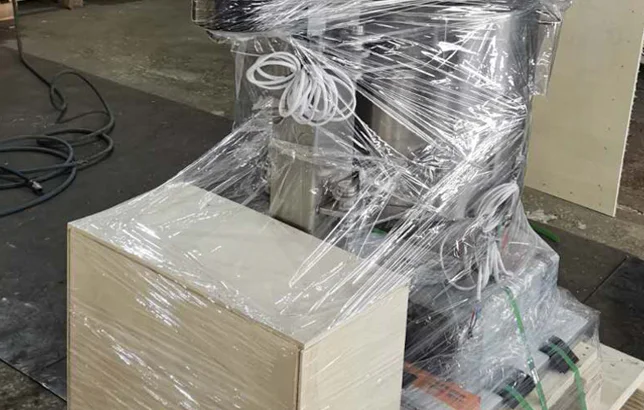

Plastic film wrapping against moisture;

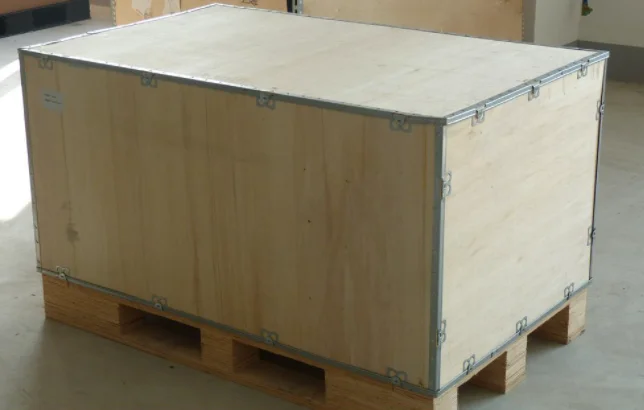

Steel frame or wood frame inside for necessary support;
Strong fixture for whole set equipment;
All wood used in package is Fumigation free type, no need extra inspection during custom.


Company Profile


With 10 years experience in chemical industry,
Weihai Chem-Equip Machinery Co., Ltd is a professional supplier in various chemical equipment, we help customer design, develop and fabricate suitable production lines, from initial chemical process design, to workshop building and long term maintaince.
We have own factories in Weihai and Laizhou area, product covers Reactor, Pressure Vessel, Mixer, Kneader, Sand Miller, Filter, Dryer etc, almost cover all chemical industry.
With our Chemical Process Designer, ASME AI (Authorized Inspector), American CWI (Certified Welding Inspector), we dedicate in a Turn-Key solution for customers who wants to build up new factory or expand new production lines, in an efficient and safety way.






FAQ



Our Service

Pre-Sale Stage
Provide Chemical Process , Project Drawing and Suitable Equipment Model according to customer's request, for accurate design and quote, please kindly advise below:





Production Stage
Whole time report for manufacture status;
Inspection video for quality checking;
Full set Engineering Documents, include User Manual, General Drawing, Electric Circuit Drawing, All Related Test Report, Approval Certificate.



After Sale Stage
Life long service for all equipment;
Free spare parts in warranty period;
Discount price for all spare parts after warranty period;
Technical consulting is always for free.



Training & Installation
Arrange engineer to assist customer in equipment assembly and installation;
Training workers to use machine properly.
