Упорный игольчатый роликовый подшипник AXK 160200 AXK160200 размер сборки 160x200x5

Описание и отзывы

Характеристики



AXK 160200 Thrust Needle Roller Bearing

designs and features



Needle roller thrust bearings are fitted with a form-stable cage to reliably retain and guide a large number of needle rollers.

Provide a high degree of stiffness within a minimum axial space .

The very small diameter deviation of the rollers within one assembly enables these bearings to accommodate heavy axial loads and peak loads .

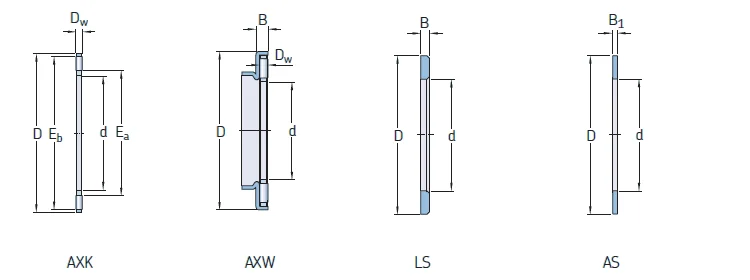

the following is basic design of  thrust needle roller bearings :









details and service

Designations :	AXK 160200
	Thrust Needle Roller Bearing
Universal Washer :	LS 160200
Thin Universal Washer :	AS 160200
Shaft Washer :	WS 81132
Housing Washer:	GS 81132
Inside :	160 mm
Outside :	200 mm
Width :	5 mm
Product Weight :	≈ 246 g
Ring Material :	GCR15/ Chrome Steel
Roller Material :	GCR15/ Chrome Steel
Cage Material :	Stamped Steel
Number of Row :	Single Row
Precision Rating :	P0 P6 P5
Application Industries :	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining etc.
Price List :	Negotiate
Service :	OEM or Customer Logo Acceptable and Sample Offer
Package :	Industrial Packing or As Customer Required
More Service :	plz Contact Us . The contact address is at the bottom.

images

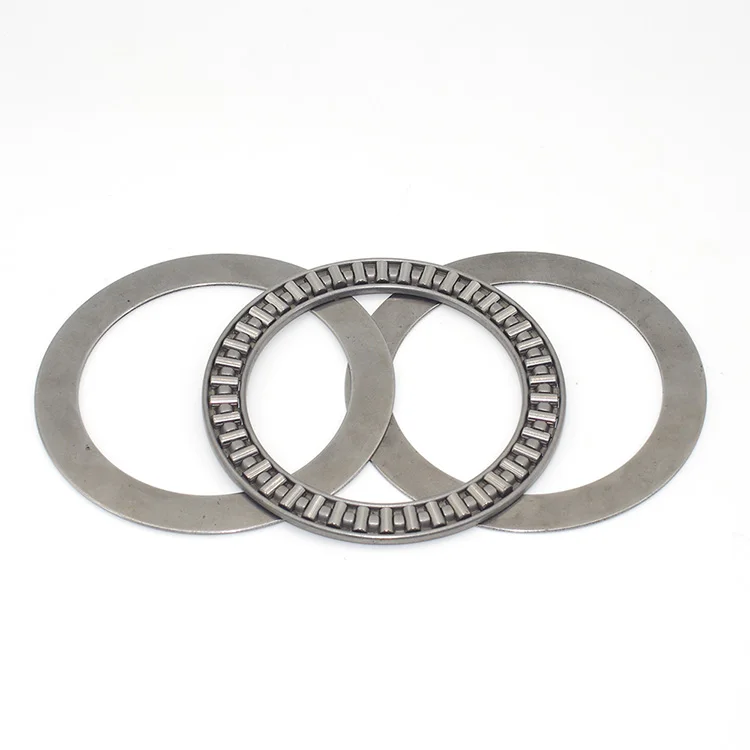

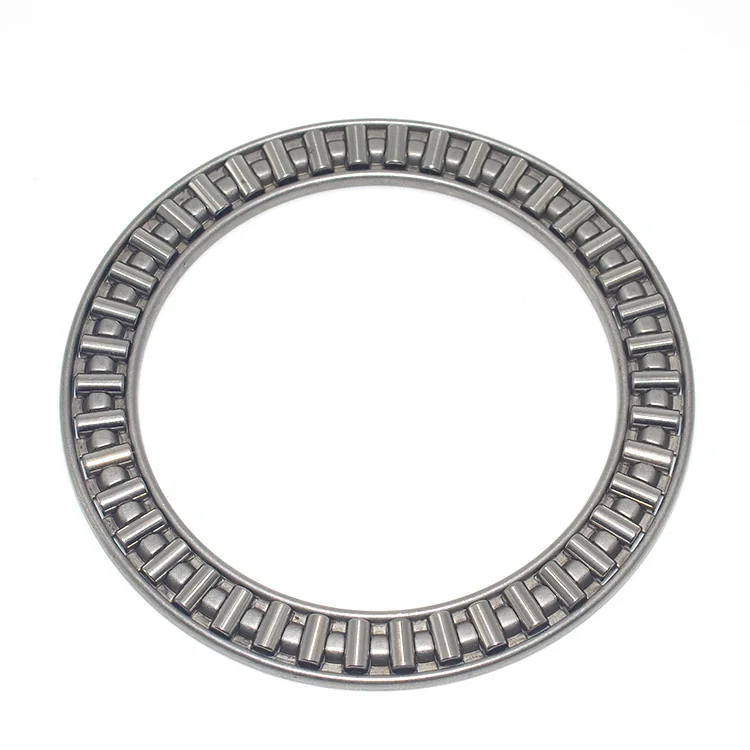

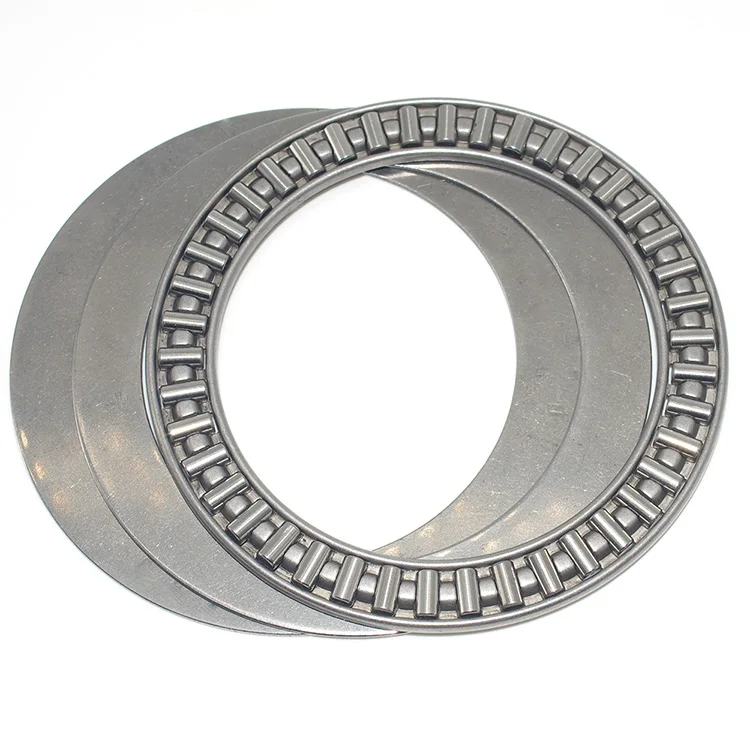

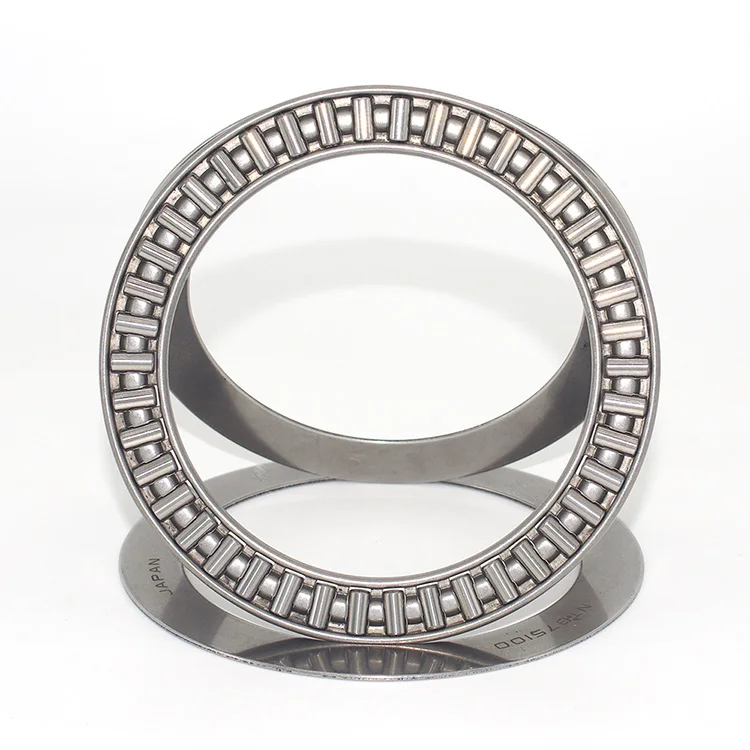

thrust needle roller bearings



Hi,friend ! if you do not find the products you need in this form, plz be free to contact us! Our company can customize



various designs of needle roller bearings.
