Кольцо из нержавеющей стали 316 от производителя кольцо упаковочное металлическое
- Категории: >>>
- Поставщик: Jiangxi,Eloong,Environmental,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

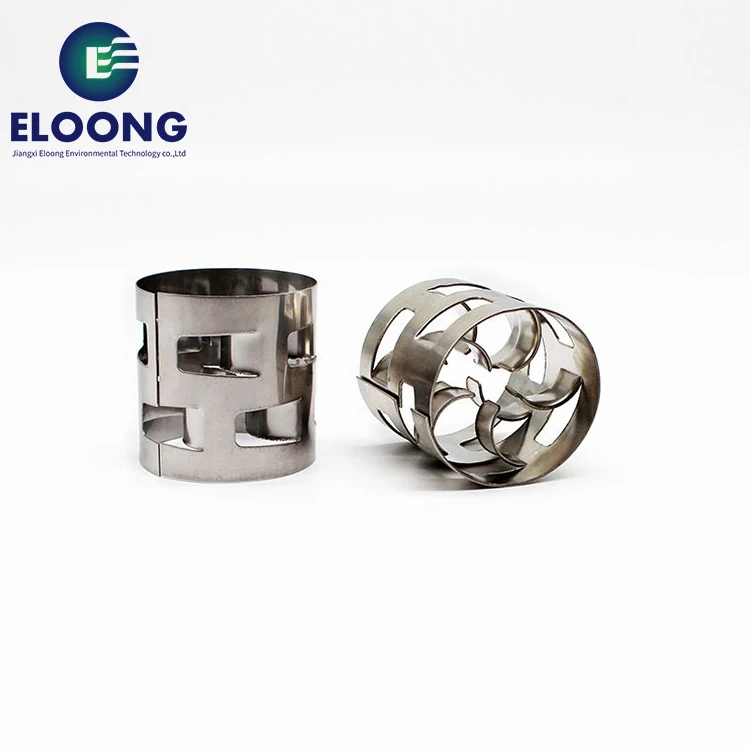

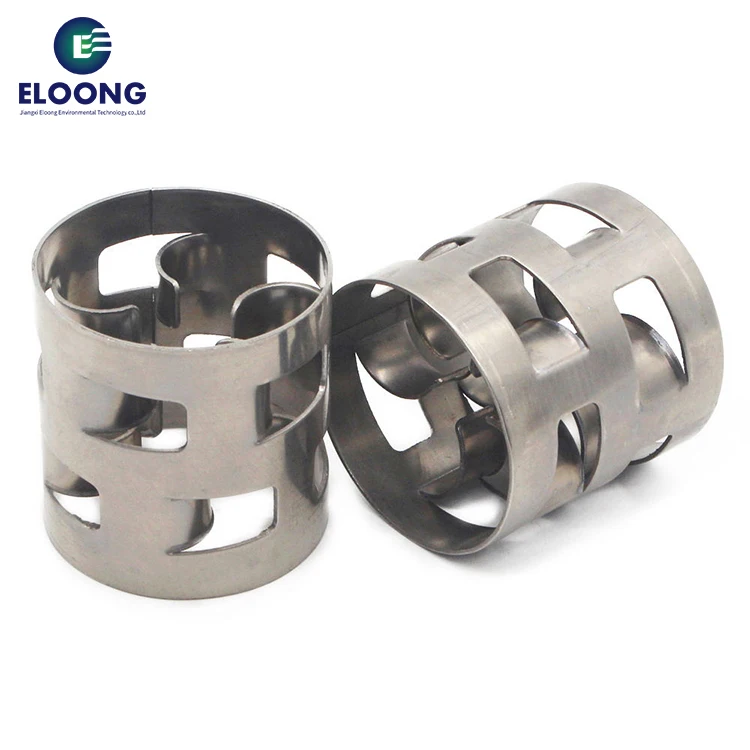

High Capacity Stainless Steel Metal Pall Ring Packing 304, 316 Metal Pall Ring
Metal Pall Ring, has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems.
Pall rings packing shows its interior and exterior surface contact which is beneficial to resist plugging, nesting, and fouling
all along in with the distribution of liquid and gas. Pall rings function with versatility, high resistance to fouling, high
temperature, and can be easily soaked.Metal pall ring is an industry standard design media developed from the raschig ring and is used widely in all variety of applications. By minimizing the number of contours and crevices that can cause liquid hold-up and potential entrainment, the metal pall ring's geometry enables high gas and liquid transfer rates.
Features:
High free volume, large void space;low pressure drop;
Top mass transfer performance
High floating point;high separation efficiency.
Excellent corrosion and heat resistance
Easy to install or remove. Recyclable
Advantage
1.A versatile packing used in distillation, absorption and other operations.
2.Used in both deep vacuum and high pressure towers.
3.Metal pall ring is high performance random packing successfully used in mass transfer towers both small and large
diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers
wherecapacity significantly exceeds conventional trays
Application:
It's available for rectification towers, cokable systems, crude distillation unit, desulphurization system, gas liquid
separator.And it is widely used in petrochemical industry, chemical industry and environmental protection, etc..
Material:carbon steel, stainless steel304 304l 410 316 316l or Aluminum alloy, etc.
Pall rings packing shows its interior and exterior surface contact which is beneficial to resist plugging, nesting, and fouling
all along in with the distribution of liquid and gas. Pall rings function with versatility, high resistance to fouling, high
temperature, and can be easily soaked.Metal pall ring is an industry standard design media developed from the raschig ring and is used widely in all variety of applications. By minimizing the number of contours and crevices that can cause liquid hold-up and potential entrainment, the metal pall ring's geometry enables high gas and liquid transfer rates.
Features:
High free volume, large void space;low pressure drop;
Top mass transfer performance
High floating point;high separation efficiency.
Excellent corrosion and heat resistance
Easy to install or remove. Recyclable
Advantage
1.A versatile packing used in distillation, absorption and other operations.
2.Used in both deep vacuum and high pressure towers.
3.Metal pall ring is high performance random packing successfully used in mass transfer towers both small and large
diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers
wherecapacity significantly exceeds conventional trays
Application:
It's available for rectification towers, cokable systems, crude distillation unit, desulphurization system, gas liquid
separator.And it is widely used in petrochemical industry, chemical industry and environmental protection, etc..
Material:carbon steel, stainless steel304 304l 410 316 316l or Aluminum alloy, etc.
Generally, the area of the window is about 30% of the whole ring area. The window on the ring wall makes the distribution and mass
transfer efficiency of liquid and gas in the package better than that of Raschig ring.
transfer efficiency of liquid and gas in the package better than that of Raschig ring.
* 50% increased handling capacity than Raschig ring under same pressure drop.
* 50% pressure drop reduction under same handling capacity.
* 20% higher mass transfer efficiency.
* 20–40% packing volume saving
* 50% pressure drop reduction under same handling capacity.
* 20% higher mass transfer efficiency.
* 20–40% packing volume saving
Technical data | ||||||||
Sizes (mm) | Bulk density (kg/m3) | Number (per m3) | Surface area (m2/m3) | Free volume (%) | ||||
16*16*0.3 | 360 | 201000 | 346 | 95.5 | ||||
25*25*0.4 | 302 | 51000 | 212 | 96.2 | ||||
25*25*0.5 | 400 | 51000 | 216 | 95 | ||||
25*25*0.6 | 470 | 51000 | 219 | 94.2 | ||||
38*38*0.4 | 218 | 15000 | 143 | 97.2 | ||||
38*38*0.5 | 262 | 15180 | 145 | 96.7 | ||||
38*38*0.6 | 328 | 15000 | 146 | 95.9 | ||||
50*50*0.5 | 194 | 6500 | 106 | 97.5 | ||||
50*50*0.7 | 285 | 6500 | 108 | 96.4 | ||||
50*50*0.9 | 365 | 6500 | 109 | 95.4 | ||||
76*76*0.8 | 205 | 1830 | 69 | 97.4 | ||||
90*90*1.0 | 229 | 1160 | 62 | 97.1 | ||||
Our workshop
Plastic Random Packing Workshop
Tower internals workshop
Precision mold workshop
Intelligent Stereoscopic warehouse
Metal Random packing Workshop
Metal structured Packing Workshop
Certifications
Customer Photos
Why Choose Us
Product packaging
FAQ
Q1：What's the MOQ?
A1 : The MOQ is 1 cubic meter or 1 ton, The price will be higher if the quantity is less than 1 cubic meter or 1 ton.
Q2 : What are the terms of payment?
A2 : T/T , L/C at sight, Papal , Alibaba Trade Assurance and etc.
Q3 : What's the delivery time?
A3 : About 3-7 days .after received the fund.
Q4 : Can you provide free samples?
A4 : Yes , Sample will be free within 0.5 kg.
