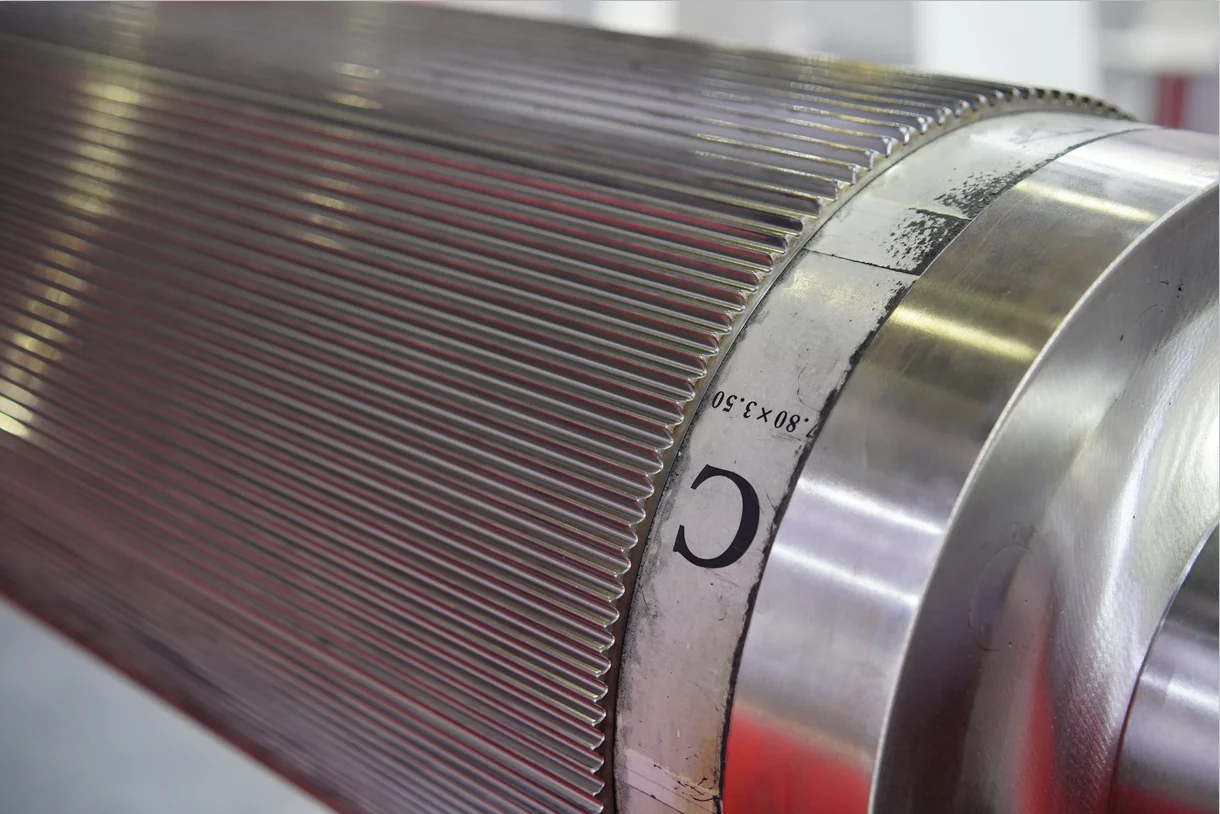

Why do more and more people choose tungsten carbide corrugated rolls?
❤ Longer Service Life –The service life of the hardness of the tungsten carbide corrugated roller is 3-5 times longer than the chrome-plated corrugated roller. Reduce the replacement frequency and cost of the corrugated roller by 65-80%
❤ Better Quality – the roll surface temperature is evenly distributed, and the glue on the cardboard is even more uniform.
❤ Lower energy consumption – the heating rate doubles, the corrugating roll preheating time shortens, the working efficiency is higher, and the energy consumption is lower.
❤ Lower noise - lower noise during operation, improve working environment and help customers enhance corporate image.
❤ Better Quality – the roll surface temperature is evenly distributed, and the glue on the cardboard is even more uniform.
❤ Lower energy consumption – the heating rate doubles, the corrugating roll preheating time shortens, the working efficiency is higher, and the energy consumption is lower.
❤ Lower noise - lower noise during operation, improve working environment and help customers enhance corporate image.
How to use and maintain the corrugated roller?
1,Keep the balance of corrugated roller
2,Adjust the proper pressure of pistons
3,Focus on temperature
4,Keep the corrugated rollers clean
5,Prevent abnormal rub

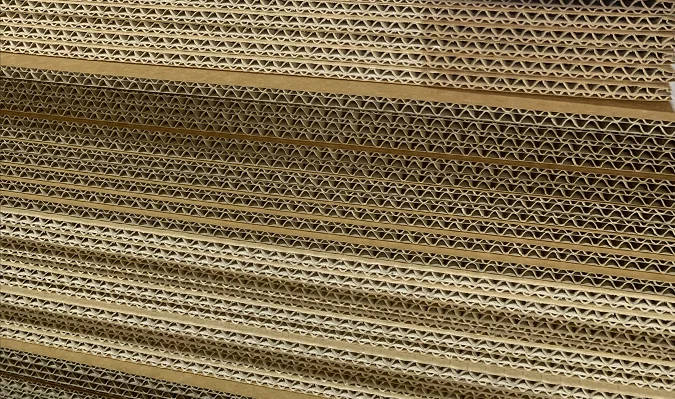

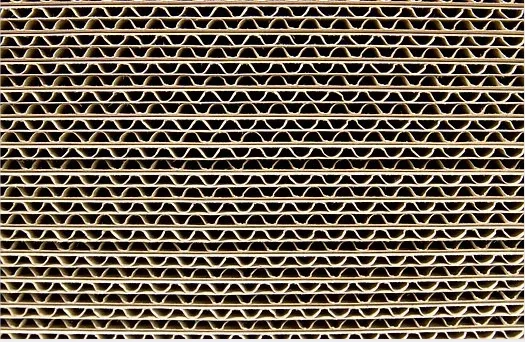

Flute Type | A | C | BC | B | D | E1 | E2 | F | G |
Flute Height | 4.6-4.9 | 3.6-3.9 | 3.0-3.5 | 2.6-2.9 | 1.9-2.5 | 1.5-1.8 | 1.1-1.4 | 0.7-0.9 | 0.5-0.65 |
Quantity /300mm | 34±2 | 38±2 40±2 | 44±4 | 48±2 | 60±6 | 75±4 | 84±4 | 125±8 | 150±8 |
Top | 1.30-1.40 | 1.25-1.35 | 1.20-1.35 | 1.05-1.10 | 1.00-1.10 | 0.60-0.70 | 0.50-0.65 | 0.40-0.50 | 0.30-0.35 |
TUF | 1.50-1.56 | 1.40-1.49 | 1.38-1.47 | 1.35-1.42 | 1.35-1.40 | 1.30-1.38 | 1.25-1.33 | 1.22-1.28 | 1.20-1.25 |
CNC Grinding
Digital Milling
Heat Treatment
Tungsten Carbide Spraying
the thickness of the tungsten carbide layer is required to be 0.06-0.08
surface finish requirements ≤ Ra0.4
the hardness of the roll surface matrix is required to be above HRC57
Use a micrometer to measure the outer diameter of the roll surface
Use penetrant testing to test If there're cracks on the roll surface
corrugated roll requires radial run-out of roll surface ≤0.03
Q1. Are you manufacturer?
A: Yes. We are manufacturing factory for corrugating roll and corrugated machines, with over 22 years experience.
Q2. Where is your factory located?
A:Our factory is located in Hegui Industrial Park, Lishui, Nanhai District, Foshan City, Guangdong Province, China.
Q3. Where is the nearest airport?
A:Guangzhou Baiyun International Airport
Q4. Where is the nearest sea port?
A:Foshan / Nansha /Shenzhen
Q5. What’s the size and speed?

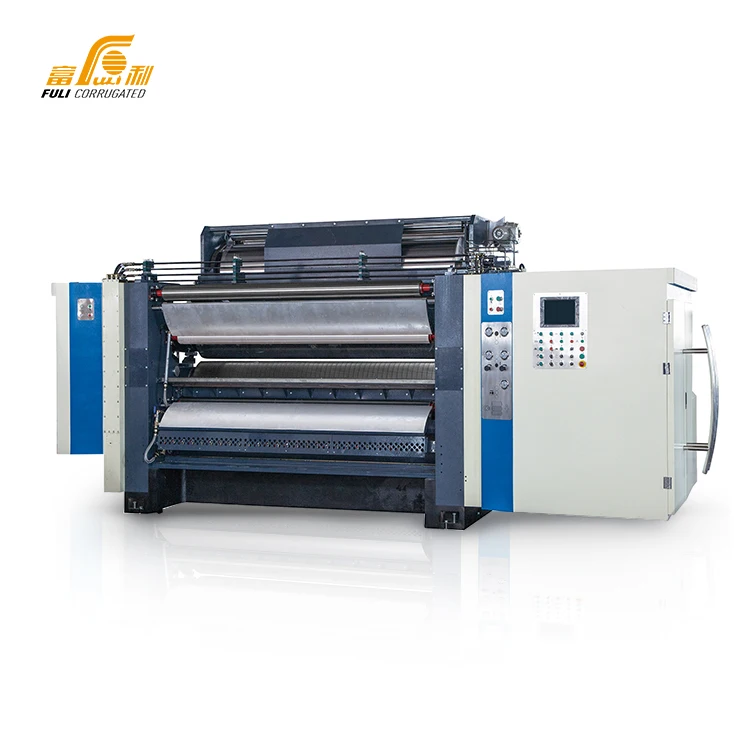

A: We produce corrugated machine and corrugating roll with paper web size from 1400mm to 2800mm.
Machine designed speed from 150m/min to 350m/min.

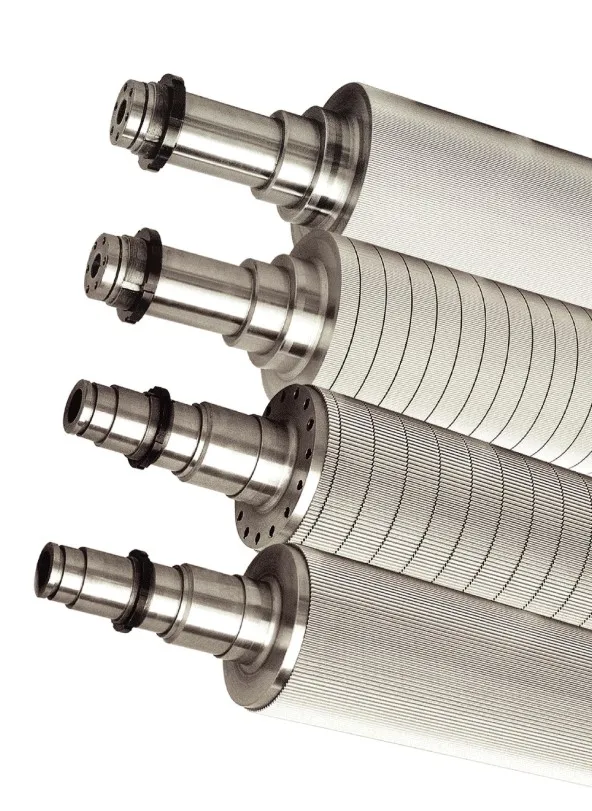

Q6. What kind of corrugating roll do you offer?
A: We offer:
1. New Tungsten Carbide Corrugating Roll(TC);
2. Periphery Heating Corrugating Roll;
3. Refurbished Corrugating Roll
Q7. What’s the advantage of your New Peripheral Heating Corrugating Roll?
- The efficiency is higher.
- The energy consumption is lower.
- The quality of fluting is better.
- Longer service life.
- Lower noise
Q8. Where is your corrugated machine and rolls being exported before?
A: Our corrugated machine and corrugating roll have been exporting to over 40 countries, including: Vietnam, Thailand, Myanmar,Philippine, Malaysia, Indonesia, India, Egypt, Emirate, Bahrain, Saudi Arabic, Israel, Russia, Lithuania, Mexico, Brazil,Argentina, Venezuela, Honduras, Korea and etc.
A: Yes. We are manufacturing factory for corrugating roll and corrugated machines, with over 22 years experience.
Q2. Where is your factory located?
A:Our factory is located in Hegui Industrial Park, Lishui, Nanhai District, Foshan City, Guangdong Province, China.
Q3. Where is the nearest airport?
A:Guangzhou Baiyun International Airport
Q4. Where is the nearest sea port?
A:Foshan / Nansha /Shenzhen
Q5. What’s the size and speed?
A: We produce corrugated machine and corrugating roll with paper web size from 1400mm to 2800mm.
Machine designed speed from 150m/min to 350m/min.
Q6. What kind of corrugating roll do you offer?
A: We offer:
1. New Tungsten Carbide Corrugating Roll(TC);
2. Periphery Heating Corrugating Roll;
3. Refurbished Corrugating Roll
Q7. What’s the advantage of your New Peripheral Heating Corrugating Roll?
- The efficiency is higher.
- The energy consumption is lower.
- The quality of fluting is better.
- Longer service life.
- Lower noise
Q8. Where is your corrugated machine and rolls being exported before?
A: Our corrugated machine and corrugating roll have been exporting to over 40 countries, including: Vietnam, Thailand, Myanmar,Philippine, Malaysia, Indonesia, India, Egypt, Emirate, Bahrain, Saudi Arabic, Israel, Russia, Lithuania, Mexico, Brazil,Argentina, Venezuela, Honduras, Korea and etc.
