LEFOO LF08 автоматический сброс A/C ПЕРЕКЛЮЧАТЕЛЬ высокого/низкого давления/клапан управления для холодильной системы кондиционирования воздуха и теплового
- Категории: Switches >>>
- Поставщик: Zhejiang,Lefoo,Controls,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Description

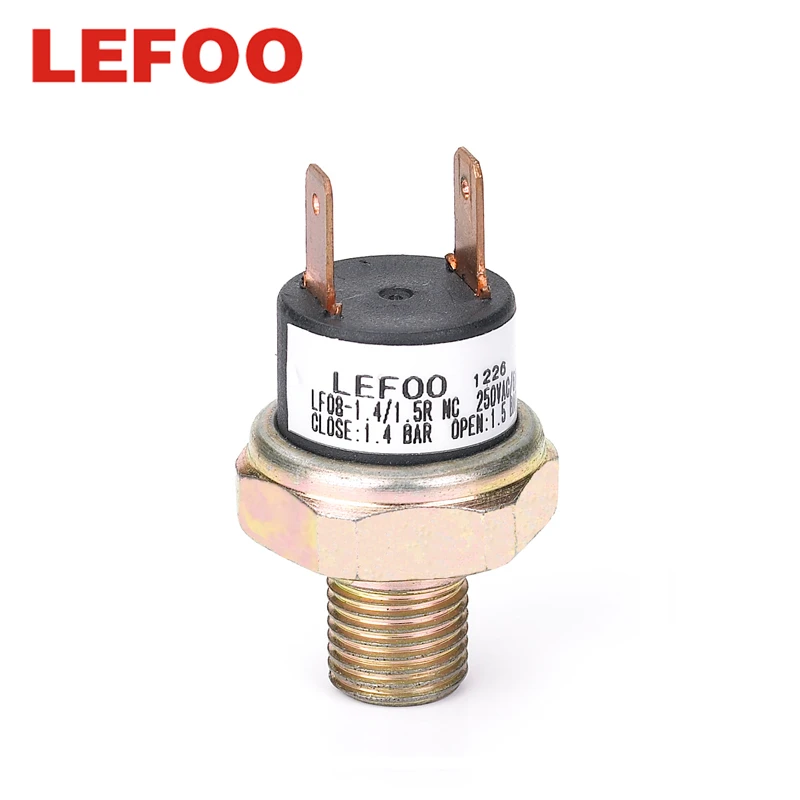

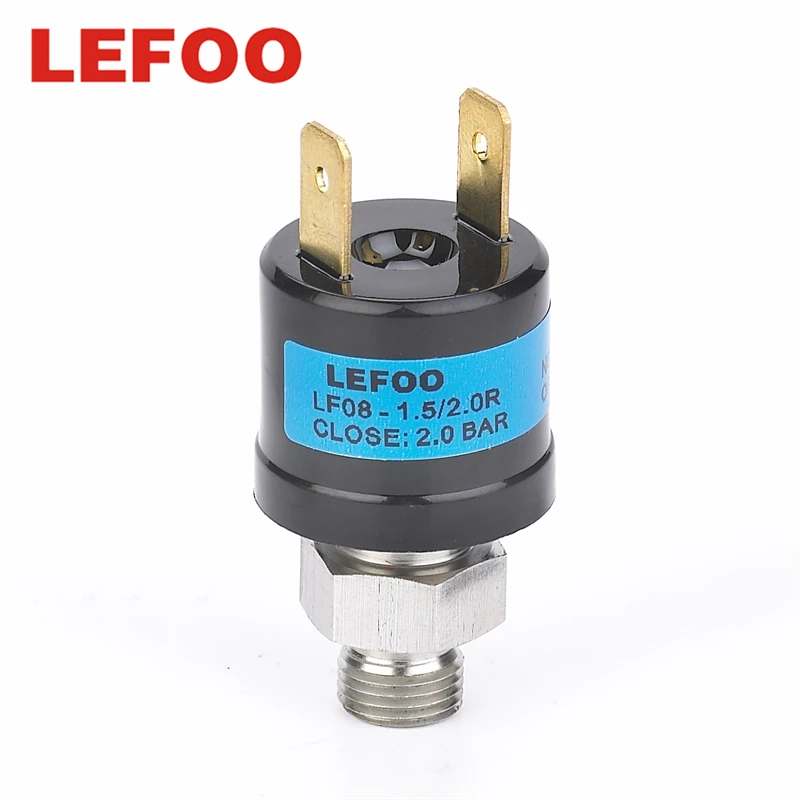

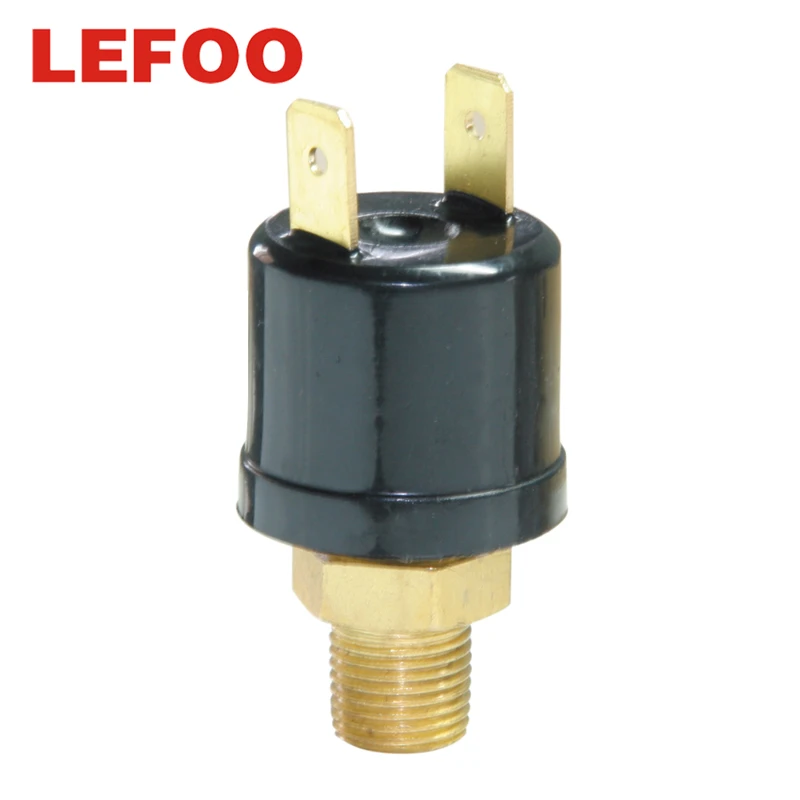

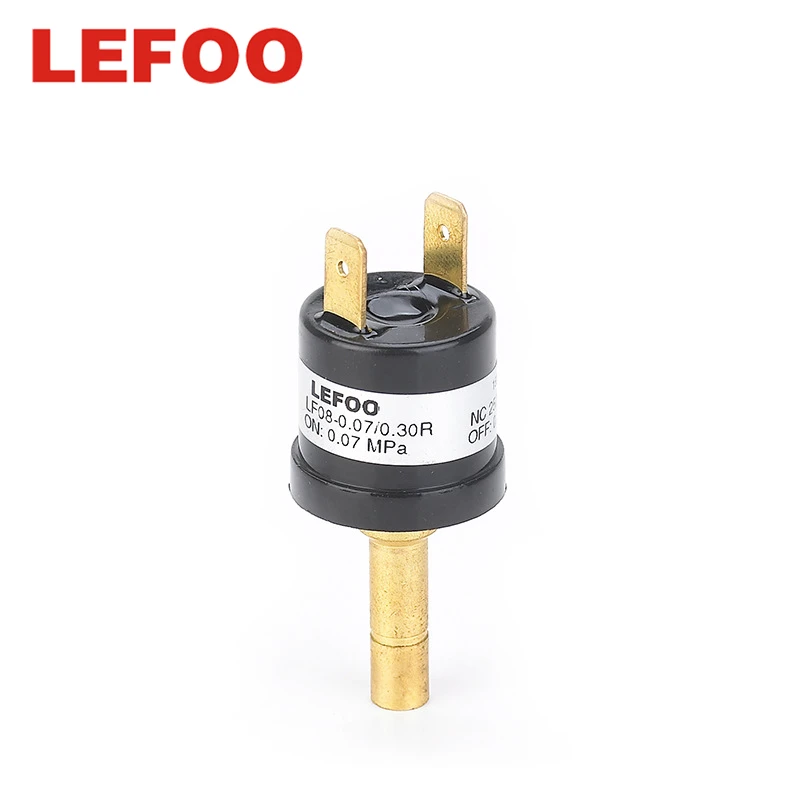

The LF08 switches are fixed set point, factory calibrated pressure switches. It is automatic reset, and can be Normally open or normally close contacts. All metallic wetted components make the LF08 switch compatible with a multitude of chemicals in liquid or gas form. It is offered numerous types of electrical terminations from different size and style push on terminals to wire leads with an array of standard industry connectors. In house machining capabilities allows Lefoo to offer a wide variety of pressure fitting from different thread types and sizes to units with internal deflator and cupper tubbing for sawing operations.
Number | Circuitry | Base Material | Connection | Electrical connections |
1 | SPST-NC | brass | 1/8NPT | 6.35×0.8 |
| 2 | SPST-NO | plated steel | 1/4NPT | 4.8×0.8 |

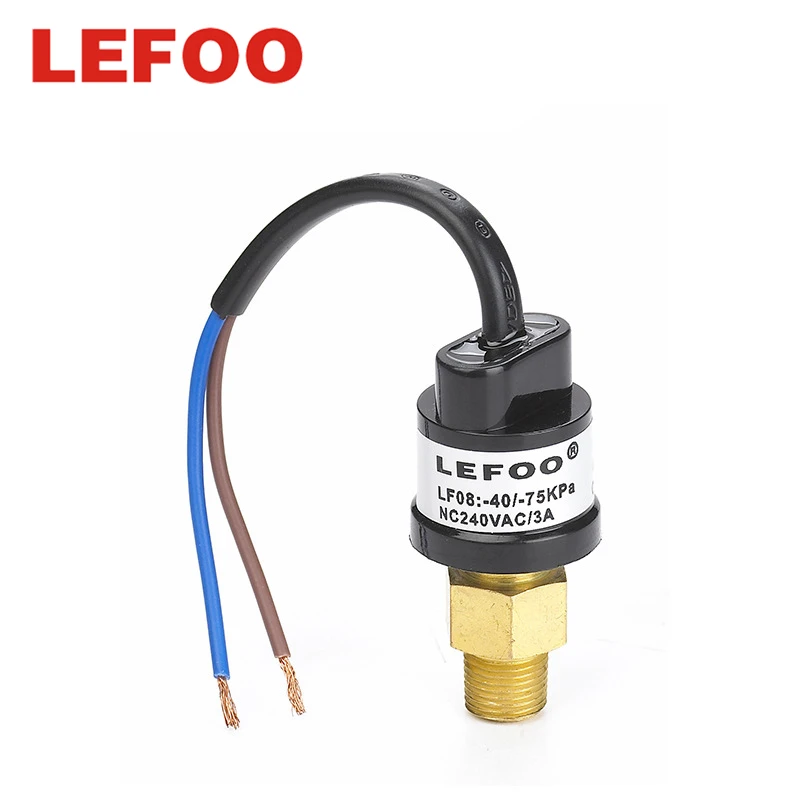

| 3 | SPDT | / | R1/8 | 18AWG Wire leads |
| 4 | / | / | R1/4 | / |
| 5 | / | / | G1/8 | / |
| 6 | / | / | G1/4 | / |
| 7 | / | / | 1/4 Copper tube | / |

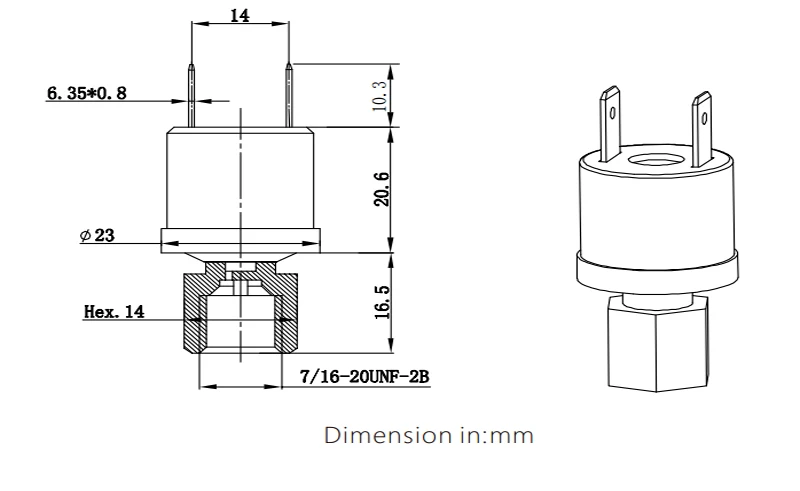

| 8 | / | / | 7/16UNF Male | / |
| 9 | / | / | 7/16UNF Female | / |
| 10 | / | / | 7/16UNF Female with deflector | / |
Specification
| Model | LF08 | ||
| Media | Air,Water,motor,lils,transmission oils,Hydrocarbon Media,Refrigeration fluid | ||
| Pressure Range/ Tolerance/ Proof Pressure | Pressure Range | Tolerance | Proof Pressure |
| 0.2~6bar(low presure) | ±0.5bar | 15bar | |
| 6~10bar | ±0.7bar | 35bar | |
| 11~20bar | ±1bar | 45bar | |
| 21~30bar | ±1.5bar | ||
| 31~45bar | ±1.5bar | ||
| Burst Pressure | 5000psi | ||
| Operating Temperature Range | Environment temperature:low pressure:-30~65℃,High pressure:-35~120℃ Medium temperature:-50~120℃ | ||
| Switch Type | SPST(NC OR NO);SPDT | ||
| Electric Rating | 120Vac 6FLA,40.2LRA;240Vac 4FLA,26LRA 120/240Vac 375VA;36Vdc 3A | ||
| Endurance | 100000 | ||
Conversion:1bar=14.5psi 1MPa=10bar
