1.1 кВт/380 В/50 Гц воздушный объемный 1380*1380*400 мм алюминиевый сплав промышленный вытяжной вентилятор для теплиц в осевом
- Категории: Axial Flow Fans >>>
- Поставщик: Shandong,Fuma,Agriculture,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

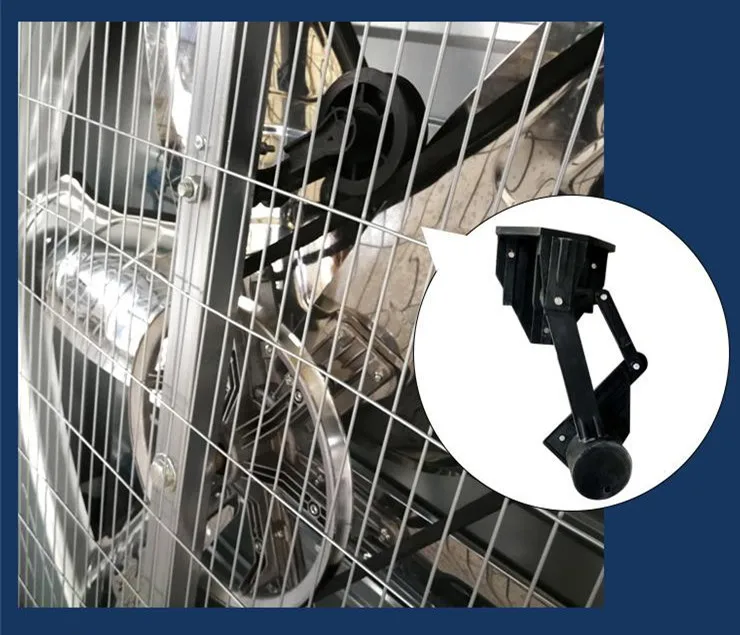

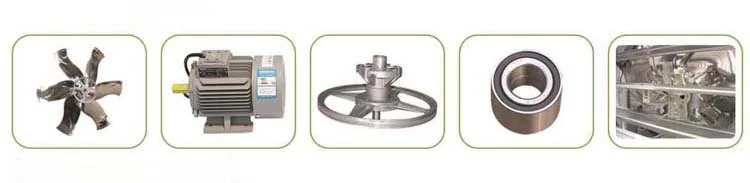

Fan blades Motor Fan belt pulley Fan bear adopts Centrifugal

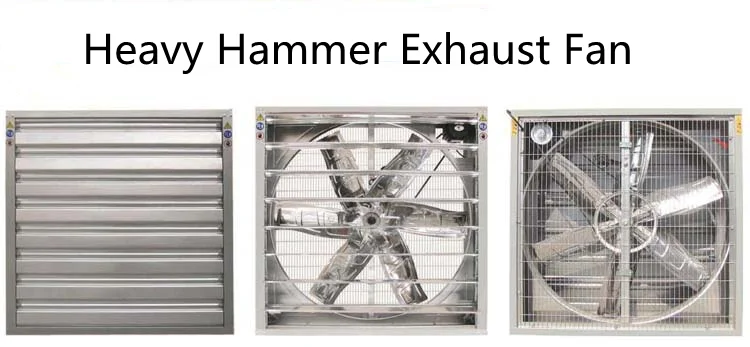

Heavy Hammer Exhaust Fan
The ventilation fan contains blade , motor , frame , protection mesh , standing pole , shutter , wind collector , etc . The air flow drive by the fan blade to open the shutters automatically . When the fan stop , the shutters will be closed by the shut deices automatically .
Pure copper wire motor, stronger power
Large air flow from a powerful motor - fan heart
Increase the wind wheel, double the speed
Precise matching, wind wheel and motor wheel to solve the bottleneck effect, effectively improve the speed.
U - shaped fan blade, increase air supply
U - shaped fan blade, increase air supply
outside wind and has less noise
Specification:
Model | Blade Diameter (mm) | Blade speed (r/min) | Motor speed (r/mi) | Air volume (m³/h) | Noise(db) | Power (W) | Voltage (V) | Dimensions H W T |
FMH-1000(36'') | 900 | 600 | 1400 | 32000 | ≤64 | 750 | 220/380 | 1000*1000*400 |
FMH-1100(39'') | 1000 | 600 | 1400 | 35000 | ≤64 | 750 | 220/380 | 1100*1100*400 |
FMH-1200(43'') | 1100 | 480 | 1400 | 40000 | ≤64 | 1100 | 220/380 | 1220*1220*400 |
FMH-1380(50'') | 1250 | 440 | 1400 | 40000 | ≤64 | 1100 | 220/380 | 1380*1380*400 |
FMH-1530(55'') | 1400 | 440 | 1400 | 55800 | ≤64 | 1500 | 220/380 | 1530*1530*400 |

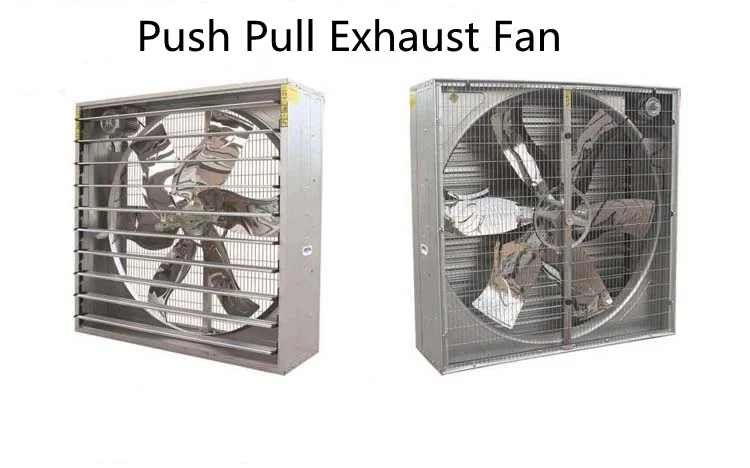

Push Pull Exhaust Fan
Product Application：
Galvanized push-pull fan, the material is better than galvanized sheet, in the anti-corrosion is more good, so the service life will be longer, low noise, air volume, low power consumption, cooling effect is obvious, you can get the wind, Indoor hair, greenhouse and other cool ventilation is the best choice.

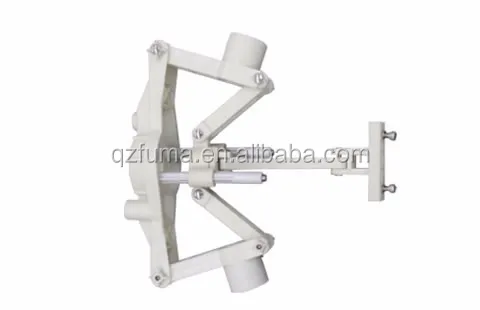

Centrifugal device can open the shutters at complete 90 degree to ensure the lowest air resistance and biggest air volume . After closed , the sealing can efficiently block light and wind into the house . High quality 100 % nylon to ensure enough long service life . The fasteners of centrifugal device all are cooper rivets , ware - resisting , anti - rust and flexible . Guide rod is made from 3 0 4 stainless steel , and to ensure higher strength , anti - rust and to reduce friction .
Specification:
Model | Blade Diameter(mm) | Blade speed (r/min) | Motor speed (r/min) | Air volume (m³/h) | Noise (db) | Power(W) | Rated Voltage(V) | Dimensions (mm) H W T |
FMH-1000(36'') | 910 | 600 | 1400 | 35000 | ≤64 | 750 | 220/380 | 1000*1000*450 |
FMH-1380(50'') | 1270 | 600 | 1400 | 48000 | ≤64 | 1100 | 220/380 | 1100*1100*450 |

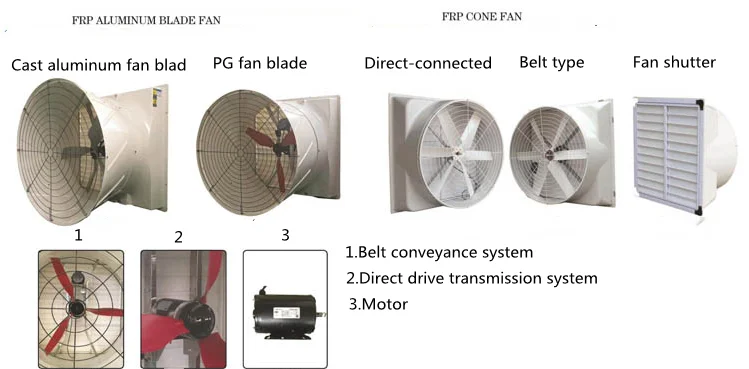

FRP fan
Product Features :
- Fiberglass fan is widely used in corrosive gas place like piggery farm , poultry farm .
- Specifications :
- UV resistant fiberglass housing ;
- Fiberglass cone standard on all fans , can improve 10 % efficiency ;
- Aluminum blade with sawtooth design , reduce the noise level ;
- High quality imported pillow block bearings ;
- Automotive style belt tensioner ;
- Fiberglass fan is widely used in corrosive gas place like piggery farm , poultry farm .
- Specifications :
- UV resistant fiberglass housing ;
- Fiberglass cone standard on all fans , can improve 10 % efficiency ;
- Aluminum blade with sawtooth design , reduce the noise level ;
- High quality imported pillow block bearings ;
- Automotive style belt tensioner ;

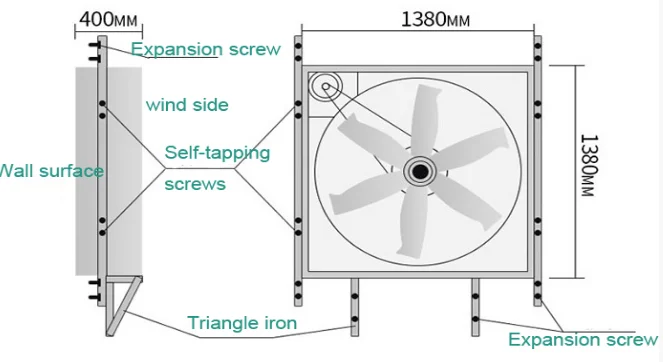

Exhaust fan Installation
Precautions for fan installation：
1. When installing the fan, the fan should be adjusted horizontally and vertically to keep the smooth operation of the fan blades.
2. After fixing the fan, the remaining gap is sealed.
3. If the screw hole cannot be installed, a self-tapping screw can be made on the surface to fix it.
2. After fixing the fan, the remaining gap is sealed.
3. If the screw hole cannot be installed, a self-tapping screw can be made on the surface to fix it.

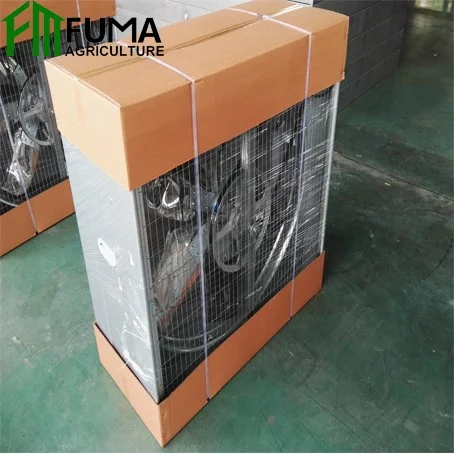

Packing & Delivery

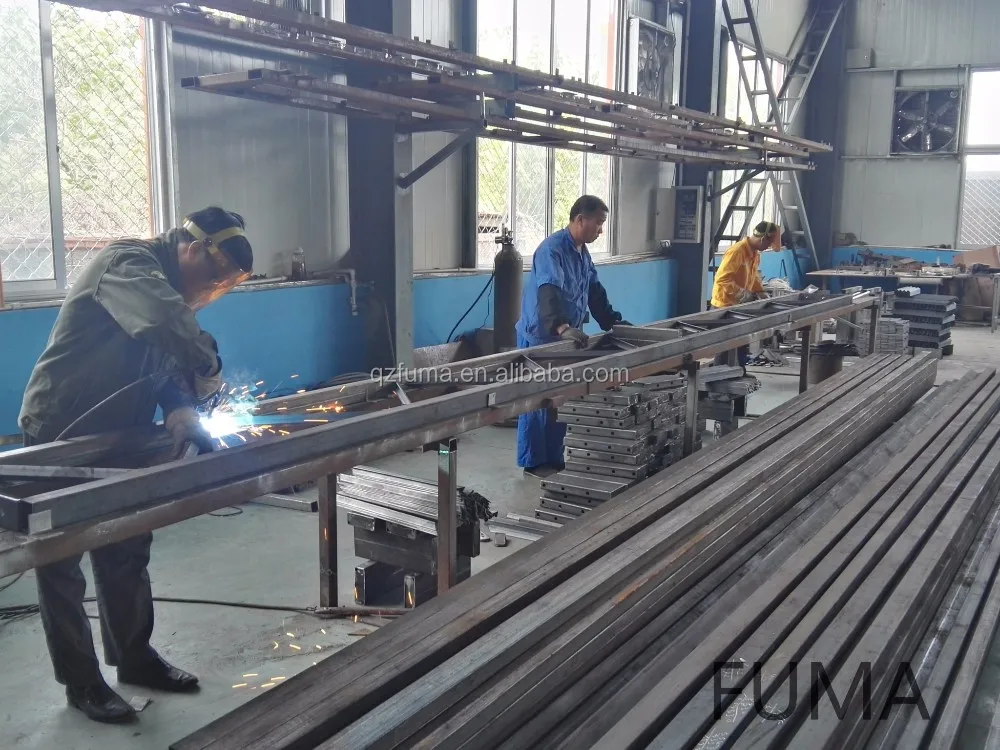

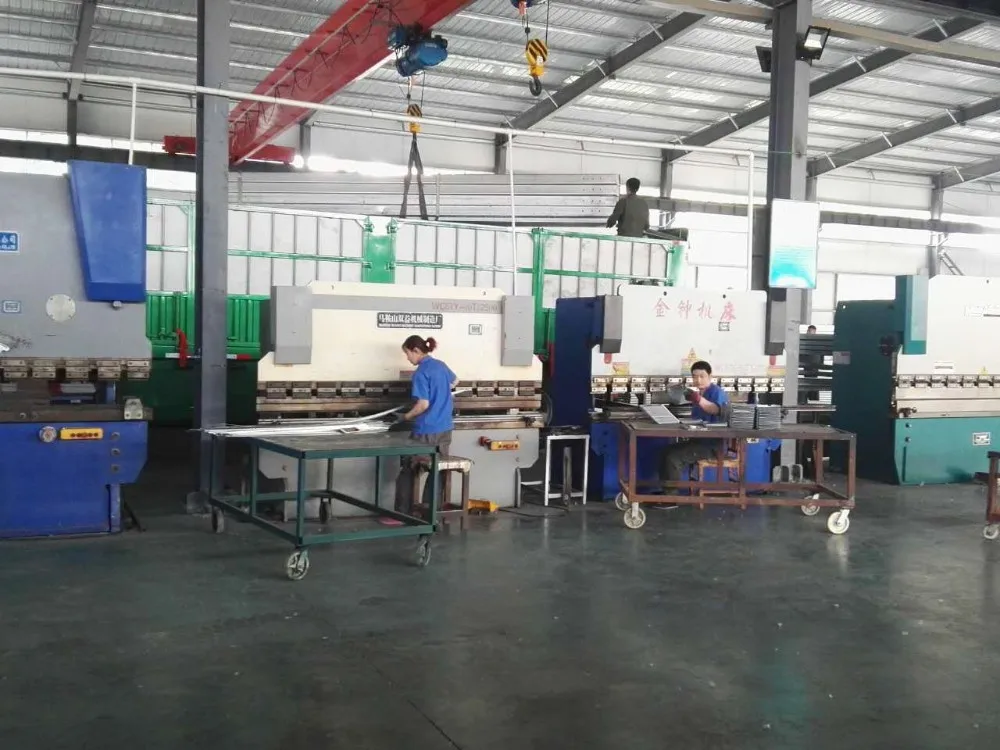

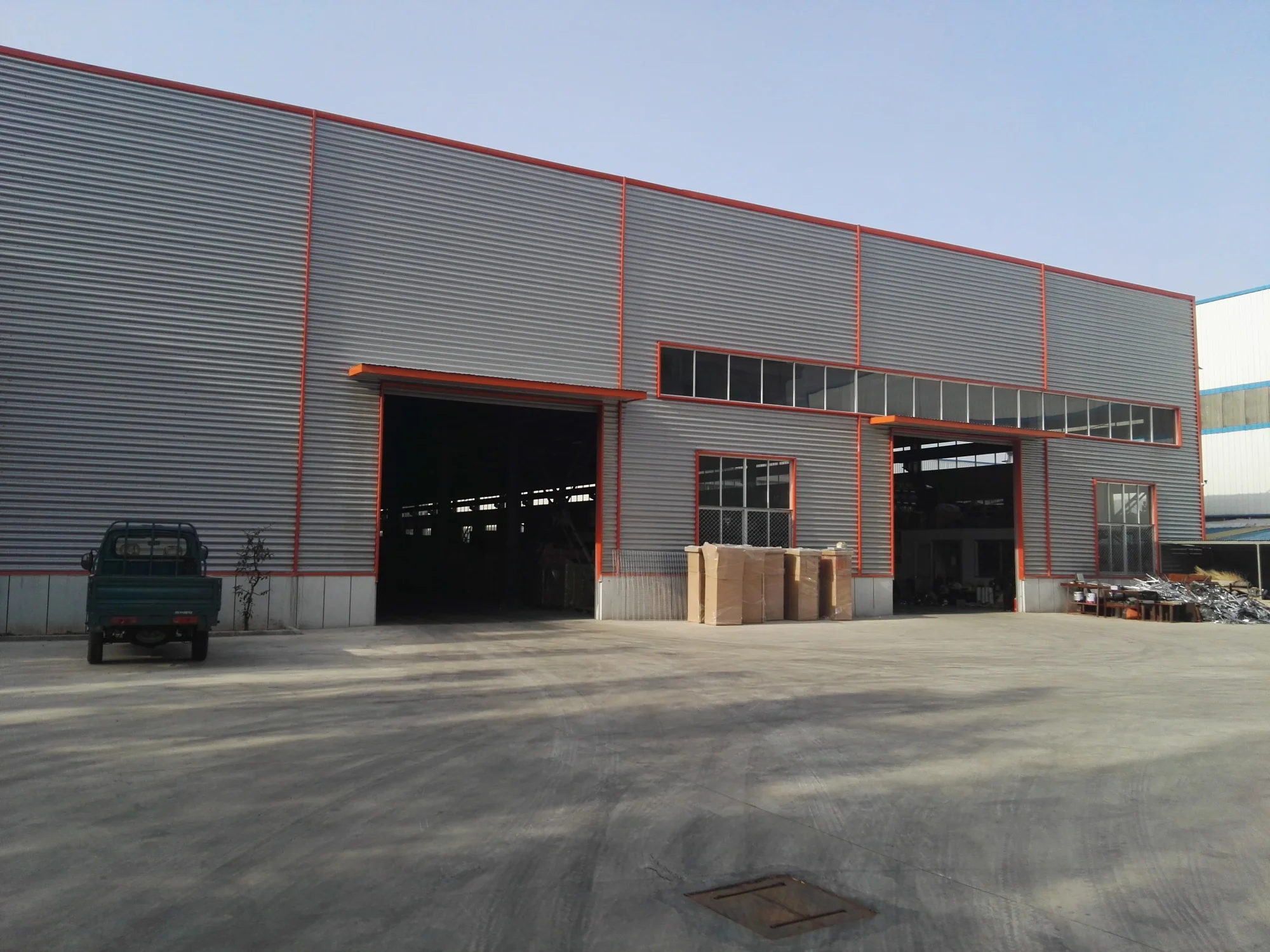

Company Profile
Related Products
Exhibition
Customer visit
FAQ
Q: Are you a trading company or manufacturer ?
A: We are manufacturer , we have our factory and design team
Q: Why your price more expensive than other China suppliers ?
A: Our material we use is much better than other suppliers
Q: Can you cheaper ?
A: We have many quality stage products for client choose , different stage price will be different , if you really want low price we will suggest you choose lower stage product , in our company , we don't have bad quality products , you can reassure about the quality .
Q:When can I get the price?
A:We usually quote in 24 hours after receiving your inquiry.
A: We are manufacturer , we have our factory and design team
Q: Why your price more expensive than other China suppliers ?
A: Our material we use is much better than other suppliers
Q: Can you cheaper ?
A: We have many quality stage products for client choose , different stage price will be different , if you really want low price we will suggest you choose lower stage product , in our company , we don't have bad quality products , you can reassure about the quality .
Q:When can I get the price?
A:We usually quote in 24 hours after receiving your inquiry.
