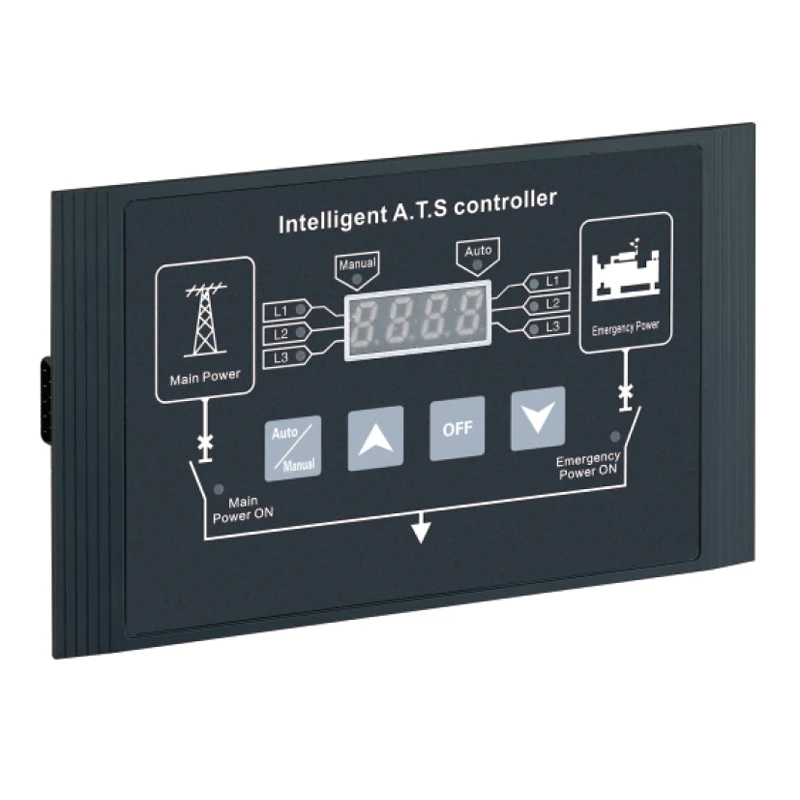

Products Description
B Type/ Y type/ W2 type/ W3 type controller instruction
口Display in the normal conditon :a,b,c will be the A,B,C 3 phase voltage and frequency of the normal power. a.,b.c.f. will be the A,B,C 3 phase voltage and frequency of the standby power When the closing light is flashing, it means the switch is in delay and
ready to transfer
口Display of the transfer fall condition:
Indicate "nEtt: means the motor fault overtime when transfer to the main power Indicate
"tEtt":means the motor fault overtime when transfer to the standby power Indicate
"-Ett": means the motor fault overtime when in double point
口Parameters code, scope and the default value.
口Parameters code, scope and the default value
ready to transfer
口Display of the transfer fall condition:
Indicate "nEtt: means the motor fault overtime when transfer to the main power Indicate
"tEtt":means the motor fault overtime when transfer to the standby power Indicate
"-Ett": means the motor fault overtime when in double point
口Parameters code, scope and the default value.
口Parameters code, scope and the default value
Parameter mo奾cation operation process
Entering method: press the button MANUAL/AUTO 10 times continuously to enter the parameter modification menu, the forth display code flashing. Modify parameter: press the "Main" button turn down or press the button "Standby" turn up code, press "double oint" button to Confirm to enter the modify parameters, last three digits flashing, then press "Main" or "Standby "button to increase or minus the digits, then press the "double point" to preserve the parameter to enter the next options. Exit: not press any button for 10 second it will quit automatically or press the "double point" for times it will quit. When modify the parameter, quit without pressing the preserve button then it will quit directly not preserve the parameter modified.
voltage calibration process
1. Entering method: press the "Standby "button i0 times to enter it in the mode of Automatic, the fourth digits indicate "three" and flashing.
2. Calibrate the voltage: Before calibrate the voltage, we must adjust the three way voltage of the main power and standby power to AC220V, then press button "double point" to preserve the current calibration value.
3. Exit: not press any button for i0 second it will quit automatically or press the button "standby" 10 times, it will quit.
2. Calibrate the voltage: Before calibrate the voltage, we must adjust the three way voltage of the main power and standby power to AC220V, then press button "double point" to preserve the current calibration value.
3. Exit: not press any button for i0 second it will quit automatically or press the button "standby" 10 times, it will quit.

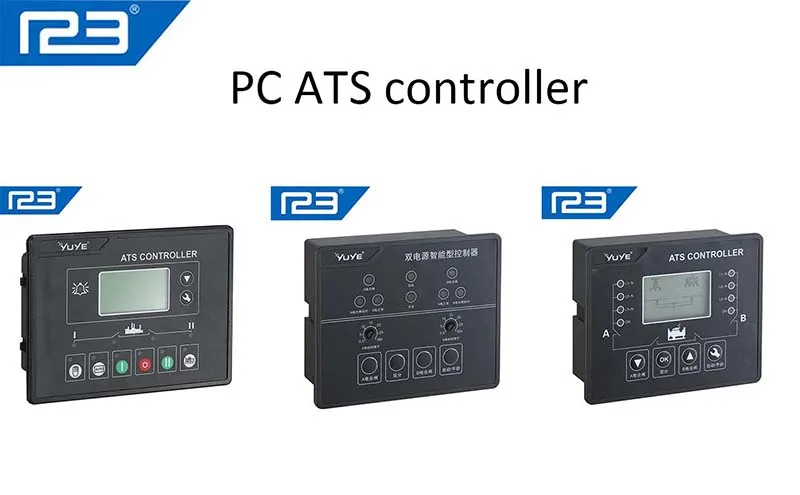

Product Paramenters
Item | Y-700 | Y-701 | Y-702 |
Display | LCD Screen | Signal Lamp | LCD Screen |
Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
Weigh | 0.8 KG | 1.0 KG | 1.0 KG |
Certifications
Company Profile
One Two Three Electric Co., Ltd. is located in NO.260, Latitude 20 Road, Yueqing Economic and
Technological Development Zone，Wenzhou city, Zhejiang province, China. It is specialized in developing and manufacturing high and low voltage electrical components, molded case circuit breakers (MCCB)， air circuit breakers, miniature circuit breakers, automatic transfer switches (ATS), Isolating switches, high voltage vacuum circuit breakers.
Technological Development Zone，Wenzhou city, Zhejiang province, China. It is specialized in developing and manufacturing high and low voltage electrical components, molded case circuit breakers (MCCB)， air circuit breakers, miniature circuit breakers, automatic transfer switches (ATS), Isolating switches, high voltage vacuum circuit breakers.
It has a number of high-quality technical and management personnel. Our company follows the business philosophy of "scientific management as the core, customer's demand as the center and product quality as the focus, attentive service as the sincerity" to satisfy customers in different markets, different application requirements, and offer products with maximum performance and optimal technology. We firmly believe that we are bound to make more brilliant achievements with the leading technology, the trust of our customers and our unremitting pursuit.
Installation Instructions
Exhibition
Why Choose Us
One Two Three Electric Co., Ltd was established in 2004. Our production lines cover every small parts. You can buy from us directly with very competitive price.
Original material management control

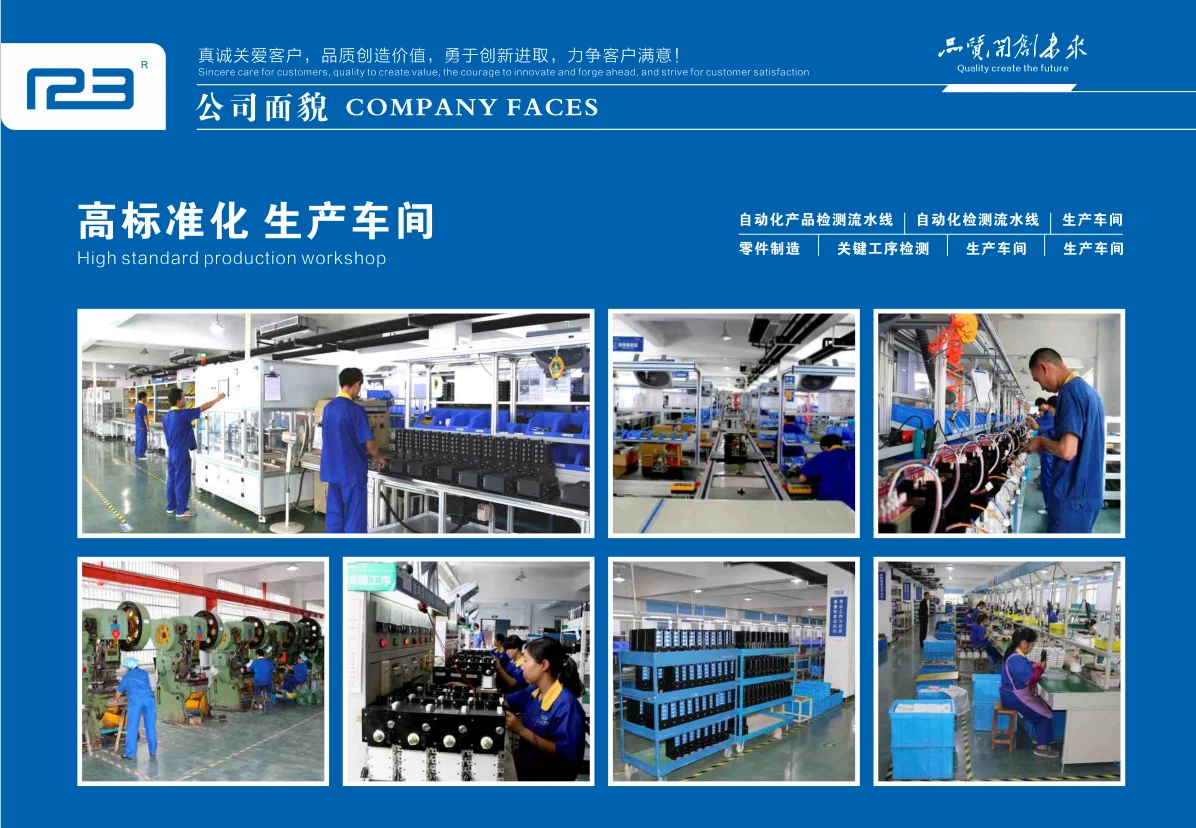

Precision manufacturing process
Rigorous testing system
High quality products.
Good after-sale service.
Two years warranty.
The order will be tracked until you get it.
If any the products you receive are broken, we'll send to you in the next order.

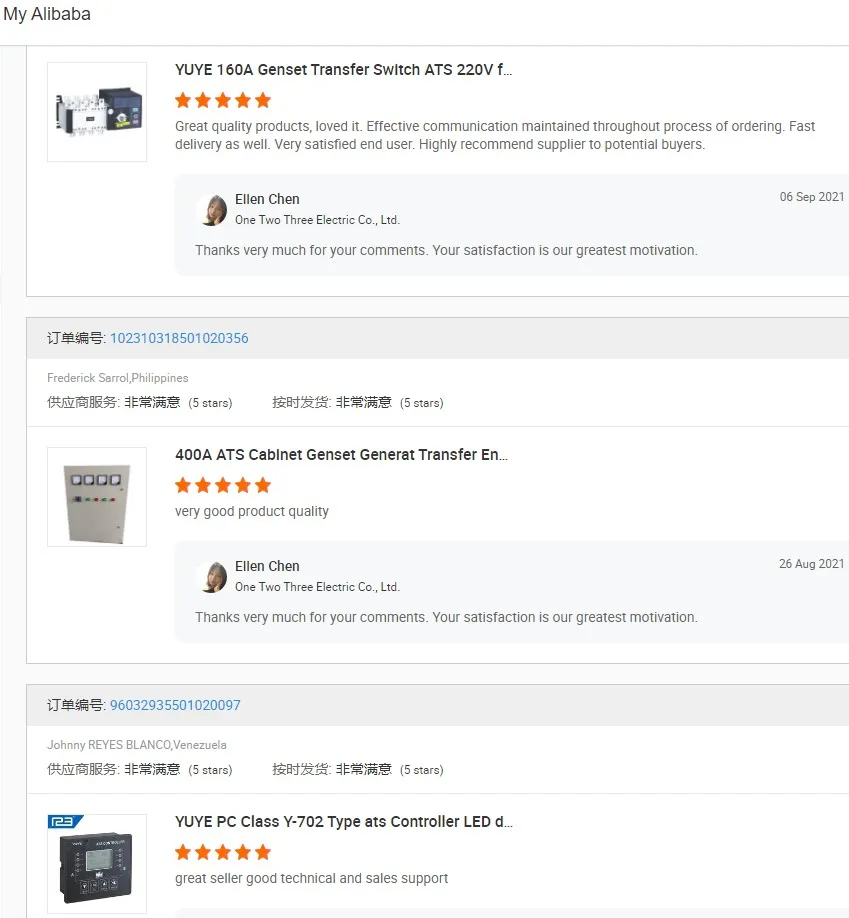

Our customers' comments:
