Factory price Fiberglass FRP GRP Trough Cable Tray With Cover
Product Description
Specification:
GRP Cable Trays at a glance
Standard
Alternative
Material
ISO Polyester Resin
Fire Rating
Class 2 Fire Rated
Modar
Length
3000mm
6000
Width
50-300mm
Type
Slotted
Plain
Fittings
All Stainless Steel

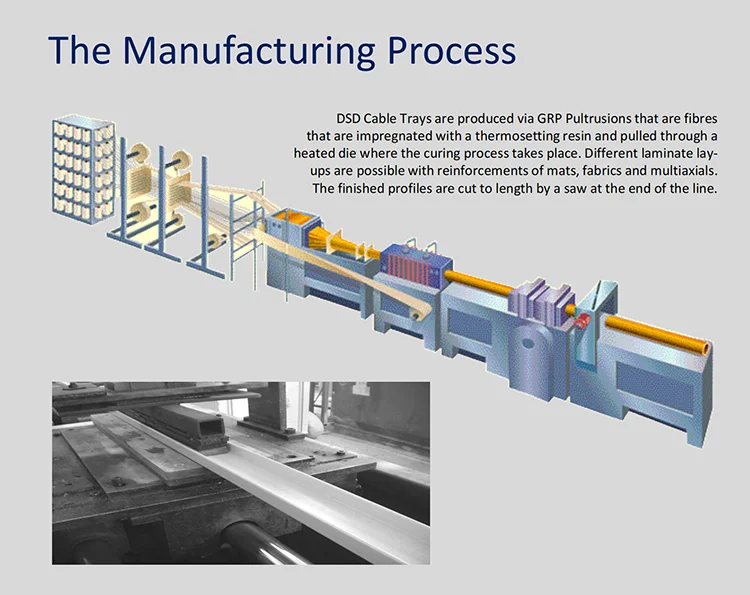

The cable trays are manufactured glass by the pultrusion process from isophthalic polyester thermosetting resin reinforced with E glass giving a high strength dimensionally accurate and thermally stable product. The pultruded sections fully comply with all the requirements of EN13706, grade E17 – Specification of pultruded profiles..
GRP cable trays are normally electrical non-conductive but for those applications with risk explosive atmospheres an anti-static version is available to order.
The cable tray is slotted along the length the cable tray also has a unique accepting slot that allows
couplers to be inserted with ease insitu. All cable trays have a bespoke click fit lid.
Our Services

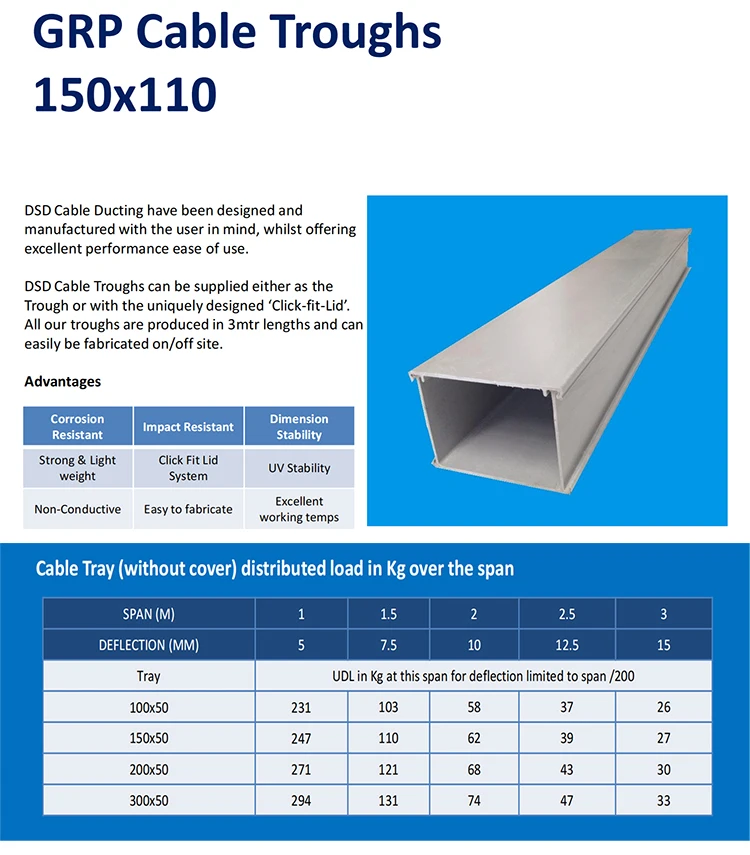

GRP Cable Trough
GRP Cable Troughs are an extremely robust and cost effective product. Our cable troughing system can be produced in various sizes and has been designed with simplicity in mind thus making it easy to use in a working environment. We have a snap on lid and with its light weight and robustness it makes and excellent ducting system to work with.
All our cable ducting is produced from grp/fiberglass making it light weight and easy to fabricate on site. We also produce GRP couple's along with a grp support system which can be produced to fit any working environment.
We have a full range of GRP Cable Trough profiles and this allows us to produce products to customer demands. Depending upon the volume we can produce cable ducting to colour specific requirements along with producing specific resins for certain applications so whether it's for the Rail Industry, London Underground or areas where extreme corrosion is evident then our grp ducting systems are an excellent choice.
All our GRP Cable Trough as standard is unslotted
discuss your requirements when it comes to grp cable trays.
Corrosion Resistant
•Impact Resistant
•Dimension Stability
•Strong & Lightweight
•Click Fit Lid System
•UV Stability
•Non-Conductive Cable Trays
•Easy to fabricate
•Excellent Working Temperatures
Production Flow
Application:
Company Information
Hebei DingShengDa Composite Material Co.,LTD is located in Zaoqiang County, Hebei Province.one of the three major FRP industrial bases in China. Our main products: Fiberglass reinforced plastic Cable Support,FRP water tank, FRP moulded septic tank, FRP grating/grille ,Composite cable trench cover,cable tray, FRP manhole cover, FRP fence, FRP cooling tower, flower pot, FRP Marking Pile,FRP pultrusion profiles,etc., We have a variety of FRP products and composite molded products.Our product specification is competitive,the individual model can design production according to the requirements of customers. Our company always insists on the operation philosophy of"Professional focus,pursuit of excellence".We follow the principle of"cooperation,harmony,development and win-win",strive to provide high-quality products and first-class services to new and old customers.
Hebei DingShengDa Composite Material Co.,LTD is located in Zaoqiang County, Hebei Province.one of the three major FRP industrial bases in China.
