Холодильные Контейнеры 20 и 40 футов (Reefer), новые и б/у
US $1645-$2134
Сертификат BV минимальная температура-30 градусов 40 футов
- Категории: Reefer Containers >>>
- Поставщик: ACE,Container,&,Parts,Co.,Limited
Поделиться:
Описание и отзывы
Характеристики
Hot Sale Products
Product Description

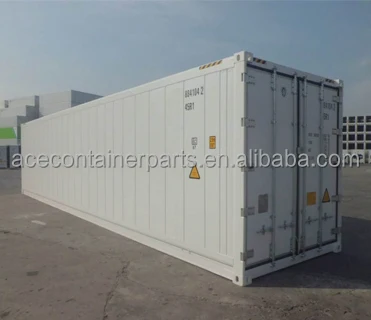

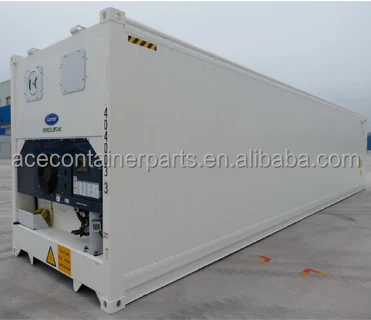

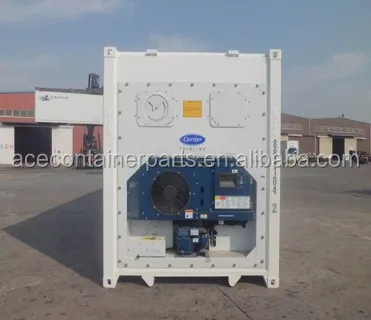

Carrier Reefer Container 40 Feet
External Size: 12192x2438x2896 mm

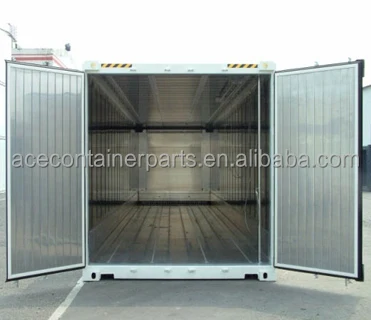

Internal Size: 11590x2294x2554 mm
Door Open Size: 2290x2569mm
Inside Capacity: 67.9CBM
Tare Weight: 4640 KGS(including reefer)
Inside Temperature: -30 to +30 centigrade
Power: 380V/440V, 3phase, 50Hz/60Hz
Advantages
● Lowest energy consumption
● High refrigeration capacity
● Environmental responsibility
● Highest power factor
● Lowest unit weight
● Lowest Total Cost of Ownership
Warranty
Container Body: 1 Year
Cooler Units: 1 Year
Compressor: 3 Years
Marks: 5 Years
We can provide three types cooler unit for reefer containers as below:
Thermo King(MAGNUM PLUS)
Cooling gas: R134a
400 to 500 Vac 3ph 60 Hz
360 to 460 Vac 3ph 50 Hz
Temperature Range:
-40℃ (-40F) to 30℃ (86F).

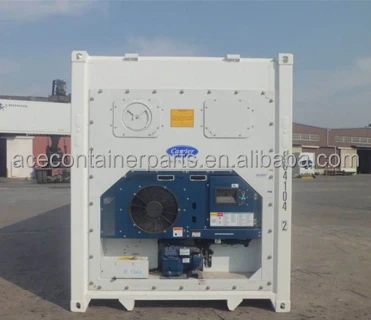

Carrier(PRIME LINE)
Cooling gas: R134a
380/460 VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30℃ (-22F) to 30℃ (86F).
Daikin(LXE10E)
Cooling gas: R134a
380/440VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30~50°C (-22~122°F)

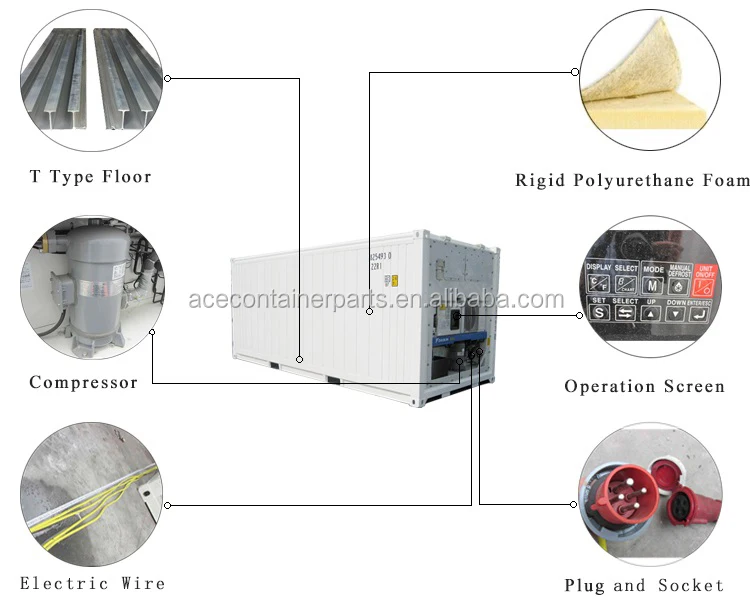

Parts & Technical Details for the Carrier Reefer Container 40 Feet as below:
Forklift Pocket Dimensions | ||||
Width | 360 | MM | ||
Height | 115 | MM | ||
Center Distance | 2050 | MM | ||
Ratings | ||||
Max. Gross Weight | 30480 | KGS | ||
Tare Weight | 2400 | KGS | ||
Tare Weight (incl. Unit: 540kg) | 2940 | KGS | ||
Max. Payload | 27540 | KGS | ||
Cargo access height | 2221 | MM | ||
Insulation | ||||
Roof | 80 | MM | ||
Side walls | 60 | MM | ||
Door panels | 74 | MM | ||
Floor | 76/112 | MM | ||
Heat leakage value | Umax = 21 kcal / deg.c.hr. at the mean wall temperature 293K (20 ℃) (including reefer unit.) | |||
Max. air leakage value | Qmax = 5 m3/hr. (incl. Reefer unit max. 0.5m3/h) measured at 250±10Pa | |||

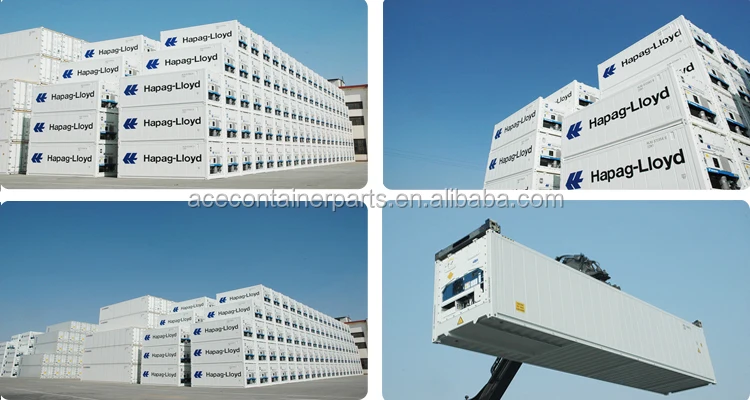

Detailed Images
Packing & Delivery
1. If you have cargoes to load in China with container
You could directly pick up reefer containers from our yard, loading goods in factory, and delivery them to port together. This is the best way to save time and cost for you.
2. Only empty reefer container
Shipping it as empty SOC via container vessel shipping.
Booking Space via picture, CSC plate, Certification.
3. Production Date and Delivery
Generally, the production time will be depends on your quantity, if your quantity lower than 10 units, we can make it and arrange the delivery within 4 weeks, if you need more, we also need more time to make them.
Our Company
FAQ
1. Are your carrier reefer container meet with ISO requirement?
Yes, our container are BV approval and meet with ISO requirement.
2. Can we choose the cooler system?
Sure, you could choose one from Daikin / Carrier / Thermo king
3. Can i have load my goods in China?
Yes, but we suggest you not to load dry cargoes. Because reef container have restrict requirement on cargo package and Loading/unloading.
4. Do you supply generator ?
Yes, we have.
5. Do you supply reefer container parts?
Yes, we provide parts for repair the container body. For cooler system, the supplier(Daikin, Carrier, Thermo king) provide global service.
Certifications
For all the products we sell, we can provide corresponding Certificate as below:
Contact us
