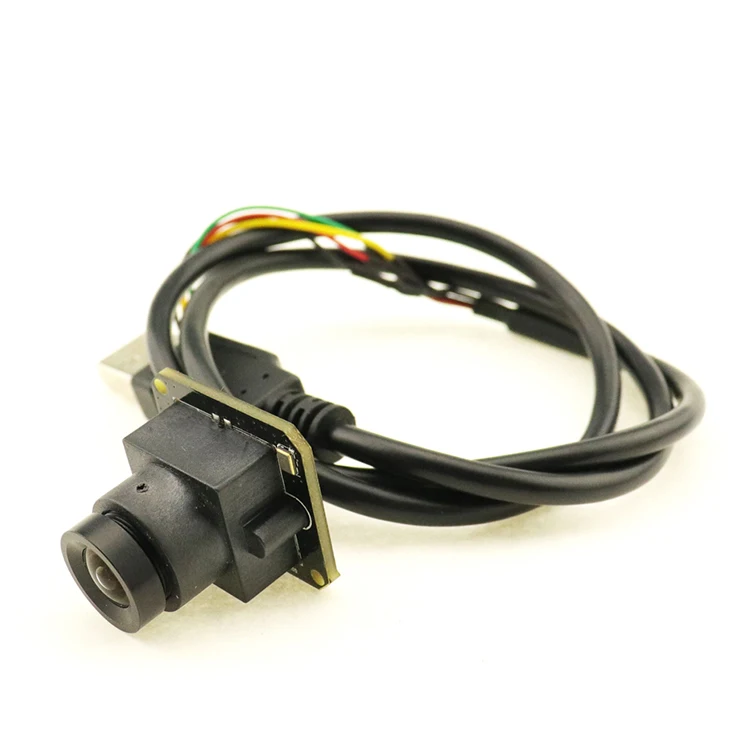

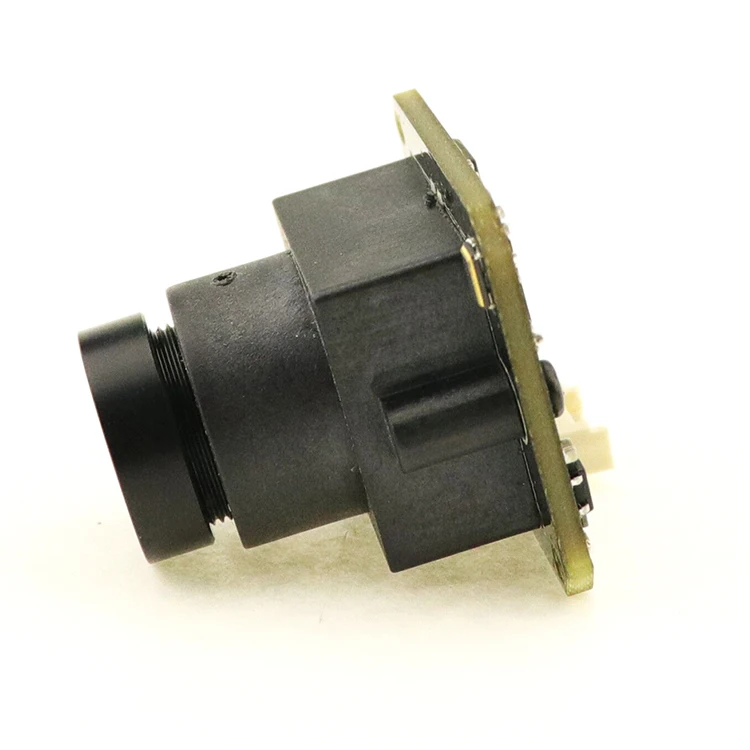

Arducam 1080P Starvis low night IMX291 1/2.8" wide angle UVC webcam camera board with MIC

starlight pcb board camera module

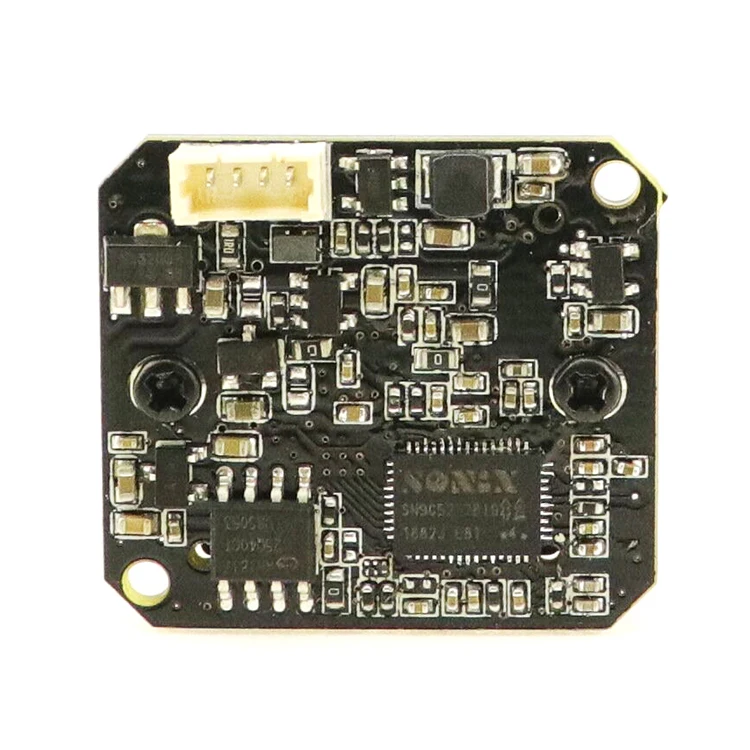

This is the 2 mega pixels camera module (NLKMP07 VER:1.00) is made by Sony IMX291 star level sensor, Low voltage, high performance, supports 1920*1080. Support lens from 60 to 170 degree.It provides full-frame, sub-sampled, windowed or arbitrarily scaled 10-bit images in various formats via the control of the Serial Camera Control Bus(SCCB) interface.



Features

1. Sony IMX291 1/2.8” Star level Sensor

2. Support H.264/YUV2/MJPG

3. Supports FULL HD(1920*1080) SXGA ,720P, XGA SVGA,VGA output formats

4. USB Video Class compliant, works with native driver in Microsoft Windows XP 32-bit/64-bit,VISTA 32-bit/64-bit,Windows 7

5. Auto Exposure (AE). Auto White Balance(AWB)

6. Auto Flicker Correction. Color Correction



Electric Parameters

Parameter		SPEC.
Optical size Sensor		1/2.8  inch COMS sensor
Sensor Resolution		1920(H) x 1080 (V),1080P
Unit pixel size		2.9um(H)*2.9um (V)
Color filter		RGB Bayer pattem
Shutter type		Electronic Rolling Shutter
Max.capture frame rate		30fps@VGA,720p,30fps@1080P
Max. video frame rate		30fps@VGA, 30fps@1080P(MJPEG/H.264)
View Angle		105° without distortion
F Number		2.8mm
AEC / AGC/ White Balance		Auto
Focus Distance		with fixed lens 50CM-∝
Interface		USB 2.0
Power		USB Bus Power

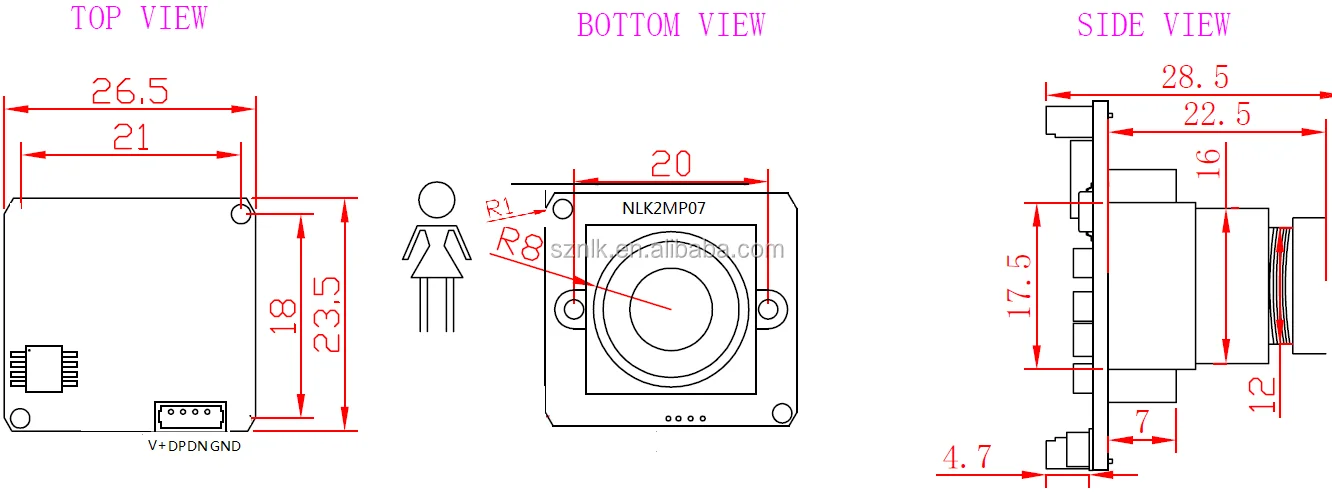

Dimensions (mm) (L x W x H)		26mm x 24mm x6.3 +/-0.2mm
Operating Temperature		-10℃to +50°C
Operating System Request		Windows XP/ Windows 7-10(UVC), Linux(>V2.6 )
Max pixel rate		28Mp/s
ADC accuracy		10-bit
USB 2.0 PHY		On Chip PHY
Power Consumption	Standby	4mA
	Operating	210mA+/-10mA @ 1080P

















Q1: Can I get some samples? Are they free?
A1: Of course you can get sample for testing before bulk order, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order. Usually, samples can be sent to you in 3 work days after your payment.
Q3: What about payment methods?
A3: Payment terms: Online payment, T/T and Western Union etc.
Q4: Can you list the product of your company?
A4: CCTV camera board,USB Web camera board,LCD memory controller board,LCD display module,Intercom Audio Board,Video Camera board for optical fiber tester
Q5: Where can we download the user manual of your products?
A5: Datesheet will be sent to you by email after get your email.
Q6: Warranty time?
A6: 2 years.
Q7: Can you accept ODM products?
A7: Yes,ODM is our main business. We will make quotation according to your details.
Q8: Product OEM?
A8: Yes, need your Gerber file and Drawing and BOM.
Q9: Customer service?
A9: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
Q10: What shiping methods do you have?
A10: Since our products are small and expensive, the common shiping methods are post air mail or fast express.
