Автоматическая заводская цена завод по производству пенопласта

Автоматическая заводская цена завод по производству пенопласта

Категории: Foam Machinery >>>
Поставщик: Henan,Yugong,Machinery,Co.,Ltd.

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description

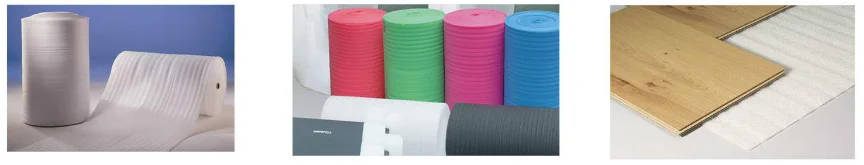

A machine used to produce polyethylene foam sheet or polyethylene foam film, which can foam raw materials and extrude them into sheet rolls.

Process flow:

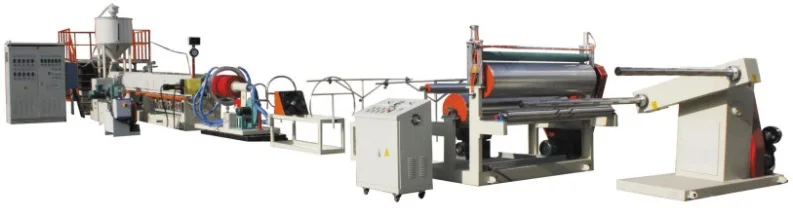

Automatic feeding unit-extruder unit-blowing agent injection unit-anti-shrinking agent injection unit-non-stop
automatic screen changing system-extrusion die unit-air ring-shaping drum unit- Flattening unit-traction unit-winding unit

Specification

Model	YG-90	YG-105	YG-120	YG-170
Screw diameter	90mm	105mm	120mm	170mm
Screw rotary speed	5-45r/min
Foam ratio	20-48
Width of product	1000-1400mm	1000-1800mm	1000-2000mm	1000-2000mm
Thickness of product	0.3-4.5mm	0.3-6.5mm	0.8-8mm	2-16mm
Cooling method	Watercooling
Production capacity	70-100kg/h	80-120kg/h	120-200kg/h	400-500kg/h
Machine size	222.32.2m	232.32.2m	252.32.2m	302.32.2m
Machine weight	8.5T	9T	12T	17T
