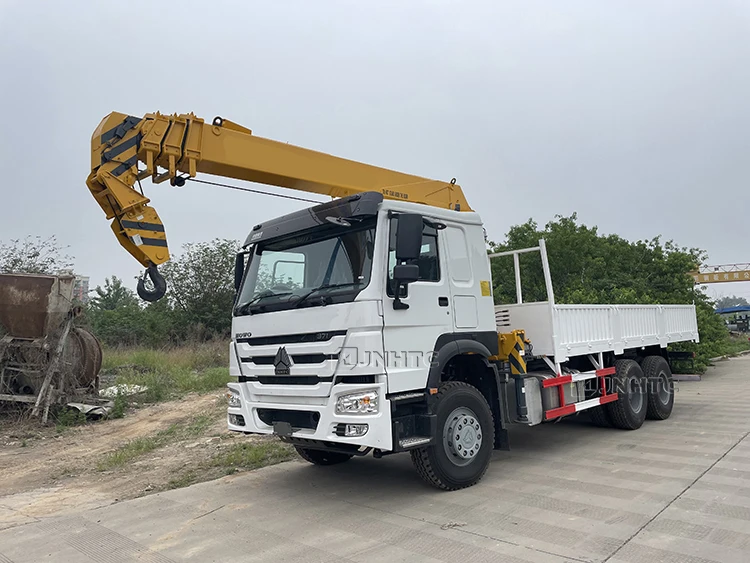

HOWO cargo truck with crane 5 Ton

Product Description

Cabin	Driving type 6x4
	HOWO 76 cab, with air condition and one bed, 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H) mm	10000×2500×3710
	Carriage Size (L x W x H) mm	5600×2300×1100
	Wheel base (mm)	3225+1350
	Wheel track (front/rear) (mm)	2022/1800
	Approach/Departure angle(°)	10/16.
Weight in KGS	Tare Weight	13200
	payload	25000
	Front axles loading capacity	1x7000
	Rear axles loading capacity	2x16000
Engine	Brand	Sinotruck
	Model	WD615.69
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	290 HP
	Emission standard	Euro II
Gearbox	HW15710,10 Forwards gear & 1 reverse gear
Steering	ZF8098, from Germany
Tire	12.00R20 all radial steel tires
Clutch	Reinforced diaphragm clutch, diameter 430 mm

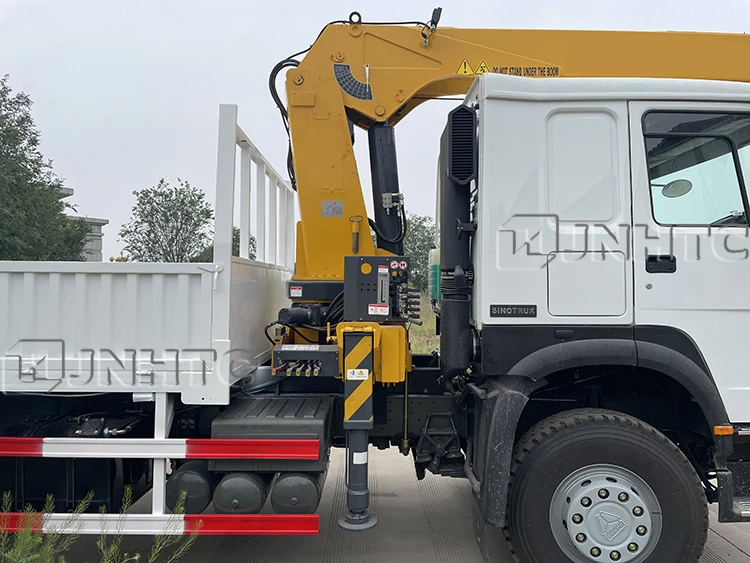

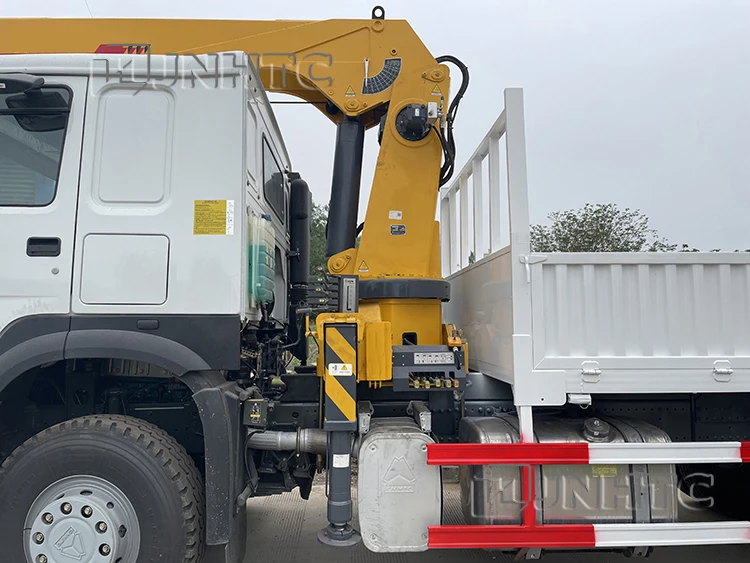

Crane specifications	Brand : XCMG
	Type: Knuckle
	Max lift capacity: 8000 kg
	Max working radius 10 m, Max lifting height :12.5 m
