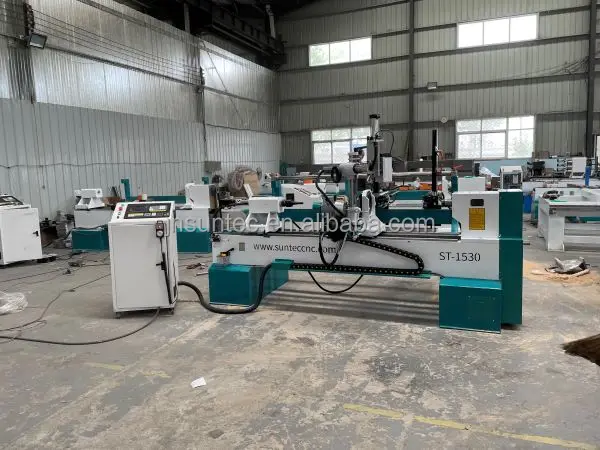

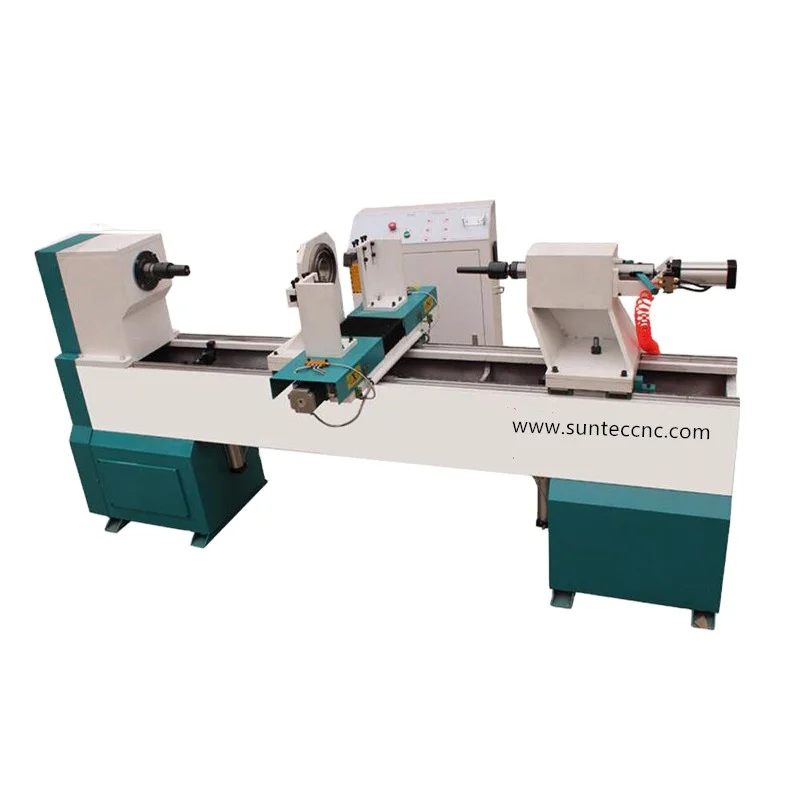

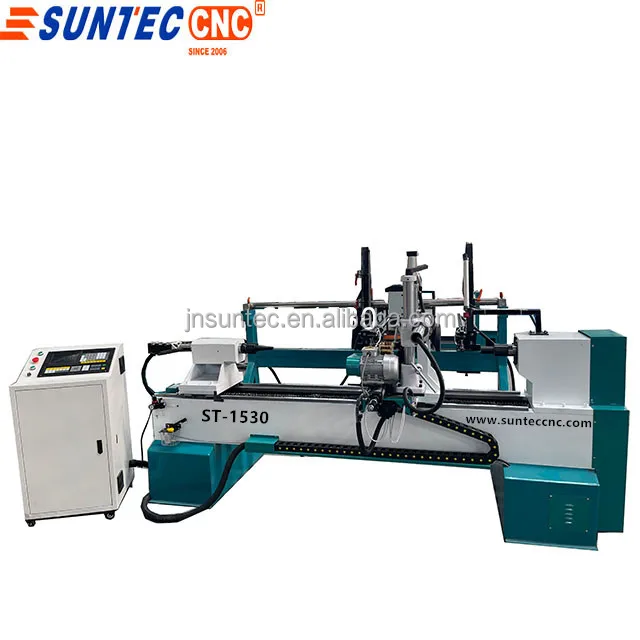

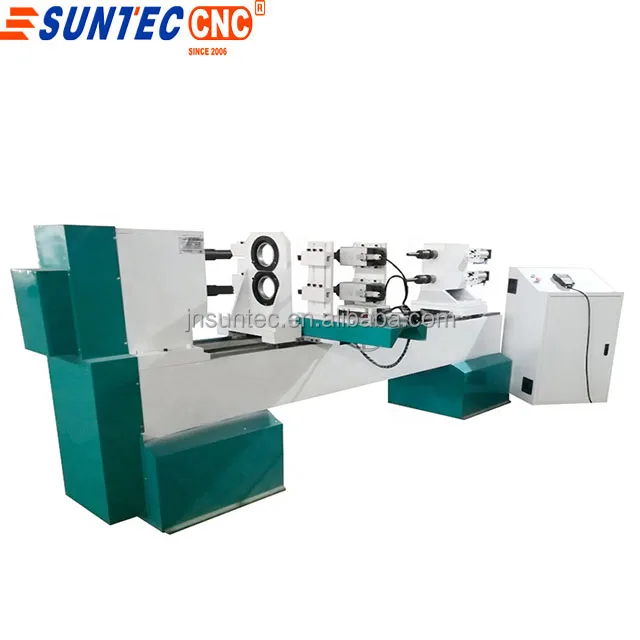

Suntec ST-1530 automatic feeding cnc wood lathe  for columns staircase  with sanding tools



Main specification

Suntec automatic cnc wood lathe mainly Staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;bed rails;lamp posts;baseball bats, handles and so on.

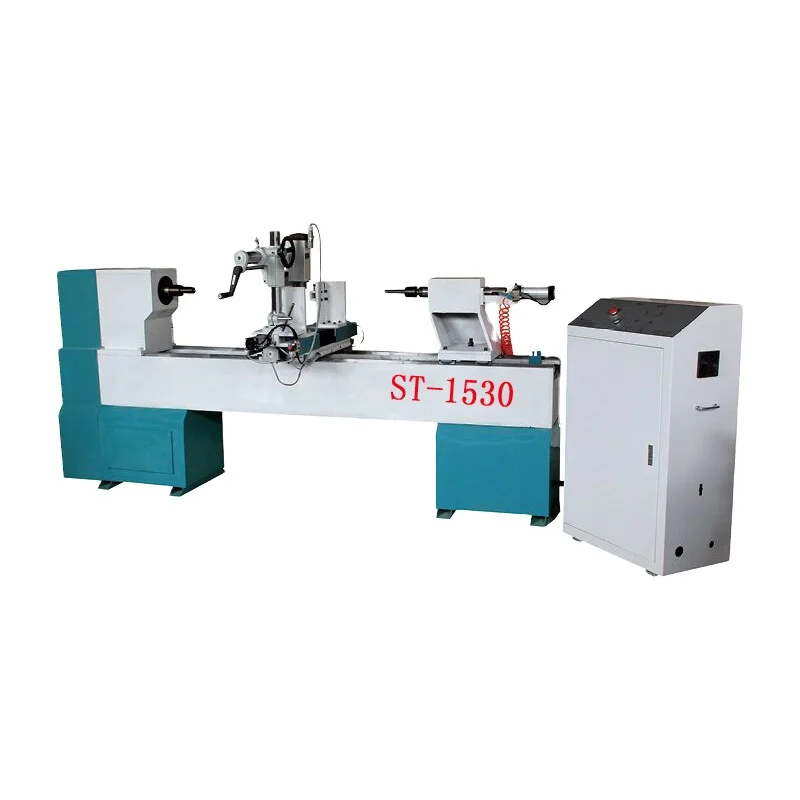

Model:	ST-1530(1500*300mm) _1 axis with planner with 3.5kw spindle with one cutter
Structure:	Cast iron
Spindle shaft:	Sturdy spindle, NSK deep groove ball bearing, P5 grade.
Drive system:	-   Three phse current of 380V, 50HZ. 4 Kw. , 1 set -   Stepper motor: 450B 2 sets -   Stepper driver: YKAO2811MA 2 sets -   Servo motor is optional 5.5kw 220v/3ph/220v/1ph for optional
Inverter:	Best inverter 5.5 kw (Fuling brand is optional)
Guide rail:	Taiwan HIWIN/PMI linear square guide rail.
Spindle speed:	3000 r/min
Material size:	300*1500 mm (length: 2000mm, 2500mm, 3000mm are optional)
Center  Sleeve ID:	1.414 times the side length of material (no need sleeve if material diameter is more than 60mm)
Weight – bearing:	500 kg
Engraving speed:	4 m/min
Max. feed	15 mm/r
Max. feed rate:	700 mm /min
Min. setting unit:	0.1 mm
Pivoting device:	Pneumatic air connection within 6-8 bar.
Tailstock:	Precisely and easily movable, with quick clamping with pneumatic
Electric system:	Air break switch protection
Dimensions(L*W*H):Machine (without operation box)	3100 *1280*1780 mm
Packing dimensions:Machine (with operation box)	3200*1380*1980 mm
Weight:	1700 kg
Software	AUTOCAD (DXF format )
Control system:	LCD control with screen show
Planner	for optional



























































































































































Main parts

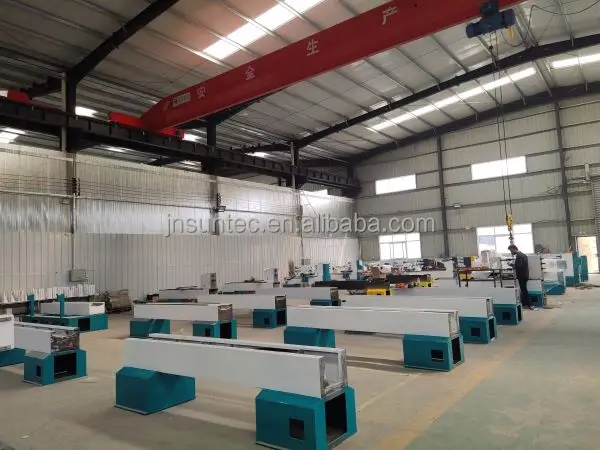

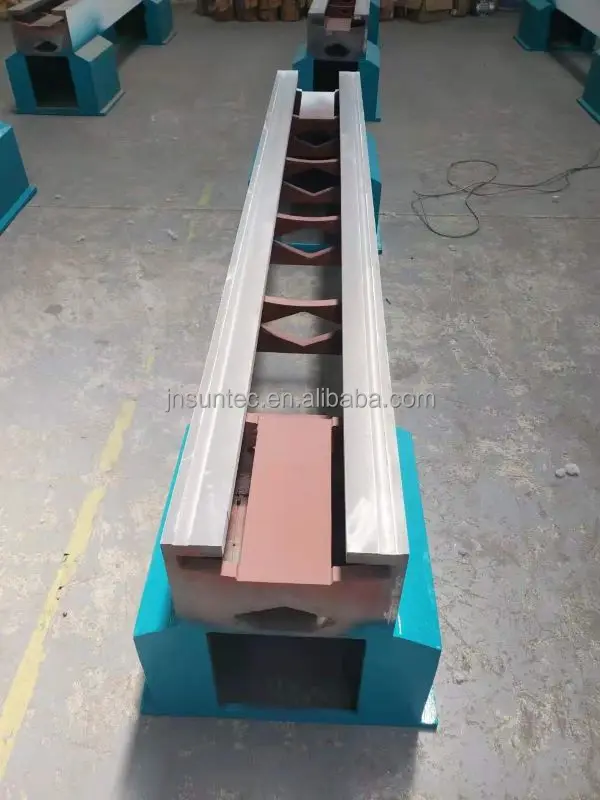

Heavy duty  cast iron structure table with heat-treatment  reduce itself rigidity . which can use many years no deformed

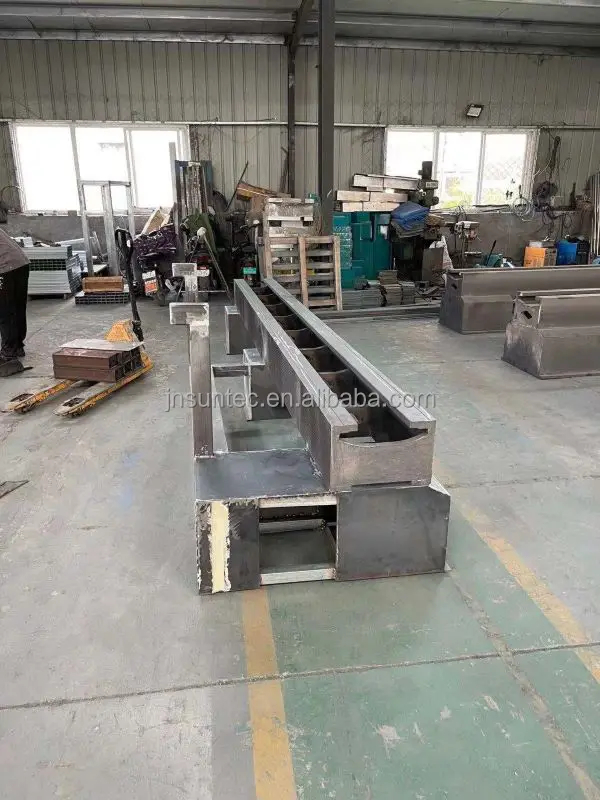

automatic feeding structure table also cast iron weigth 1600kgs to make sure no vibrating when working

1. Basllscrew transmission to make sure high precision

2. two cutters one is rough cutter another is fine cutter to make fast .

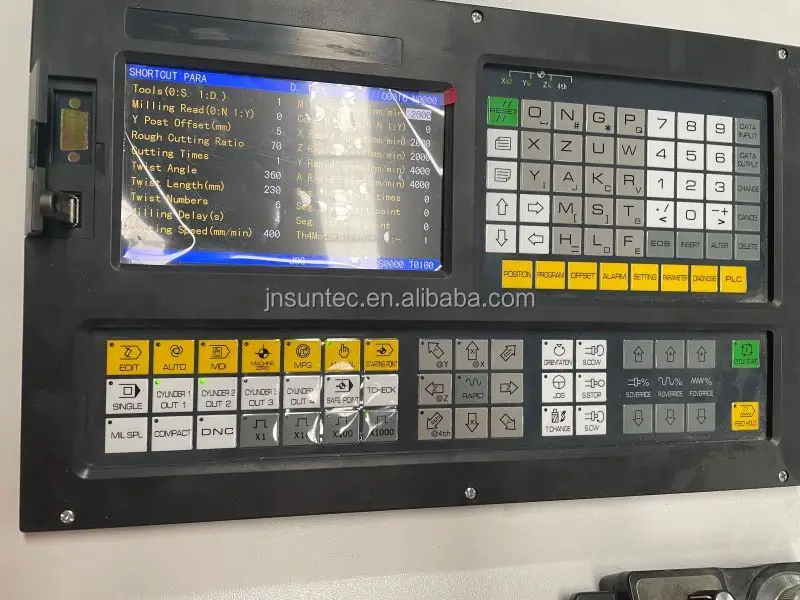

PLC controller which can see working state

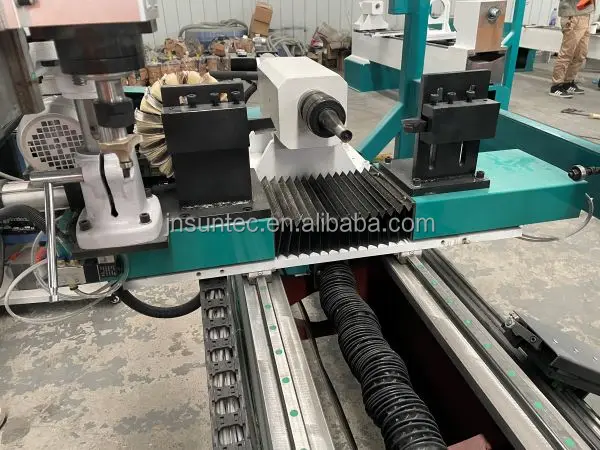

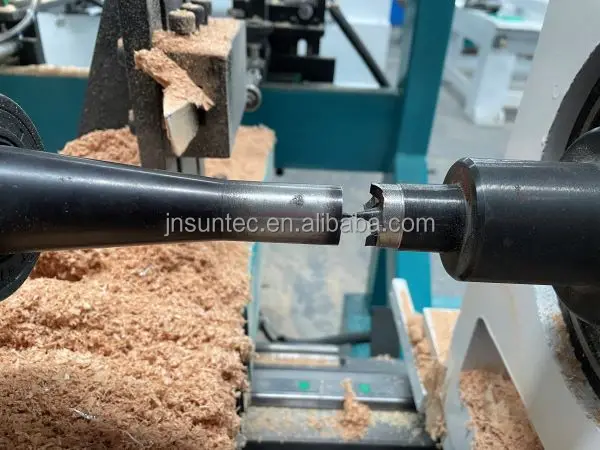

TWO thimber at same line to make sure wood center at right postion to make sure high precision

Steady ring for working small piece wood such as 20mm diameter to make sure no vibrating when working

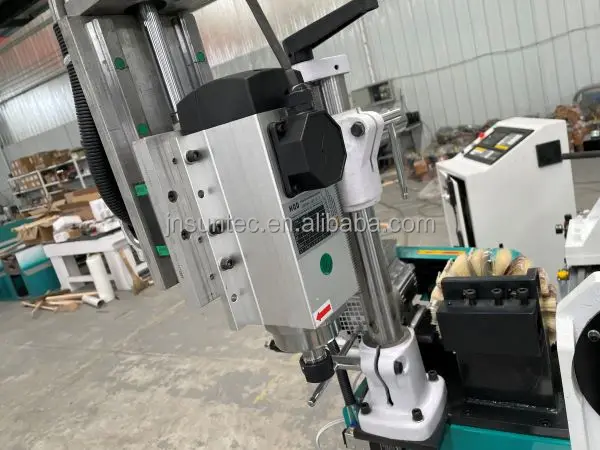

Engraving spindle for wood twisting engraving sprial on wood

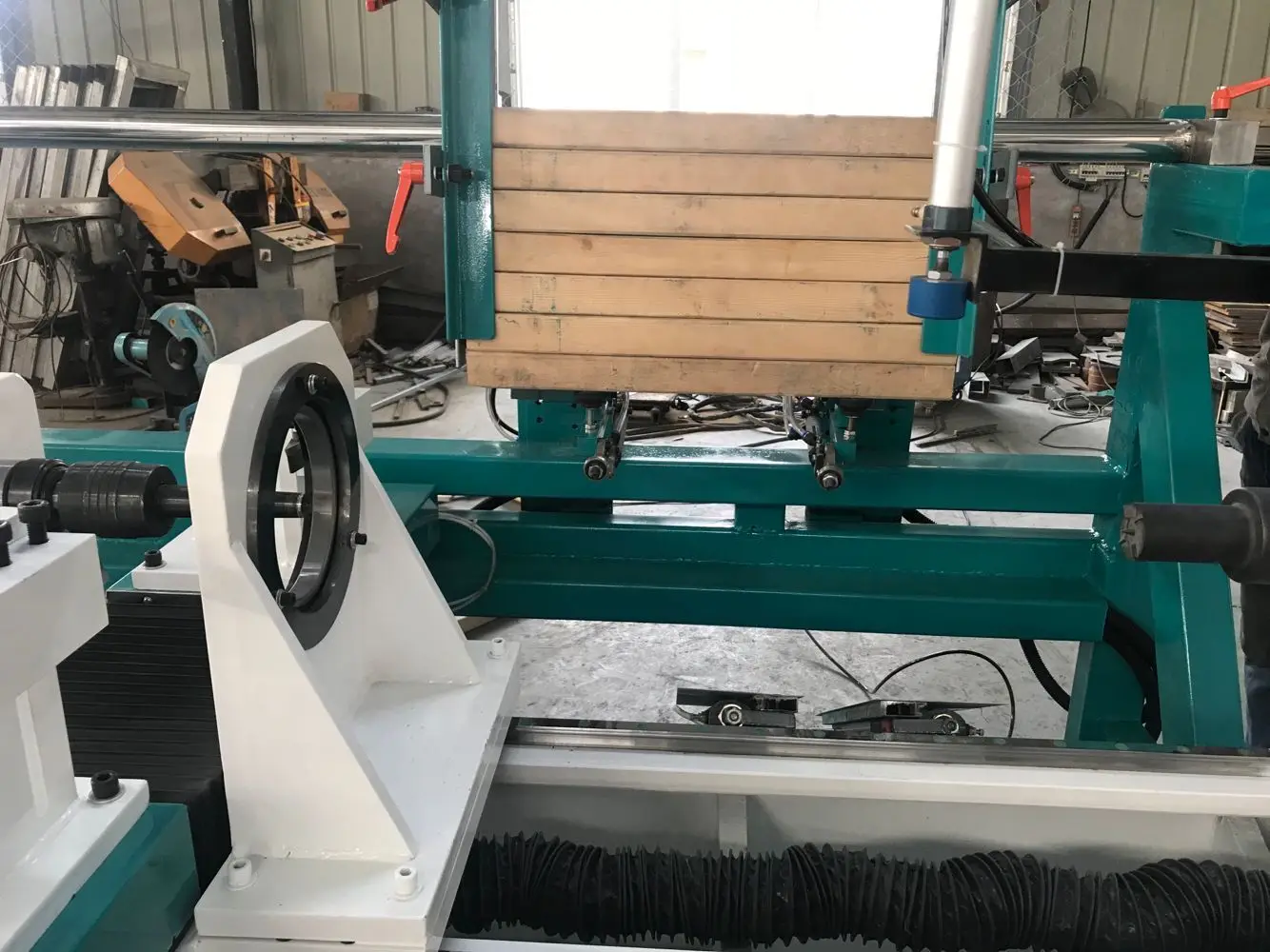

Automatic feeding device to feeding wood fast and right position saving labors

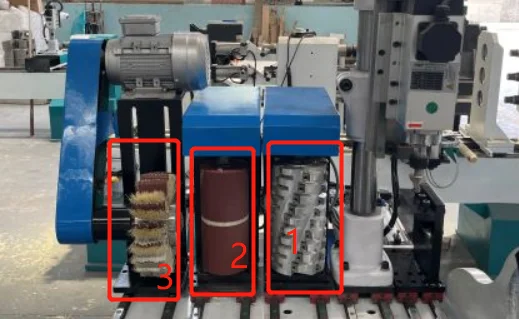

1. planner for irregular wood shape

2. polish for irregular wood squre wood

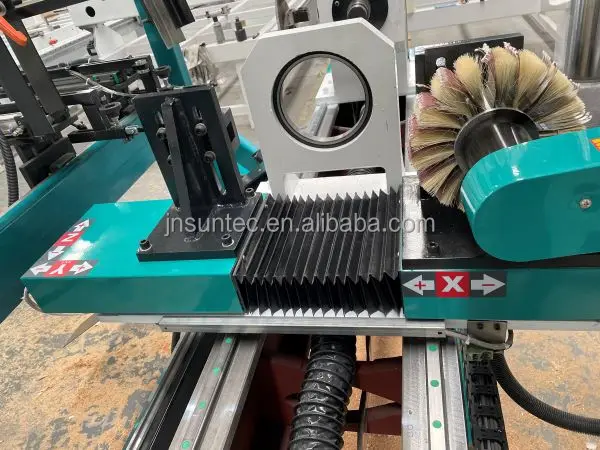

3. brush for round wood sanding

working sample





service

1.Service before order: our salesman will try to know more about your demands ,  including the max working size, main processing materials and the thickness , so we will offer you suit machine.

2.Service during production : we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts.

3.Service before shipping : the machine parts will be installed and tested by our professional.

technician, send the test video according to customer’s processing materials for customer confirmations.

4.Service after shipping : we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up

5.Service of training : the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely.

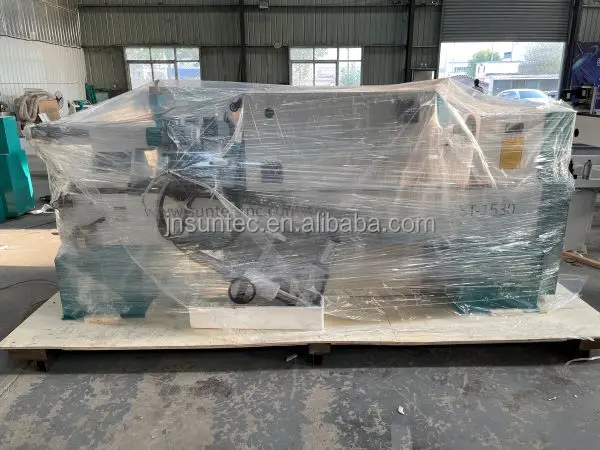

packing





Feedback



Other products

SUNTEC single axis two cutter cnc wood lathe



single axis two cutter with engraving spindle suntec ST-1530

suntec

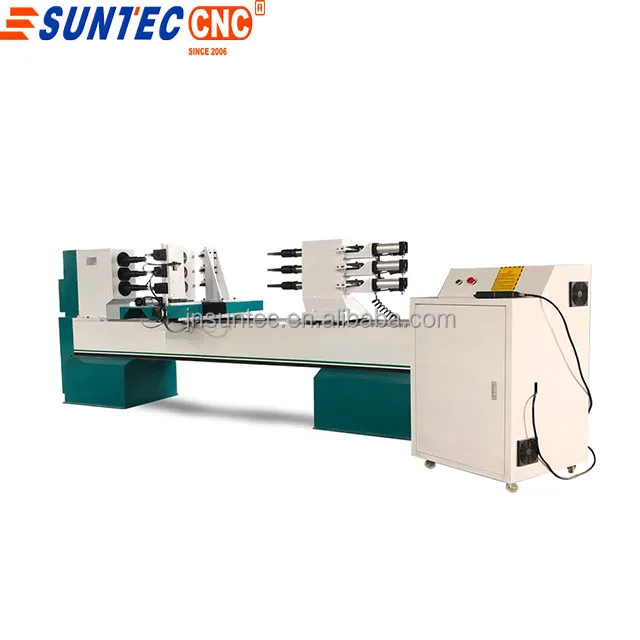

Three axis six cutter cnc wood lathe
