BUTT FUSION WELDING MACHINE are also called HDPE PIPE JOINTING MACHINE ,Polypropylene pipes thermofusion welding equipment,hydraulic termofusion joining for polyethylene pipes and pipe fittings,HDPE Butt Welding Equipment,Butt Welders,butt fusion welder.
Description
butt fusion machine joining of plastic pipes and fittings such as Polyethylene HDPE SWT-V630/315H
polyethylene pipe butt fusion machine for WASTEWATER TREATMENT SWT-V630/315H
Thermofusion Machinery Equipment SWT-V630/315H
polyethylene pipe butt fusion machine for WASTEWATER TREATMENT SWT-V630/315H
Thermofusion Machinery Equipment SWT-V630/315H
SWT-V630H is hydraulic butt fusion welder. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without any additional equipment by simply adjusting the clamps drag bar.
It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.
Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional
parts.
Removable PTFE coated heating plate with high accurate temperature control system;
Electrical planning tool with safety limit switch to avoid starting unexpectedly.(optional)
Be made of lightweight and high strength material; Specially designed with a clamp opening angle of 45°
Low starting pressure ensures reliable welding quality of small pipes.
Changeable welding position enables to weld various fittings more easily.
Separate two-channel timer shows time in soaking and cooling phases. Give a alarm when timing over.
High-accurate and shockproof pressure meter indicates clearer readings.
Digital pressure meter is installed on machines.
It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.
Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional
parts.
Removable PTFE coated heating plate with high accurate temperature control system;
Electrical planning tool with safety limit switch to avoid starting unexpectedly.(optional)
Be made of lightweight and high strength material; Specially designed with a clamp opening angle of 45°
Low starting pressure ensures reliable welding quality of small pipes.
Changeable welding position enables to weld various fittings more easily.
Separate two-channel timer shows time in soaking and cooling phases. Give a alarm when timing over.
High-accurate and shockproof pressure meter indicates clearer readings.
Digital pressure meter is installed on machines.

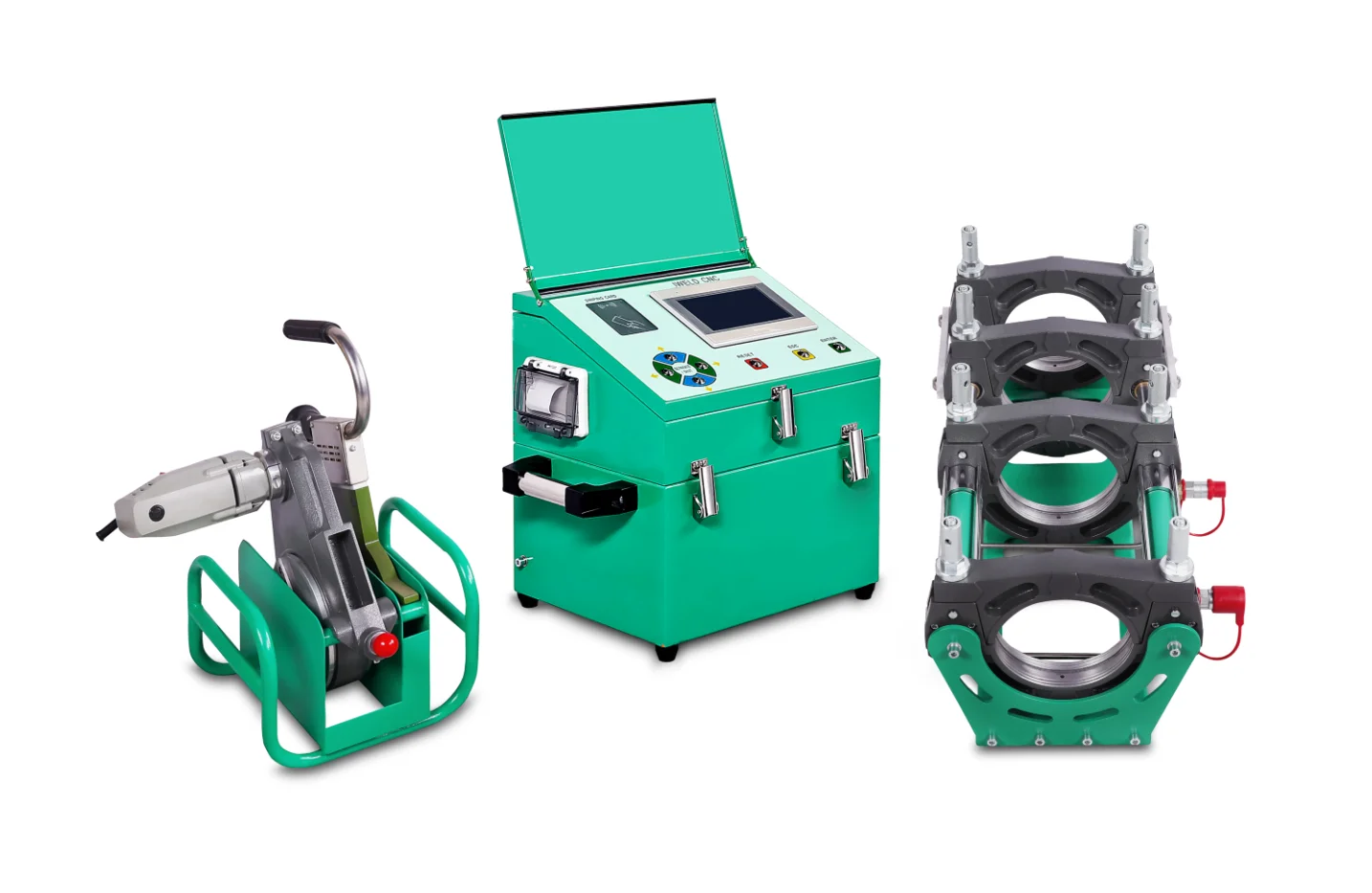

V630 includes:

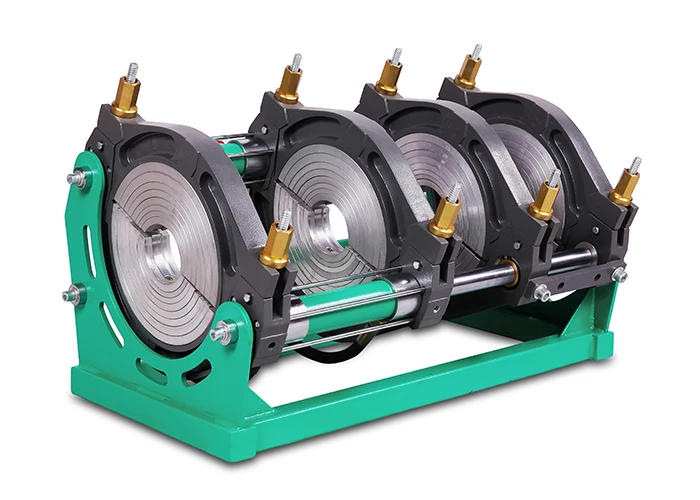

*A machine body with 4 clamps and 2 hydraulic cylinders with fast couplings;
*A Teflon coated heating plate with separate temperature control system;
*Self detaching device: helps removing the heating plate after soaking process;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.
*A Teflon coated heating plate with separate temperature control system;
*Self detaching device: helps removing the heating plate after soaking process;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.
Available options:
Data logger;
Support roller;
Stub end holder ;
Electric Crane;
Machine body trolley;
Different inserts (single insert, ISO inserts)
Support roller;
Stub end holder ;
Electric Crane;
Machine body trolley;
Different inserts (single insert, ISO inserts)
Parameters
Welding Range | 315mm~630mm |
Reducing Inserts | 315mm-355mm-400mm-450mm-500mm-560mm-630mm |
Ranges of application | PE,PP and PVDF |
Working voltage | ~380V±10%,50/60Hz |
Total power | 12.3 kW |
planning tool | 1.5 kW |
heating plate | 9.3 kW |
hydraulic unit motor | 1.5 KW |
Environment temperature | -10° ~ 45° |
Why choose us
Product quality is guaranteed
Professional team with good service
Complete after-sales service to solve your worries
Operation Video
Aplication
Application of welding of polyethylene piping by thermofusion :
Hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE,PP, and PVDF.
Automatic butt welding machine can be operated in any complex work condition.
Thermofusion welding machine welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids.
Automatic butt welding machine can be operated in any complex work condition.
Thermofusion welding machine welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids.

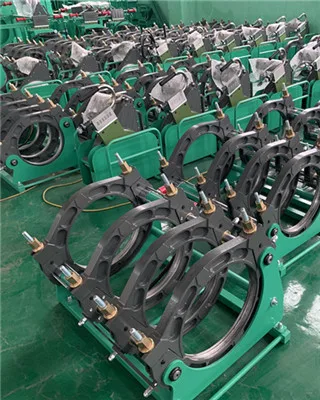

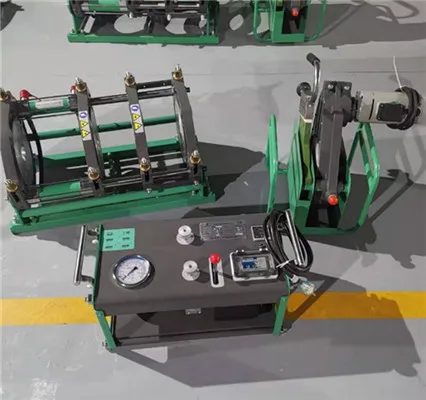

Pictures

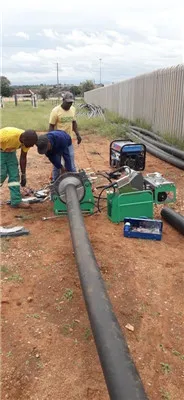

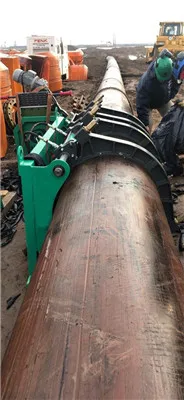

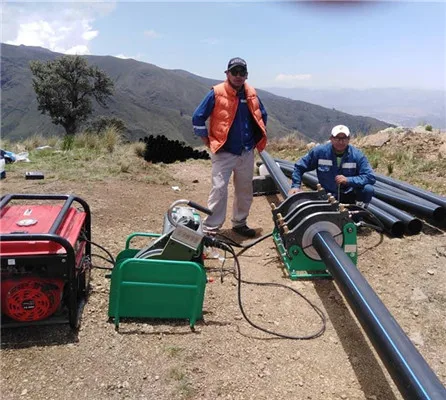

Jobsite
Exhibition
We always provide high quality products and workable price for every clients and have won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating, we provide them for free:
--
Oscar Lao
Area Sales Manager
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating, we provide them for free:
--
Oscar Lao
Area Sales Manager
FAQ
Q&A:
1. PAYMENT TERMS
We accept 30% TT deposit and 70% balance payment against photo before delivery or 100% TT in advance.
2. LEAD TIME
Usually, we have plenty of stock for V355 and below, and keep max. 3units for V450 and V630. As to V800 and above, we'll arrange
production according to the actual orders.
3. WARRANTY
2 YEARS. During the warranty period, MM-Tech authorized dealer and MM-Tech will totally cover the responsibility to fix the
machine;
Claim parts usually could be couriered to clients within 3days since receiveing the claim. Express fee will be borned by MM-Tech.
4. CAN YOU DO CUSTOMIZED DESIGN
YES. MM-Tech has its own design and technical team that can undertake OEM and ODM, but there are quantity requirements, please
contact our sales consultant for more information, thank you.
5. CAN YOU PROVIDE TRAINING CLASS ?
1. Customers are welcome to come to our factory for 1-2 weeks of training, in addition to air tickets and hotels, MM-Tech can
afford meals and local transportation costs.
2. We can also arrange for technical personnel to fly to the customer's local to do on-site training, for a period of 1-2 weeks,
customers bear air tickets, hotels, catering, as well as technical training fees, please contact our sales consultant for details.
3.MM-Tech offers online training in English and Spanish, which requires an appointment in advance.
6. HOW COULD BE YOUR DISTRIBUTOR AT LOCAL?
MM-Tech welcomes customers from all over the world to negotiate agency business, but for agents, we have specific requirements,
details please contact our sales consultant, thank you!
1. PAYMENT TERMS
We accept 30% TT deposit and 70% balance payment against photo before delivery or 100% TT in advance.
2. LEAD TIME
Usually, we have plenty of stock for V355 and below, and keep max. 3units for V450 and V630. As to V800 and above, we'll arrange
production according to the actual orders.
3. WARRANTY
2 YEARS. During the warranty period, MM-Tech authorized dealer and MM-Tech will totally cover the responsibility to fix the
machine;
Claim parts usually could be couriered to clients within 3days since receiveing the claim. Express fee will be borned by MM-Tech.
4. CAN YOU DO CUSTOMIZED DESIGN
YES. MM-Tech has its own design and technical team that can undertake OEM and ODM, but there are quantity requirements, please
contact our sales consultant for more information, thank you.
5. CAN YOU PROVIDE TRAINING CLASS ?
1. Customers are welcome to come to our factory for 1-2 weeks of training, in addition to air tickets and hotels, MM-Tech can
afford meals and local transportation costs.
2. We can also arrange for technical personnel to fly to the customer's local to do on-site training, for a period of 1-2 weeks,
customers bear air tickets, hotels, catering, as well as technical training fees, please contact our sales consultant for details.
3.MM-Tech offers online training in English and Spanish, which requires an appointment in advance.
6. HOW COULD BE YOUR DISTRIBUTOR AT LOCAL?
MM-Tech welcomes customers from all over the world to negotiate agency business, but for agents, we have specific requirements,
details please contact our sales consultant, thank you!
