Hydraulic 4 in 1 Combination Bucket for Jcb John Deere Bobcat CASE GEHL Dingo Backhoe and Skid Steers
Hydraulic 4 in 1 Combination Bucket for Jcb John Deere Bobcat CASE GEHL Dingo Backhoe and Skid Steers
Hydraulic 4 in 1 Combination Bucket for Jcb John Deere Bobcat CASE GEHL Dingo Backhoe and Skid Steers
Hydraulic 4 in 1 Combination Bucket for Jcb John Deere Bobcat CASE GEHL Dingo Backhoe and Skid Steers
Hydraulic 4 in 1 Combination Bucket for Jcb John Deere Bobcat CASE GEHL Dingo Backhoe and Skid Steers
Hydraulic 4 in 1 Combination Bucket for Jcb John Deere Bobcat CASE GEHL Dingo Backhoe and Skid Steers
Hydraulic 4 in 1 Combination Bucket for Jcb John Deere Bobcat CASE GEHL Dingo Backhoe and Skid Steers

Hydraulic 4 in 1 Combination Bucket for Jcb John Deere Bobcat CASE GEHL Dingo Backhoe and Skid Steers


Поделиться:

Цена:38 178,59 ₽ - 99 386,75 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

OVERVIEW

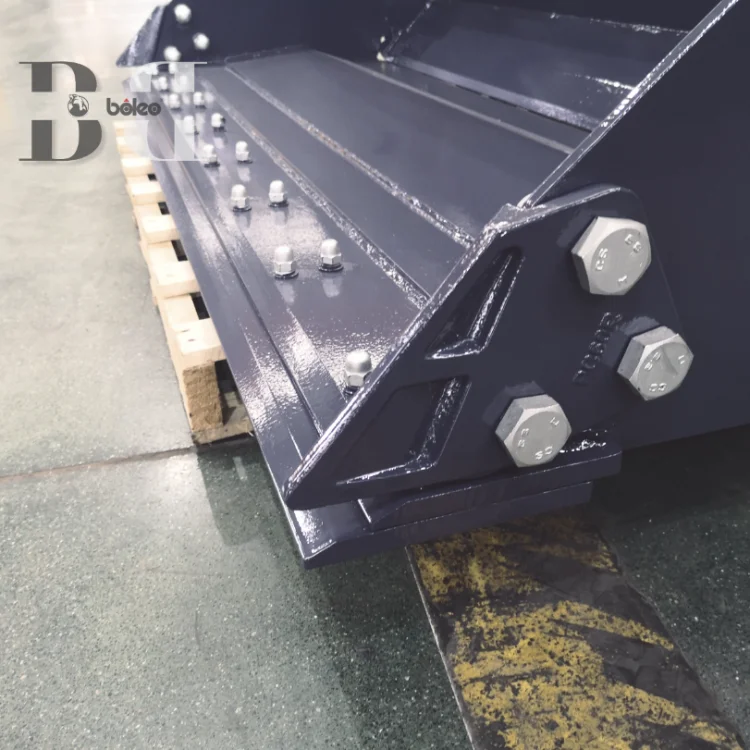

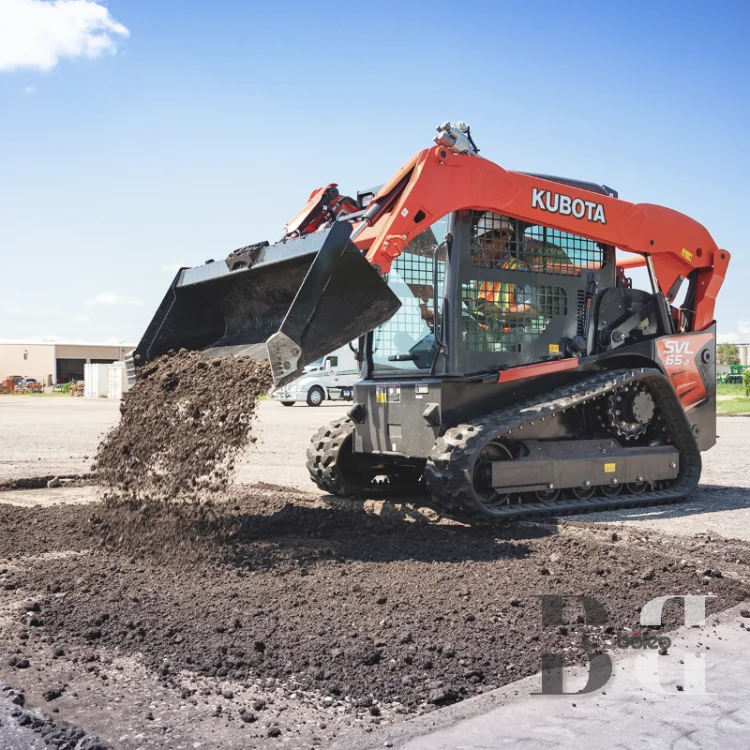

Boleo® 4-in-1 Bucket incorporates Hardox® steel to provide a multi purpose attachment suitable for a variety of applications. Serrated edges providing extra grip when clamping. Ideal for use on Telehandlers, Tractor Loaders or Skid steers the combination buckets utilises high capacity hydraulic cylinders and high grade pins for long operating life, Dirt and concrete contractors, landscapers, and farmers get the versatility of a grapple, dozer blade, bucket, and back scraper, all in one tool with Boleo® combination buckets.

FEATURES

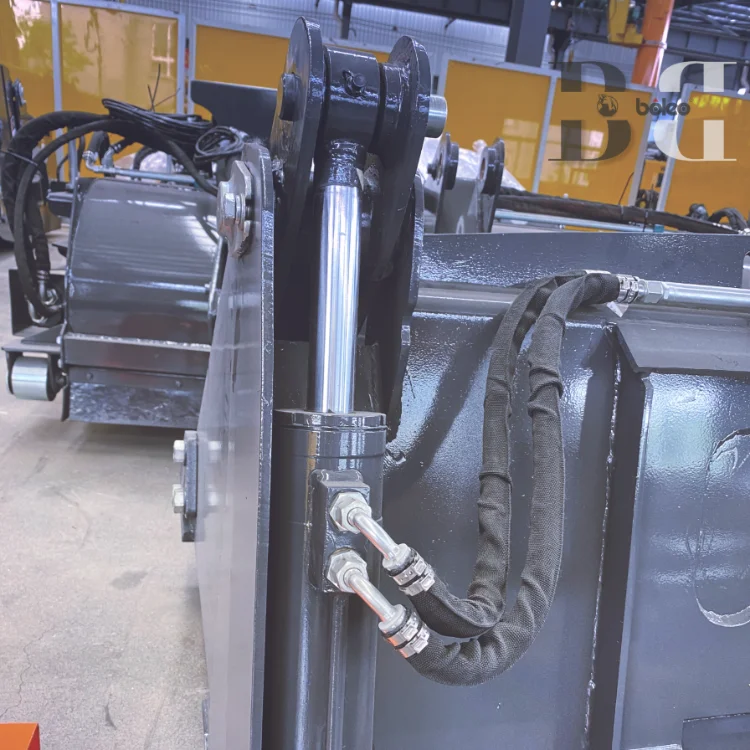

● Universal Mounting Quick Attach, included to suit your machine ● 4-in-1 Design: bucket, scraper, grapple, and dozer ● Hardox® wear plate, side plates manufactured from Hardox steel, 3 times the strength of mild steel ● High capacity hydraulic cylinders with 16–21Mpa ● Serrated edges in pinch area assist when using as a grapple ● Standard bolt-on edge on dozer portion ● Replaceable Side plates resistant to breaking and bending ● Can be used as a bucket, clamp, digger or grader ● High grade pins ● Main bucket Deck material is Grade 50 Plate (345 MPa or 50,000 PSI Minimum Yield Strength), Heavy-duty build ● Weld on shanks and teeth available ● Available colors
4-in-1 Bucket Tech-specs
Model
BCB40
BCB60
BCB72
BCB84
Overall Length(mm)
530
940
940
940
Overall Width(mm)
1036
1579
1899
2195
Overall Height(mm)
522
820
820
820
Mouth-opening distance(mm)
550
900
900
900
Weight(Kg)
117
430
489
537
Capacity(m3)/Stacking Capacity(m3)
0.09/0.13
0.42/0/52
0.50/0.62
0.57/0.76
Hydraulic Flow(L/min)
10-15
20-30
20-30
20-30
Max.sustainable Pressure(Mpa)
21
21
21
21
Optional Accessory
Bucket Teeth
Compatible Carrier
Mini Skid Steer Loader
Skid Steer Loader
