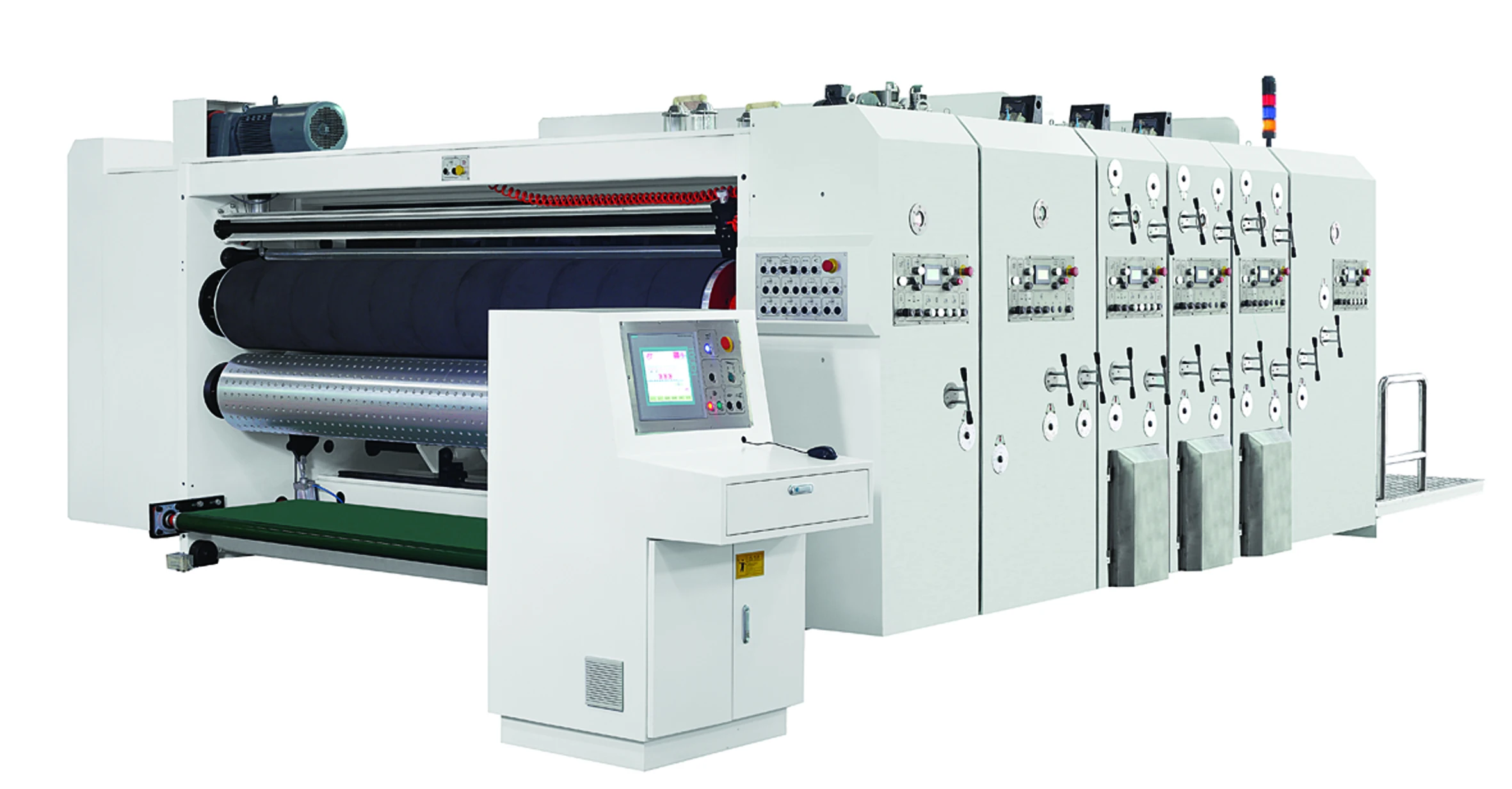

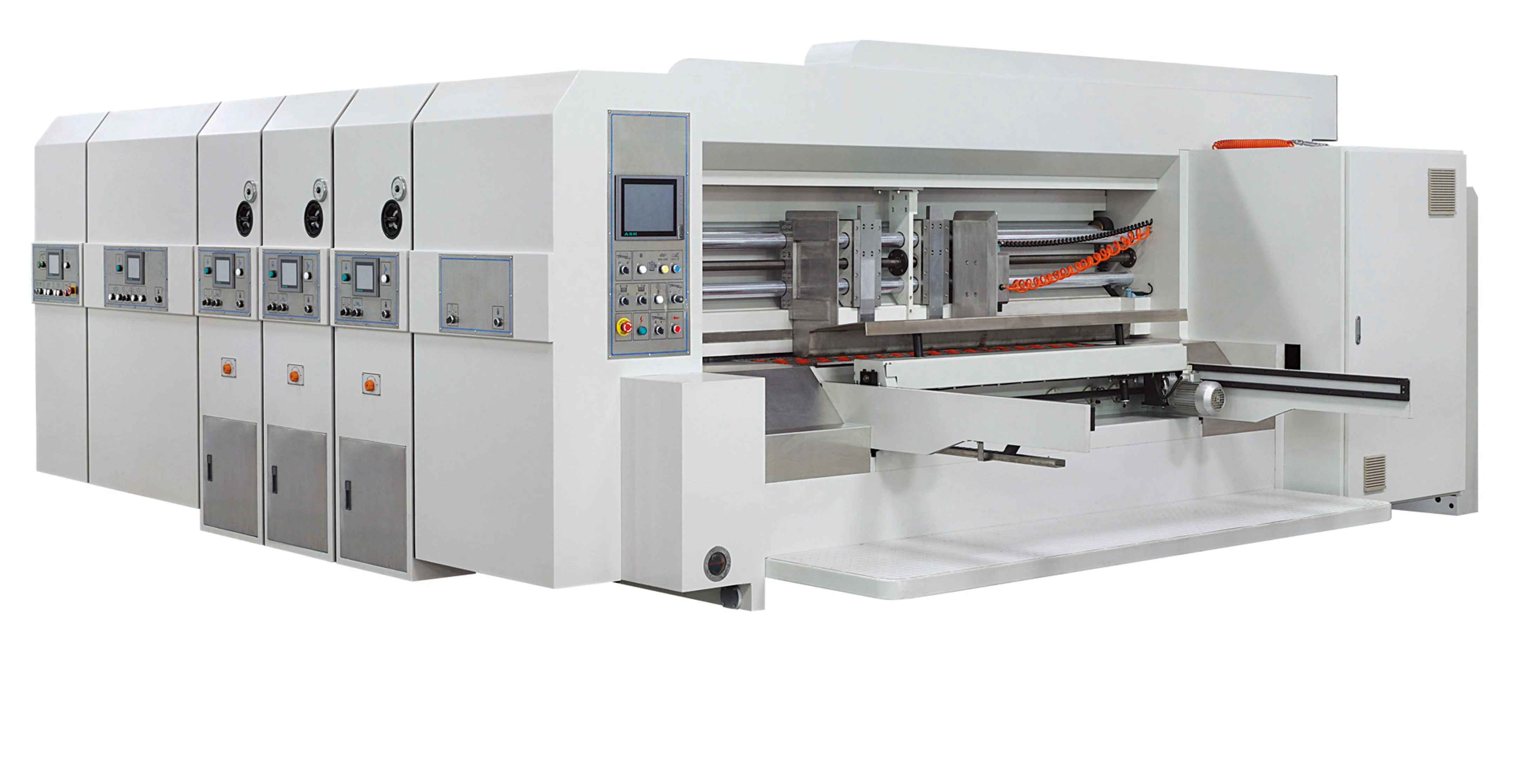

Флексографская печатная машина для высечки резки пиццы Гофрированная коробка
- Категории: Carton Printing Slotting Die-Cutting Machine >>>
- Поставщик: Lly,Pack,(foshan),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Item | NT0920A | NT0925A | NT1225A | NT1228A | NT1628A | NT1632A |
Maximum equipment speed (sheet/min) | 300 | 280 | 250 | 230 | 180 | 160 |
Maximum feed size (mm) | 900×2000 | 900×2500 | 1200×2500 | 1200×2800 | 1600×2800 | 1600×3200 |
Minimum feed size (mm) | 300×600 | 300×600 | 350×600 | 350×600 | 450×600 | 450×600 |
Sheet feeding (mm) | 1200×2000 | 1200×2500 | 1500×2500 | 1500×2800 | 2000×2800 | 2000×3200 |
Printing area (mm) | 900×1960 | 900×2460 | 1200×2460 | 1200×2760 | 1600×2760 | 1600×3160 |
Standard printing thickness (mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
Min Slotting Clearance Forward knife（mm） | 130×130× 130×130 | 130×130× 130×130 | 130×130× 130×130 | 130×130× 130×130 | 130×130× 130×130 | 130×130× 130×130 |
Backward knife（mm） | 230×65× 230×65 | 230×65× 230×65 | 230×65× 230×65 | 230×65× 230×65 | 260×70× 260×70 | 260×70× 260×70 |
Max Slotting Depth (mm) | 260 | 260 | 300 | 300 | 400 | 400 |
Features in Performance
1. Advanced scientific design concept, European CE certification, independent computer operating table
2. Gap adjustment and phase adjustment are computer controlled
3. Main gear is made of high quality steel, imported from Taiwan
4. All electrical, electronic and pneumatic components adopt European standards
5. Suitable for dot printing on coated paper, or cardboard printing
6. Can be used with stacking machines or printing glue box machines
2. Gap adjustment and phase adjustment are computer controlled
3. Main gear is made of high quality steel, imported from Taiwan
4. All electrical, electronic and pneumatic components adopt European standards
5. Suitable for dot printing on coated paper, or cardboard printing
6. Can be used with stacking machines or printing glue box machines

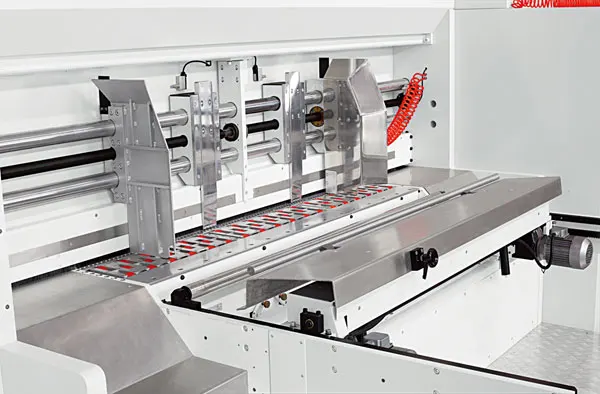

Feeding Section
1. Continuous or alternate sheet feeding (with counter)
2. Adopting the leading edge paper feed from the United States to increase the suction flow, the paper feed is more stable and accurate.
3. Variable frequency control of vacuum airflow and pressure to match cardboard size
4. Adjustable paper-feeding stroke to reduce the pressure of the paper-pulling rubber roller

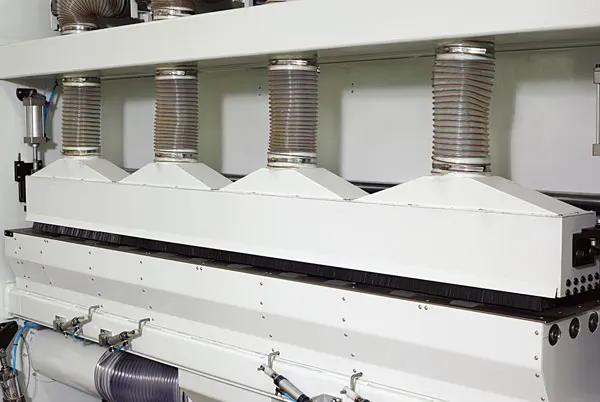

5. Efficient dust removal device, double-row brush and fan to remove paper dust on cardboard surface
6. Vacuum feeding, six rows of brushes, equipped with electrostatic device, better dust removal effect (optional)
2. Adopting the leading edge paper feed from the United States to increase the suction flow, the paper feed is more stable and accurate.
3. Variable frequency control of vacuum airflow and pressure to match cardboard size
4. Adjustable paper-feeding stroke to reduce the pressure of the paper-pulling rubber roller
5. Efficient dust removal device, double-row brush and fan to remove paper dust on cardboard surface
6. Vacuum feeding, six rows of brushes, equipped with electrostatic device, better dust removal effect (optional)

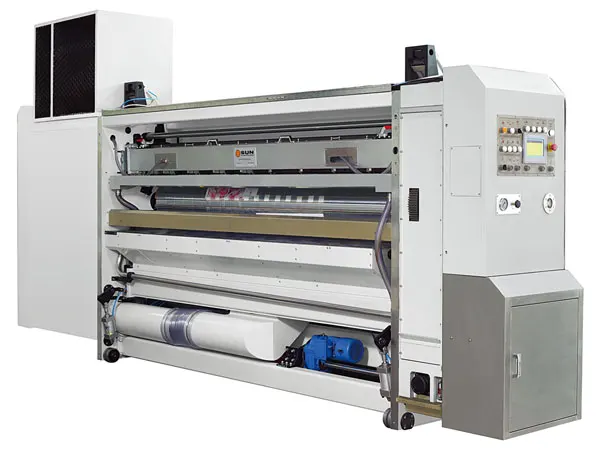

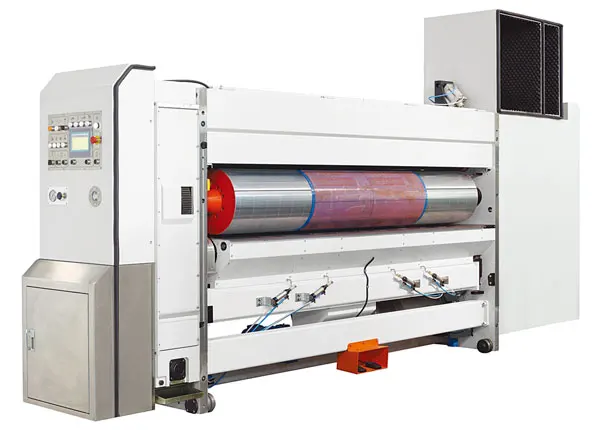

Printing Section
1. Full vacuum suction conveying, strong ability to adapt to warped cardboard, more accurate conveying, and improved color registration accuracy
2. Choice of doctor blade or roller-to-roll ink supply system
3. Automatic switching of cleaning devices, making ink recycling or cleaning easier and faster
4. Anti-leakage, ink rejection system device
5. Automatic reset system after printing plate cleaning
6. Ink-saving system, each unit can save 0.4-0.5 kg of ink when changing color or cleaning ink (for roller-suction diaphragm pump ink supply system)
7. Each group of printing units can be equipped with hot air device (optional)
2. Choice of doctor blade or roller-to-roll ink supply system
3. Automatic switching of cleaning devices, making ink recycling or cleaning easier and faster
4. Anti-leakage, ink rejection system device
5. Automatic reset system after printing plate cleaning
6. Ink-saving system, each unit can save 0.4-0.5 kg of ink when changing color or cleaning ink (for roller-suction diaphragm pump ink supply system)
7. Each group of printing units can be equipped with hot air device (optional)

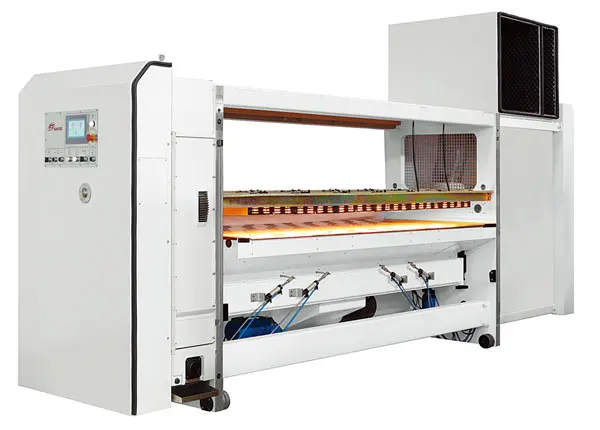

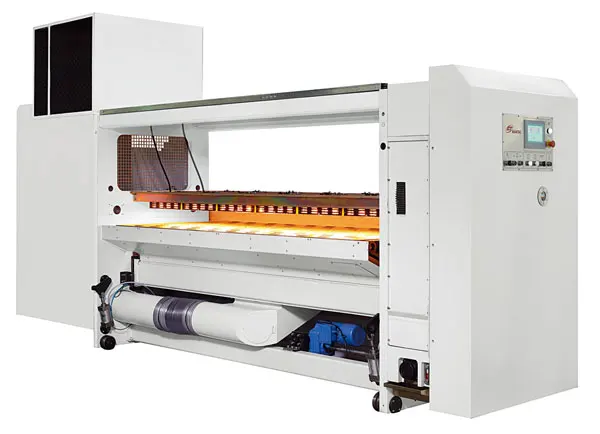

Drying Section
1. Water-based varnish uses infrared drying to avoid dragging during die cutting
2. Infrared or ultraviolet tube can be controlled in sections according to the width of the cardboard, saving energy and equipped with a fire prevention device
2. Infrared or ultraviolet tube can be controlled in sections according to the width of the cardboard, saving energy and equipped with a fire prevention device

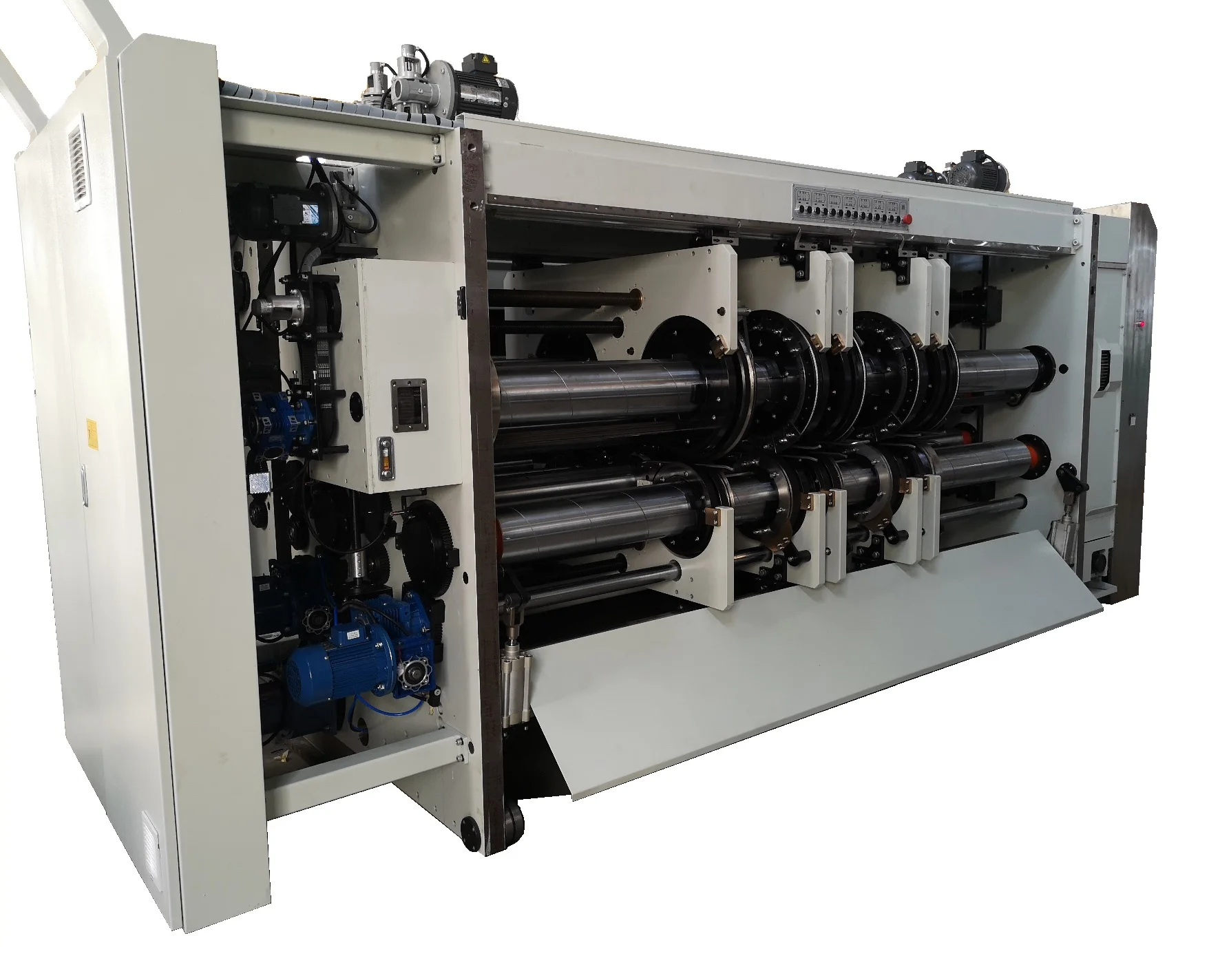

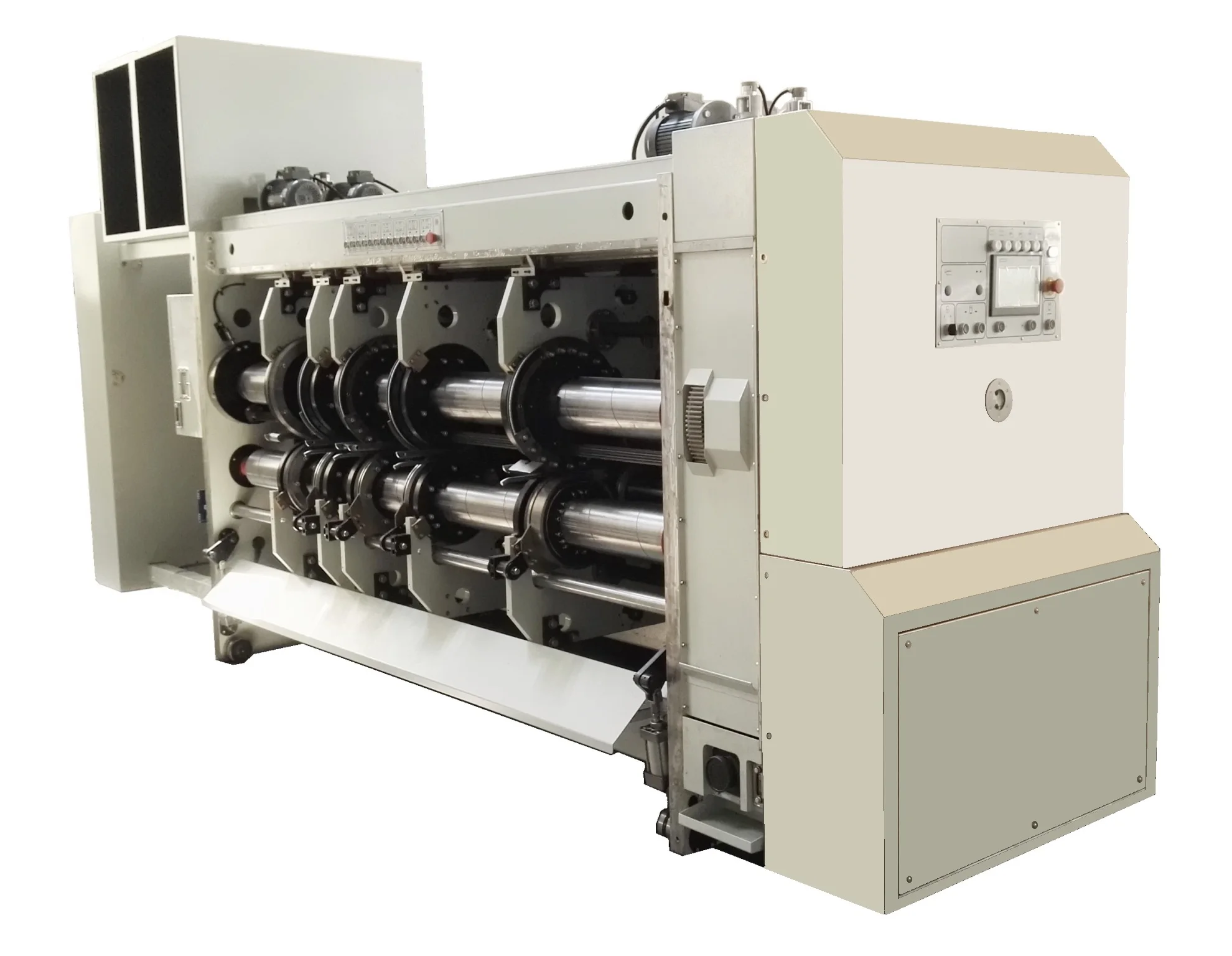

Slotting Section
1. Adjust the axial size of the pre-pressing wheel, crimping wheel, and slotted cutter head. The number is preset by the touch screen, which is fast and accurate
2. Using precise linear guide system, precise displacement, smooth slotting
3. Pre-pressing process structure, cardboard is not easy to break
4. The upper tool holder and the lower tool holder are linked by a transmission shaft, which keeps the upper and lower knives aligned when moving to extend the tool life.
5. Flexible corner cutter structure, can cut three or five layers of cardboard without adjustment, easy to operate
2. Using precise linear guide system, precise displacement, smooth slotting
3. Pre-pressing process structure, cardboard is not easy to break
4. The upper tool holder and the lower tool holder are linked by a transmission shaft, which keeps the upper and lower knives aligned when moving to extend the tool life.
5. Flexible corner cutter structure, can cut three or five layers of cardboard without adjustment, easy to operate
Die-cutting Section
1, 50mm swimming device for mechanical spiral reversal of rubber pad rollers
2, Adopt independent motor drive, rubber pad compensation range ± 3mm
3, Cutting and smoothing structure of rubber pad rollers to keep the surface of rubber pads flat
3, Cutting and smoothing structure of rubber pad rollers to keep the surface of rubber pads flat
FAQ
Q1. Are you manufacturer?
A: Yes. We are manufacturing factory.
Q2. Where is your factory located?
A:Our factory is located in Hegui Industrial Park, Lishui, Nanhai District, Foshan City, Guangdong Province, China.
Q3. What kinds of products do you supply?
A: We provide one-stop solutions for corrugator factories all over the world. All kinds of machine spare parts & consumables for corrugator factories.
Q4. How about your service?
A:.A promptly reply in 12 hours, also contact by email, wechat, whatsapp, etc.
Free usage training before shipping, and professional package to keep the machine fasten during shipment
Q5. Where were your products exported before?
A:Vietnam, Thailand, Myanmar, Philippine, Malaysia, Indonesia, India, Egypt, Emirate, Bahrain, Saudi Arabic, Israel, Russia,
Lithuania, Mexico, Brazil, Argentina, Venezuela, Honduras, Korea and etc
A: Yes. We are manufacturing factory.
Q2. Where is your factory located?
A:Our factory is located in Hegui Industrial Park, Lishui, Nanhai District, Foshan City, Guangdong Province, China.
Q3. What kinds of products do you supply?
A: We provide one-stop solutions for corrugator factories all over the world. All kinds of machine spare parts & consumables for corrugator factories.
Q4. How about your service?
A:.A promptly reply in 12 hours, also contact by email, wechat, whatsapp, etc.
Free usage training before shipping, and professional package to keep the machine fasten during shipment
Q5. Where were your products exported before?
A:Vietnam, Thailand, Myanmar, Philippine, Malaysia, Indonesia, India, Egypt, Emirate, Bahrain, Saudi Arabic, Israel, Russia,
Lithuania, Mexico, Brazil, Argentina, Venezuela, Honduras, Korea and etc
