Products Description
API standard F-800 drilling triplex Mud Pump
drilling triplex Mud Pump
F series mud pumps has the excellent operation performance with the firm and compact
structure and small volume.
F series mud pumps has the excellent operation performance with the firm and compact
structure and small volume.

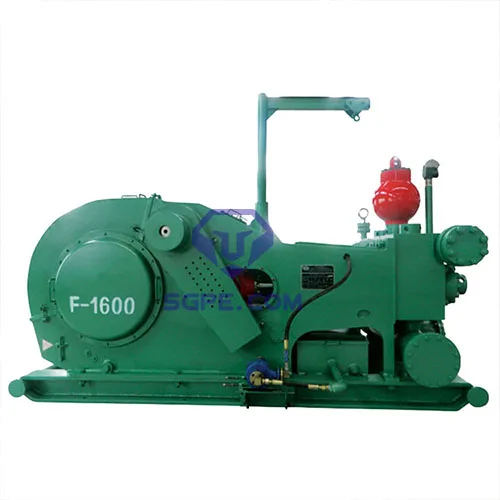

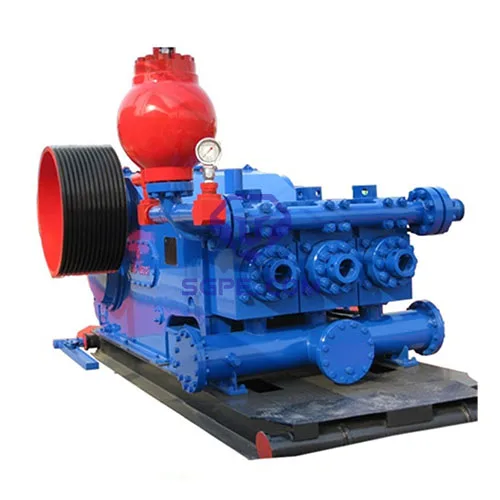

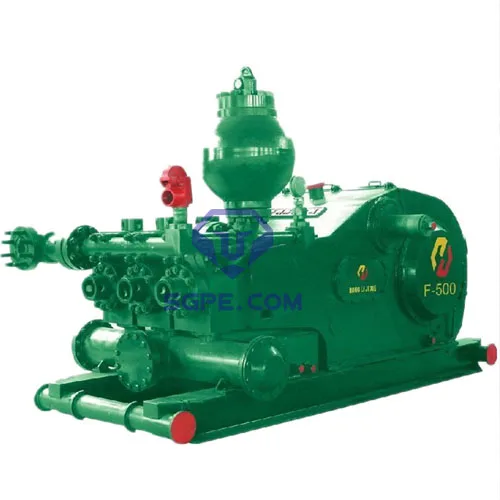

Product display
Product Paramenters
Model | F-500 | F-800 | F-1000 | F-1300 | F-1600 |
Type | Triplex single acting piston | Triplex single acting piston | Triplex single acting piston | Triplex single acting piston | Triplex single acting piston |
Max. Liner size x stroke | 170 x 191mm (6-3/4" x 7-1/2") | 170 x 229mm (6-3/4" x 9") | 170 x 254mm (6-3/4" x 10") | 180 x 305mm (7" x 12") | 180 x 305mm(7" x 12") |
Strokes Rating | 165r/min | 150r/min | 140r/min | 120r/min | 120r/min |
Power Rating | 373kW(500HP) | 596kW(800HP) | 746kW(1000HP) | 969kW(1300HP) | 1193kW(1600HP) |
Gear Type | Herringbone | Herringbone | Herringbone | Herringbone | Herringbone |
Gear Ratio | 4.286:1 | 4.185:1 | 4.207:1 | 4.206:1 | 4.206:1 |
Lubrication | Pressure & Splash | Pressure & Splash | Pressure & Splash | Pressure & Splash | Pressure & Splash |
Suction Inlet | 8" Flange (203mm Approx) | 10" Flange (254mm Approx) | 12" Flange (305mm Approx) | 12" Flange (305mm Approx) | 12"Flange (305mm Approx) |
Discharge Outlet | 4" Flange, 5000Psi139.7mm(5-1/2") | 5" Flange, 5000Psi | 5" Flange, 5000Psi | 5" Flange, 5000Psi | 5" Flange, 5000Psi |
Pinion Shaft Dia. | 139.7mm(5-1/2") | 177.8mm(7") | 196.9mm(7-3/4") | 215.9mm(8 1/2") | 215.9mm(8 1/2") |
Key | 31.75 x 31.75mm (1-1/4" x 1-1/4") | 44.45 x 44.45mm (1-3/4" x 1-3/4") | 50.8 x 50.8mm (2" x 2") | 50.8 x 50.8mm (2" x 2") | 50.8 x 50.8mm(2" x 2") |
Valve Pots | Valve-Over-Valve, AP1#5 | Valve-Over-Valve, AP1#6 | Valve-Over-Valve, AP1#6 | Valve-Over-Valve, AP1#7 | Valve-Over-Valve, AP1#7 |
Approx. Weight | 9770kg(21540lb) | 14500kg(31970lb) | 1879kg(41420lb) | 24572kg(54170lb) | 24791kg(54660lb) |
