Полностью автоматическая упаковочная машина для печенья производства сэндвичей приготовления

Описание и отзывы

Характеристики

Full Automatic Biscuit Packaging Machine Biscuit Sandwich Machine Cream Sandwich Biscuit Machine

Skywin provide different kinds of  biscuit sandwich machines.

The biscuit sandwich machine can be filling with chocolate, cream, jam or cheese.

It's used for sandwiching for different flavour then transfer to the packing machine automatically.

Energy saving and labor saving

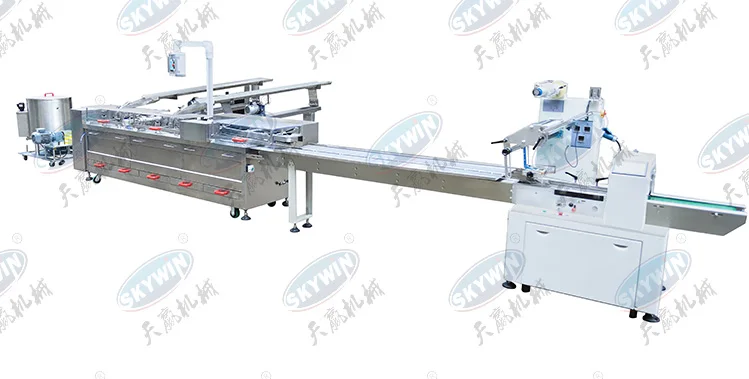

Two Lanes Sandwiching connected Flow Packing Machine



Funtion	Single Flavor Cream/Jam Sandwiching Machine
	Round		Square
Biscuit size	30-70mm H3-8mm		L35-70mm W30-60mm H3-8mm
Capacity	Two Lane 1200 PCS Sandwiches/min
	single-phase AC 220V 50Hz
Operating voltage
Machine size	4500*1900*1470mm
Total power	4Kw
Weight	850kgs
Special specification is acceptable



Details :

1. Independent frequency inverter control and adjust

2. 2.65m length Conveyor belt feeding the biscuit

3. Siemens inverter and PLC touch screen and Schneider electric

4. Delta/Siemens servo motor and gearbox

5. All pushers on creaming machine made by stainless steel

6. Double jacket water heating on cream tank



Sandwich Bicsit Sample :

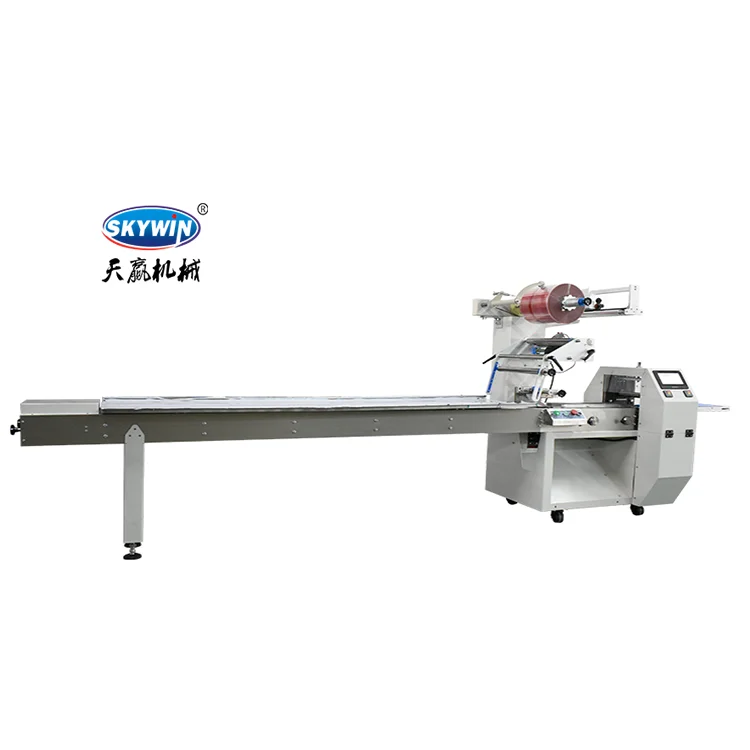

SK-380S Folw Packing machine







1. The machine has included: Date printer

2. This type packaging machine is Three servo PLC touch screen control.

3. Suitable for packing several pieces of biscuits into one package ,

4. Applicable for biscuits of square, round, oval and other shapes

5. Capacity: 50 to 350 packs/minute







Packing Sample :
