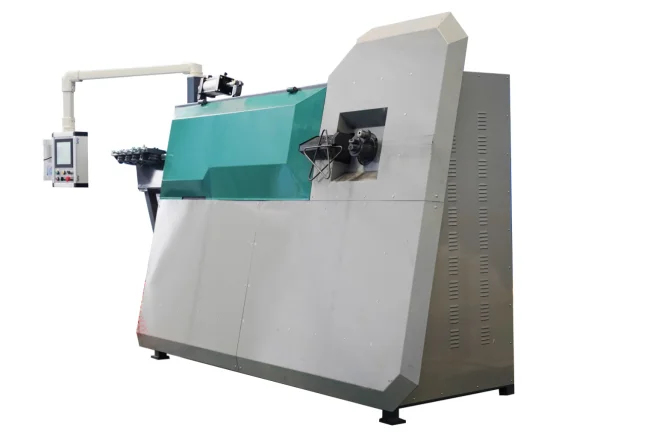

Cnc автоматическая гибочная машина для стального стержня гибочный станок
- Категории: Metal Cutting Machinery >>>
- Поставщик: Shandong,Feihong,Engineering,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Introduction & Advantage:
CNC stirrup bender can automatically complete the straightening, lengthening, bending and cutting of steel wire, so that it can save time, labor and materials. With high processing precision and efficiency, it can realize fully automated, uninterrupted assembly line for steel wire processing. The machine is widely used in railways, highways, bridges, real estate, large-scale wire processing plants and other fields.
Technical Parameters
Model | FHG-12 | FHG-14 | FHG-16 |
Diameters with single strand | φ6-12mm | φ6-14mm | φ8-16 |
Diameters with double strands | φ6-10mm | φ6-10mm | φ8-10 |
Max bending angle | 0-180° | 0-180° | 0-180° |
Traction motor power | synchronous servo motor 13kw | synchronous servo motor 15.5kw | synchronous servo motor18.5kw |
Bending motor power | synchronous servo motor 5.5kw | synchronous servo motor 7.5kw | synchronous servo motor9kw |
Cutting motor power | Mechanical cut,3kw brake motor | Mechanical cut,4kw brake motor | Mechanical cut,9kw brake motor |
Rated total power | 25.5kw | 30kw | 36kw |
Overall dimension | 3500mm*960mm*2000mm | 2600mm*960mm*2000 | 2600mm*960mm*2000 |
Overall machine weight | 2000kg | 2500kg | 2800kg |
Traction steel speed | 110m/min | 110m/min | 110m/min |

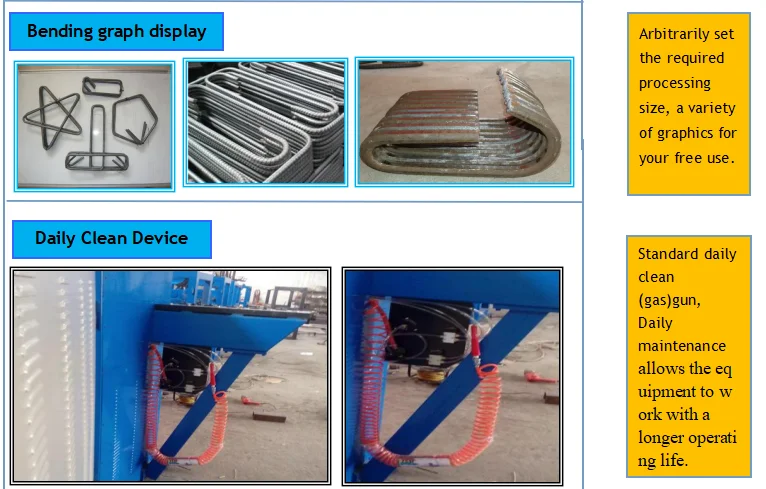

Details Images

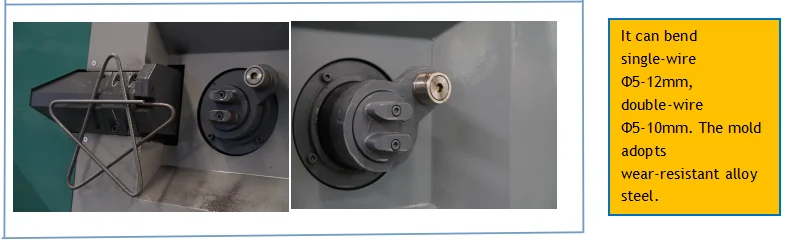

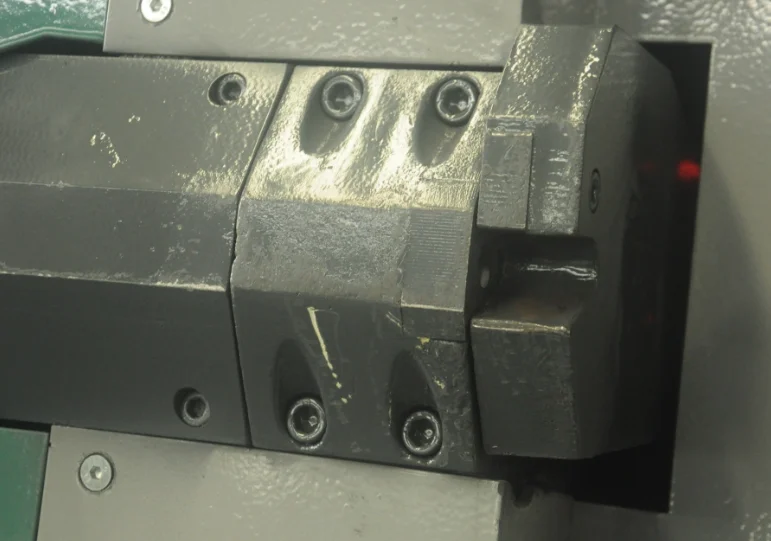

High qulity mold steel cutter

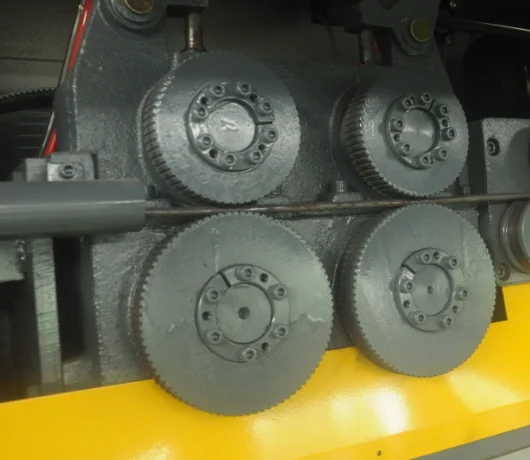

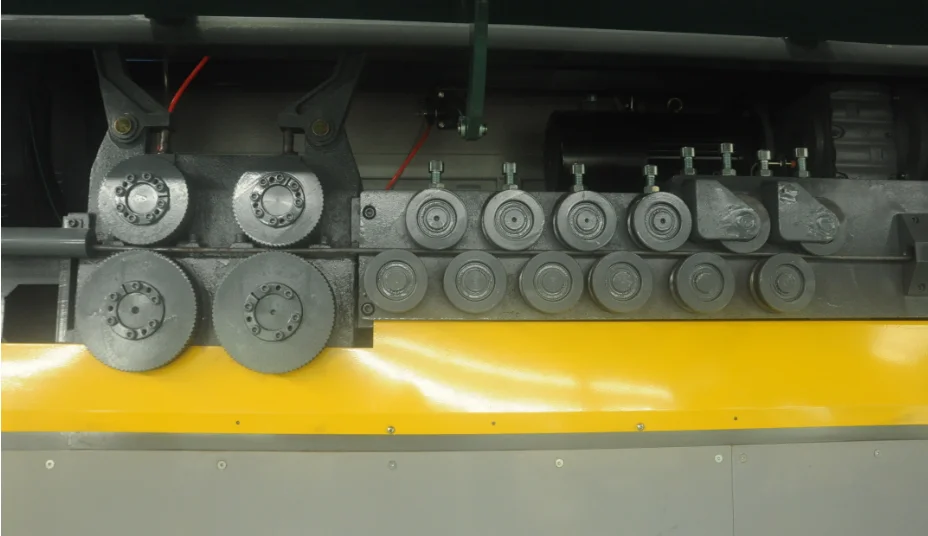

Straightening wheels, traction wheels, counting wheels, etc. are made of special wear-resistant alloy steel.

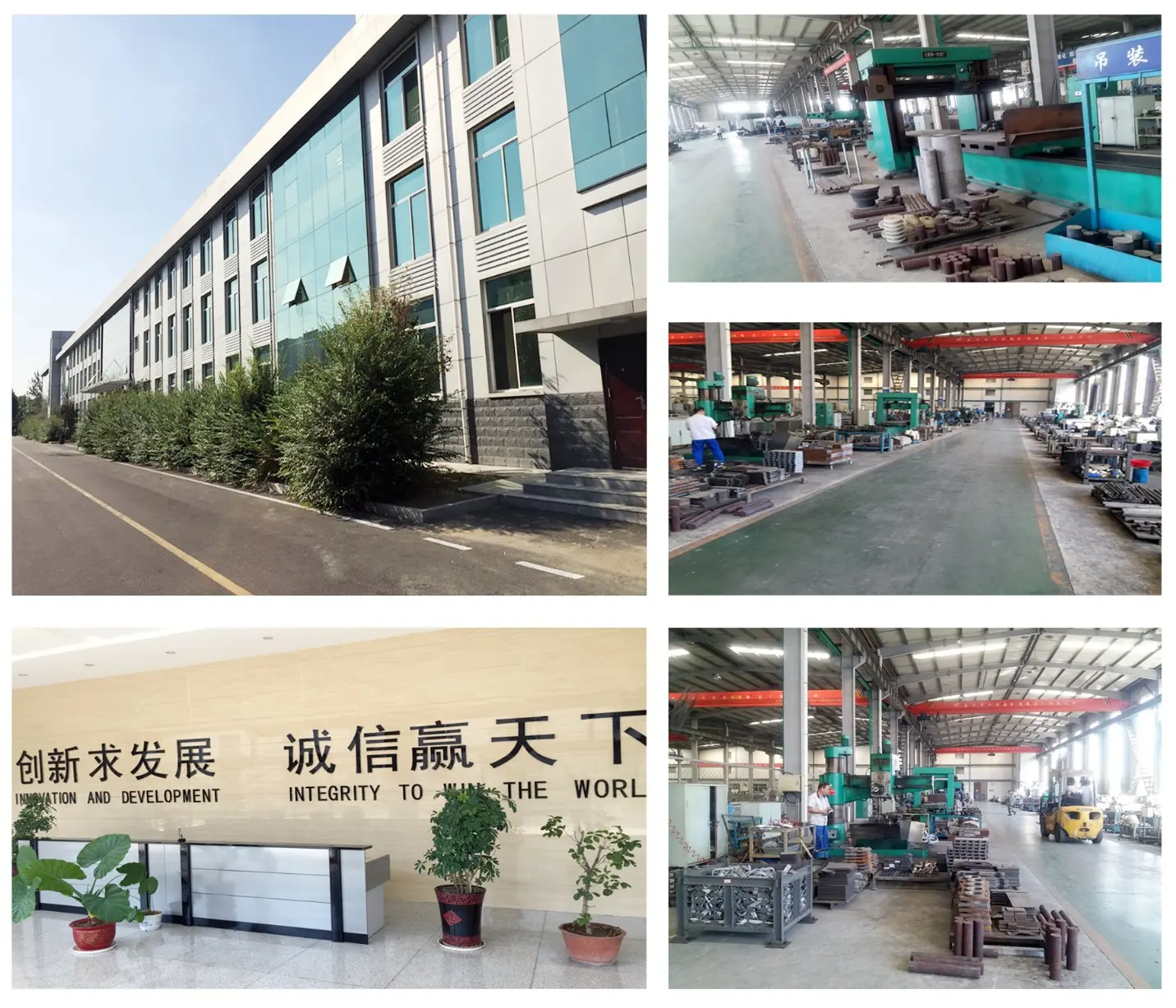

Company Profile
