Full automatic capper capping machine with good
- Категории: Capping Machines >>>
- Поставщик: Liaoning,SINOPES,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
1. automatic spindle screw capping machine
The fully automatic capping machine applies caps to a container by stripping them out of a chute in the path of the moving container and placing them over the mouth of the container. The container is gripped by two belts moving at the same speed of the conveyor in order to stabilize the container. Two opposing and pulsating cap tightening belts then torque the threaded caps onto the containers as they pass through on the moving conveyor. Capping speeds of nominally 200 containers per minute are attainable on this machine depending on cap size and container configuration. The capper will handle a range of cap sizes up to 120mm diameter and container size range of (height) 1-1/2″ to 15″ and (width) 1/2″ to 7″ in plastic, metal, or glass.

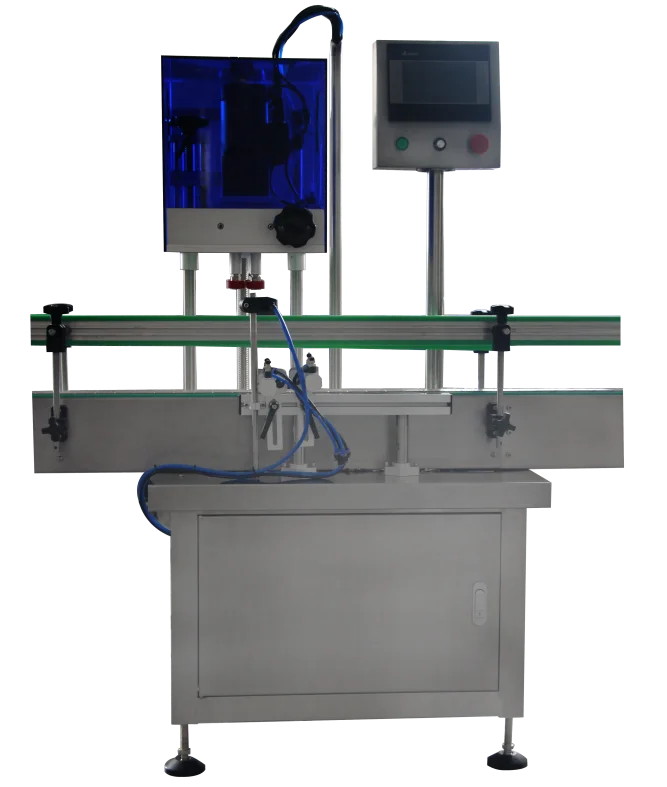

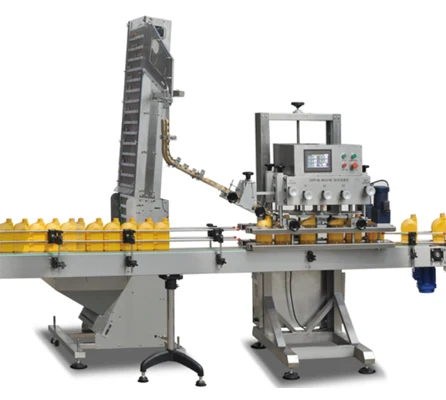

2.Automatic 4 wheels capping machine
The main structure is made of durable 304 stainless steel. The machine is control by touch screen; parameter can be set on touch screen very easily. It is very flexible for different sizes of round bottles, square bottles and flat bottles by adjustment. Capping time can be set to fit different caps and different levels of tightness. It is very easy for exist line upgrade
MAIN FEATURE
1.Controlled by touch screen.
2.Adjustable for different sizes and shapes of caps and bottles
3.Bottle Clamp belt bottle in system is optional for upgrade capping speed, up to 40BPM
4.Integrated digital control with Schneider PLC and high tech touch screen controls for easy operation.
5.GMP standard stainless steel.

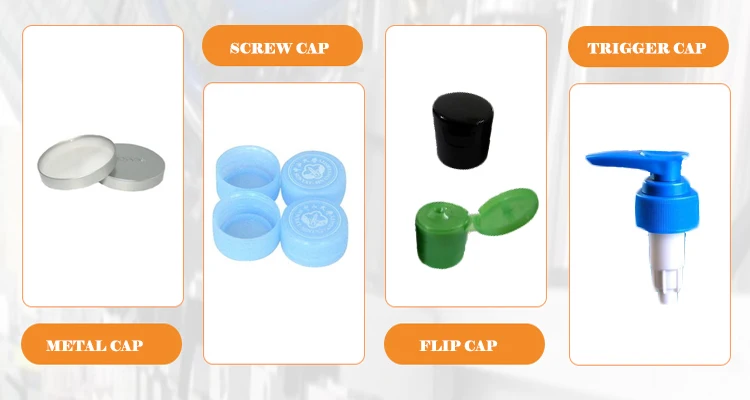

Application
Technical parameters
1 | Capacity | 40-150 bottle/minute (actual capacity depends on bottle and caps | ||
2 | Cap diameter | 20-120mm | ||
3 | Bottle Height | 40-460mm | ||
4 | Dimension | 1060*896*1620mm | ||
5 | Voltage | AC 220V 50/60HZ | ||
6 | Power | 1600W | ||
7 | Weight | 500KG | ||
8 | Cap feeding system | Elevator Feeder | Vibration cap sorter | |
1 | Name/Model | Automatic 4 wheels capping machine |
2 | Production Capacity | 12-30BPM depending on bottle sizes and shapes |
3 | Bottle Height | Up to 460MM |
4 | Cap Diameter | Up to 70MM |
5 | Voltage/Power | 220VAC 50/60Hz 450W |
6 | Driven way | Motor with 4 wheels |
7 | Interface | DALTA Touch Screen |
8 | Spare Parts | Capping Wheels |
product detail

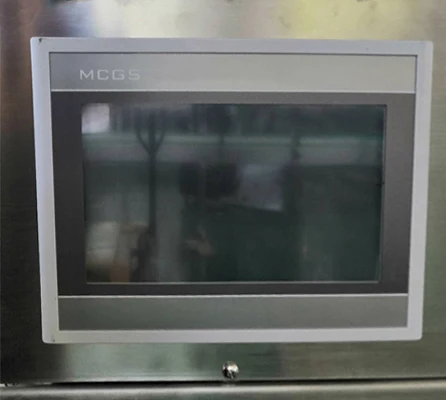

MCGS Touch Screen
Easy operation & adjustable on touch screen

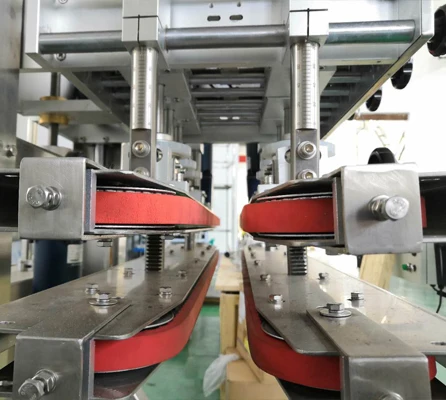

Two-layer Bottle Clamp Belt
The double belts height is adjustable to fit differnet sizes bottles.and the angle is adjustable according to the bottle shape, more stable. Speed is frenquecy contolled to match the conveyor and capping speed

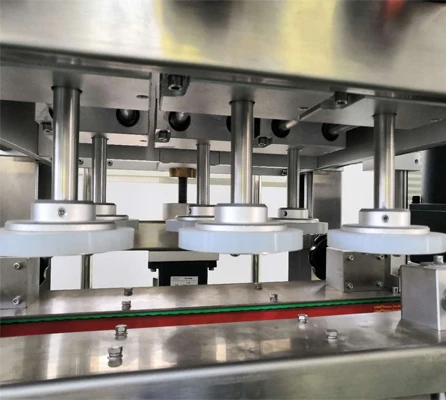

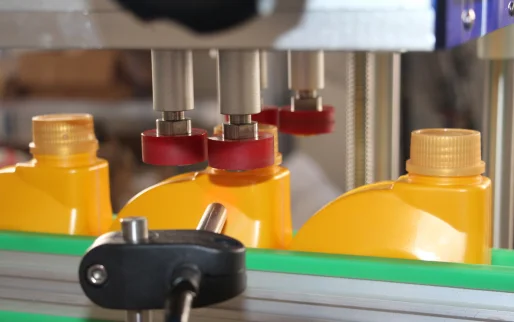

6 Wheels
1.Each wheels speed is indivadually adjustable, requency controlling
2.The wheels can run in opposite direction to make cap fitting the bottles well if necessary
3.Wheels are made of soft material to prevent caps from damage
4.Wheels are horizontally adjustable for different sizes of caps
5.Wheels are vertically adjustable for bottles of different height
6.Each wheels driven by one motor

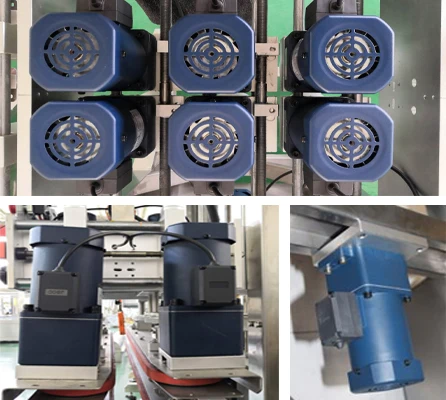

9 Motors
1.6 motors for 6 capping wheels, and the motors can change to servo motor for torgue adjustable if customer need
2.2 motors for botle clamping belt
3.1 motor for machine height adjutment up and down
4.Capping torgue is adjustable for option

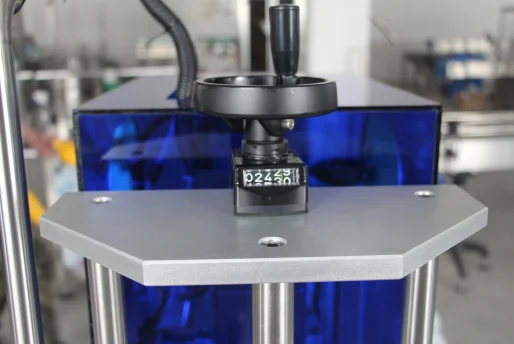

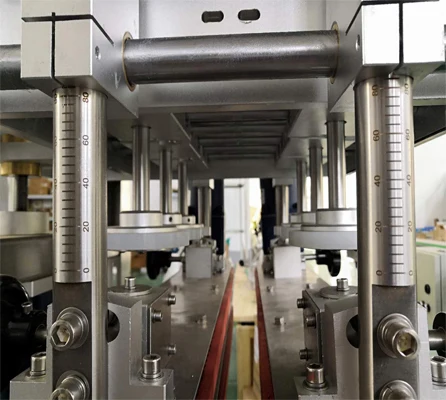

Meter Index
All the adjustment with meters for recording, it is more easy for repalcement different size of caps and bottles

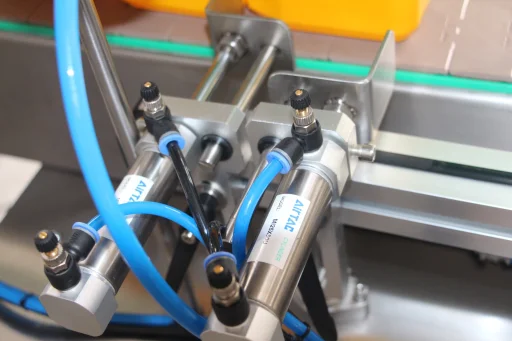

Bottle Location
Capping Wheels

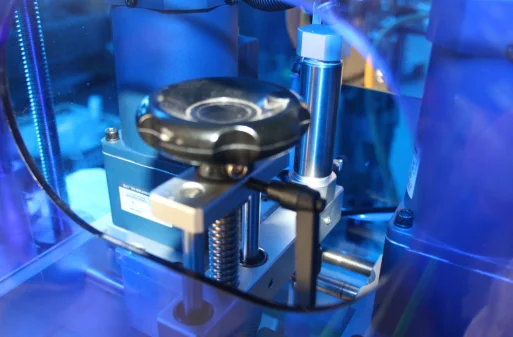

Height Adjustment
Press Adjustment
