Высококачественный коррозионно-стойкий химический циркулирующий магнитный насос CQB F антикислотный и щелочной Магнитный
- Категории: >>>
- Поставщик: Hebei,Beigong,Pump,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Categories
Product parameter table
Model | Import (mm) | Export (mm) | Flow | Lift | Power | speed (r/min) | efficient | Voltage | NPSH (m) |
(m3/h) | (m) | (kw) | (%) | (v) | |||||
CQB-15-10-85F | 15 | 10 | 1.8 | 8 | 0.12 | 2900 | 33 | 220/380 | 6 |
CQB-20-15-105F | 20 | 15 | 3 | 12 | 0.37 | 2900 | 33 | 220/380 | 6 |
CQB-32-25-125F | 32 | 25 | 3.2 | 20 | 0.75 | 2900 | 35 | 380 | 5 |
CQB-40-32-115F | 40 | 32 | 6.3 | 15 | 0.75 | 2900 | 45 | 380 | 6 |
CQB-40-32-145F | 40 | 32 | 6.3 | 25 | 1.5 | 2900 | 42 | 380 | 5 |
CQB-50-40-125F | 50 | 40 | 12.5 | 20 | 2.2 | 2900 | 47 | 380 | 3.5 |
CQB-50-40-160F | 50 | 40 | 12.5 | 32 | 3 | 2900 | 46 | 380 | 3.5 |
CQB-65-50-125F | 65 | 50 | 25 | 20 | 3 | 2900 | 58 | 380 | 4 |
CQB-65-50-160F | 65 | 50 | 25 | 32 | 4 | 2900 | 56 | 380 | 4 |
CQB-80-65-125F | 80 | 65 | 50 | 20 | 7.5 | 2900 | 66 | 380 | 4 |
CQB-80-65-160F | 80 | 65 | 50 | 32 | 11 | 2900 | 64 | 380 | 4 |
CQB-100-80-125F | 100 | 80 | 100 | 20 | 15 | 2900 | 72 | 380 | 4 |
CQB-100-80-160F | 100 | 80 | 100 | 32 | 18.5 | 2900 | 70 | 380 | 4 |
The performance parameter table only shows part of the products. For details, please consult our company’s account manager, so that you can choose products for you more professionally.

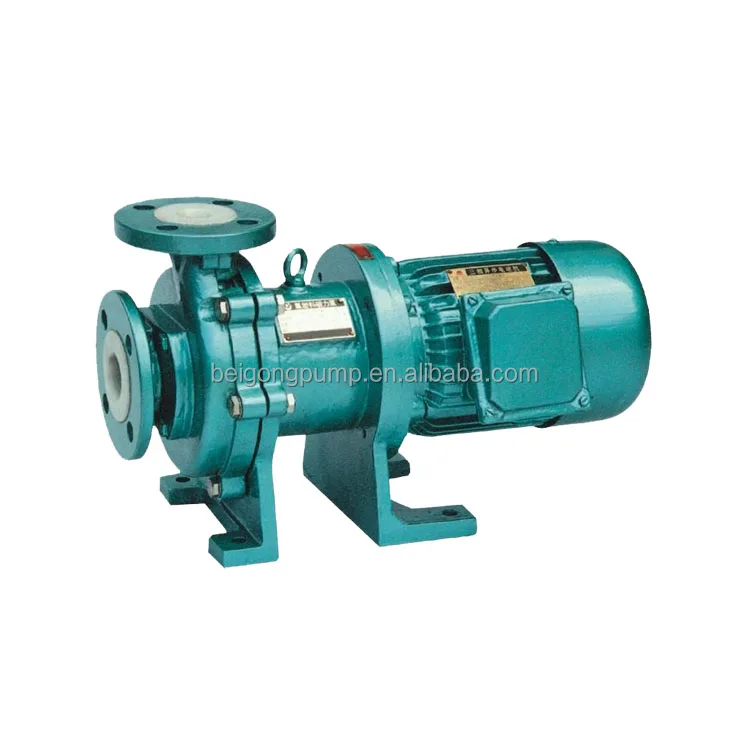

Product Introduction
Type: CQB-F
Warranty period: 2 yearsMaximum power: 18.5 kw (25 hp)
Maximum flow: 100 m³/h
Overcurrent parts:Fluoroplastic
This series of magnetic pumps are direct-coupled motors, supported by intermediate brackets, easy to install and disassemble, compact in structure, safe and energy-saving.

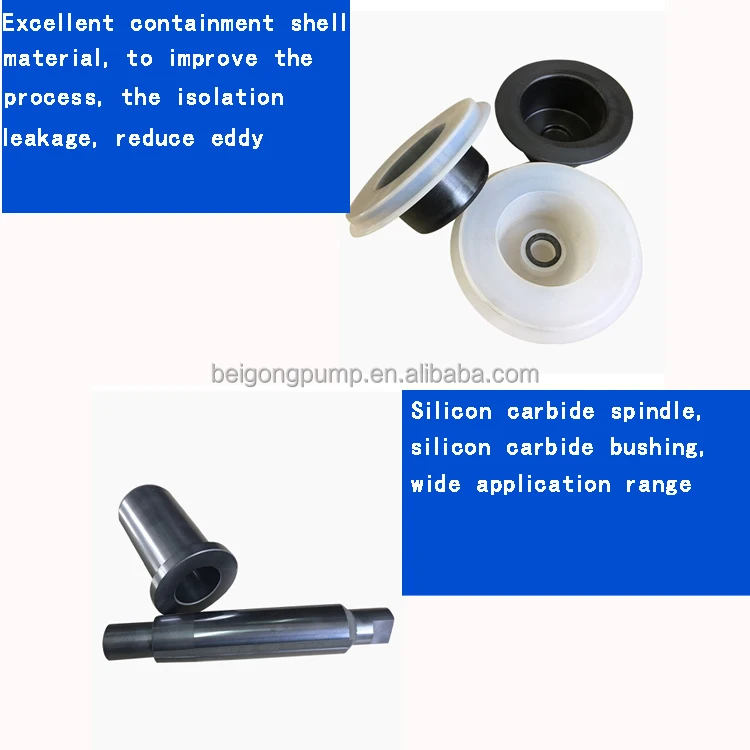

High-quality silicon carbide spindle,
High quality silicon carbide bushing,
It has the characteristics of high hardness, high wear resistance, high corrosion resistance, etc.

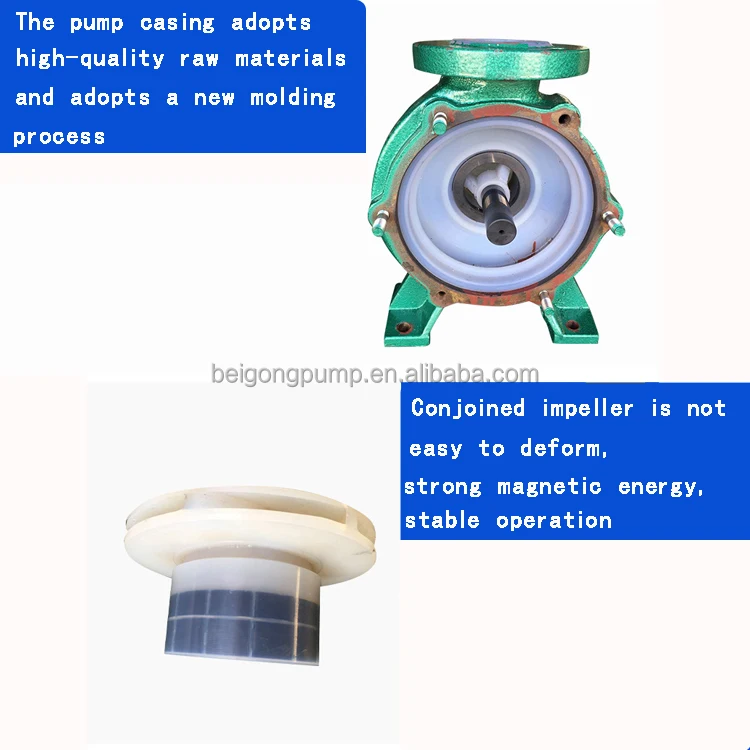

Pump housing:
The inner lining of the pump casing is made of fluoroplastics,
Made by one-time molding,
No impurities precipitated,
Very suitable for transporting high-purity, highly corrosive chemical liquids
All copper movement
Quiet experience, 100% copper core wire
Motor protection class: IP68
The copper core motor is equipped with an overload protection device, and an explosion-proof motor can be selected under special working conditions

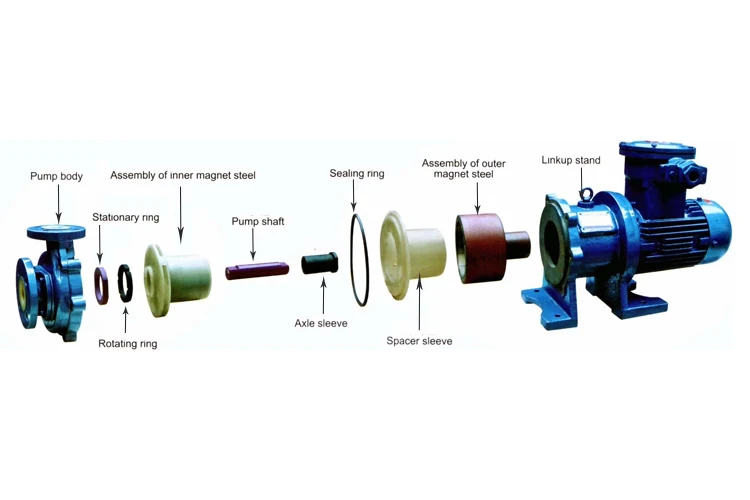

Product structure display
Overview:
CQB-F type magnetic pump is widely used in chemical, pharmaceutical, aluminum foil, acid making, coating, non-ferrous metal industries and the transportation of flammable, explosive, volatile, toxic, organic solvents and precious liquids.
Warm reminder: The price of the product is mainly in kind! For details, consult our customer manager

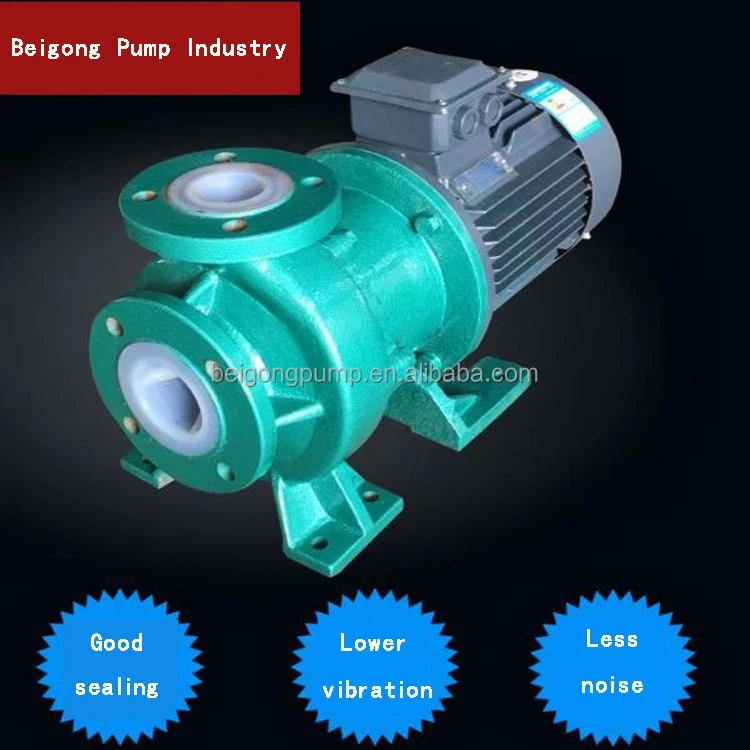

Product Actual Picture
You May Like
Our Company
Company office area
Integrated CNC machine tool
Heavy processing machine tools
CNC Castings
Product assembly
Quality inspection station
Transportation and service
Support freight, air, sea, express and other transportation methods to provide you with better service, which is the purpose of our company!
Hebei Beigong Pump Industry Co., Ltd. wins the trust of customers with quality. All products are strictly inspected before leaving the factory to ensure product quality. During the warranty period, if the product fails to work normally due to poor manufacturing, the company will replace and repair the product and parts for the user free of charge. Beigong Pump Industry has a complete after-sales service system to ensure that customers have no worries about using any product.
Hebei Beigong Pump Industry Co., Ltd. wins the trust of customers with quality. All products are strictly inspected before leaving the factory to ensure product quality. During the warranty period, if the product fails to work normally due to poor manufacturing, the company will replace and repair the product and parts for the user free of charge. Beigong Pump Industry has a complete after-sales service system to ensure that customers have no worries about using any product.
FAQ
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance.
Q: Which shipping terms are available?
A: By sea, air, Express
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What guarantee do you have?
A: The product warranty period is 2 years, except for wearing parts (if the product fails to work normally due to poor manufacturing, the company will replace and repair products and parts for users free of charge. Product damage caused by human causes is not covered by the warranty).
Q: Can I purchase parts separately?
A: Yes, all pump spare parts can be purchased separately.
A: The product warranty period is 2 years, except for wearing parts (if the product fails to work normally due to poor manufacturing, the company will replace and repair products and parts for users free of charge. Product damage caused by human causes is not covered by the warranty).
Q: Can I purchase parts separately?
A: Yes, all pump spare parts can be purchased separately.
