Новый дизайн MH Тип однобалочный козловой
- Категории: Gantry Cranes >>>
- Поставщик: Henan,Lantu,Mechanical,and,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

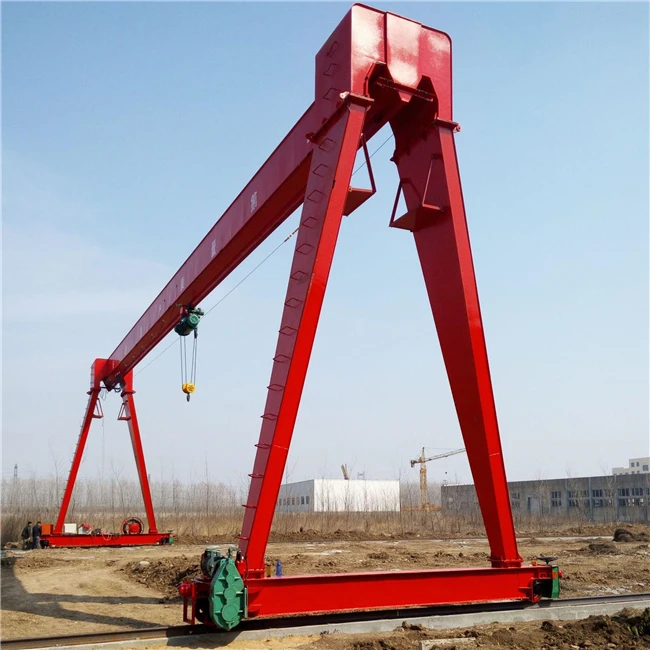

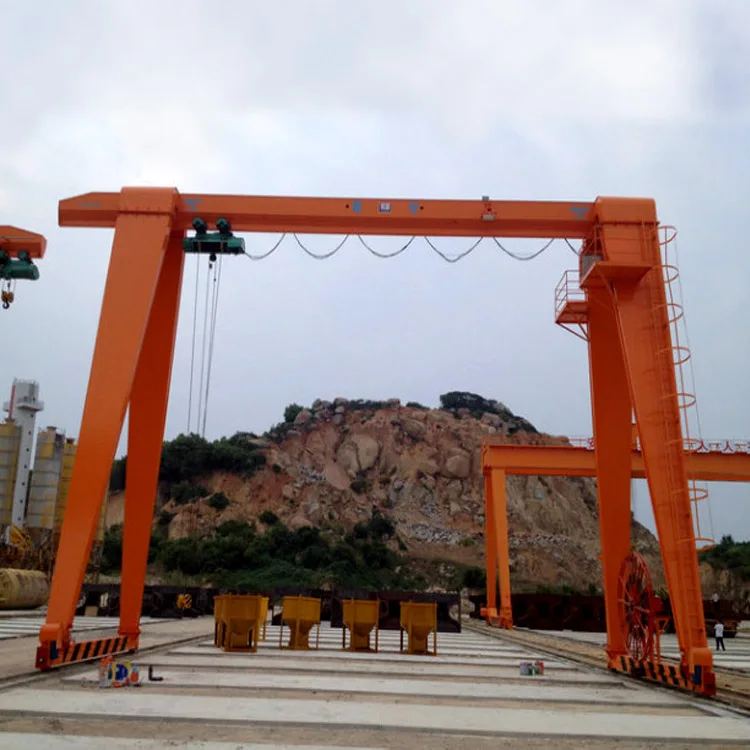

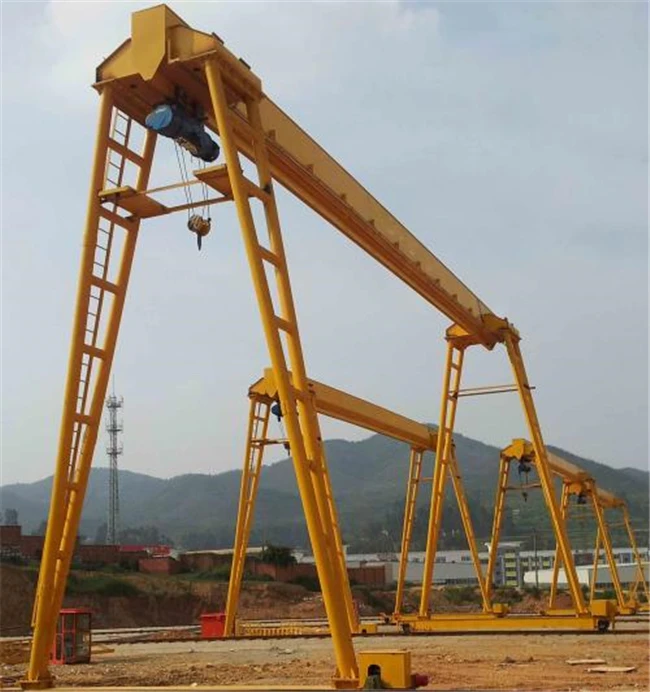

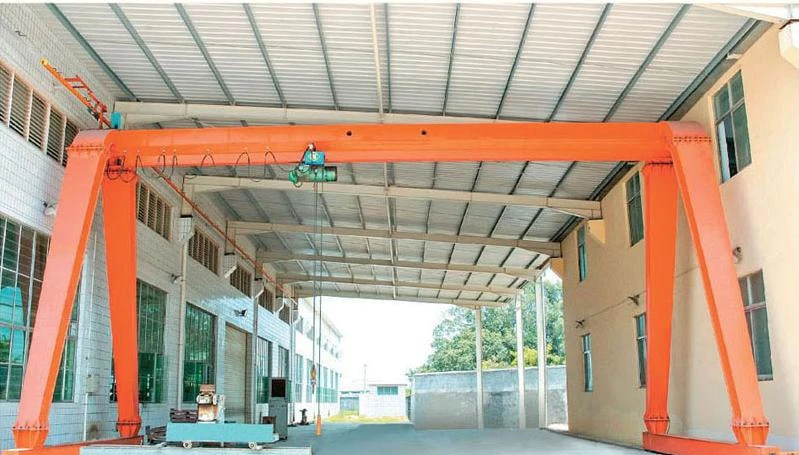

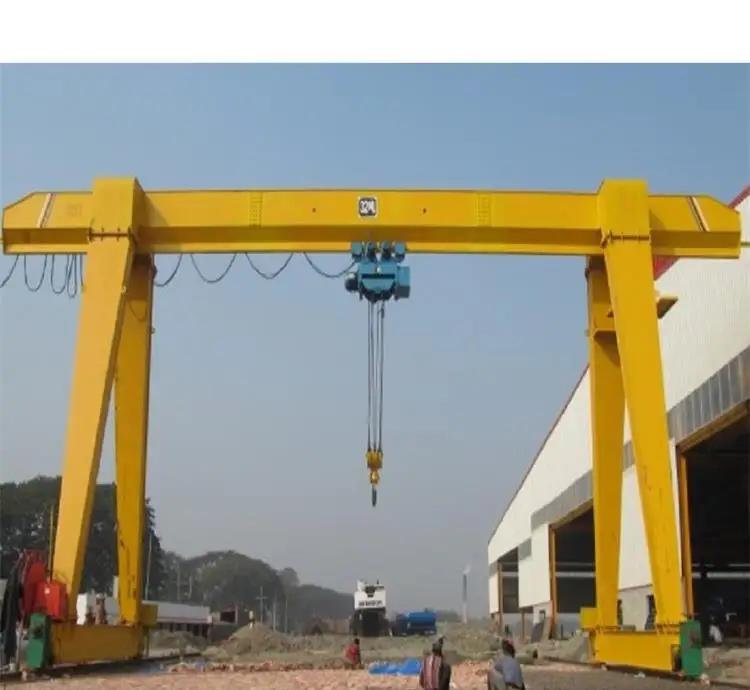

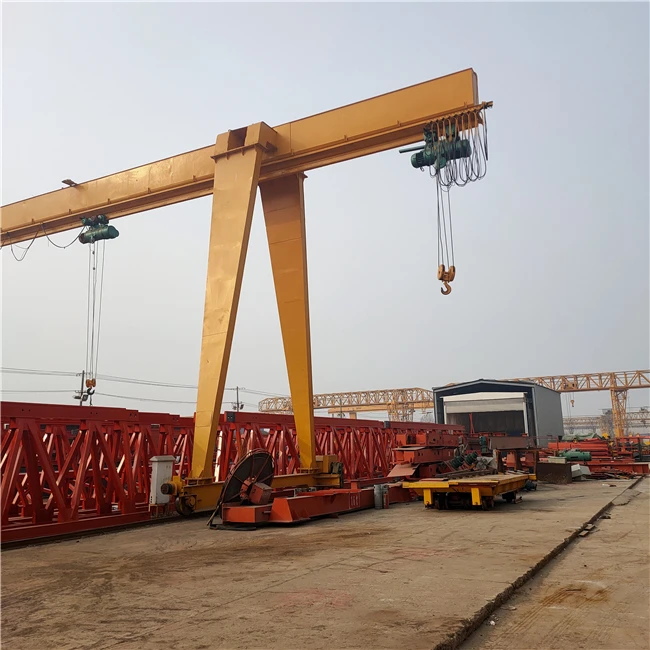

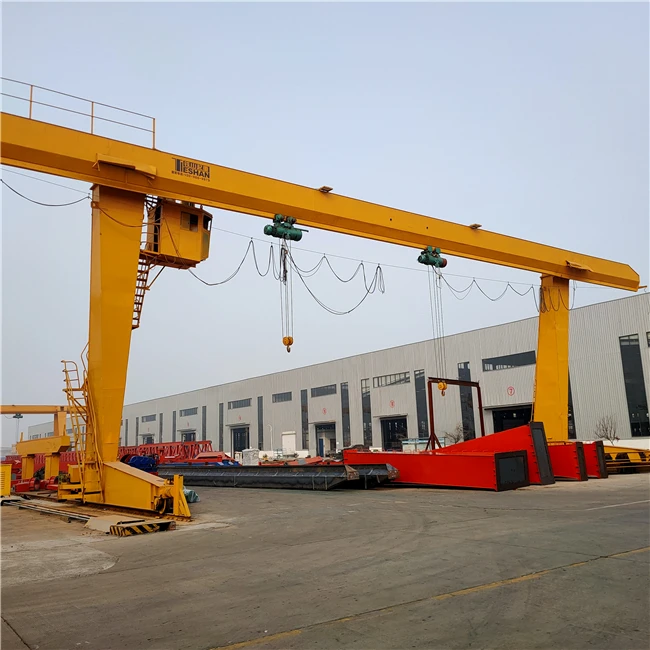

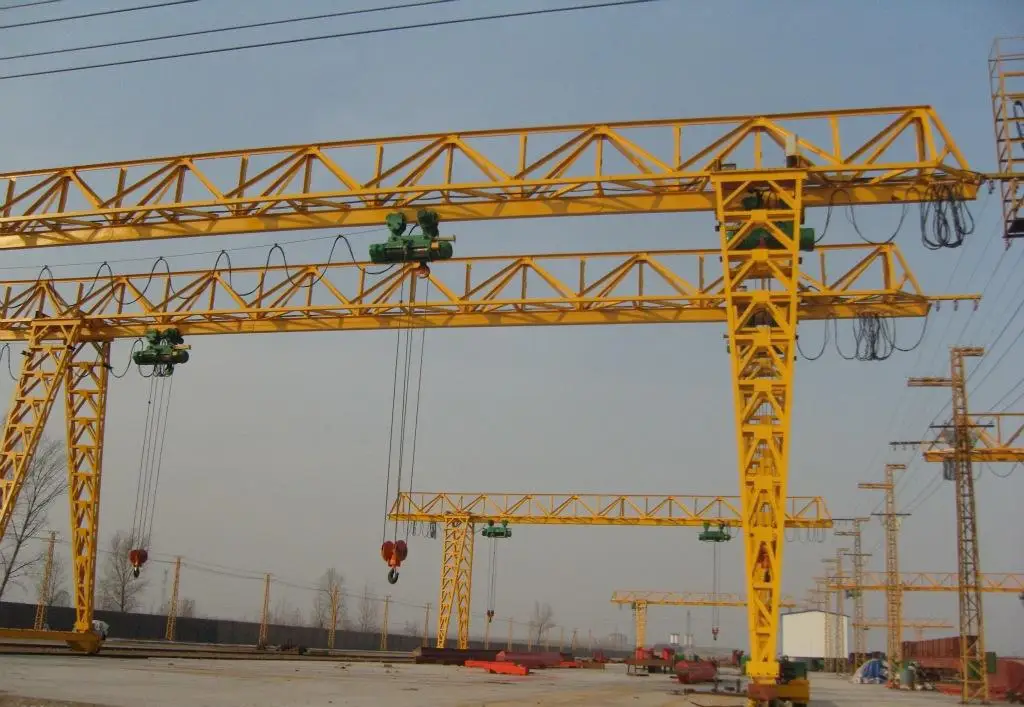

MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and non cantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs which is very convenient and high efficiency.

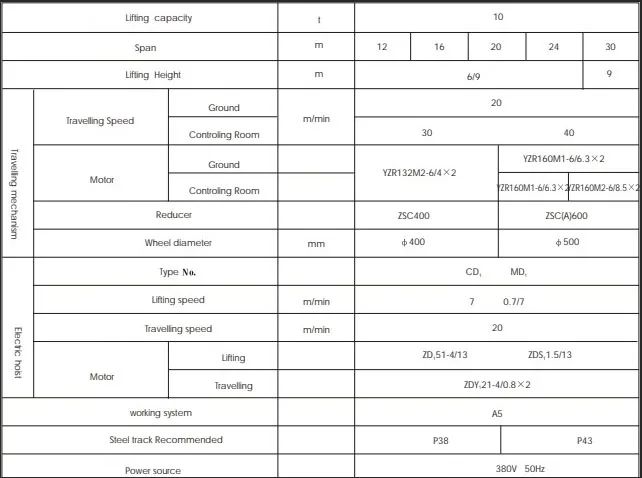

Tonnage (t) | 1t to 20t |
Span (m) | 7.5-31.5/customization |
Running speed of cart (m/min) | 20、30 |
Trolley running speed (m/min) | 20、30 |
Motor power (KW) | 0.8*2、1.5*2、2.2*2 |
Electric hoist type | MD1type 、 CD1type |
Lifting speed (m/min) | MD(8/0.8 、7/0.7、3.5/0.35)CD（8、7、3.5） |
Lifting height (m) | 6m-30m，customization |
Working level | A3-A5 |
power supply | 380V 50HZ/customization |
Wheel diameter (mm) | Φ270、Φ400 |
colour | optional |
Manipulation method | Remote control, driver's cab, handle |

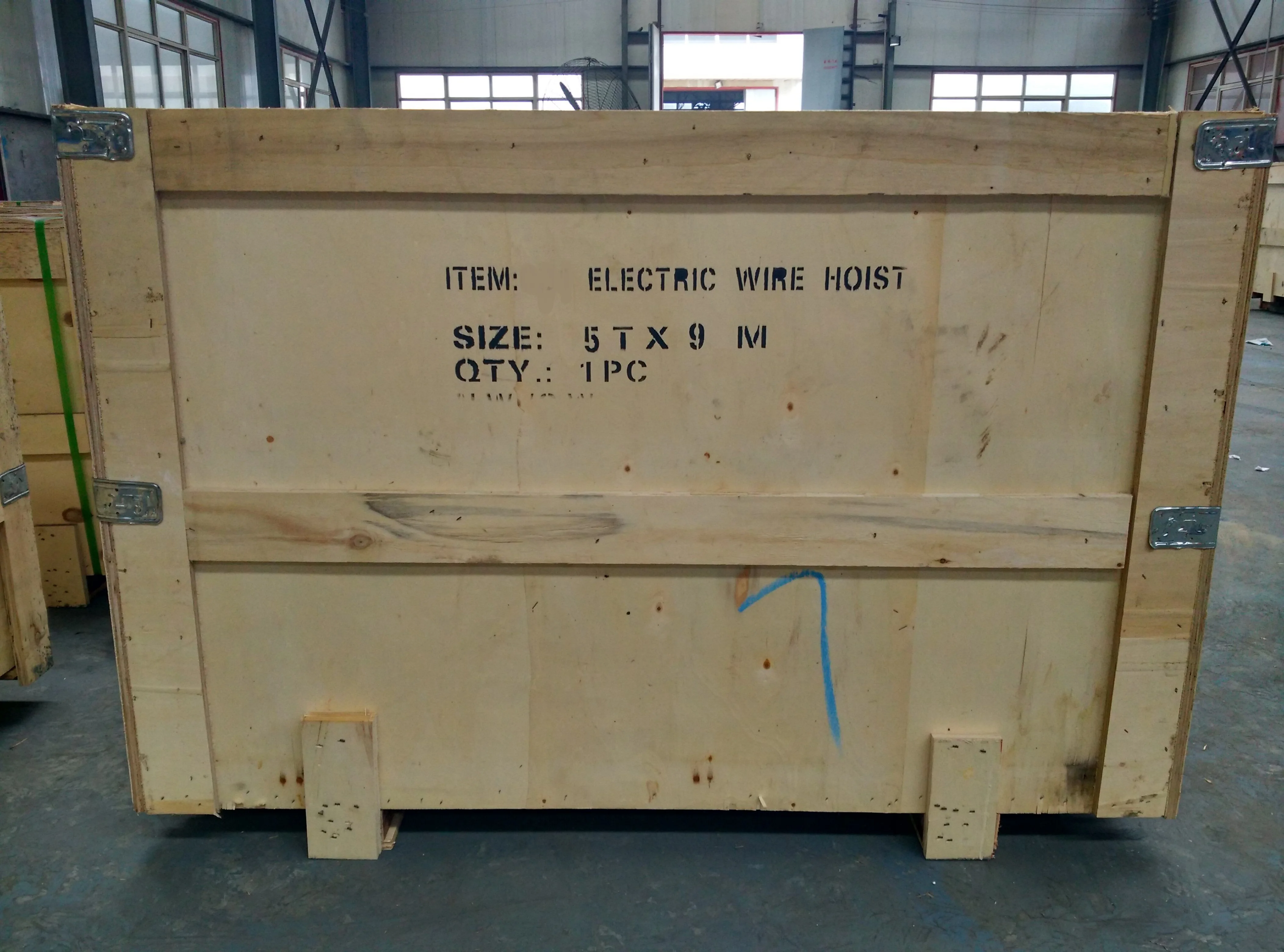

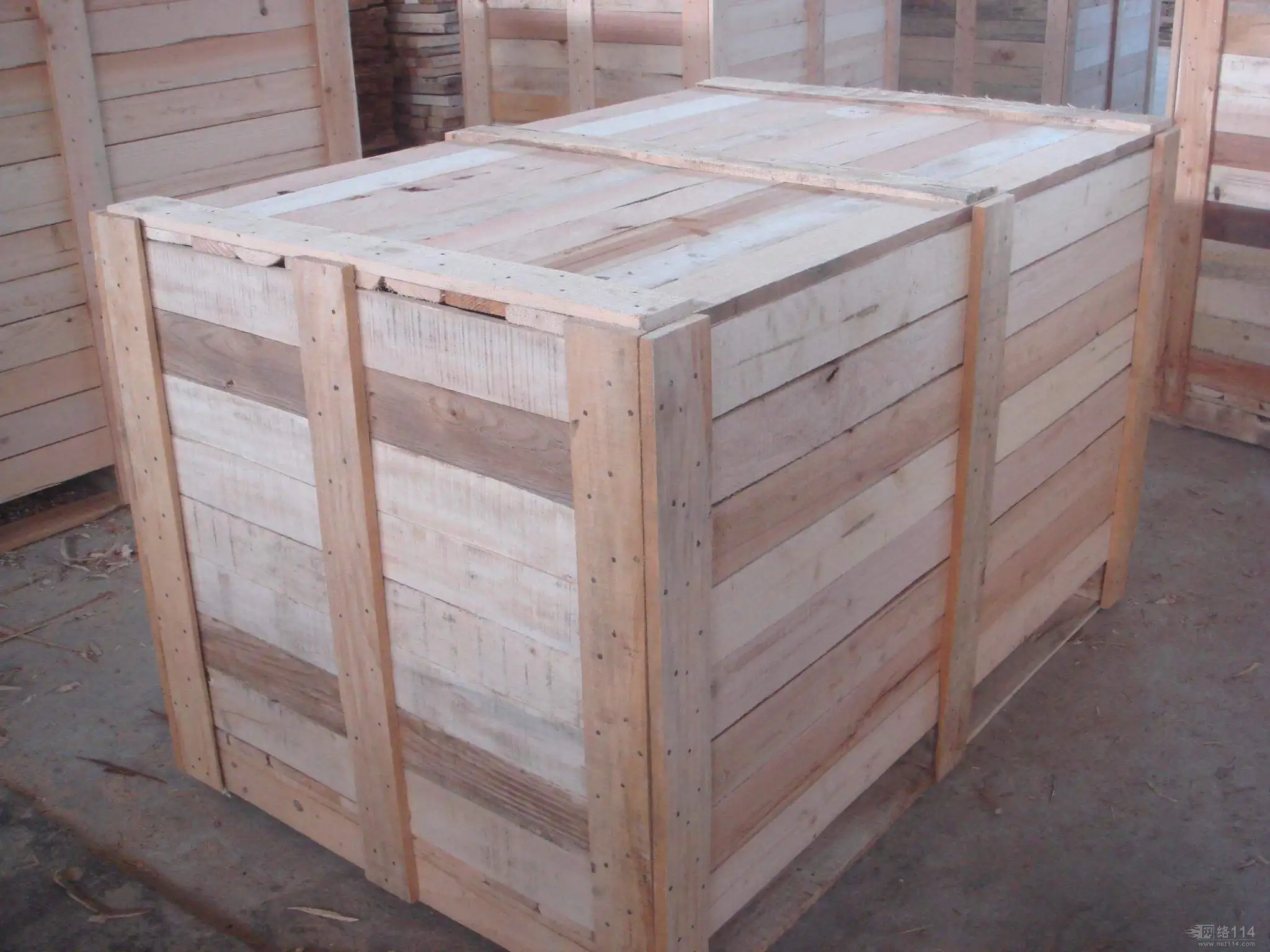

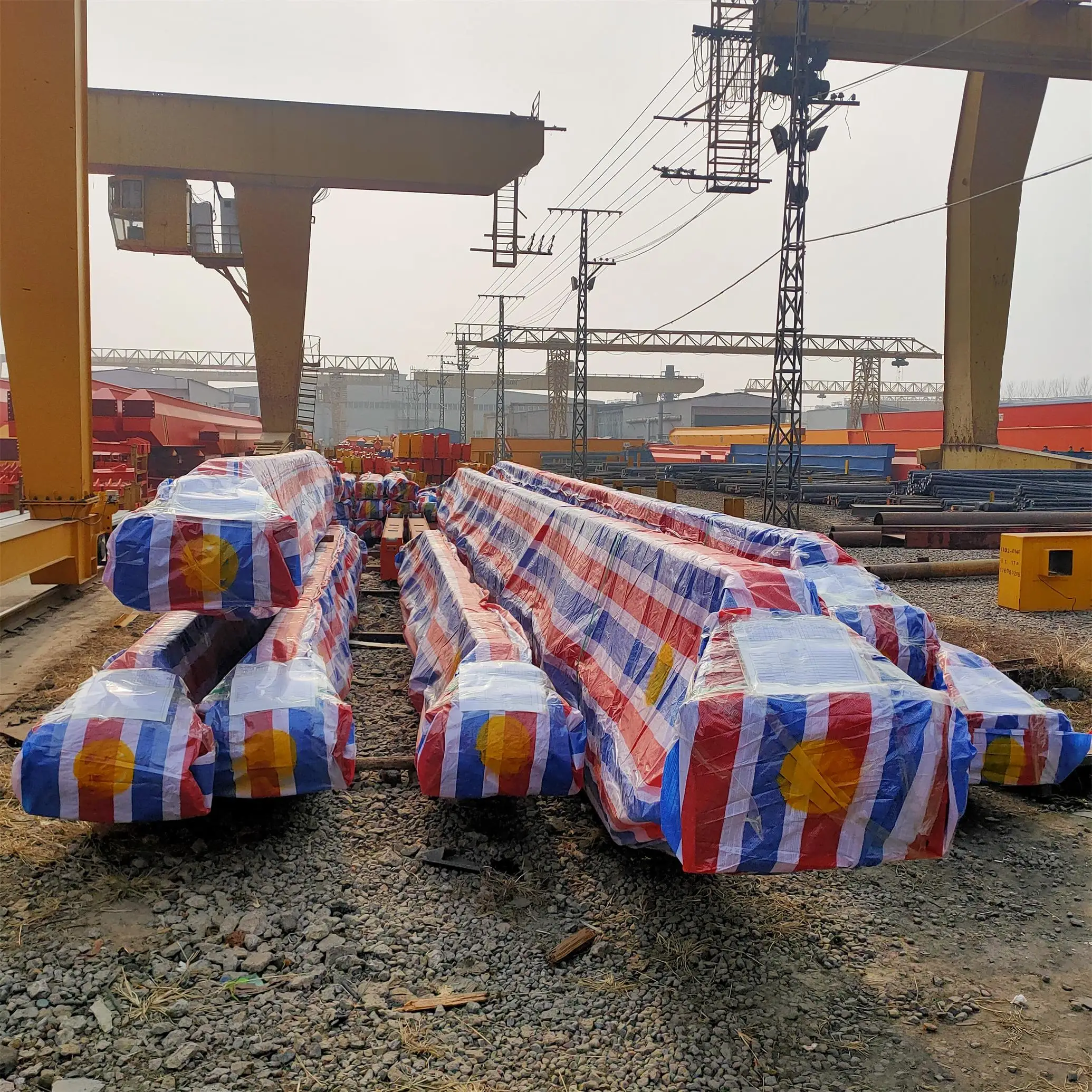

Packing | Wooden case, naked pack, waterproof cloth packing |
install service | Telephone/video/on-site guidance |
After-sales service | Telephone/video/on-site guidance |
Origin | henan china |
Main Features of MH model gantry Crane:
1.Simple and compact structure, steady performance.
2.Easy to install and high efficiency.
3.Overload, low voltage protective device.
4.Pendent control and remote control.
5.Easy maintenance.
2.Easy to install and high efficiency.
3.Overload, low voltage protective device.
4.Pendent control and remote control.
5.Easy maintenance.
