CHEMICAL MIXER cosmetic high shear mixer industrial pressure
CHEMICAL MIXER cosmetic high shear mixer industrial pressure
CHEMICAL MIXER cosmetic high shear mixer industrial pressure
CHEMICAL MIXER cosmetic high shear mixer industrial pressure
CHEMICAL MIXER cosmetic high shear mixer industrial pressure
CHEMICAL MIXER cosmetic high shear mixer industrial pressure
CHEMICAL MIXER cosmetic high shear mixer industrial pressure

CHEMICAL MIXER cosmetic high shear mixer industrial pressure


Поделиться:

Цена:7 999,00 $ - 8 000,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики







Effective
Stirrring power and speed
Homogeneous power and speed
Heating power
Capcity
KW
R/MIN
KW
R/MIN
Electric heating
Steam heating
GTM-50
50
0.75
0-65
3
3600
6 KW
Steam heating energy conservation and environmental protection, selected according to need
GTM-100
100
1.5
0-65
1.5
3600
12 KW
GTM-150
150
1.5
0-65
1.5
3600
12 KW
GTM-200
200
1.5
0-65
3
3600
18 KW
GTM-300
300
1.5
0-65
3
3600
18 KW
GTM-500
500
2.2
0-65
4
3600
27 KW
GTM-1000
1000
4
0-65
7.5
3600
36 KW
GTM-1500
1500
4
0-65
11
3600
45 KW
GTM-2000
2000
5.5
0-65
11
3600
recommed steam heating
GTM-3000
3000
7.5
0-55
15
3600
GTM-5000
5000
11
0-55
22
3600
The parameters for reference ONLY, all the machines can be customized accordingly.

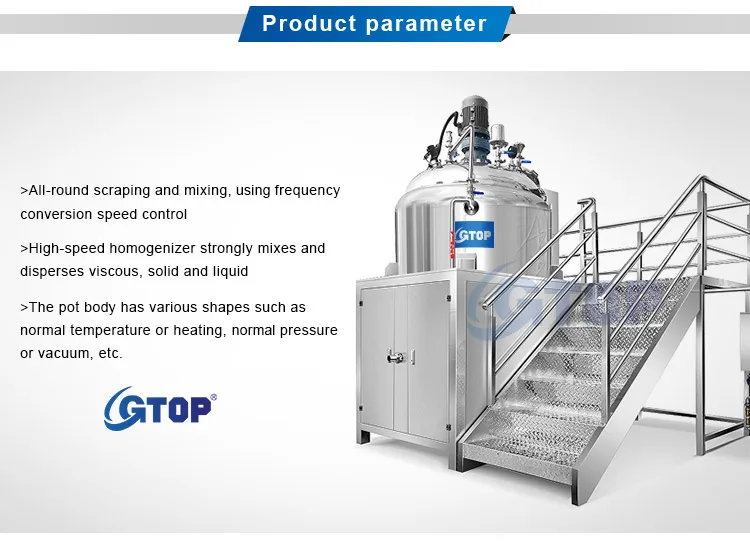

1. Stainless steel mixing tank could be used in food, beverage, pharmacy, wine and alcohol etc industries. The inside surface finish of stainless steel mixing tank is Mirror polished, Ra<0.4um. The welding are polished to ground smooth.

2. There are various agitator options of stainless steel mixing tank: impeller type, Anchor type, Turbine type, High shear mixer, magnetic mixer. The mixing tank could be made with or without jacket.

3. Stainless Steel Mixing Tank has mixing agitator,bottom homogenizer,stainless steel jacket tank shell,motor,electric control box,operation platform,staircase,etc.

4. The scraper type agitator mixing adopts the frequency converter for speed adjustment , so that high quality products of different processes according to customer requirements.

5.The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumption and shorten production period. High Shear Homoegnizer adopts German Technology, 0~3500rpm variable speed, and maximum speed can reach to 4500rpm,the shear degree is about 0.2~5um.

6.The tank body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing or matte finish , which fully conforms to GMP requirements.

7.According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.

8.We can choose PLC automatic control system ,or manual button control box,it depends upon your demand.
