Однолучевой мостовой кран
US $5000-$20000
Factory supply electric 5ton 10 ton 20 single girder monorail overhead cranes with remote control
- Категории: >>>
- Поставщик: Henan,Lantu,Mechanical,and,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
The LD electric single-frame crane has the characteristics of reasonable structure and strong rigidity of the whole machine. The whole machine is used in conjunction with the CD-type MD electric hoist. It is a light and small hoisting machine with a lifting weight of 1t-20t. The span is 7.5-28.5m, the working level is A3-A4, and the working environment temperature is -25℃-40℃.
This product is widely used for lifting goods in different occasions such as workshops, warehouses, stockyards, etc. It is forbidden to use in the environment of flammable, explosive and corrosive media.

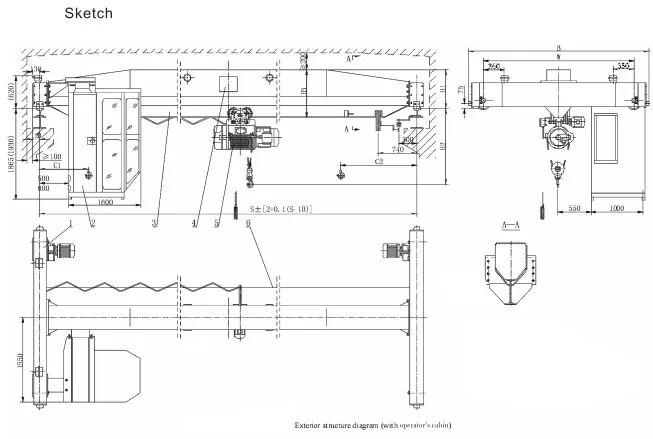

This product has two operation modes: ground and control room. The control room has two types: open type and closed type. It can be installed on the left or right according to the actual situation. There are two types of entry directions, side and end, to meet the needs of users in various needs.
This product is widely used for lifting goods in different occasions such as workshops, warehouses, stockyards, etc. It is forbidden to use in the environment of flammable, explosive and corrosive media.
This product has two operation modes: ground and control room. The control room has two types: open type and closed type. It can be installed on the left or right according to the actual situation. There are two types of entry directions, side and end, to meet the needs of users in various needs.

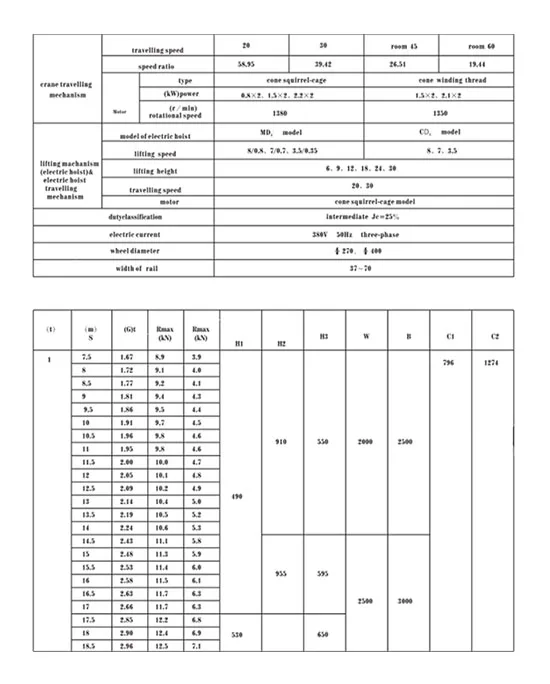

item | value |
Feature | Bridge Crane |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Other |
After Warranty Service | Video technical support, Field maintenance and repair service |
Video outgoing-inspection | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1.5 years |
Core Components | Motor, others |
Condition | New |
Max. Lifting Load | 20 ton |
Max. Lifting Height | Other |
Span | 7.5-31.5/customization |
Place of Origin | China |
Henan | |
Brand Name | LANTU |
Warranty | 1.5 years |
Weight (KG) | 20000kg |
Color | optional |
Running speed of cart (m/min) | 20,30 |
Trolley running speed (m/min) | 20,30 |
Motor power (KW) | 0.8x2,1.5x2,2.2x2 |
Electric hoist type | MD1type , CD1type |
Lifting speed (m/min) | MD(8/0.8 ,7/0.7,3.5/0.35) CD(8,7,3.5) |
Lifting height (m) | 6m-30m customization |
Working level | A3-A5 |
power supply | 380V 50HZ/customization |
Wheel diameter (mm) | 270,400 |
Manipulation method | Remote control, driver's cab, handle |

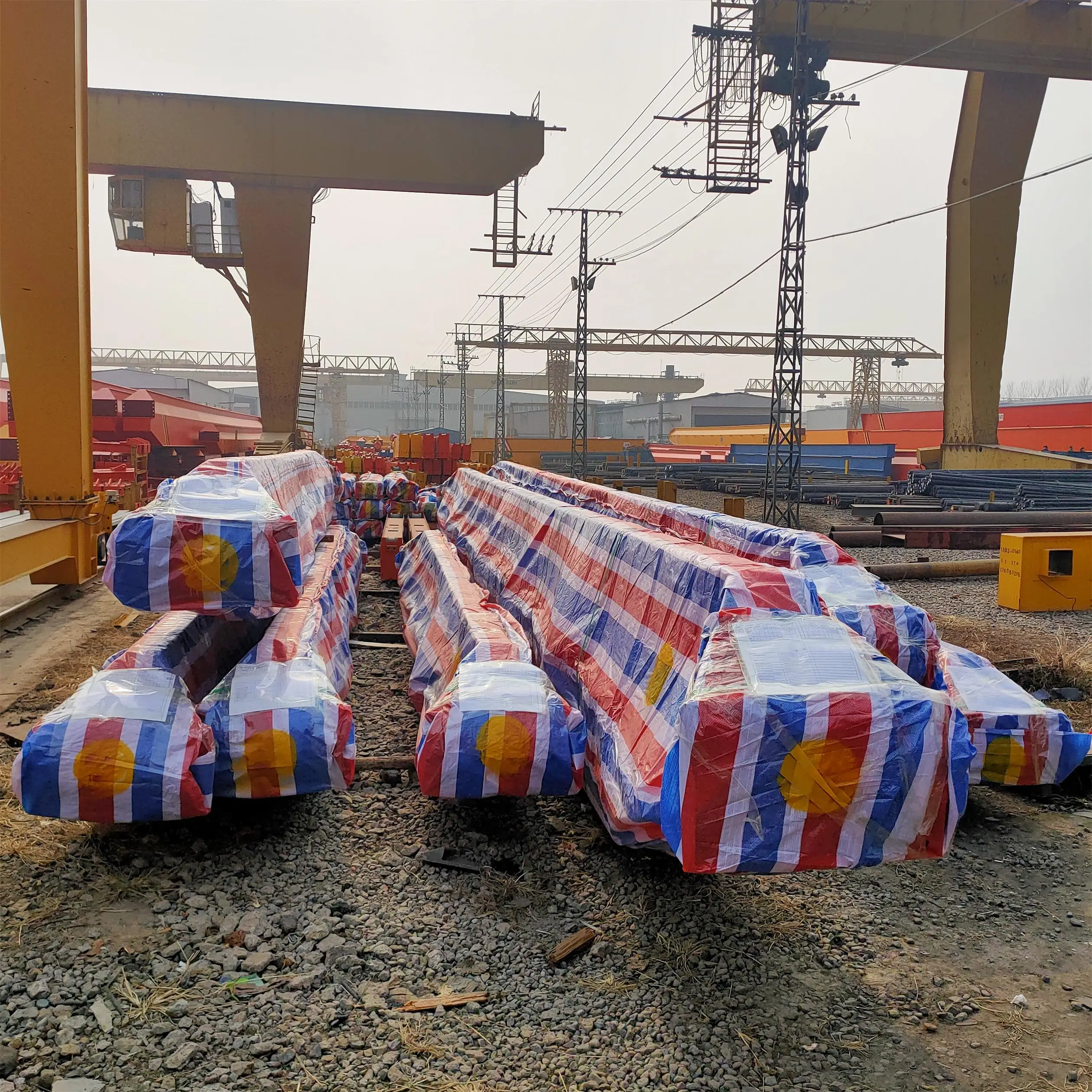

Packing | Wooden case, naked pack, waterproof cloth packing |
Install service | Telephone/video/on-site guidance |
Warranty | 18 month |
After-sales service | Telephone/video/on-site guidance |
Single Girder Bridge Crane Features：
1. Light structure,easy installation and maintenance;
2. Widely used in different places for hoisting such as factories,warehouses and material yards;
3. Reasonable structure,strong bearing capacity ;
4. Low noise, soft starting and stopping ;
5. Safe and reliable operation ;
6. Low cost maintenance, long working life;
7. Strong box type,welding by machine hand.;
8. Prohibited to use in the environment with inflammable,explosive and corrosive media.
2. Widely used in different places for hoisting such as factories,warehouses and material yards;
3. Reasonable structure,strong bearing capacity ;
4. Low noise, soft starting and stopping ;
5. Safe and reliable operation ;
6. Low cost maintenance, long working life;
7. Strong box type,welding by machine hand.;
8. Prohibited to use in the environment with inflammable,explosive and corrosive media.
