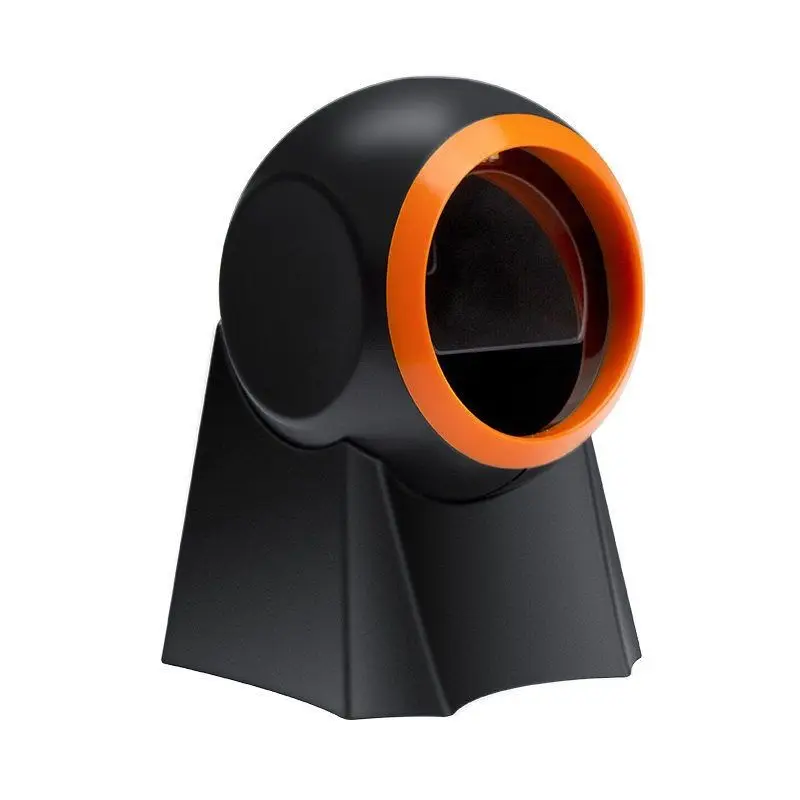

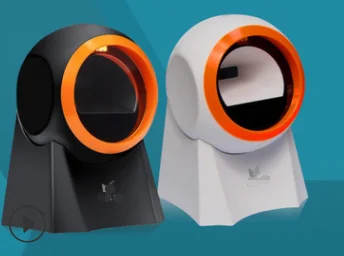

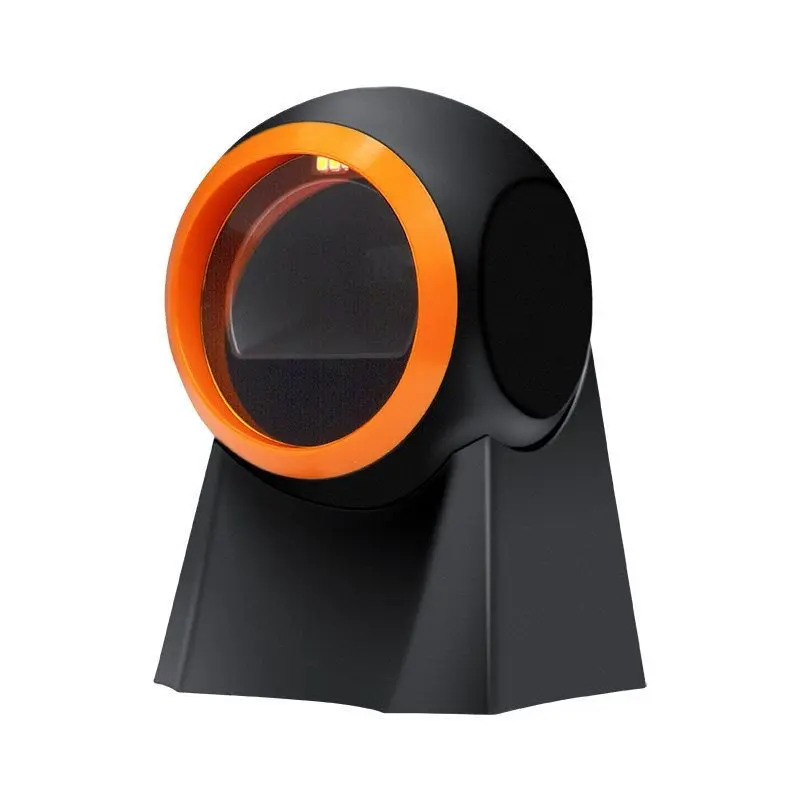

Desktop 2D Image Barcode

Technical Data

1. Strong reading performance, quickly read the main code and two-dimensional code on paper, computer or mobile phone screen;

2. Quickly read payment codes, electronic rolls, coupons, etc. on the screen of mobile devices, which can be used for online payment;

3. Support multiple communication methods such as USB, virtual serial port;

4. Applicable to various lighting environments (including completely dark), High temperature and humidity, and various harsh and complex working environments, such as: shock, vibration, and strong exposure;

5. Compatible with Windows, Android and Linux systems.



Specification



GT-8800G Technical Parameter
Model		GT-8800G
Item		Desktop 2D Image Barcode Scanner
Physical Parameter
Material		ABS+PC
Power Supply		DC 5V ±5%
Electric Current		0.18A(standby);0.25A(working);0.32A(maximum) [Average electric current]
Power Consumption		0.90W(standby);1.25W(working);1.60W(maximum) [Average power consumption]
Weight		308.0g±5g(Without cable)
Size		L*W*H: 110.0 * 99.3 * 149.6(unit:mm)
Color		Black+orange
Performance Parameter
Interface		USB
System Supported		Linux,Android,Windows XP,7,8,10,MAC
Language Supported		English-America;Belgian;Finnish;French;German;Italian;Swedish;English-United Kingdom;Danish;Norwegian;Spanish;Portuguese;Turkish-Q;Turkish-F;Japanese;Russian;Czech;Thai;Ukrainian;Portuguese-Brazil;Greek;Hungarian;Dutch;Polish;Romanian;Slovak; [Virtual keyboard support]
Sensor		Planar CMOS sensor 480 * 640
Light Source		White LED
Professor		32-bit ARM MCU + DSP
Motion Tolerance		35cm/sec[10mil QR]
Resolution		Code39 ≥5mil
Bit Error Rate		1/5,000,000
Reading Mode		Image
Trigger Mode		Auto-Sensing
Prompt Mode		Buzzer, Indicator Light(Green LED)
Scanning Angel		Roll 360°,Pitch ± 55°,Yew ± 55°
Invoicing function		Support
Print Contrast		≥30%
Decoding  Capability	1D	UPC-A     JAN/EAN-8       JAN/EAN-13     Code 128      Code 39   Codabar   Code 93         Interleaved 2 of 5             UPC-E      UCC/EAN 128                 GS1-128        ISBN-13        Industrial(Standard)2 of 5                 Code 11       MSI Plessey                 Code32    GS1 Composite   GS1 Databar    Composite Matrix 2 of 5
	2D	PDF417   Micro QR Code    QR Code    Aztec code     Data Matrix
Scanning Depth		QR Code 12.50mil(7 bytes):0cm - 11cm PDF417 9.17mil(7 bytes):0cm -11cm Data Matrix 12.50mil(8 bytes):0cm - 7cm Code 128 7.50mil(15 bytes):1cm - 10cm EAN13(10mil):3cm - 12cm
Environment Parameter
IP Grade		IP52
Operating Temp.		0 to 50℃ / 32 to 122℉
Storage Temp.		0 to 50℃ / 32 to 122℉
Operating Humidity		20% to 85%(No Condensation)
Storage Humidity		20% to 85%(No Condensation)
ESD Protection		15KV air discharge
Shock Resistance		1.2m free fall on concrete surface
Ambient Light		0~100000LUX
