Introduction of Mining Electric Locomotive

The 5 ton battery locomotive has two types: general type and explosion-proof special type. The battery electric locomotive adopts IGBT chopper speed regulation and frequency conversion speed regulation technology. Main features: reasonable structure, reliable explosion-proof, high efficiency and energy saving, large starting torque and stable operation. With multiple protection devices, low maintenance, and electric brake function, the locomotive performance is safer and more reliable, and is well received by users.

This product is mainly used in mines with coal (rock) and gas (biogas, methane) and main wind tunnels with full wind pressure ventilation, as well as the main return air passage of the gas mine and the inlet and return air passage of the mining area, and the rock roadway for excavation. Traction mines, transportation equipment and personnel without overhead lined downhole roadway.Parameter of CTY5/6,7,9G 5T Battery Electric Locomotive.

Parameter of Mining Electric Locomotive

Model			CTY5/6,7,9G
Adhesive  Weight			5t
Gauge			600,762 or 900mm
Traction Force			7.06kN
MAX Traction Force			12.26kN
Speed			7km/h
Power Supply		Voltage	90V
		Capacity	385Ah
Motor Power *sets			7.5 kW*2
Dimension	Length		2850mm
	Width		920,1082/1220mm
	Height		1550mm
	Wheelbase		850mm
	Wheel Diameter		Φ520mm
MIN Turning Radius			6m
Way of Speed Control			Resistance or Chopped wave
Braking Control			Mechanism or hydraulic pressure

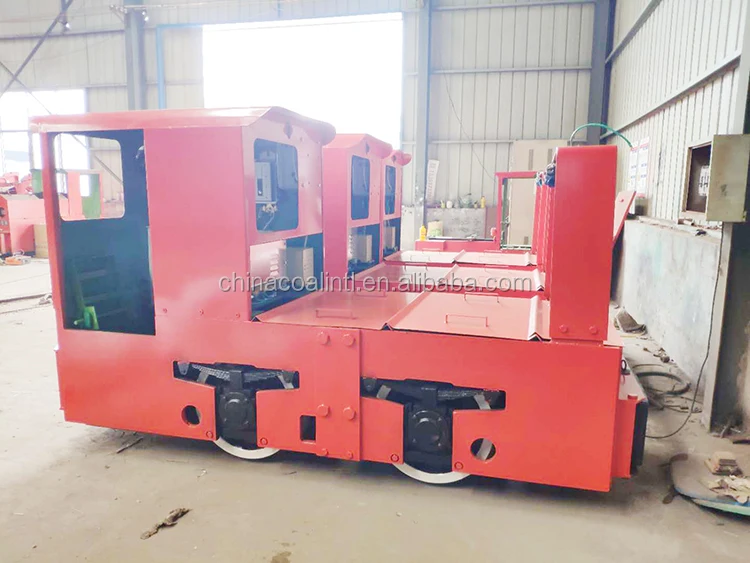

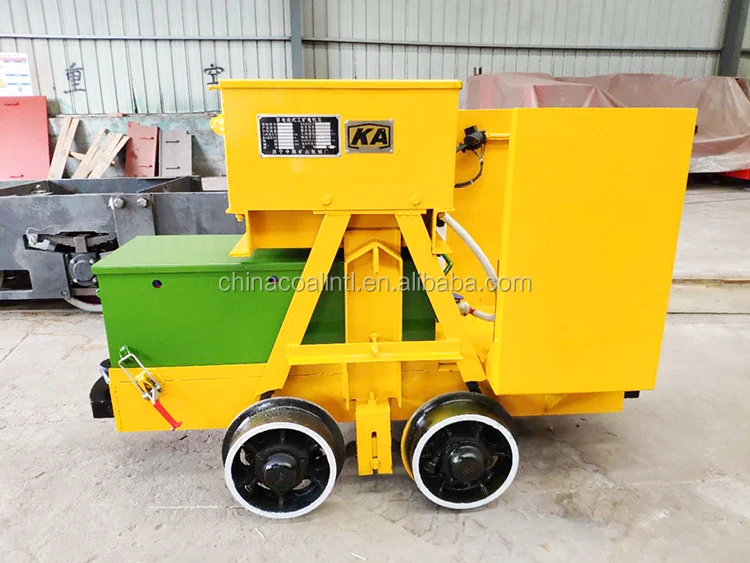

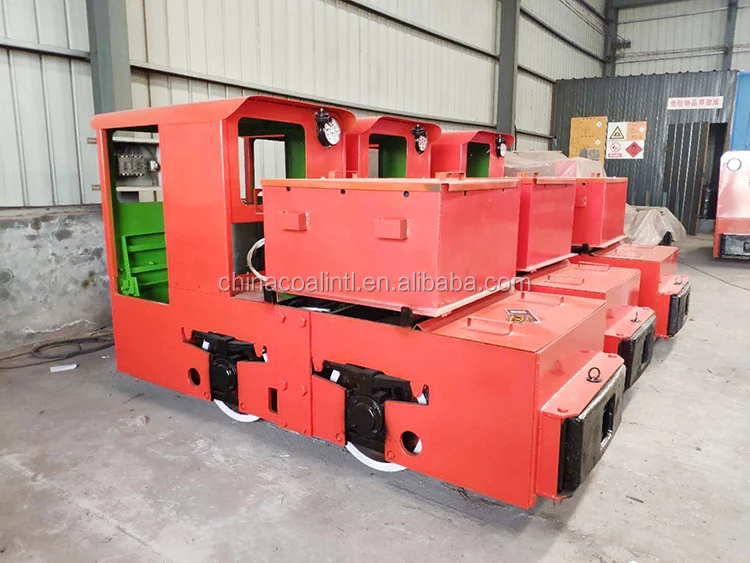

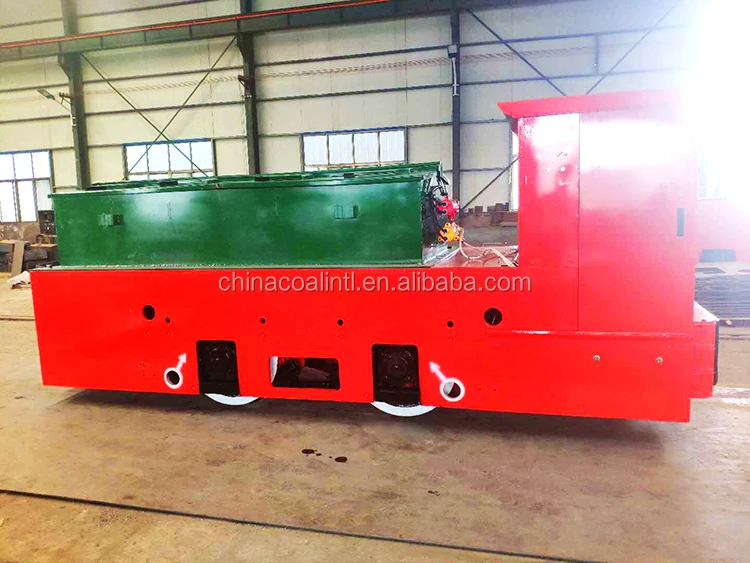

Photos of Mining Electric Locomotive
