Machine Descriptions
It is suitable for printing sealing glue on gasket of cylinder jacket of engine or compressor. It could satisfy good sealing performance with high precision.
Main Features
1). The device adopts the technologies of micro-computer chip, Individual drive for printing head and screen frame lifting to make
itself working more stable, the operation of itself more convenient.
2). The contactors are CHINT brand, the approach switches are FOTEK (Taiwan brand), can be adjusted individually. satisfy the
requirements of reliability and real-time control.
3). Main transmission adopts CPG motor, speed-regulate, stable running.
4). Select AIRTAC electricity, pneumatic control components for printing scraper and covering ink blade, with stable performance.
Independent design structure results in easy assembly dismantling convenient cleaning;
5). The moving system adopts HIWIN (Taiwan brand) high precision guide linear, smooth running durable.
6). The working table adopts rectangle magnetic board for precise positioning.
7). Three operation modes of Manual/semi-auto/full-auto, digital control for printing suspend time.
8). Two screen frame clamps with inching system, which makes the machine easily adjusted and finds position accurately.
itself working more stable, the operation of itself more convenient.
2). The contactors are CHINT brand, the approach switches are FOTEK (Taiwan brand), can be adjusted individually. satisfy the
requirements of reliability and real-time control.
3). Main transmission adopts CPG motor, speed-regulate, stable running.
4). Select AIRTAC electricity, pneumatic control components for printing scraper and covering ink blade, with stable performance.
Independent design structure results in easy assembly dismantling convenient cleaning;
5). The moving system adopts HIWIN (Taiwan brand) high precision guide linear, smooth running durable.
6). The working table adopts rectangle magnetic board for precise positioning.
7). Three operation modes of Manual/semi-auto/full-auto, digital control for printing suspend time.
8). Two screen frame clamps with inching system, which makes the machine easily adjusted and finds position accurately.
Specification of TX-4080ST Screen Printing Machine | ||||||
Model | TX-4080ST | Printing thickness | ≤50mm | |||
Table size | 400*800(mm) | Air source | 4.0~6.0 kgf/c | |||
Max.printing size | 300*600(mm) | Power supply | 380V/50Hz /2.3kW | |||
Max screen frame | 700*1200(mm) | Dimension | 1670*1050*1650(mm) | |||
Capacity | 1000(Pcs/h) | G. Weight | 422(kg) | |||

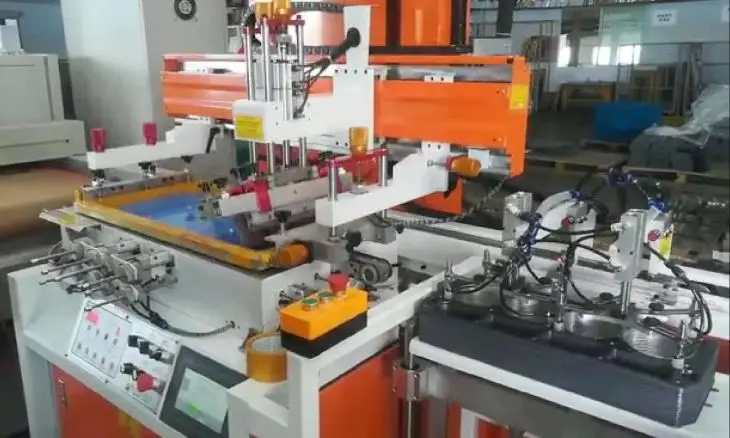

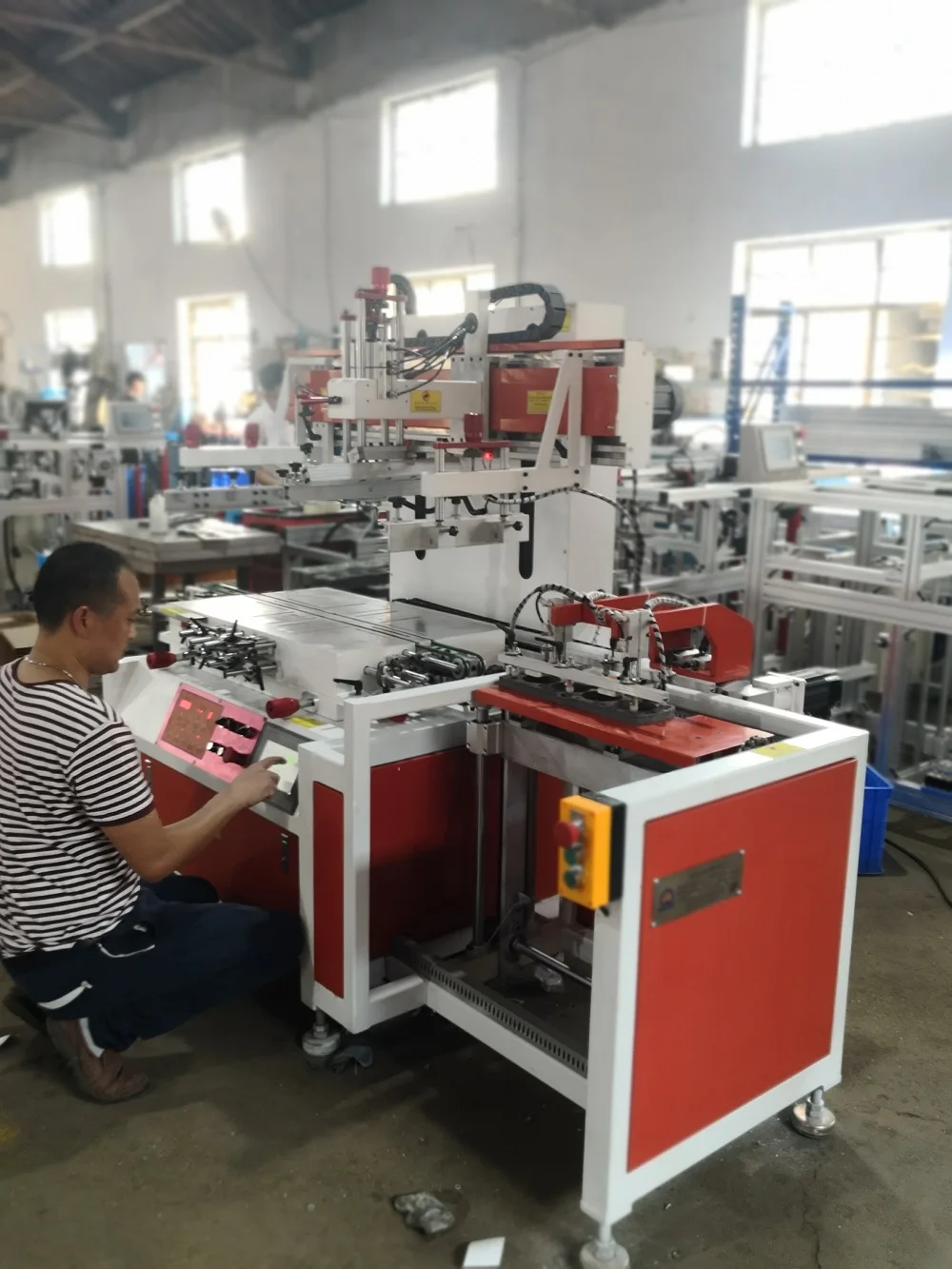

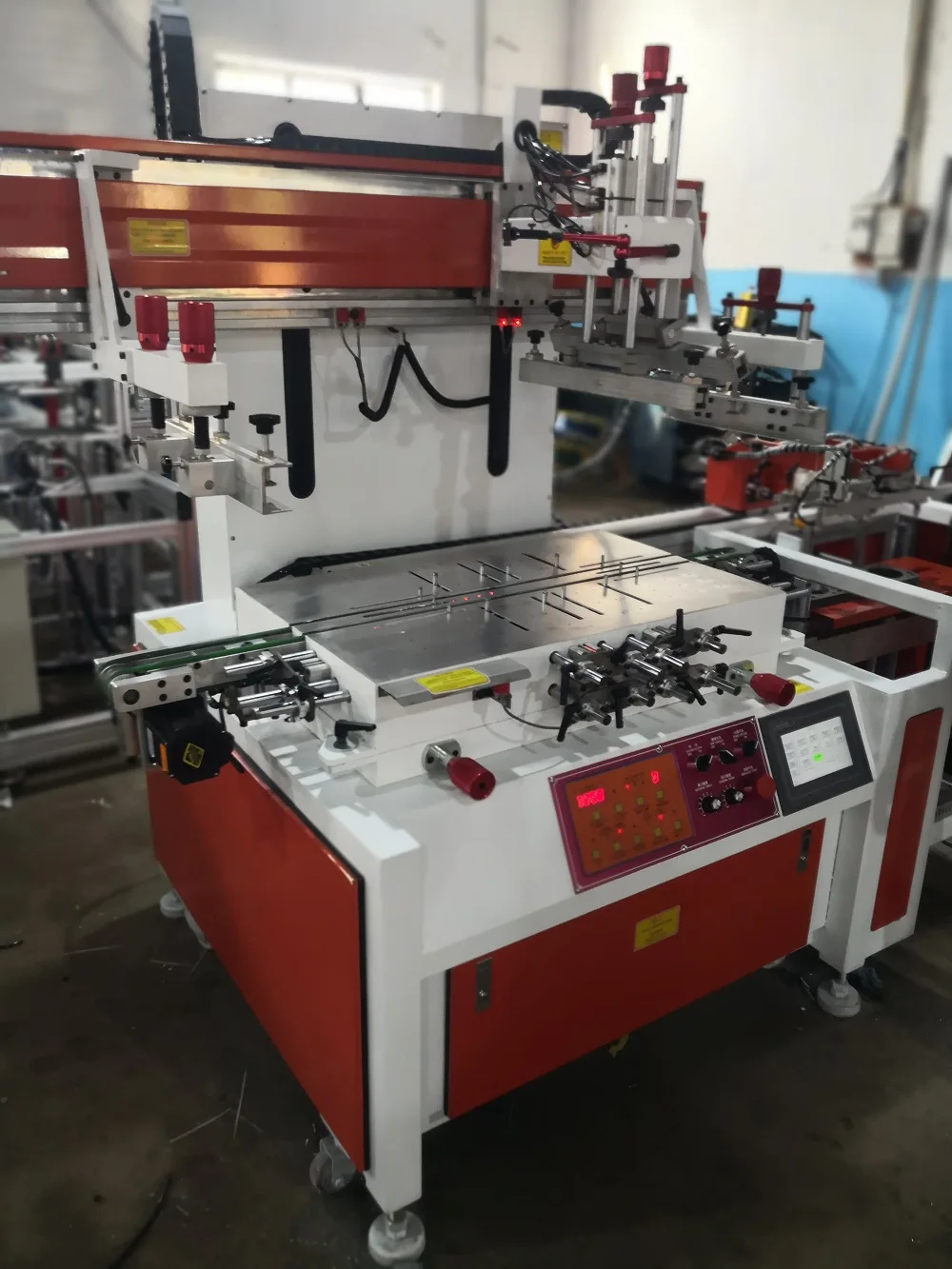

Product photo

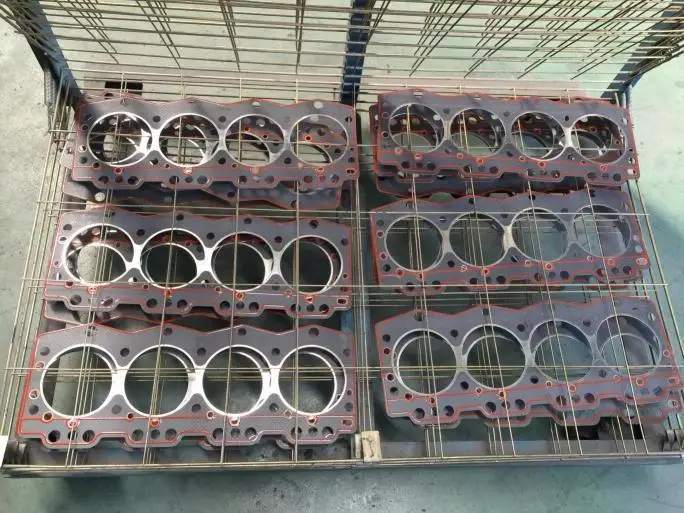

Printing Sample
Packing&Delivery
★ Packing & Delivery
1. Packing: Plywood Case for Each Machine
2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：3-35 business days after received the payment.
4. Delivery means: By sea from Shanghai or Ningbo Port
FAQ
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment with more than 18 years experience, committed to supplying our customer top quality and dedication to the constant improvements of quality, reliability, productivity and the competitiveness of our products and services.
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
Q: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the machine depends on your requirements.
Q: What are your terms of payment?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
Our Company
Hangzhou Taoxing Printing Machiner Co.,ltd is a High-tech lead company, integrated with science, industry and trade. We have strong technical support, advanced production equipment and professional staff who dedicate to products research,
development,manufacture, installation, test and maintenance.
development,manufacture, installation, test and maintenance.

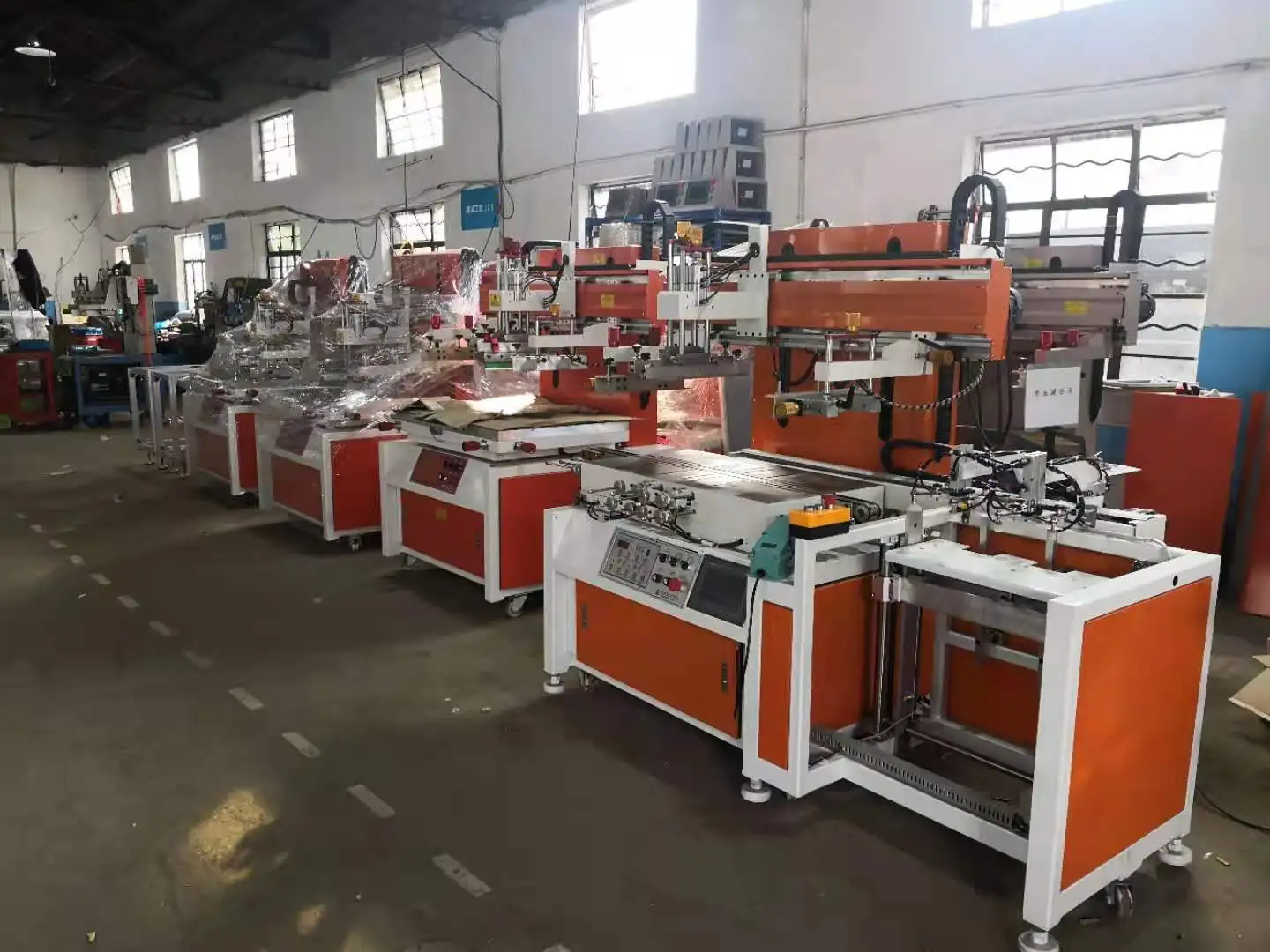

Factory Tour
company team
Cetefications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*custom contact us
After-Sales Service
*1 year warranty
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Exhibition
