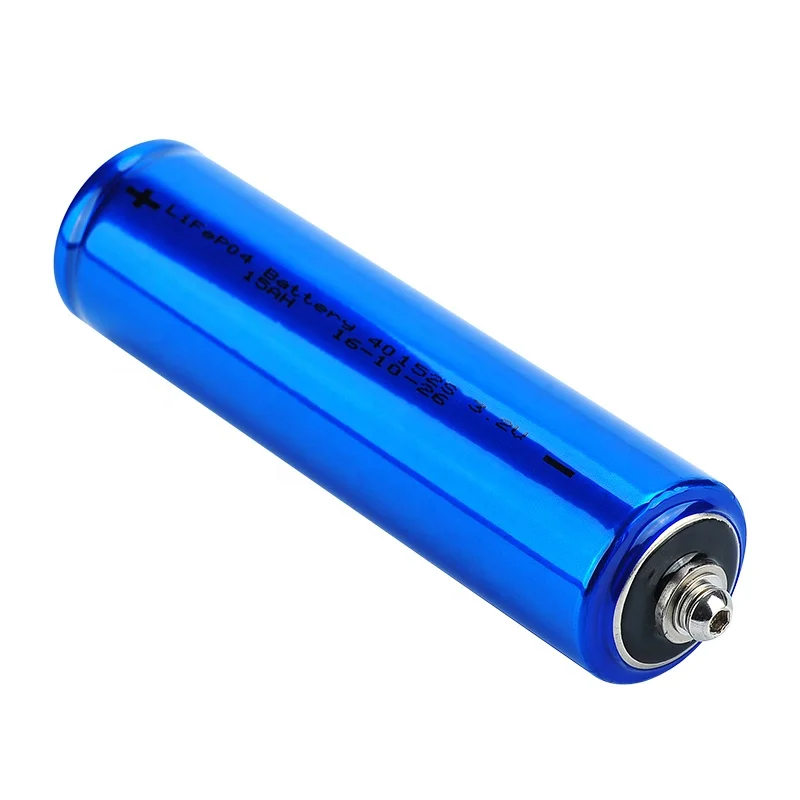

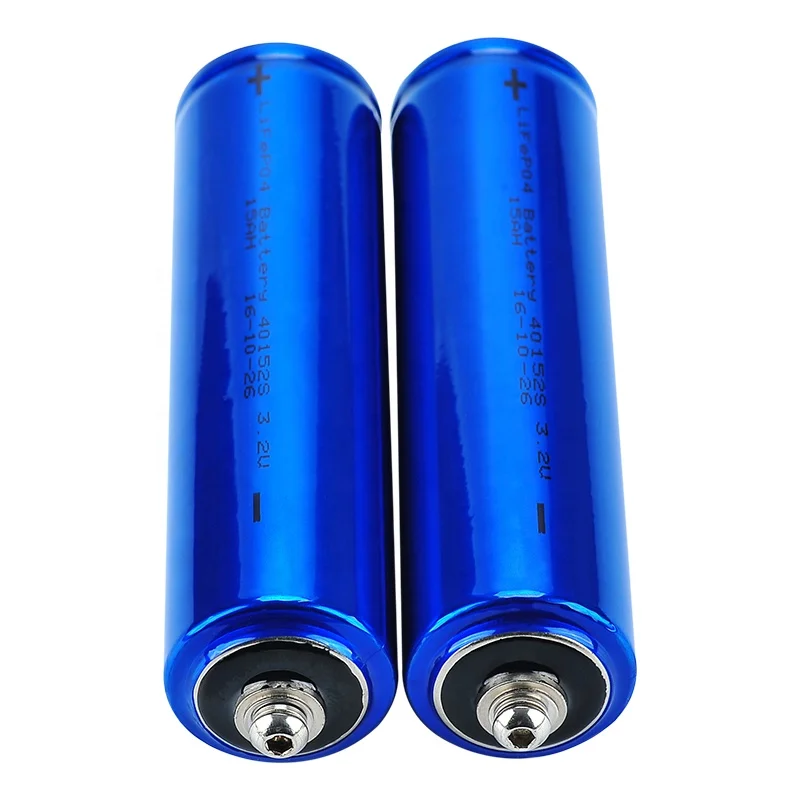

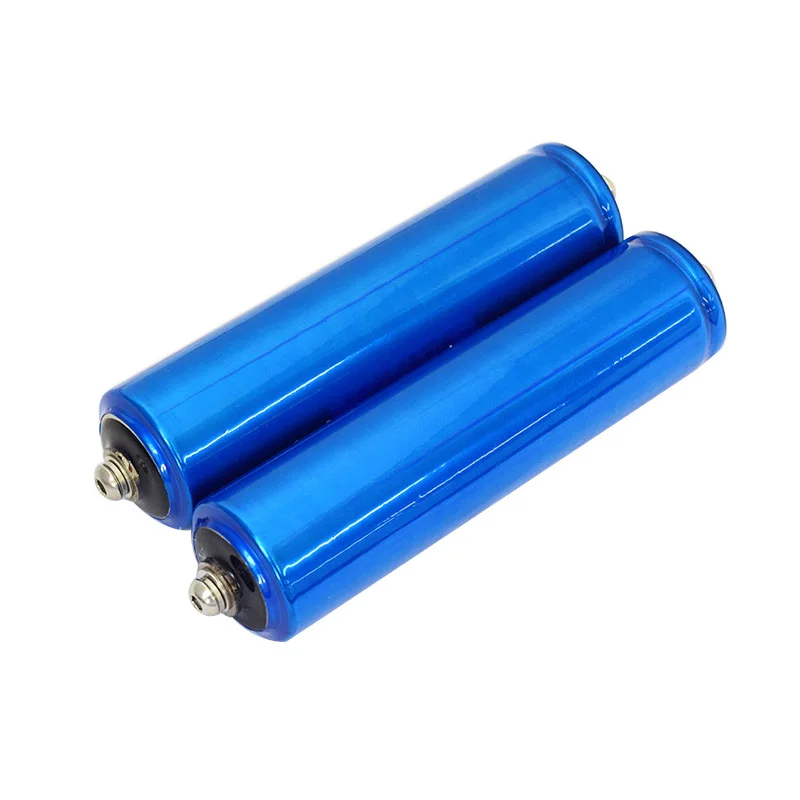

40152 3 2 v 15Ah lifepo4 Аккумуляторная батарея для 48v Электрический мотоцикл аккумулятор на открытом воздухе power music контейнер под элемент
- Категории: >>>
- Поставщик: Shenzhen,Xinglong,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
| No. | Item | Specifications | Remak |
| 1. | Specifications(40152) | capacity:15Ah | 0.5C Rate discharge after standard charge |
| 2. | voltage | 3.2V | Mean operation voltage during standard |
| 3. | Voltage at end of discharge | 2.0v | Discharge cut-off voltage |
| 4. | Charging cutoff voltage | 3.65V | |
| 5. | Impedance | ≤10mΩ | 3.2v 15Ah lifepo4 battery |
| 6. | Standard charging | Constant current 0.25C | |
| Constant voltage 3.2V | |||
| Cut-off current≤0.01C | |||
| 7. | Standard discharge | Constant current 0.5C | |
| End voltage 2.75V | |||
| 8. | Fast charge | Constant current 0.5C | |
| Constant voltage 3.2V | |||
| Cut-off current≤0.02C | |||
9. | Fast discharge | Constant current 0.5C | |
| End voltage 2.75V | |||
| 10. | Maximum continuous discharge current | 10C | |
| 11. | Operation | Charge: 0~45°C | 60±25%R.H |
| Temperature range | Discharge: -20~60°C | ||
| 12. | Cycle life | 2000times | |
| 13. | Storage temperature | -20 ~ 45°C | |
| 14. | Weight | 483g | |
| 15. | Dimension(mm) | size | 40mm*152mm |
Range of application

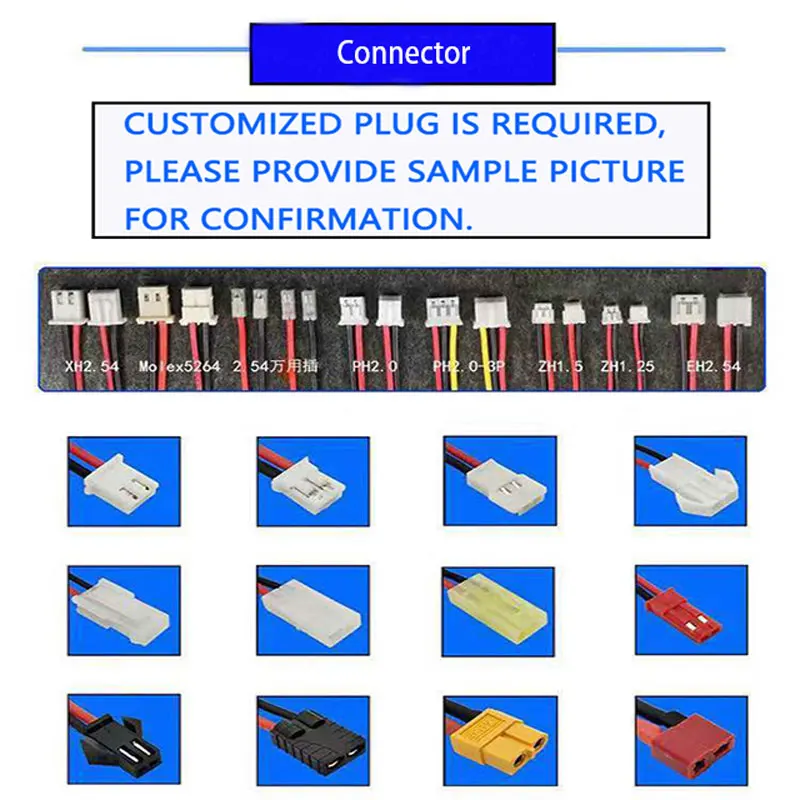

Connector
Reasons for choosing

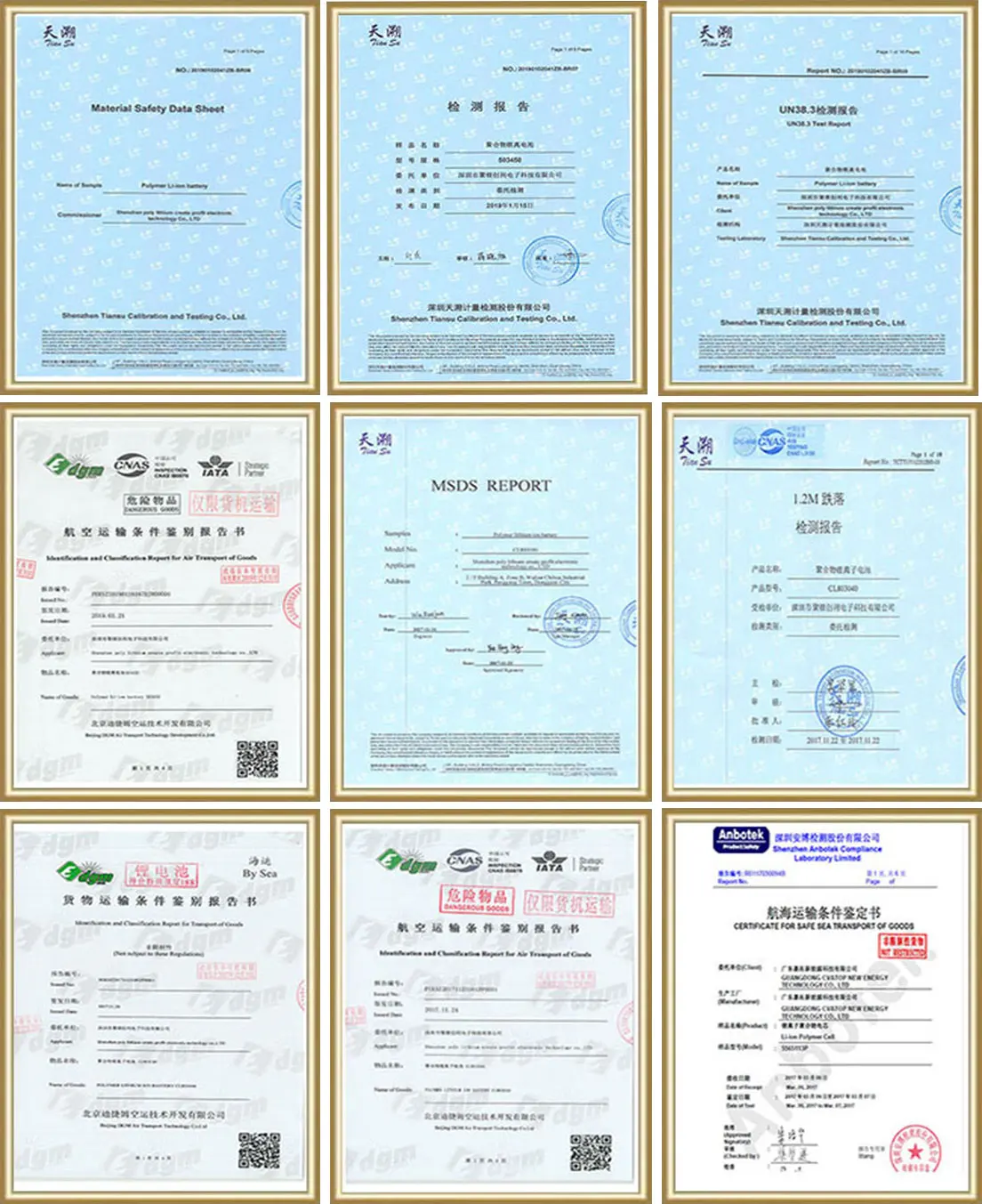

Certifications

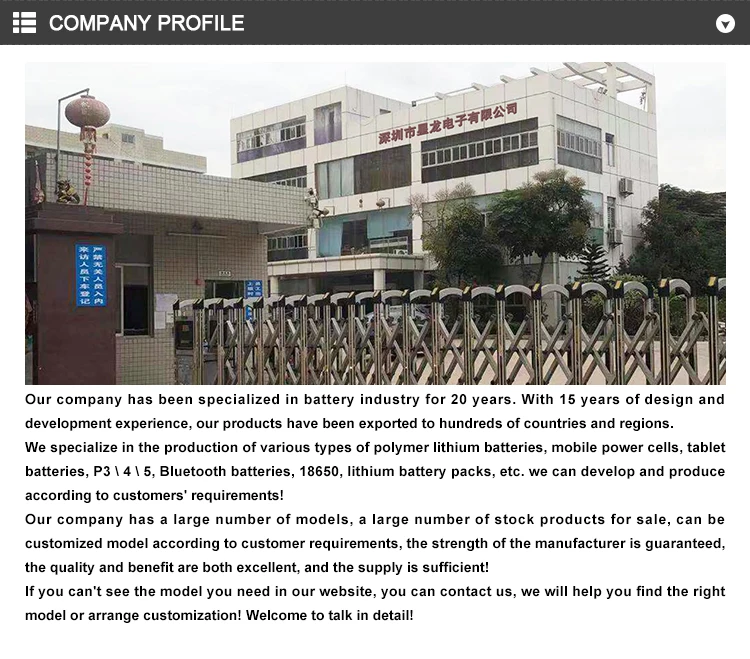

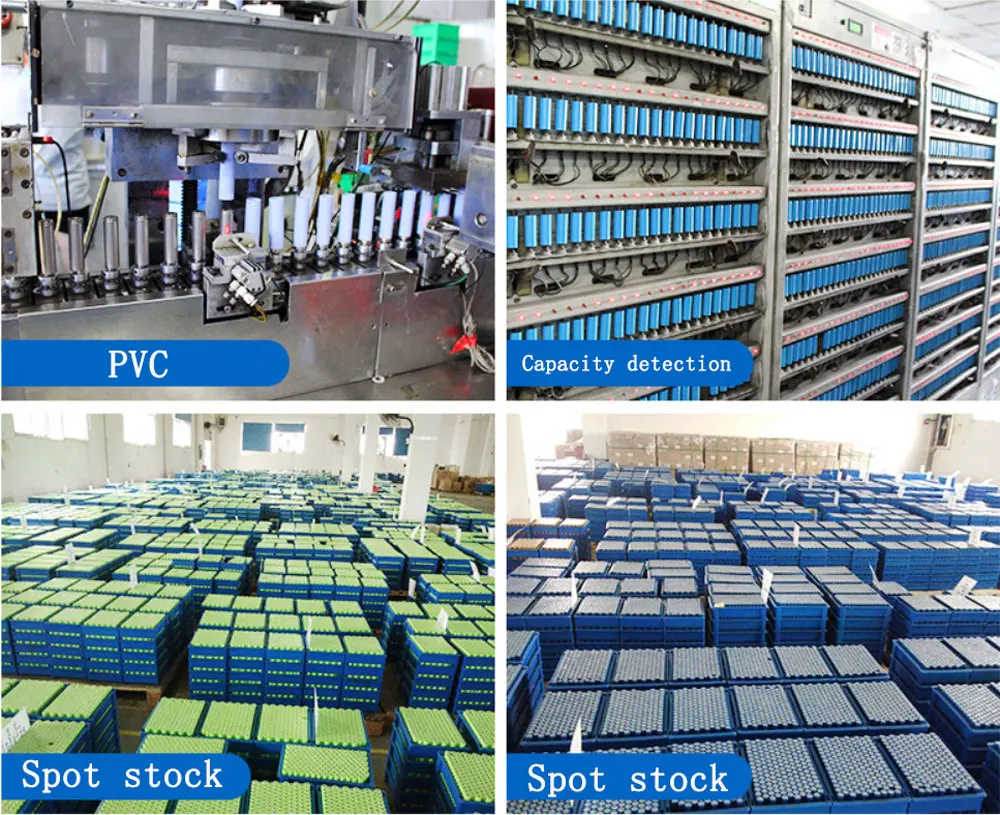

Company Information
Packaging & Shipping

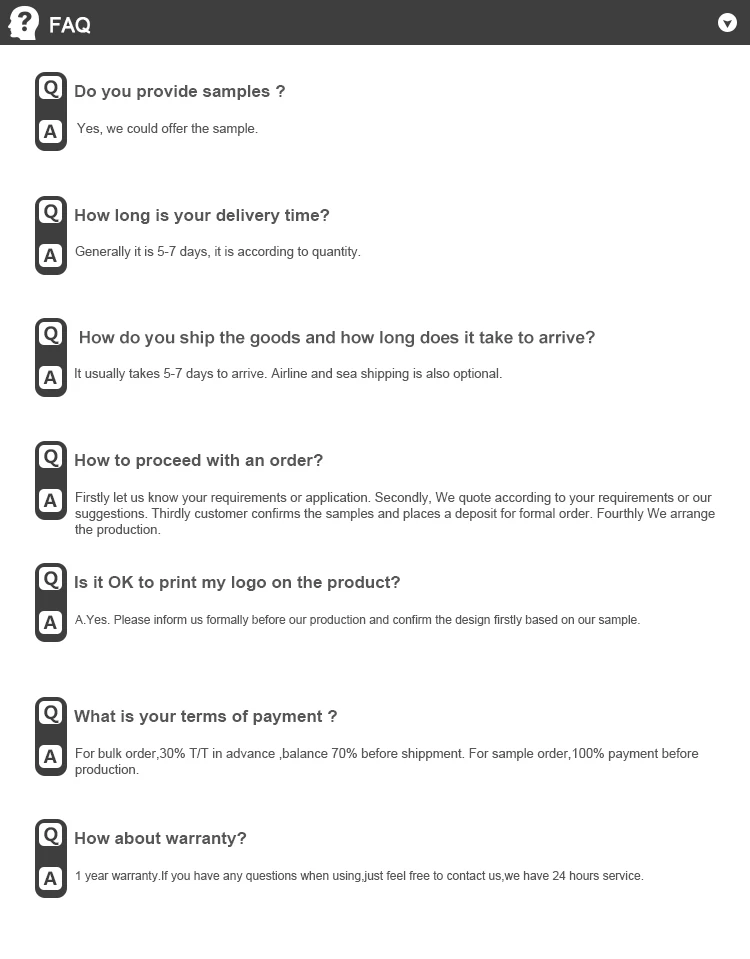

FAQ
