Product Presentation

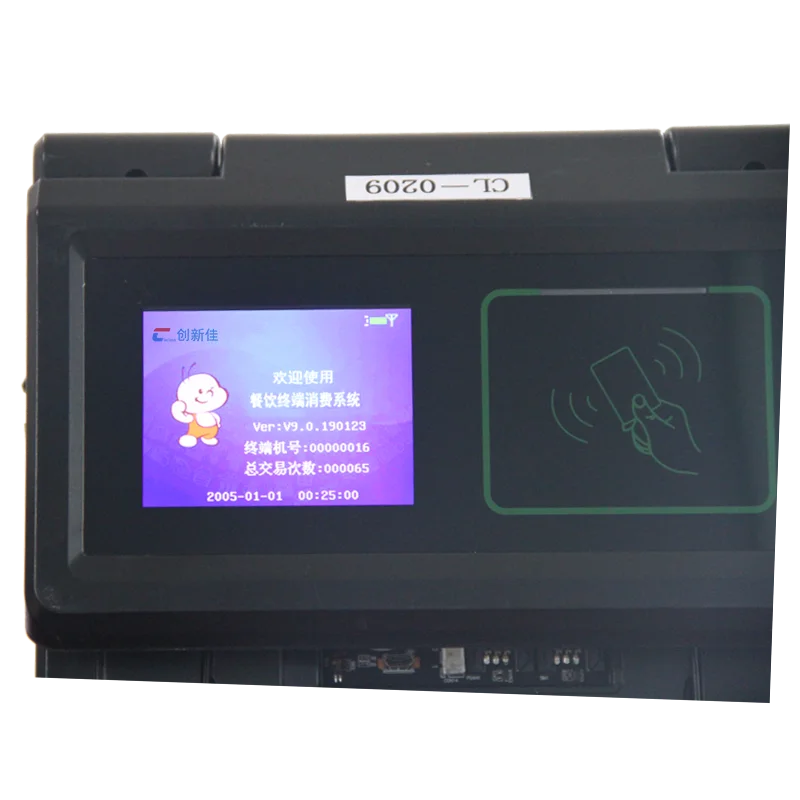

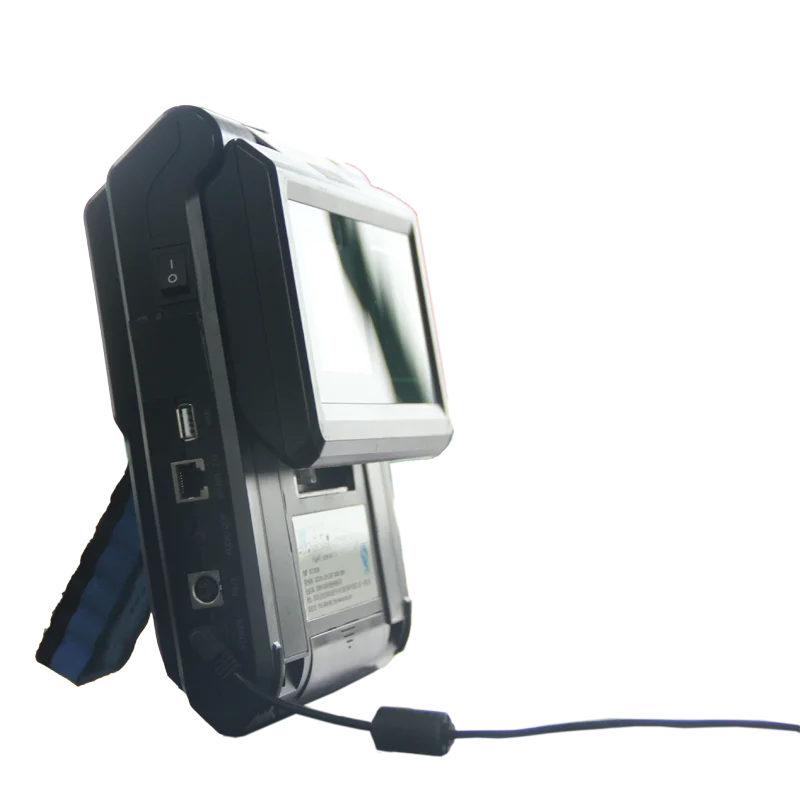

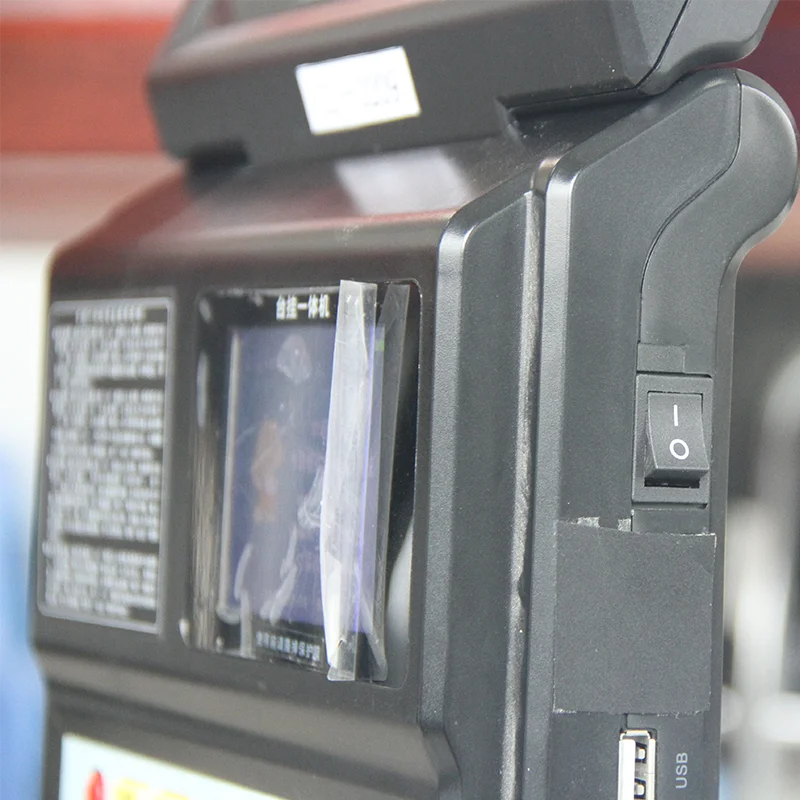

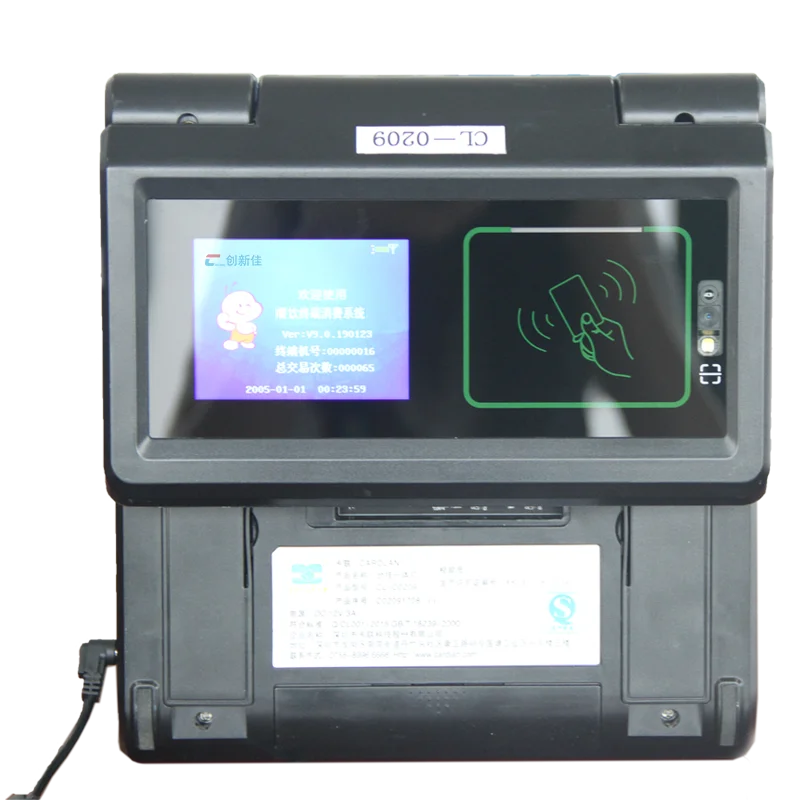

CXJ CL-C0209 Wifi IC Card Electronic Payment Recharge Linux All-in one Device
CL-C029 is a consumer terminal designed for the professional characteristics of the catering industry, and its data accuracy rate can reach 100% (unmanned, human-made loopholes), and easy to operate. CL-C0209 is a consumer terminal designed for the professional characteristics of the catering industry. It can reduce the workload, save human resources, and reduce expenses; the supporting card can also be used as an attendance card, work card, and key card; consumer payment is simple and fast, completed within 0.3 seconds; low failure rate (no mechanical action failure, no easy Damaged parts); Consumption data query is convenient and fast, and the use of CL-C0209 hanging all-in-one machine can shape the modern management image of the enterprise.
Applicable scene:
1. Campus canteen
2. Enterprise/Organization Canteen
3. Park canteen
4. Hospital canteen
5. Supermarket
6. restaurant
Applicable scene:
1. Campus canteen
2. Enterprise/Organization Canteen
3. Park canteen
4. Hospital canteen
5. Supermarket
6. restaurant
Product Name | All-in-one Device for payment |
Mold Size | CL-C0209 |
Operating System | Linux2.6.17.14 |
CPU | ARM9 core processor, 240Mhz |
Memory Capacity | 32MBytes SDRAM, 128MB NANDFlash main memory |
Data capacity | Stand-alone storage of 259,840 pieces of detailed data, storage of unlimited detailed records in GPRS |
Black name list | 2 million (download via U disk with computer) |
Operating temperature | -25℃~65℃ |
Storage temperature | -40℃~85℃ |
Working humidity | 0-90% (no condensation) |
Dimensions | Dimensions |
Shell material | Engineering plastics |
Display method | 3.5 inch LCD dual display, 320x240 |
Indicator light | Red and green indicator lights |

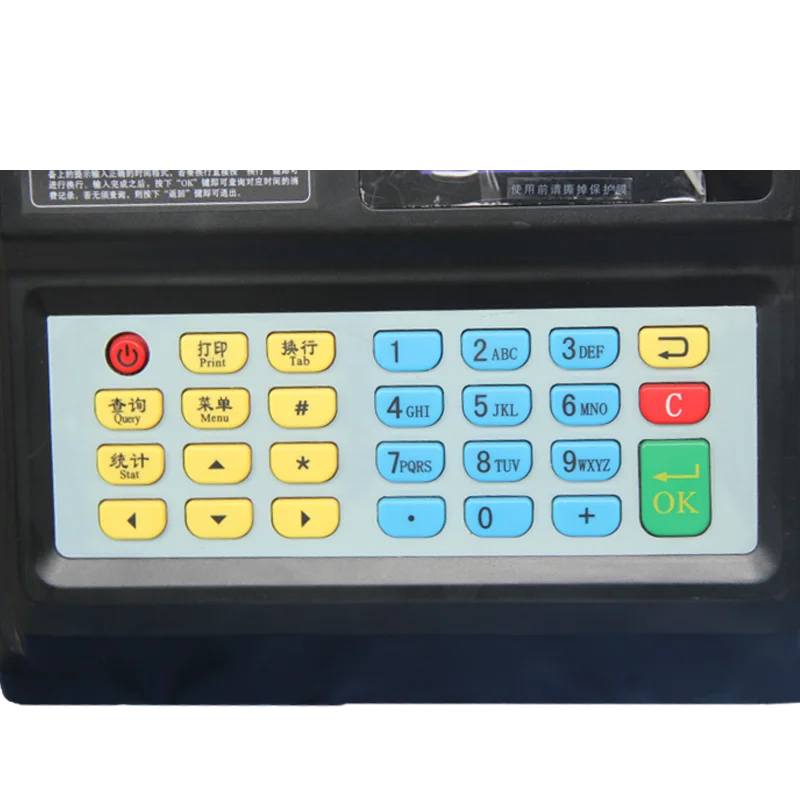

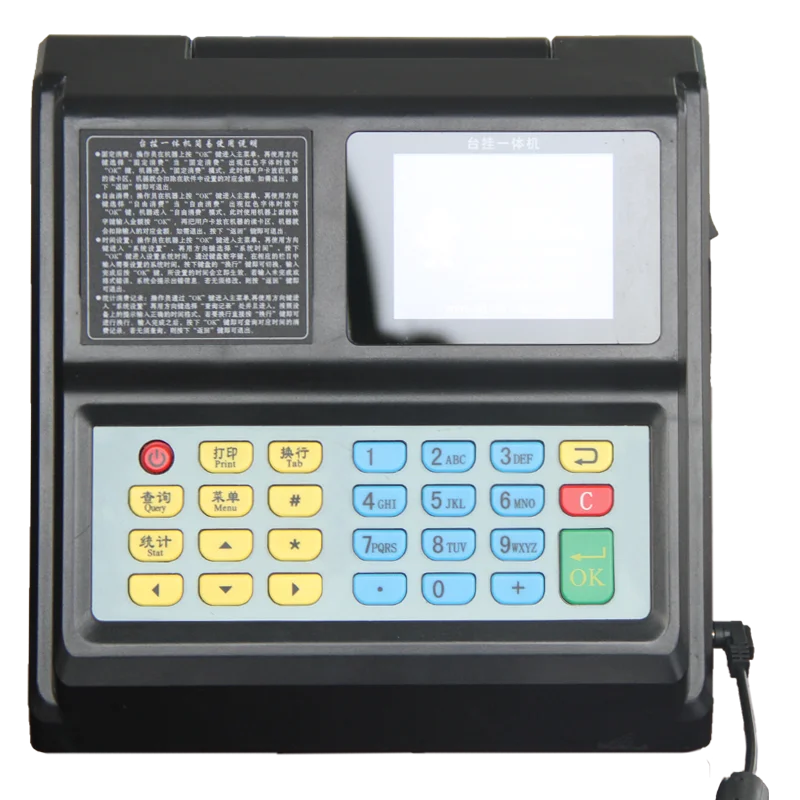

Button | Built-in 25-key keyboard |
Sound reminder | Buzzer |
Voice prompts | 16KHz, 16bit mono voice prompt |
Operating Voltage | DC 12V |
Backup power | Support |
Support standard | ISO-14443 Type A/B |
Reading distance | 0~50mm |
Working frequency | 13.56Mhz |
Issuing capacity | 5 million sheets (default) |
Applicable cards | Mifare 1 series card, and support CPU card |

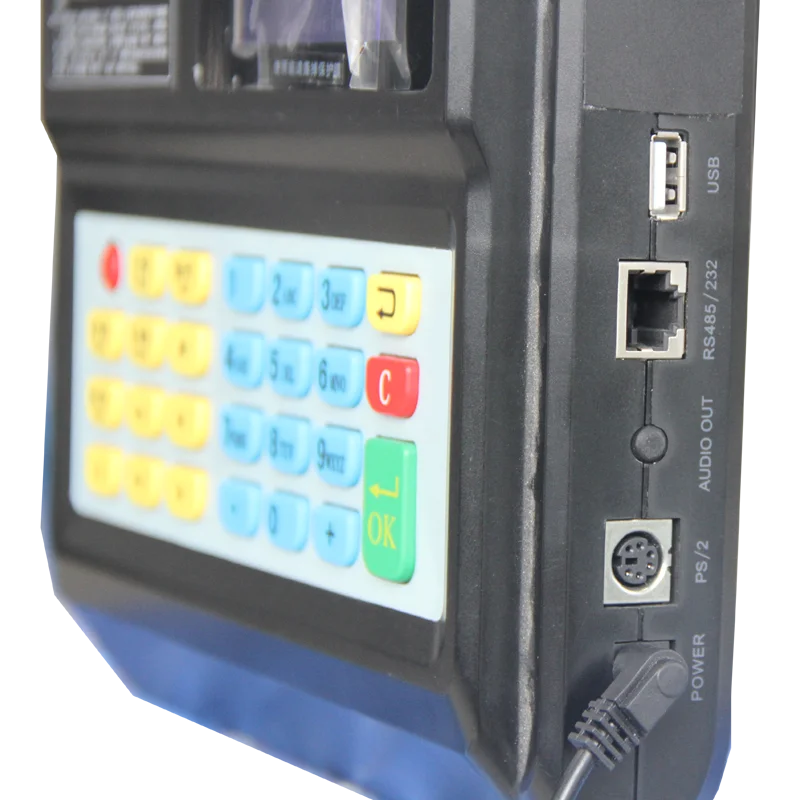

Communication interface | TCP/IP interface, USB interface |
Printing module | Built-in thermal printer |
Note paper width | 58mm |
Working mode | stand-alone or networked |
Power loss | static: ≤0.2 W, dynamic: ≤15 W |
Wireless communication module support | 2G/3G/4G optional |
WIFI supports | 802.11n/b/g standard, 150Mbps, 2.4GHz |
Bluetooth support | Support |
UnionPay function | UnionPay Compatible with PBOC3.0 UnionPay card |
Alarm reminder | hen the balance on the card is less than the unit price, alarm reminder when the data is full |
Collection method | WIFI, Bluetooth short-distance wireless collection GPRS/CDMA/3G/4G remote wireless acquisition TCP/IP connection collection U Disk Collection |
