Product Description
The intelligent industrial POS dedicated board adopts the Rockchip micro quad-core chip RK3288 solution with a frequency of 1.8GHz.
The intelligent power management circuit supports common external devices, with rich interfaces and stable performance.
The board supports dual EDP and LVDS display output interfaces, supports 3G/4G data communication, WIFI/Bluetooth (supports 2.4G/5GWIFI), supports current popular video and picture format decoding, supports dual screen display, and supports 4K.
H.265 hard decoding. Supports single, dual, EDP / LVDS display, very suitable for commercial advertising and POS advertising machines, touch one machine. EDP/LVDS display, very suitable for commercial advertising machines and POS advertising machines, touch all-in-one machines, etc.
Specifications

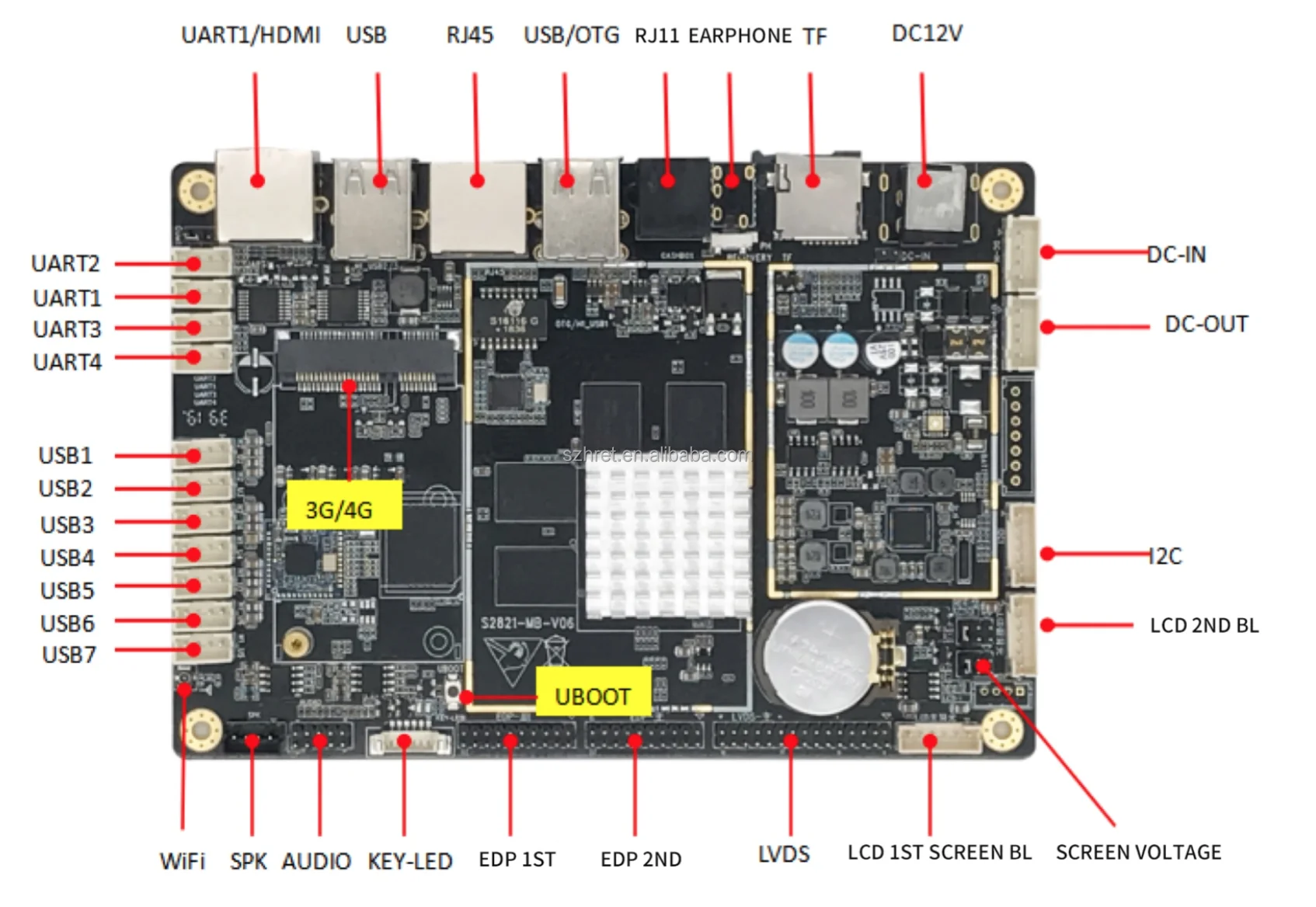

S2821 Android RK3288 Development Board PCBA | ||||||
CPU | RK3288, quad core A17,1.8GHz | |||||
RAM | DDR3 2GB, maximum support 4GB | |||||
ROM | EMMC FLASH 8GB/16G/32G optional (Default 16GB) | |||||
Operating system | Android 5.1/6.0/7.1/8.0/9/0 | |||||
Display interface | 2 EDP interface, 1LVDS interface Support 4K screen 1080P | |||||
Dual screen display different contents | Support | |||||
Backlight voltage | 2-way socket 12V output, 2 switches controllable | |||||
Display voltage | 2-way 3.3V/5V/12V optional | |||||
Internet | 1 PCIE interface, support 3G/4G, 1 RJ45 Ethernet interface,Support Ethernet 1 wifi&BT module supporting Wi-Fi 802.11b/g/n protocol,Support BT3.0/BT4.0 | |||||
TP | Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch. Also support I2C communication | |||||
Serial port | 3-way UART (compatible with RS232) 1 RJ45 socket type RS232 interface | |||||
Cash drawer port | 1 RJ11 socket | |||||
USB port | 11 USB 2.0(10 USB HOST,1 USB OTG),7 internal,4 external | |||||
Other communication port | One I2C interface | |||||
External memory card slot | TF card, max 128GB | |||||
Power input | External 1 12V DC block input Built-in 1 DC12V input socket 4PIN PH2.54, 1 DC12V output Socket 4PIN PH2.54 | |||||
RTC | Support real-time clock, valid within 2 years | |||||
System Upgrade | Support TF card / USB | |||||
Decoding | Support 1080P, 4K H.264/H.265 hard decoding | |||||
Play mode | Support for publishing multiple playback modes such as loop,timing,and insert | |||||
Video playback | Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc. | |||||
