UPRIGHT PUNCHING

Цена:2 973 084,00 ₽ - 4 459 626,00 ₽*

Стоимость в USD (на сегодня):Узнать

Количество:

Specification

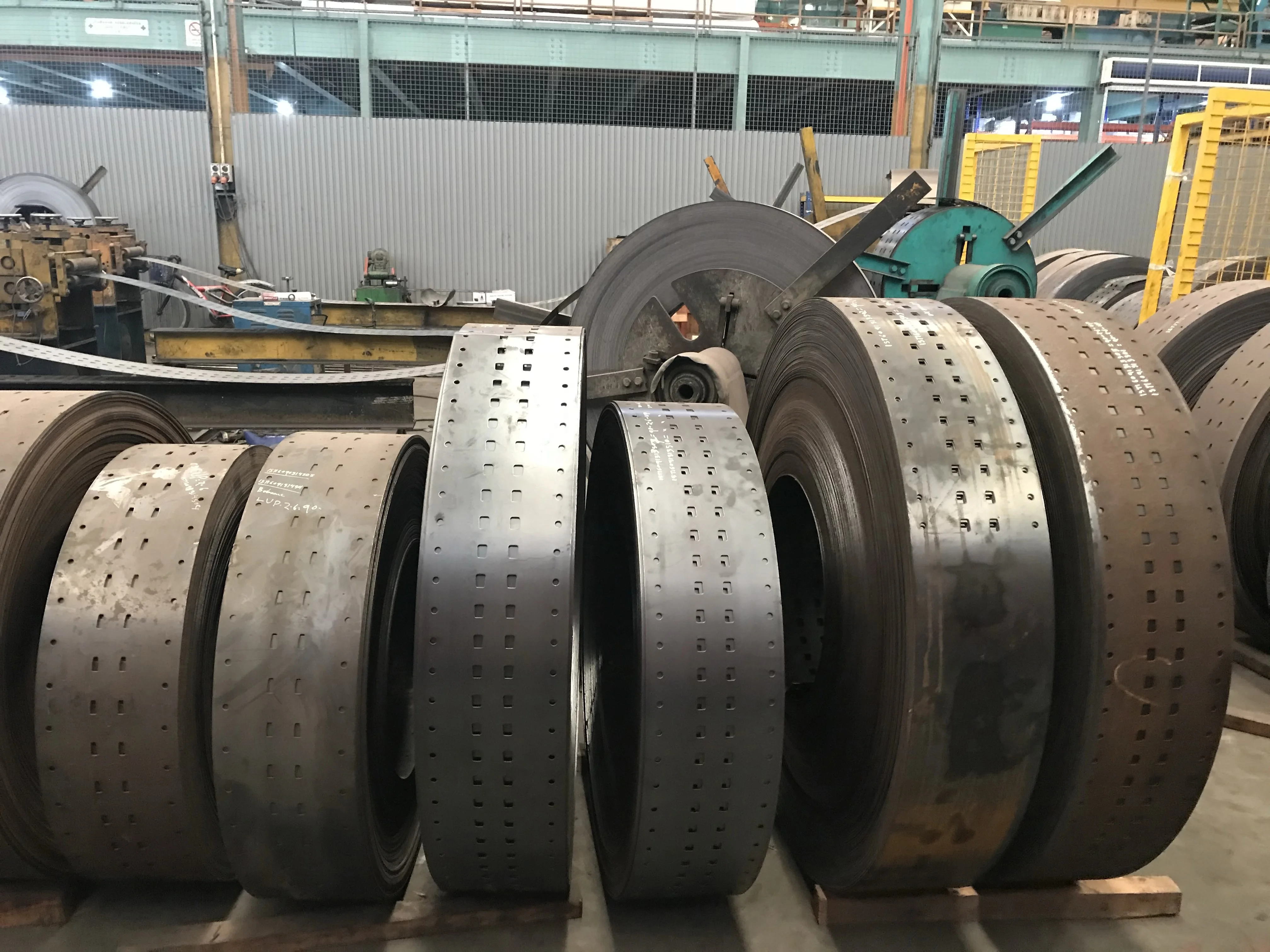

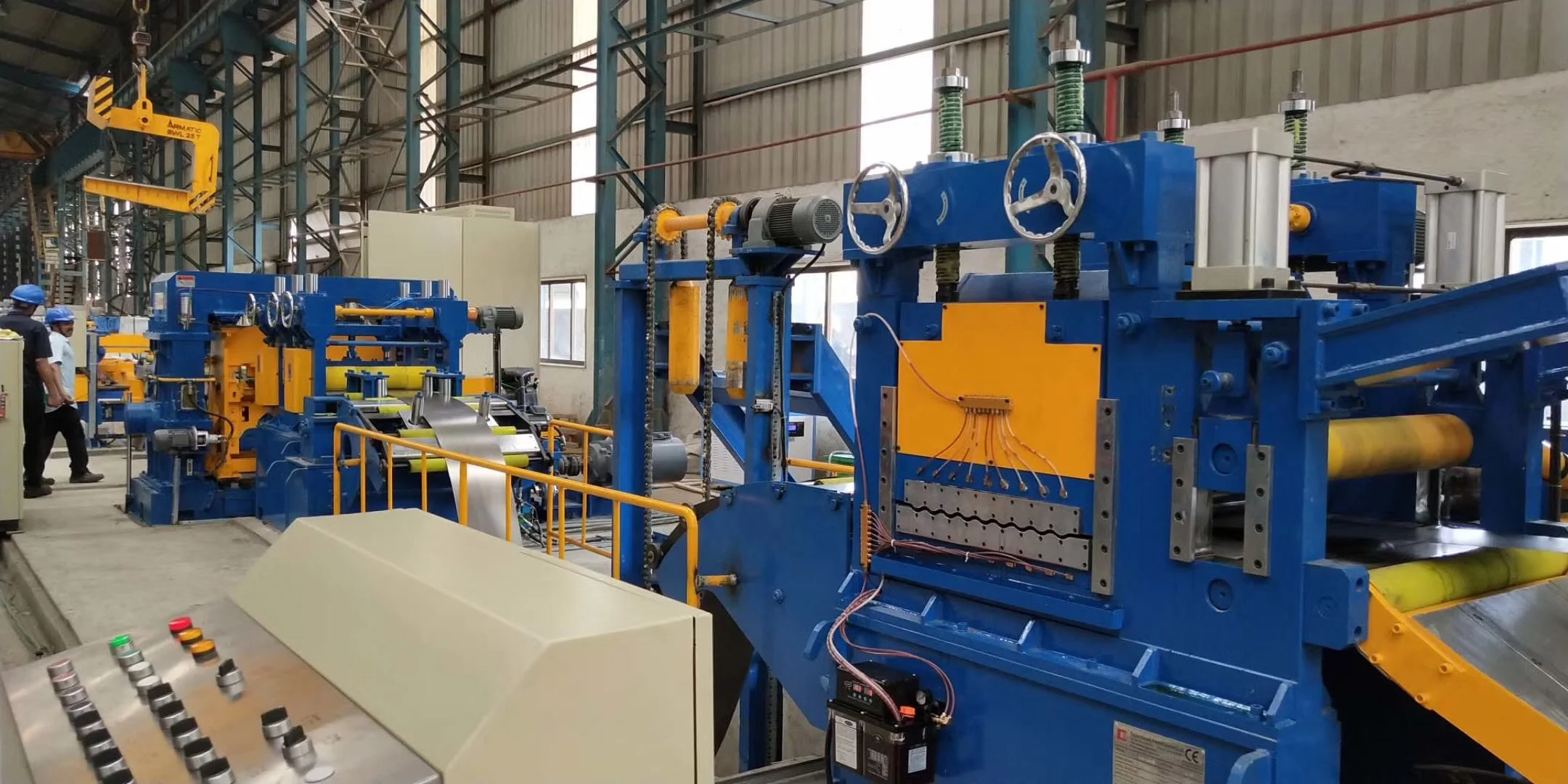

Punching line can do uncoiling, punching and recoiling works, make coil steel to punching as continuous holes then recoiling. It mainly includes coil car, uncoiler, coil guide, power press machine, hydraulic system, Etc. It mainly used in coil or hot rolling carbon steel, silicon steel and all the other kinds of metal materials with surface spreading. This line can be adjusted to do recoiling or dividing work to meet customer’s demand.	INPUT: Material – GI and aluminum Coil OD: 1600 MM Coil ID: 508MM Coil Width: 1300MM (Max.) Thickness: 1.5MM -3.0MM (Max.) Coil Weight: 10Tons OUT PUT: Recoiling speed: 30m/min max Holes punching tolerance: +/-0.5 mm Total power: about 15KW. Power : 380V, 3 phrase and 50HZ

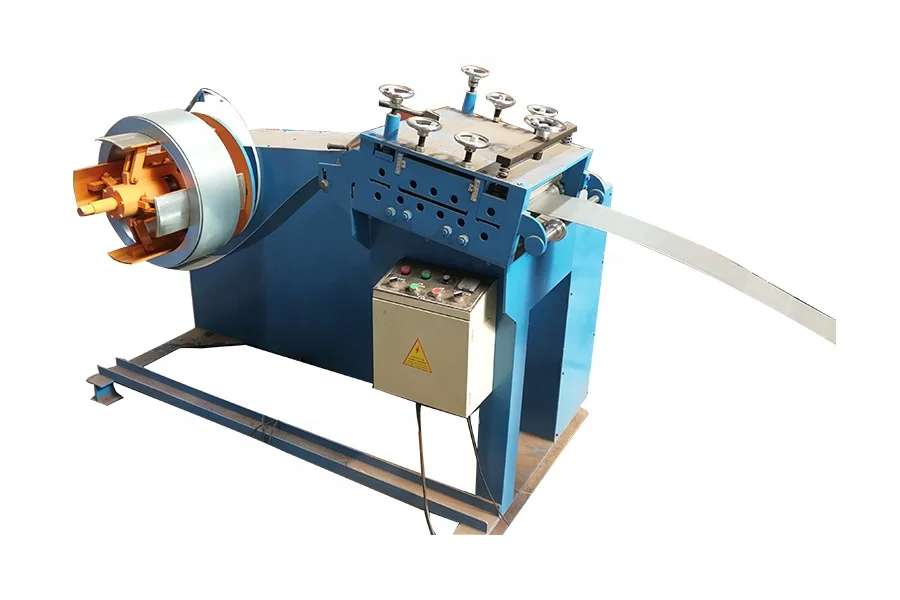

1. coil car 2. decoiler 3. leveler with entry pinch roll for power press 4. Punching Dieset 5. servo feeder 6. tension unit 7. recoiler with coil car 8. Mechanical side guide and guide roll	9. Hydraulic Systems 10. Pneumatic Systems 11. Electric Systems
PLC（Siemens）, Touch Screen（Siemens）,Encoder（Omron）	All Document related to this project will be in English. All communication (Verbal and Written) during the implementation of the project will be in English. All relevant standards will be adhered to in preparation of engineering drawings and documentation. Documentation will be prepared by using following software / tools: Microsoft Office tools (Word, Excel, etc …). AutoCAD. Documentation will be delivered in three sets of paper copies and in CD

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

FAQ

UPRIGHT PUNCHING MACHINE IS BASIS ON CUSTOMER ORDER DESIGN WHICH IT CAN DO HOLE PUNCHING WITH PRECISION CONTROL.
